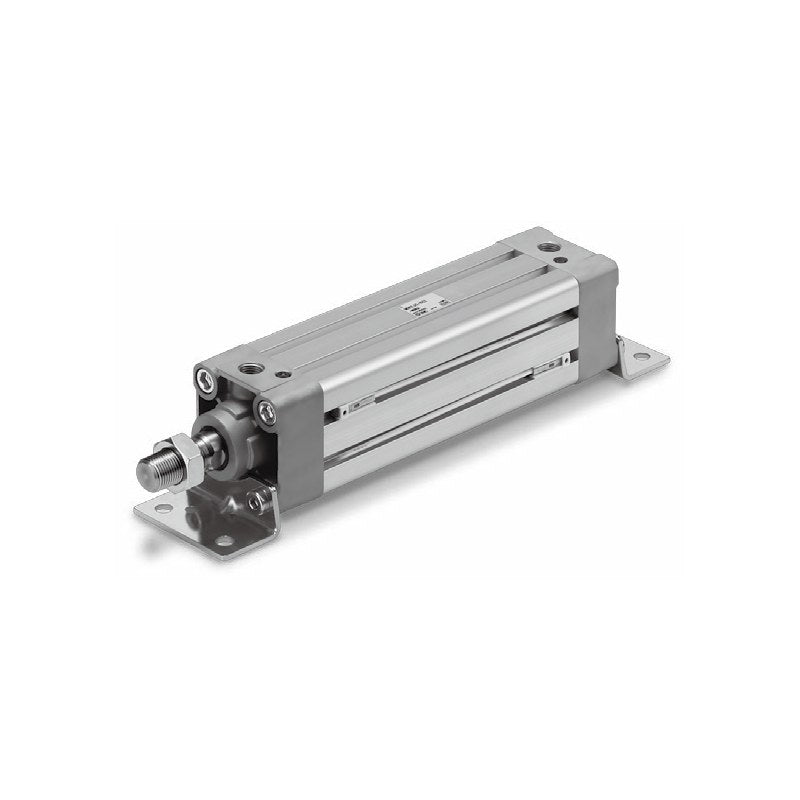

SMC MB1 Square Tube Air Cylinder (Standard, ø32 to ø125)

SMC MB1-Z series square tube air cylinder, double acting, single rod, ø32 to ø125 mm bore, with or without a built-in auto switch magnet (MDB1).

Key features

Square profile tube with grooves on four faces for compact D-M9 / D-A9 auto switches; mounting dimensions equal to the previous MB1
Mounting styles: basic (B), axial foot (L), rod flange (F), head flange (G), single clevis (C), double clevis (D)
Built-in magnet models (MD prefix) accept D-M9 solid state and D-A9 reed auto switches, ordered as a suffix (e.g. -M9BW)
Air cushion standard; rubber cushion (N), bellows (J/K), port thread NPT (TN) / G (TF) as order symbols
Pivot bracket (N) and rod end brackets (V single knuckle, W double knuckle) can be ordered with the cylinder code
Made-to-order options (-XA, -XC3, -XC7, -XC8/XC9 adjustable stroke, -XC10 dual stroke and more) available

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s
Cushion	Air cushion (standard) or rubber cushion (suffix N)
Port size	Rc1/8 (ø32), Rc1/4 (ø40, ø50), Rc3/8 (ø63, ø80), Rc1/2 (ø100, ø125)
Standard strokes	ø32: 25 to 500; ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600; ø80: 25 to 800; ø100: 25 to 800; ø125: 25 to 1000 mm
Source	SMC Korea catalog MB1-Z (SMCKR_MB1-Z.pdf), p. 530-531

MB1B32-25Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B32-50Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B32-75Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B32-100Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B32-125Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B32-150Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B32-175Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B32-200Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B32-250Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B32-300Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B32-350Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B32-400Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B32-450Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B32-500Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B40-25Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B40-50Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B40-75Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B40-100Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B40-125Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B40-150Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B40-175Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B40-200Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B40-250Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B40-300Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B40-350Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B40-400Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B40-450Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B40-500Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B50-25Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B50-50Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B50-75Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B50-100Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B50-125Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B50-150Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B50-175Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B50-200Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B50-250Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B50-300Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B50-350Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B50-400Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B50-450Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B50-500Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B50-600Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1B63-25Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B63-50Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B63-75Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B63-100Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B63-125Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B63-150Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B63-175Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B63-200Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B63-250Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B63-300Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B63-350Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B63-400Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B63-450Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B63-500Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B63-600Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1B80-25Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B80-50Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B80-75Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B80-100Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B80-125Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B80-150Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B80-175Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B80-200Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B80-250Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B80-300Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B80-350Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B80-400Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B80-450Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B80-500Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B80-600Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1B80-700Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1B80-800Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1B100-25Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B100-50Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B100-75Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B100-100Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B100-125Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B100-150Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B100-175Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B100-200Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B100-250Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B100-300Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B100-350Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B100-400Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B100-450Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B100-500Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B100-600Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1B100-700Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1B100-800Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1B125-25Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1B125-50Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1B125-75Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1B125-100Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1B125-125Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1B125-150Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1B125-175Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1B125-200Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1B125-250Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1B125-300Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1B125-350Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1B125-400Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1B125-450Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1B125-500Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1B125-600Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1B125-700Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1B125-800Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1B125-1000Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB1L32-25Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L32-50Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L32-75Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L32-100Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L32-125Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L32-150Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L32-175Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L32-200Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L32-250Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L32-300Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L32-350Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L32-400Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L32-450Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L32-500Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L40-25Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L40-50Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L40-75Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L40-100Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L40-125Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L40-150Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L40-175Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L40-200Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L40-250Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L40-300Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L40-350Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L40-400Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L40-450Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L40-500Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L50-25Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L50-50Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L50-75Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L50-100Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L50-125Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L50-150Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L50-175Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L50-200Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L50-250Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L50-300Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L50-350Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L50-400Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L50-450Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L50-500Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L50-600Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1L63-25Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L63-50Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L63-75Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L63-100Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L63-125Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L63-150Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L63-175Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L63-200Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L63-250Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L63-300Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L63-350Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L63-400Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L63-450Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L63-500Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L63-600Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1L80-25Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L80-50Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L80-75Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L80-100Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L80-125Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L80-150Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L80-175Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L80-200Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L80-250Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L80-300Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L80-350Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L80-400Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L80-450Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L80-500Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L80-600Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1L80-700Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1L80-800Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1L100-25Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L100-50Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L100-75Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L100-100Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L100-125Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L100-150Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L100-175Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L100-200Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L100-250Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L100-300Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L100-350Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L100-400Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L100-450Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L100-500Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L100-600Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1L100-700Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1L100-800Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1L125-25Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1L125-50Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1L125-75Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1L125-100Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1L125-125Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1L125-150Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1L125-175Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1L125-200Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1L125-250Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1L125-300Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1L125-350Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1L125-400Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1L125-450Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1L125-500Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1L125-600Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1L125-700Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1L125-800Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1L125-1000Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB1F32-25Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F32-50Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F32-75Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F32-100Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F32-125Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F32-150Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F32-175Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F32-200Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F32-250Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F32-300Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F32-350Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F32-400Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F32-450Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F32-500Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F40-25Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F40-50Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F40-75Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F40-100Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F40-125Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F40-150Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F40-175Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F40-200Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F40-250Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F40-300Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F40-350Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F40-400Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F40-450Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F40-500Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F50-25Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F50-50Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F50-75Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F50-100Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F50-125Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F50-150Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F50-175Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F50-200Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F50-250Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F50-300Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F50-350Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F50-400Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F50-450Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F50-500Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F50-600Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1F63-25Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F63-50Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F63-75Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F63-100Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F63-125Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F63-150Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F63-175Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F63-200Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F63-250Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F63-300Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F63-350Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F63-400Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F63-450Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F63-500Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F63-600Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1F80-25Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F80-50Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F80-75Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F80-100Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F80-125Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F80-150Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F80-175Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F80-200Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F80-250Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F80-300Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F80-350Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F80-400Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F80-450Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F80-500Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F80-600Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1F80-700Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1F80-800Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1F100-25Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F100-50Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F100-75Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F100-100Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F100-125Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F100-150Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F100-175Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F100-200Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F100-250Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F100-300Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F100-350Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F100-400Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F100-450Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F100-500Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F100-600Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1F100-700Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1F100-800Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1F125-25Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1F125-50Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1F125-75Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1F125-100Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1F125-125Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1F125-150Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1F125-175Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1F125-200Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1F125-250Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1F125-300Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1F125-350Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1F125-400Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1F125-450Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1F125-500Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1F125-600Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1F125-700Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1F125-800Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1F125-1000Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB1G32-25Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G32-50Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G32-75Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G32-100Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G32-125Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G32-150Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G32-175Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G32-200Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G32-250Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G32-300Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G32-350Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G32-400Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G32-450Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G32-500Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G40-25Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G40-50Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G40-75Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G40-100Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G40-125Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G40-150Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G40-175Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G40-200Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G40-250Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G40-300Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G40-350Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G40-400Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G40-450Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G40-500Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G50-25Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G50-50Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G50-75Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G50-100Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G50-125Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G50-150Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G50-175Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G50-200Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G50-250Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G50-300Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G50-350Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G50-400Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G50-450Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G50-500Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G50-600Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1G63-25Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G63-50Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G63-75Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G63-100Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G63-125Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G63-150Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G63-175Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G63-200Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G63-250Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G63-300Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G63-350Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G63-400Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G63-450Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G63-500Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G63-600Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1G80-25Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G80-50Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G80-75Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G80-100Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G80-125Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G80-150Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G80-175Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G80-200Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G80-250Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G80-300Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G80-350Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G80-400Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G80-450Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G80-500Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G80-600Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1G80-700Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1G80-800Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1G100-25Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G100-50Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G100-75Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G100-100Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G100-125Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G100-150Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G100-175Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G100-200Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G100-250Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G100-300Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G100-350Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G100-400Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G100-450Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G100-500Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G100-600Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1G100-700Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1G100-800Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1G125-25Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1G125-50Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1G125-75Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1G125-100Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1G125-125Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1G125-150Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1G125-175Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1G125-200Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1G125-250Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1G125-300Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1G125-350Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1G125-400Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1G125-450Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1G125-500Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1G125-600Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1G125-700Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1G125-800Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1G125-1000Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB1C32-25Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C32-50Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C32-75Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C32-100Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C32-125Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C32-150Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C32-175Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C32-200Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C32-250Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C32-300Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C32-350Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C32-400Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C32-450Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C32-500Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C40-25Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C40-50Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C40-75Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C40-100Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C40-125Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C40-150Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C40-175Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C40-200Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C40-250Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C40-300Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C40-350Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C40-400Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C40-450Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C40-500Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C50-25Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C50-50Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C50-75Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C50-100Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C50-125Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C50-150Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C50-175Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C50-200Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C50-250Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C50-300Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C50-350Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C50-400Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C50-450Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C50-500Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C50-600Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1C63-25Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C63-50Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C63-75Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C63-100Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C63-125Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C63-150Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C63-175Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C63-200Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C63-250Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C63-300Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C63-350Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C63-400Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C63-450Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C63-500Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C63-600Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1C80-25Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C80-50Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C80-75Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C80-100Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C80-125Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C80-150Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C80-175Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C80-200Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C80-250Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C80-300Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C80-350Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C80-400Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C80-450Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C80-500Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C80-600Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1C80-700Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1C80-800Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1C100-25Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C100-50Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C100-75Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C100-100Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C100-125Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C100-150Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C100-175Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C100-200Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C100-250Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C100-300Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C100-350Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C100-400Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C100-450Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C100-500Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C100-600Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1C100-700Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1C100-800Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1C125-25Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1C125-50Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1C125-75Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1C125-100Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1C125-125Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1C125-150Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1C125-175Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1C125-200Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1C125-250Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1C125-300Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1C125-350Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1C125-400Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1C125-450Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1C125-500Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1C125-600Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1C125-700Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1C125-800Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1C125-1000Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB1D32-25Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D32-50Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D32-75Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D32-100Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D32-125Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D32-150Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D32-175Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D32-200Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D32-250Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D32-300Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D32-350Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D32-400Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D32-450Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D32-500Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D40-25Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D40-50Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D40-75Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D40-100Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D40-125Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D40-150Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D40-175Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D40-200Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D40-250Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D40-300Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D40-350Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D40-400Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D40-450Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D40-500Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D50-25Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D50-50Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D50-75Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D50-100Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D50-125Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D50-150Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D50-175Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D50-200Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D50-250Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D50-300Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D50-350Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D50-400Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D50-450Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D50-500Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D50-600Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1D63-25Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D63-50Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D63-75Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D63-100Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D63-125Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D63-150Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D63-175Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D63-200Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D63-250Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D63-300Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D63-350Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D63-400Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D63-450Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D63-500Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D63-600Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1D80-25Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D80-50Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D80-75Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D80-100Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D80-125Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D80-150Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D80-175Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D80-200Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D80-250Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D80-300Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D80-350Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D80-400Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D80-450Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D80-500Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D80-600Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1D80-700Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1D80-800Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1D100-25Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D100-50Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D100-75Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D100-100Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D100-125Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D100-150Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D100-175Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D100-200Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D100-250Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D100-300Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D100-350Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D100-400Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D100-450Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D100-500Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D100-600Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1D100-700Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1D100-800Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1D125-25Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
MB1D125-50Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB1D125-75Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB1D125-100Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB1D125-125Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB1D125-150Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB1D125-175Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB1D125-200Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB1D125-250Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB1D125-300Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB1D125-350Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB1D125-400Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB1D125-450Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB1D125-500Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB1D125-600Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB1D125-700Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB1D125-800Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB1D125-1000Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MDB1B32-25Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B32-50Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B32-75Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B32-100Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B32-125Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B32-150Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B32-175Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B32-200Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B32-250Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B32-300Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B32-350Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B32-400Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B32-450Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B32-500Z		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B40-25Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B40-50Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B40-75Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B40-100Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B40-125Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B40-150Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B40-175Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B40-200Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B40-250Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B40-300Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B40-350Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B40-400Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B40-450Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B40-500Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B50-25Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B50-50Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B50-75Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B50-100Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B50-125Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B50-150Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B50-175Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B50-200Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B50-250Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B50-300Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B50-350Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B50-400Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B50-450Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B50-500Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B50-600Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1B63-25Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B63-50Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B63-75Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B63-100Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B63-125Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B63-150Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B63-175Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B63-200Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B63-250Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B63-300Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B63-350Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B63-400Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B63-450Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B63-500Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B63-600Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1B80-25Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B80-50Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B80-75Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B80-100Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B80-125Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B80-150Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B80-175Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B80-200Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B80-250Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B80-300Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B80-350Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B80-400Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B80-450Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B80-500Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B80-600Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1B80-700Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1B80-800Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1B100-25Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B100-50Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B100-75Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B100-100Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B100-125Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B100-150Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B100-175Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B100-200Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B100-250Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B100-300Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B100-350Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B100-400Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B100-450Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B100-500Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B100-600Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1B100-700Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1B100-800Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1B125-25Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1B125-50Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1B125-75Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1B125-100Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1B125-125Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1B125-150Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1B125-175Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1B125-200Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1B125-250Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1B125-300Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1B125-350Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1B125-400Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1B125-450Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1B125-500Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1B125-600Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1B125-700Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1B125-800Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1B125-1000Z		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB1L32-25Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L32-50Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L32-75Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L32-100Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L32-125Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L32-150Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L32-175Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L32-200Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L32-250Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L32-300Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L32-350Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L32-400Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L32-450Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L32-500Z		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L40-25Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L40-50Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L40-75Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L40-100Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L40-125Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L40-150Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L40-175Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L40-200Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L40-250Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L40-300Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L40-350Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L40-400Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L40-450Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L40-500Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L50-25Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L50-50Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L50-75Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L50-100Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L50-125Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L50-150Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L50-175Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L50-200Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L50-250Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L50-300Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L50-350Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L50-400Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L50-450Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L50-500Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L50-600Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1L63-25Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L63-50Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L63-75Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L63-100Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L63-125Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L63-150Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L63-175Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L63-200Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L63-250Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L63-300Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L63-350Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L63-400Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L63-450Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L63-500Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L63-600Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1L80-25Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L80-50Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L80-75Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L80-100Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L80-125Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L80-150Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L80-175Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L80-200Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L80-250Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L80-300Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L80-350Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L80-400Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L80-450Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L80-500Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L80-600Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1L80-700Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1L80-800Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1L100-25Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L100-50Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L100-75Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L100-100Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L100-125Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L100-150Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L100-175Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L100-200Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L100-250Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L100-300Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L100-350Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L100-400Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L100-450Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L100-500Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L100-600Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1L100-700Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1L100-800Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1L125-25Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1L125-50Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1L125-75Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1L125-100Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1L125-125Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1L125-150Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1L125-175Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1L125-200Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1L125-250Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1L125-300Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1L125-350Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1L125-400Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1L125-450Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1L125-500Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1L125-600Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1L125-700Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1L125-800Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1L125-1000Z		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB1F32-25Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F32-50Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F32-75Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F32-100Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F32-125Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F32-150Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F32-175Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F32-200Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F32-250Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F32-300Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F32-350Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F32-400Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F32-450Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F32-500Z		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F40-25Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F40-50Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F40-75Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F40-100Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F40-125Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F40-150Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F40-175Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F40-200Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F40-250Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F40-300Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F40-350Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F40-400Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F40-450Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F40-500Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F50-25Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F50-50Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F50-75Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F50-100Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F50-125Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F50-150Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F50-175Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F50-200Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F50-250Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F50-300Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F50-350Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F50-400Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F50-450Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F50-500Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F50-600Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1F63-25Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F63-50Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F63-75Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F63-100Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F63-125Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F63-150Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F63-175Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F63-200Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F63-250Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F63-300Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F63-350Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F63-400Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F63-450Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F63-500Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F63-600Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1F80-25Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F80-50Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F80-75Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F80-100Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F80-125Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F80-150Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F80-175Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F80-200Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F80-250Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F80-300Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F80-350Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F80-400Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F80-450Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F80-500Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F80-600Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1F80-700Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1F80-800Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1F100-25Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F100-50Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F100-75Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F100-100Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F100-125Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F100-150Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F100-175Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F100-200Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F100-250Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F100-300Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F100-350Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F100-400Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F100-450Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F100-500Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F100-600Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1F100-700Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1F100-800Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1F125-25Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1F125-50Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1F125-75Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1F125-100Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1F125-125Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1F125-150Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1F125-175Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1F125-200Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1F125-250Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1F125-300Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1F125-350Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1F125-400Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1F125-450Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1F125-500Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1F125-600Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1F125-700Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1F125-800Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1F125-1000Z		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB1G32-25Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G32-50Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G32-75Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G32-100Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G32-125Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G32-150Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G32-175Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G32-200Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G32-250Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G32-300Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G32-350Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G32-400Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G32-450Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G32-500Z		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G40-25Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G40-50Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G40-75Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G40-100Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G40-125Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G40-150Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G40-175Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G40-200Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G40-250Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G40-300Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G40-350Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G40-400Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G40-450Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G40-500Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G50-25Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G50-50Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G50-75Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G50-100Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G50-125Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G50-150Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G50-175Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G50-200Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G50-250Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G50-300Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G50-350Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G50-400Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G50-450Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G50-500Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G50-600Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1G63-25Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G63-50Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G63-75Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G63-100Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G63-125Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G63-150Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G63-175Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G63-200Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G63-250Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G63-300Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G63-350Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G63-400Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G63-450Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G63-500Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G63-600Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1G80-25Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G80-50Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G80-75Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G80-100Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G80-125Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G80-150Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G80-175Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G80-200Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G80-250Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G80-300Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G80-350Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G80-400Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G80-450Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G80-500Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G80-600Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1G80-700Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1G80-800Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1G100-25Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G100-50Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G100-75Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G100-100Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G100-125Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G100-150Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G100-175Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G100-200Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G100-250Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G100-300Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G100-350Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G100-400Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G100-450Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G100-500Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G100-600Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1G100-700Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1G100-800Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1G125-25Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1G125-50Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1G125-75Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1G125-100Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1G125-125Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1G125-150Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1G125-175Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1G125-200Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1G125-250Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1G125-300Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1G125-350Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1G125-400Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1G125-450Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1G125-500Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1G125-600Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1G125-700Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1G125-800Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1G125-1000Z		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB1C32-25Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C32-50Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C32-75Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C32-100Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C32-125Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C32-150Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C32-175Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C32-200Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C32-250Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C32-300Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C32-350Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C32-400Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C32-450Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C32-500Z		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C40-25Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C40-50Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C40-75Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C40-100Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C40-125Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C40-150Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C40-175Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C40-200Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C40-250Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C40-300Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C40-350Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C40-400Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C40-450Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C40-500Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C50-25Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C50-50Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C50-75Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C50-100Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C50-125Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C50-150Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C50-175Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C50-200Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C50-250Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C50-300Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C50-350Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C50-400Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C50-450Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C50-500Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C50-600Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1C63-25Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C63-50Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C63-75Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C63-100Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C63-125Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C63-150Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C63-175Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C63-200Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C63-250Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C63-300Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C63-350Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C63-400Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C63-450Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C63-500Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C63-600Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1C80-25Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C80-50Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C80-75Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C80-100Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C80-125Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C80-150Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C80-175Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C80-200Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C80-250Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C80-300Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C80-350Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C80-400Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C80-450Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C80-500Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C80-600Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1C80-700Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1C80-800Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1C100-25Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C100-50Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C100-75Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C100-100Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C100-125Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C100-150Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C100-175Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C100-200Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C100-250Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C100-300Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C100-350Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C100-400Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C100-450Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C100-500Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C100-600Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1C100-700Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1C100-800Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1C125-25Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1C125-50Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1C125-75Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1C125-100Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1C125-125Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1C125-150Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1C125-175Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1C125-200Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1C125-250Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1C125-300Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1C125-350Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1C125-400Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1C125-450Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1C125-500Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1C125-600Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1C125-700Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1C125-800Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1C125-1000Z		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB1D32-25Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D32-50Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D32-75Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D32-100Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D32-125Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D32-150Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D32-175Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D32-200Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D32-250Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D32-300Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D32-350Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D32-400Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D32-450Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D32-500Z		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D40-25Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D40-50Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D40-75Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D40-100Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D40-125Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D40-150Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D40-175Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D40-200Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D40-250Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D40-300Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D40-350Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D40-400Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D40-450Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D40-500Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D50-25Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D50-50Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D50-75Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D50-100Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D50-125Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D50-150Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D50-175Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D50-200Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D50-250Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D50-300Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D50-350Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D50-400Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D50-450Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D50-500Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D50-600Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1D63-25Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D63-50Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D63-75Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D63-100Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D63-125Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D63-150Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D63-175Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D63-200Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D63-250Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D63-300Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D63-350Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D63-400Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D63-450Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D63-500Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D63-600Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1D80-25Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D80-50Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D80-75Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D80-100Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D80-125Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D80-150Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D80-175Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D80-200Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D80-250Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D80-300Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D80-350Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D80-400Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D80-450Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D80-500Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D80-600Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1D80-700Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1D80-800Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1D100-25Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D100-50Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D100-75Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D100-100Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D100-125Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D100-150Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D100-175Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D100-200Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D100-250Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D100-300Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D100-350Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D100-400Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D100-450Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D100-500Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D100-600Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1D100-700Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1D100-800Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1D125-25Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDB1D125-50Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB1D125-75Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB1D125-100Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB1D125-125Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB1D125-150Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB1D125-175Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB1D125-200Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB1D125-250Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB1D125-300Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB1D125-350Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB1D125-400Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB1D125-450Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB1D125-500Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB1D125-600Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB1D125-700Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB1D125-800Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB1D125-1000Z		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1320 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MB1 Square Tube Air Cylinder (Standard, ø32 to ø125)

Brand SMC·Round Body Cylinders

Available part numbers (1320)

MB1B32-25Z, MB1B32-50Z, MB1B32-75Z, MB1B32-100Z, MB1B32-125Z, MB1B32-150Z, MB1B32-175Z, MB1B32-200Z, MB1B32-250Z, MB1B32-300Z + 1310 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MB1B32-25Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B32-50Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B32-75Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B32-100Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B32-125Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B32-150Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B32-175Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B32-200Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B32-250Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B32-300Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B32-350Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B32-400Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B32-450Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B32-500Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B40-25Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B40-50Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B40-75Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B40-100Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B40-125Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B40-150Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B40-175Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B40-200Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B40-250Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B40-300Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B40-350Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B40-400Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B40-450Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B40-500Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B50-25Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B50-50Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B50-75Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B50-100Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B50-125Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B50-150Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B50-175Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B50-200Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B50-250Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B50-300Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B50-350Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B50-400Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B50-450Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B50-500Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B50-600Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1B63-25Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B63-50Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B63-75Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B63-100Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B63-125Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B63-150Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B63-175Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B63-200Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B63-250Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B63-300Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B63-350Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B63-400Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B63-450Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B63-500Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B63-600Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1B80-25Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B80-50Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B80-75Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B80-100Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B80-125Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B80-150Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B80-175Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B80-200Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B80-250Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B80-300Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B80-350Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B80-400Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B80-450Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B80-500Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B80-600Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1B80-700Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1B80-800Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1B100-25Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B100-50Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B100-75Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B100-100Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B100-125Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B100-150Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B100-175Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B100-200Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B100-250Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B100-300Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B100-350Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B100-400Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B100-450Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B100-500Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B100-600Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1B100-700Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1B100-800Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1B125-25Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1B125-50Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1B125-75Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1B125-100Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1B125-125Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1B125-150Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1B125-175Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1B125-200Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1B125-250Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1B125-300Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1B125-350Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1B125-400Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1B125-450Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1B125-500Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1B125-600Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1B125-700Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1B125-800Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1B125-1000Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB1L32-25Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L32-50Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L32-75Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L32-100Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L32-125Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L32-150Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L32-175Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L32-200Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L32-250Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L32-300Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L32-350Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L32-400Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L32-450Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L32-500Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L40-25Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L40-50Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L40-75Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L40-100Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L40-125Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L40-150Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L40-175Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L40-200Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L40-250Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L40-300Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L40-350Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L40-400Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L40-450Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L40-500Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L50-25Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L50-50Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L50-75Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L50-100Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L50-125Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L50-150Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L50-175Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L50-200Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L50-250Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L50-300Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L50-350Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L50-400Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L50-450Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L50-500Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L50-600Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1L63-25Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L63-50Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L63-75Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L63-100Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L63-125Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L63-150Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L63-175Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L63-200Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L63-250Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L63-300Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L63-350Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L63-400Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L63-450Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L63-500Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L63-600Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1L80-25Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L80-50Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L80-75Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L80-100Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L80-125Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L80-150Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L80-175Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L80-200Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L80-250Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L80-300Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L80-350Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L80-400Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L80-450Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L80-500Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L80-600Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1L80-700Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1L80-800Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1L100-25Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L100-50Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L100-75Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L100-100Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L100-125Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L100-150Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L100-175Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L100-200Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L100-250Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L100-300Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L100-350Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L100-400Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L100-450Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L100-500Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L100-600Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1L100-700Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1L100-800Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1L125-25Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1L125-50Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1L125-75Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1L125-100Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1L125-125Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1L125-150Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1L125-175Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1L125-200Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1L125-250Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1L125-300Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1L125-350Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1L125-400Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1L125-450Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1L125-500Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1L125-600Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1L125-700Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1L125-800Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1L125-1000Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB1F32-25Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F32-50Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F32-75Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F32-100Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F32-125Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F32-150Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F32-175Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F32-200Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F32-250Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F32-300Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F32-350Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F32-400Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F32-450Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F32-500Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F40-25Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F40-50Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F40-75Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F40-100Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F40-125Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F40-150Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F40-175Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F40-200Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F40-250Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F40-300Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F40-350Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F40-400Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F40-450Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F40-500Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F50-25Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F50-50Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F50-75Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F50-100Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F50-125Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F50-150Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F50-175Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F50-200Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F50-250Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F50-300Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F50-350Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F50-400Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F50-450Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F50-500Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F50-600Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1F63-25Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F63-50Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F63-75Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F63-100Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F63-125Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F63-150Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F63-175Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F63-200Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F63-250Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F63-300Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F63-350Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F63-400Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F63-450Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F63-500Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F63-600Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1F80-25Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F80-50Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F80-75Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F80-100Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F80-125Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F80-150Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F80-175Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F80-200Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F80-250Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F80-300Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F80-350Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F80-400Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F80-450Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F80-500Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F80-600Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1F80-700Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1F80-800Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1F100-25Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F100-50Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F100-75Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F100-100Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F100-125Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F100-150Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F100-175Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F100-200Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F100-250Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F100-300Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F100-350Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F100-400Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F100-450Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F100-500Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F100-600Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1F100-700Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1F100-800Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1F125-25Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1F125-50Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1F125-75Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1F125-100Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1F125-125Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1F125-150Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1F125-175Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1F125-200Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1F125-250Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1F125-300Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1F125-350Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1F125-400Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1F125-450Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1F125-500Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1F125-600Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1F125-700Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1F125-800Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1F125-1000Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB1G32-25Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G32-50Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G32-75Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G32-100Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G32-125Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G32-150Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G32-175Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G32-200Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G32-250Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G32-300Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G32-350Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G32-400Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G32-450Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G32-500Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G40-25Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G40-50Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G40-75Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G40-100Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G40-125Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G40-150Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G40-175Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G40-200Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G40-250Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G40-300Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G40-350Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G40-400Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G40-450Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G40-500Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G50-25Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G50-50Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G50-75Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G50-100Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G50-125Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G50-150Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G50-175Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G50-200Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G50-250Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G50-300Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G50-350Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G50-400Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G50-450Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G50-500Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G50-600Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1G63-25Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G63-50Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G63-75Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G63-100Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G63-125Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G63-150Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G63-175Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G63-200Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G63-250Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G63-300Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G63-350Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G63-400Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G63-450Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G63-500Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G63-600Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1G80-25Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G80-50Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G80-75Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G80-100Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G80-125Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G80-150Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G80-175Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G80-200Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G80-250Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G80-300Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G80-350Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G80-400Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G80-450Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G80-500Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G80-600Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1G80-700Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1G80-800Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1G100-25Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G100-50Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G100-75Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G100-100Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G100-125Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G100-150Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G100-175Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G100-200Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G100-250Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G100-300Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G100-350Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G100-400Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G100-450Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G100-500Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G100-600Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1G100-700Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1G100-800Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1G125-25Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1G125-50Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1G125-75Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1G125-100Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1G125-125Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1G125-150Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1G125-175Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1G125-200Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1G125-250Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1G125-300Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1G125-350Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1G125-400Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1G125-450Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1G125-500Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1G125-600Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1G125-700Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1G125-800Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1G125-1000Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB1C32-25Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C32-50Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C32-75Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C32-100Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C32-125Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C32-150Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C32-175Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C32-200Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C32-250Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C32-300Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C32-350Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C32-400Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C32-450Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C32-500Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C40-25Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C40-50Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C40-75Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C40-100Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C40-125Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C40-150Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C40-175Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C40-200Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C40-250Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C40-300Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C40-350Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C40-400Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C40-450Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C40-500Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C50-25Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C50-50Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C50-75Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C50-100Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C50-125Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C50-150Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C50-175Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C50-200Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C50-250Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C50-300Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C50-350Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C50-400Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C50-450Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C50-500Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C50-600Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1C63-25Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C63-50Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C63-75Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C63-100Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C63-125Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C63-150Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C63-175Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C63-200Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C63-250Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C63-300Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C63-350Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C63-400Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C63-450Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C63-500Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C63-600Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1C80-25Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C80-50Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C80-75Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C80-100Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C80-125Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C80-150Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C80-175Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C80-200Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C80-250Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C80-300Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C80-350Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C80-400Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C80-450Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C80-500Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C80-600Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1C80-700Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1C80-800Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1C100-25Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C100-50Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C100-75Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C100-100Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C100-125Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C100-150Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C100-175Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C100-200Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C100-250Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C100-300Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C100-350Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C100-400Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C100-450Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C100-500Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C100-600Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1C100-700Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1C100-800Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1C125-25Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1C125-50Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1C125-75Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1C125-100Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1C125-125Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1C125-150Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1C125-175Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1C125-200Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1C125-250Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1C125-300Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1C125-350Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1C125-400Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1C125-450Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1C125-500Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1C125-600Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1C125-700Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1C125-800Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1C125-1000Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB1D32-25Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D32-50Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D32-75Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D32-100Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D32-125Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D32-150Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D32-175Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D32-200Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D32-250Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D32-300Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D32-350Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D32-400Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D32-450Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D32-500Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D40-25Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D40-50Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D40-75Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D40-100Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D40-125Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D40-150Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D40-175Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D40-200Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D40-250Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D40-300Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D40-350Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D40-400Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D40-450Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D40-500Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D50-25Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D50-50Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D50-75Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D50-100Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D50-125Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D50-150Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D50-175Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D50-200Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D50-250Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D50-300Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D50-350Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D50-400Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D50-450Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D50-500Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D50-600Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1D63-25Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D63-50Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D63-75Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D63-100Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D63-125Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D63-150Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D63-175Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D63-200Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D63-250Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D63-300Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D63-350Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D63-400Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D63-450Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D63-500Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D63-600Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1D80-25Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D80-50Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D80-75Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D80-100Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D80-125Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D80-150Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D80-175Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D80-200Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D80-250Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D80-300Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D80-350Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D80-400Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D80-450Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D80-500Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D80-600Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1D80-700Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1D80-800Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1D100-25Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D100-50Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D100-75Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D100-100Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D100-125Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D100-150Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D100-175Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D100-200Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D100-250Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D100-300Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D100-350Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D100-400Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D100-450Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D100-500Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D100-600Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1D100-700Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1D100-800Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1D125-25Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MB1D125-50Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB1D125-75Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB1D125-100Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB1D125-125Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB1D125-150Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB1D125-175Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB1D125-200Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB1D125-250Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB1D125-300Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB1D125-350Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB1D125-400Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB1D125-450Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB1D125-500Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB1D125-600Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB1D125-700Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB1D125-800Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB1D125-1000Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MDB1B32-25Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B32-50Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B32-75Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B32-100Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B32-125Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B32-150Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B32-175Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B32-200Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B32-250Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B32-300Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B32-350Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B32-400Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B32-450Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B32-500Z	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B40-25Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B40-50Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B40-75Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B40-100Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B40-125Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B40-150Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B40-175Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B40-200Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B40-250Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B40-300Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B40-350Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B40-400Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B40-450Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B40-500Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B50-25Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B50-50Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B50-75Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B50-100Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B50-125Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B50-150Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B50-175Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B50-200Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B50-250Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B50-300Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B50-350Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B50-400Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B50-450Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B50-500Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B50-600Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1B63-25Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B63-50Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B63-75Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B63-100Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B63-125Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B63-150Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B63-175Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B63-200Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B63-250Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B63-300Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B63-350Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B63-400Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B63-450Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B63-500Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B63-600Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1B80-25Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B80-50Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B80-75Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B80-100Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B80-125Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B80-150Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B80-175Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B80-200Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B80-250Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B80-300Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B80-350Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B80-400Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B80-450Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B80-500Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B80-600Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1B80-700Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1B80-800Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1B100-25Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B100-50Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B100-75Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B100-100Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B100-125Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B100-150Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B100-175Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B100-200Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B100-250Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B100-300Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B100-350Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B100-400Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B100-450Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B100-500Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B100-600Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1B100-700Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1B100-800Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1B125-25Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1B125-50Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1B125-75Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1B125-100Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1B125-125Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1B125-150Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1B125-175Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1B125-200Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1B125-250Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1B125-300Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1B125-350Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1B125-400Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1B125-450Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1B125-500Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1B125-600Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1B125-700Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1B125-800Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1B125-1000Z	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB1L32-25Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L32-50Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L32-75Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L32-100Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L32-125Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L32-150Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L32-175Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L32-200Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L32-250Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L32-300Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L32-350Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L32-400Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L32-450Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L32-500Z	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L40-25Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L40-50Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L40-75Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L40-100Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L40-125Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L40-150Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L40-175Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L40-200Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L40-250Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L40-300Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L40-350Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L40-400Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L40-450Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L40-500Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L50-25Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L50-50Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L50-75Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L50-100Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L50-125Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L50-150Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L50-175Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L50-200Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L50-250Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L50-300Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L50-350Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L50-400Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L50-450Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L50-500Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L50-600Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1L63-25Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L63-50Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L63-75Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L63-100Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L63-125Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L63-150Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L63-175Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L63-200Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L63-250Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L63-300Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L63-350Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L63-400Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L63-450Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L63-500Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L63-600Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1L80-25Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L80-50Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L80-75Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L80-100Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L80-125Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L80-150Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L80-175Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L80-200Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L80-250Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L80-300Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L80-350Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L80-400Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L80-450Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L80-500Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L80-600Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1L80-700Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1L80-800Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1L100-25Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L100-50Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L100-75Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L100-100Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L100-125Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L100-150Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L100-175Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L100-200Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L100-250Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L100-300Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L100-350Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L100-400Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L100-450Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L100-500Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L100-600Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1L100-700Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1L100-800Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1L125-25Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1L125-50Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1L125-75Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1L125-100Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1L125-125Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1L125-150Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1L125-175Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1L125-200Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1L125-250Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1L125-300Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1L125-350Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1L125-400Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1L125-450Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1L125-500Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1L125-600Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1L125-700Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1L125-800Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1L125-1000Z	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB1F32-25Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F32-50Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F32-75Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F32-100Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F32-125Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F32-150Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F32-175Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F32-200Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F32-250Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F32-300Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F32-350Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F32-400Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F32-450Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F32-500Z	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F40-25Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F40-50Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F40-75Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F40-100Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F40-125Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F40-150Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F40-175Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F40-200Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F40-250Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F40-300Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F40-350Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F40-400Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F40-450Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F40-500Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F50-25Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F50-50Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F50-75Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F50-100Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F50-125Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F50-150Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F50-175Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F50-200Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F50-250Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F50-300Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F50-350Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F50-400Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F50-450Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F50-500Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F50-600Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1F63-25Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F63-50Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F63-75Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F63-100Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F63-125Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F63-150Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F63-175Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F63-200Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F63-250Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F63-300Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F63-350Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F63-400Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F63-450Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F63-500Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F63-600Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1F80-25Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F80-50Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F80-75Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F80-100Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F80-125Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F80-150Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F80-175Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F80-200Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F80-250Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F80-300Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F80-350Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F80-400Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F80-450Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F80-500Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F80-600Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1F80-700Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1F80-800Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1F100-25Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F100-50Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F100-75Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F100-100Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F100-125Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F100-150Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F100-175Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F100-200Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F100-250Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F100-300Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F100-350Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F100-400Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F100-450Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F100-500Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F100-600Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1F100-700Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1F100-800Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1F125-25Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1F125-50Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1F125-75Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1F125-100Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1F125-125Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1F125-150Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1F125-175Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1F125-200Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1F125-250Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1F125-300Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1F125-350Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1F125-400Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1F125-450Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1F125-500Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1F125-600Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1F125-700Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1F125-800Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1F125-1000Z	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB1G32-25Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G32-50Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G32-75Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G32-100Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G32-125Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G32-150Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G32-175Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G32-200Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G32-250Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G32-300Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G32-350Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G32-400Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G32-450Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G32-500Z	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G40-25Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G40-50Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G40-75Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G40-100Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G40-125Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G40-150Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G40-175Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G40-200Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G40-250Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G40-300Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G40-350Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G40-400Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G40-450Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G40-500Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G50-25Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G50-50Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G50-75Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G50-100Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G50-125Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G50-150Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G50-175Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G50-200Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G50-250Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G50-300Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G50-350Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G50-400Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G50-450Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G50-500Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G50-600Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1G63-25Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G63-50Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G63-75Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G63-100Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G63-125Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G63-150Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G63-175Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G63-200Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G63-250Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G63-300Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G63-350Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G63-400Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G63-450Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G63-500Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G63-600Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1G80-25Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G80-50Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G80-75Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G80-100Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G80-125Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G80-150Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G80-175Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G80-200Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G80-250Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G80-300Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G80-350Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G80-400Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G80-450Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G80-500Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G80-600Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1G80-700Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1G80-800Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1G100-25Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G100-50Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G100-75Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G100-100Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G100-125Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G100-150Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G100-175Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G100-200Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G100-250Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G100-300Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G100-350Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G100-400Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G100-450Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G100-500Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G100-600Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1G100-700Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1G100-800Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1G125-25Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1G125-50Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1G125-75Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1G125-100Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1G125-125Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1G125-150Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1G125-175Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1G125-200Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1G125-250Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1G125-300Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1G125-350Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1G125-400Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1G125-450Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1G125-500Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1G125-600Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1G125-700Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1G125-800Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1G125-1000Z	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB1C32-25Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C32-50Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C32-75Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C32-100Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C32-125Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C32-150Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C32-175Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C32-200Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C32-250Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C32-300Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C32-350Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C32-400Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C32-450Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C32-500Z	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C40-25Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C40-50Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C40-75Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C40-100Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C40-125Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C40-150Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C40-175Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C40-200Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C40-250Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C40-300Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C40-350Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C40-400Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C40-450Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C40-500Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C50-25Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C50-50Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C50-75Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C50-100Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C50-125Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C50-150Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C50-175Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C50-200Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C50-250Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C50-300Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C50-350Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C50-400Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C50-450Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C50-500Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C50-600Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1C63-25Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C63-50Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C63-75Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C63-100Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C63-125Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C63-150Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C63-175Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C63-200Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C63-250Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C63-300Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C63-350Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C63-400Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C63-450Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C63-500Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C63-600Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1C80-25Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C80-50Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C80-75Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C80-100Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C80-125Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C80-150Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C80-175Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C80-200Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C80-250Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C80-300Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C80-350Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C80-400Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C80-450Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C80-500Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C80-600Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1C80-700Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1C80-800Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1C100-25Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C100-50Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C100-75Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C100-100Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C100-125Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C100-150Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C100-175Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C100-200Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C100-250Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C100-300Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C100-350Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C100-400Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C100-450Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C100-500Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C100-600Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1C100-700Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1C100-800Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1C125-25Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1C125-50Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1C125-75Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1C125-100Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1C125-125Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1C125-150Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1C125-175Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1C125-200Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1C125-250Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1C125-300Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1C125-350Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1C125-400Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1C125-450Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1C125-500Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1C125-600Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1C125-700Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1C125-800Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1C125-1000Z	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB1D32-25Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D32-50Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D32-75Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D32-100Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D32-125Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D32-150Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D32-175Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D32-200Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D32-250Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D32-300Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D32-350Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D32-400Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D32-450Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D32-500Z	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D40-25Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D40-50Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D40-75Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D40-100Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D40-125Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D40-150Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D40-175Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D40-200Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D40-250Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D40-300Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D40-350Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D40-400Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D40-450Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D40-500Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D50-25Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D50-50Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D50-75Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D50-100Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D50-125Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D50-150Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D50-175Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D50-200Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D50-250Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D50-300Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D50-350Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D50-400Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D50-450Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D50-500Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D50-600Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1D63-25Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D63-50Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D63-75Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D63-100Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D63-125Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D63-150Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D63-175Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D63-200Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D63-250Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D63-300Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D63-350Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D63-400Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D63-450Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D63-500Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D63-600Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1D80-25Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D80-50Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D80-75Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D80-100Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D80-125Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D80-150Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D80-175Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D80-200Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D80-250Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D80-300Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D80-350Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D80-400Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D80-450Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D80-500Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D80-600Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1D80-700Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1D80-800Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1D100-25Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D100-50Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D100-75Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D100-100Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D100-125Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D100-150Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D100-175Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D100-200Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D100-250Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D100-300Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D100-350Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D100-400Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D100-450Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D100-500Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D100-600Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1D100-700Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1D100-800Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1D125-25Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDB1D125-50Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB1D125-75Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB1D125-100Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB1D125-125Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB1D125-150Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB1D125-175Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB1D125-200Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB1D125-250Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB1D125-300Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB1D125-350Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB1D125-400Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB1D125-450Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB1D125-500Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB1D125-600Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB1D125-700Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB1D125-800Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB1D125-1000Z	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MB1 Square Tube Air Cylinder (Standard, ø32 to ø125)
