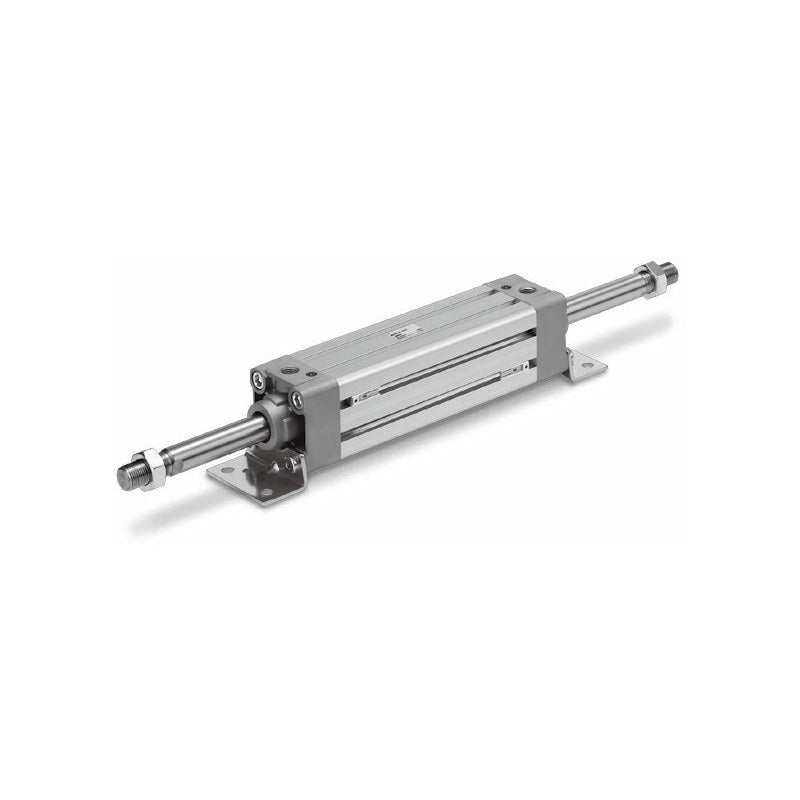

SMC MB1W Square Tube Air Cylinder (Double Rod, ø32 to ø125)

SMC MB1W Square Tube Air Cylinder (Double Rod, ø32 to ø125)

SMC MB1W-Z series square tube air cylinder, double acting, double rod, ø32 to ø125 mm bore, with or without a built-in auto switch magnet (MDB1W).

Key features

  • Square profile tube with grooves on four faces for compact D-M9 / D-A9 auto switches; mounting dimensions equal to the previous MB1
  • Mounting styles: basic (B), foot (L), flange (F)
  • Built-in magnet models (MD prefix) accept D-M9 solid state and D-A9 reed auto switches, ordered as a suffix (e.g. -M9BW)
  • Air cushion standard; rubber cushion (N), bellows (J/K/JJ/KK), port thread NPT (TN) / G (TF) as order symbols
  • Made-to-order options (-XA, -XC3, -XC7, -XC8/XC9 adjustable stroke, -XC10 dual stroke and more) available

Specifications

Action Double acting, double rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 1000 mm/s
Cushion Air cushion (standard) or rubber cushion (suffix N)
Port size Rc1/8 (ø32), Rc1/4 (ø40, ø50), Rc3/8 (ø63, ø80), Rc1/2 (ø100, ø125)
Standard strokes ø32: 25 to 500; ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600; ø80: 25 to 800; ø100: 25 to 800; ø125: 25 to 1000 mm
Source SMC Korea catalog MB1-Z (SMCKR_MB1-Z.pdf), p. 540-541
MB1WB32-25Z Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB32-50Z Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB32-75Z Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB32-100Z Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB32-125Z Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB32-150Z Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB32-175Z Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB32-200Z Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB32-250Z Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB32-300Z Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB32-350Z Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB32-400Z Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB32-450Z Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB32-500Z Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB40-25Z Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB40-50Z Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB40-75Z Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB40-100Z Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB40-125Z Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB40-150Z Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB40-175Z Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB40-200Z Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB40-250Z Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB40-300Z Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB40-350Z Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB40-400Z Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB40-450Z Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB40-500Z Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB50-25Z Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB50-50Z Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB50-75Z Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB50-100Z Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB50-125Z Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB50-150Z Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB50-175Z Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB50-200Z Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB50-250Z Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB50-300Z Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB50-350Z Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB50-400Z Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB50-450Z Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB50-500Z Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB50-600Z Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB63-25Z Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB63-50Z Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB63-75Z Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB63-100Z Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB63-125Z Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB63-150Z Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB63-175Z Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB63-200Z Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB63-250Z Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB63-300Z Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB63-350Z Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB63-400Z Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB63-450Z Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB63-500Z Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB63-600Z Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB80-25Z Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB80-50Z Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB80-75Z Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB80-100Z Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB80-125Z Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB80-150Z Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB80-175Z Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB80-200Z Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB80-250Z Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB80-300Z Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB80-350Z Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB80-400Z Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB80-450Z Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB80-500Z Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB80-600Z Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB80-700Z Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB80-800Z Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB100-25Z Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB100-50Z Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB100-75Z Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB100-100Z Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB100-125Z Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB100-150Z Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB100-175Z Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB100-200Z Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB100-250Z Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB100-300Z Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB100-350Z Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB100-400Z Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB100-450Z Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB100-500Z Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB100-600Z Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB100-700Z Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB100-800Z Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB125-25Z Mounting: Basic | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB125-50Z Mounting: Basic | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB125-75Z Mounting: Basic | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB125-100Z Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB125-125Z Mounting: Basic | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB125-150Z Mounting: Basic | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB125-175Z Mounting: Basic | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB125-200Z Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB125-250Z Mounting: Basic | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB125-300Z Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB125-350Z Mounting: Basic | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB125-400Z Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB125-450Z Mounting: Basic | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB125-500Z Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB125-600Z Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB125-700Z Mounting: Basic | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB125-800Z Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB125-1000Z Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MB1WL32-25Z Mounting: Foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL32-50Z Mounting: Foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL32-75Z Mounting: Foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL32-100Z Mounting: Foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL32-125Z Mounting: Foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL32-150Z Mounting: Foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL32-175Z Mounting: Foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL32-200Z Mounting: Foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL32-250Z Mounting: Foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL32-300Z Mounting: Foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL32-350Z Mounting: Foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL32-400Z Mounting: Foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL32-450Z Mounting: Foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL32-500Z Mounting: Foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL40-25Z Mounting: Foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL40-50Z Mounting: Foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL40-75Z Mounting: Foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL40-100Z Mounting: Foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL40-125Z Mounting: Foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL40-150Z Mounting: Foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL40-175Z Mounting: Foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL40-200Z Mounting: Foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL40-250Z Mounting: Foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL40-300Z Mounting: Foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL40-350Z Mounting: Foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL40-400Z Mounting: Foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL40-450Z Mounting: Foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL40-500Z Mounting: Foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL50-25Z Mounting: Foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL50-50Z Mounting: Foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL50-75Z Mounting: Foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL50-100Z Mounting: Foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL50-125Z Mounting: Foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL50-150Z Mounting: Foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL50-175Z Mounting: Foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL50-200Z Mounting: Foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL50-250Z Mounting: Foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL50-300Z Mounting: Foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL50-350Z Mounting: Foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL50-400Z Mounting: Foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL50-450Z Mounting: Foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL50-500Z Mounting: Foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL50-600Z Mounting: Foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL63-25Z Mounting: Foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL63-50Z Mounting: Foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL63-75Z Mounting: Foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL63-100Z Mounting: Foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL63-125Z Mounting: Foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL63-150Z Mounting: Foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL63-175Z Mounting: Foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL63-200Z Mounting: Foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL63-250Z Mounting: Foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL63-300Z Mounting: Foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL63-350Z Mounting: Foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL63-400Z Mounting: Foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL63-450Z Mounting: Foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL63-500Z Mounting: Foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL63-600Z Mounting: Foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL80-25Z Mounting: Foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL80-50Z Mounting: Foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL80-75Z Mounting: Foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL80-100Z Mounting: Foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL80-125Z Mounting: Foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL80-150Z Mounting: Foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL80-175Z Mounting: Foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL80-200Z Mounting: Foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL80-250Z Mounting: Foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL80-300Z Mounting: Foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL80-350Z Mounting: Foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL80-400Z Mounting: Foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL80-450Z Mounting: Foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL80-500Z Mounting: Foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL80-600Z Mounting: Foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL80-700Z Mounting: Foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL80-800Z Mounting: Foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL100-25Z Mounting: Foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL100-50Z Mounting: Foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL100-75Z Mounting: Foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL100-100Z Mounting: Foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL100-125Z Mounting: Foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL100-150Z Mounting: Foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL100-175Z Mounting: Foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL100-200Z Mounting: Foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL100-250Z Mounting: Foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL100-300Z Mounting: Foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL100-350Z Mounting: Foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL100-400Z Mounting: Foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL100-450Z Mounting: Foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL100-500Z Mounting: Foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL100-600Z Mounting: Foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL100-700Z Mounting: Foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL100-800Z Mounting: Foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL125-25Z Mounting: Foot | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL125-50Z Mounting: Foot | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL125-75Z Mounting: Foot | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL125-100Z Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL125-125Z Mounting: Foot | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL125-150Z Mounting: Foot | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL125-175Z Mounting: Foot | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL125-200Z Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL125-250Z Mounting: Foot | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL125-300Z Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL125-350Z Mounting: Foot | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL125-400Z Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL125-450Z Mounting: Foot | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL125-500Z Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL125-600Z Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL125-700Z Mounting: Foot | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL125-800Z Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL125-1000Z Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MB1WF32-25Z Mounting: Flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF32-50Z Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF32-75Z Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF32-100Z Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF32-125Z Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF32-150Z Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF32-175Z Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF32-200Z Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF32-250Z Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF32-300Z Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF32-350Z Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF32-400Z Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF32-450Z Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF32-500Z Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF40-25Z Mounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF40-50Z Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF40-75Z Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF40-100Z Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF40-125Z Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF40-150Z Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF40-175Z Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF40-200Z Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF40-250Z Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF40-300Z Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF40-350Z Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF40-400Z Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF40-450Z Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF40-500Z Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF50-25Z Mounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF50-50Z Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF50-75Z Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF50-100Z Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF50-125Z Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF50-150Z Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF50-175Z Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF50-200Z Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF50-250Z Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF50-300Z Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF50-350Z Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF50-400Z Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF50-450Z Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF50-500Z Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF50-600Z Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF63-25Z Mounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF63-50Z Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF63-75Z Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF63-100Z Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF63-125Z Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF63-150Z Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF63-175Z Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF63-200Z Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF63-250Z Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF63-300Z Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF63-350Z Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF63-400Z Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF63-450Z Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF63-500Z Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF63-600Z Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF80-25Z Mounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF80-50Z Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF80-75Z Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF80-100Z Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF80-125Z Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF80-150Z Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF80-175Z Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF80-200Z Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF80-250Z Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF80-300Z Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF80-350Z Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF80-400Z Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF80-450Z Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF80-500Z Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF80-600Z Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF80-700Z Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF80-800Z Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF100-25Z Mounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF100-50Z Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF100-75Z Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF100-100Z Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF100-125Z Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF100-150Z Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF100-175Z Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF100-200Z Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF100-250Z Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF100-300Z Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF100-350Z Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF100-400Z Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF100-450Z Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF100-500Z Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF100-600Z Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF100-700Z Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF100-800Z Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF125-25Z Mounting: Flange | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF125-50Z Mounting: Flange | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF125-75Z Mounting: Flange | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF125-100Z Mounting: Flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF125-125Z Mounting: Flange | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF125-150Z Mounting: Flange | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF125-175Z Mounting: Flange | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF125-200Z Mounting: Flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF125-250Z Mounting: Flange | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF125-300Z Mounting: Flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF125-350Z Mounting: Flange | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF125-400Z Mounting: Flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF125-450Z Mounting: Flange | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF125-500Z Mounting: Flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF125-600Z Mounting: Flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF125-700Z Mounting: Flange | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF125-800Z Mounting: Flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF125-1000Z Mounting: Flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MDB1WB32-25Z Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB32-50Z Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB32-75Z Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB32-100Z Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB32-125Z Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB32-150Z Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB32-175Z Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB32-200Z Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB32-250Z Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB32-300Z Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB32-350Z Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB32-400Z Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB32-450Z Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB32-500Z Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB40-25Z Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB40-50Z Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB40-75Z Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB40-100Z Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB40-125Z Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB40-150Z Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB40-175Z Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB40-200Z Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB40-250Z Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB40-300Z Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB40-350Z Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB40-400Z Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB40-450Z Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB40-500Z Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB50-25Z Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB50-50Z Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB50-75Z Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB50-100Z Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB50-125Z Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB50-150Z Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB50-175Z Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB50-200Z Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB50-250Z Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB50-300Z Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB50-350Z Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB50-400Z Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB50-450Z Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB50-500Z Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB50-600Z Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB63-25Z Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB63-50Z Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB63-75Z Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB63-100Z Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB63-125Z Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB63-150Z Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB63-175Z Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB63-200Z Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB63-250Z Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB63-300Z Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB63-350Z Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB63-400Z Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB63-450Z Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB63-500Z Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB63-600Z Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB80-25Z Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB80-50Z Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB80-75Z Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB80-100Z Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB80-125Z Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB80-150Z Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB80-175Z Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB80-200Z Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB80-250Z Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB80-300Z Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB80-350Z Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB80-400Z Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB80-450Z Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB80-500Z Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB80-600Z Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB80-700Z Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB80-800Z Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB100-25Z Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB100-50Z Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB100-75Z Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB100-100Z Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB100-125Z Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB100-150Z Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB100-175Z Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB100-200Z Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB100-250Z Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB100-300Z Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB100-350Z Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB100-400Z Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB100-450Z Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB100-500Z Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB100-600Z Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB100-700Z Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB100-800Z Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB125-25Z Mounting: Basic | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB125-50Z Mounting: Basic | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB125-75Z Mounting: Basic | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB125-100Z Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB125-125Z Mounting: Basic | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB125-150Z Mounting: Basic | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB125-175Z Mounting: Basic | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB125-200Z Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB125-250Z Mounting: Basic | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB125-300Z Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB125-350Z Mounting: Basic | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB125-400Z Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB125-450Z Mounting: Basic | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB125-500Z Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB125-600Z Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB125-700Z Mounting: Basic | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB125-800Z Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB125-1000Z Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes
MDB1WL32-25Z Mounting: Foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL32-50Z Mounting: Foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL32-75Z Mounting: Foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL32-100Z Mounting: Foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL32-125Z Mounting: Foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL32-150Z Mounting: Foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL32-175Z Mounting: Foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL32-200Z Mounting: Foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL32-250Z Mounting: Foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL32-300Z Mounting: Foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL32-350Z Mounting: Foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL32-400Z Mounting: Foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL32-450Z Mounting: Foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL32-500Z Mounting: Foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL40-25Z Mounting: Foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL40-50Z Mounting: Foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL40-75Z Mounting: Foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL40-100Z Mounting: Foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL40-125Z Mounting: Foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL40-150Z Mounting: Foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL40-175Z Mounting: Foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL40-200Z Mounting: Foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL40-250Z Mounting: Foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL40-300Z Mounting: Foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL40-350Z Mounting: Foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL40-400Z Mounting: Foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL40-450Z Mounting: Foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL40-500Z Mounting: Foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL50-25Z Mounting: Foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL50-50Z Mounting: Foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL50-75Z Mounting: Foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL50-100Z Mounting: Foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL50-125Z Mounting: Foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL50-150Z Mounting: Foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL50-175Z Mounting: Foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL50-200Z Mounting: Foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL50-250Z Mounting: Foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL50-300Z Mounting: Foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL50-350Z Mounting: Foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL50-400Z Mounting: Foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL50-450Z Mounting: Foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL50-500Z Mounting: Foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL50-600Z Mounting: Foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL63-25Z Mounting: Foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL63-50Z Mounting: Foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL63-75Z Mounting: Foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL63-100Z Mounting: Foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL63-125Z Mounting: Foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL63-150Z Mounting: Foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL63-175Z Mounting: Foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL63-200Z Mounting: Foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL63-250Z Mounting: Foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL63-300Z Mounting: Foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL63-350Z Mounting: Foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL63-400Z Mounting: Foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL63-450Z Mounting: Foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL63-500Z Mounting: Foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL63-600Z Mounting: Foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL80-25Z Mounting: Foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL80-50Z Mounting: Foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL80-75Z Mounting: Foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL80-100Z Mounting: Foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL80-125Z Mounting: Foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL80-150Z Mounting: Foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL80-175Z Mounting: Foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL80-200Z Mounting: Foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL80-250Z Mounting: Foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL80-300Z Mounting: Foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL80-350Z Mounting: Foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL80-400Z Mounting: Foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL80-450Z Mounting: Foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL80-500Z Mounting: Foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL80-600Z Mounting: Foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL80-700Z Mounting: Foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL80-800Z Mounting: Foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL100-25Z Mounting: Foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL100-50Z Mounting: Foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL100-75Z Mounting: Foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL100-100Z Mounting: Foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL100-125Z Mounting: Foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL100-150Z Mounting: Foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL100-175Z Mounting: Foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL100-200Z Mounting: Foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL100-250Z Mounting: Foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL100-300Z Mounting: Foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL100-350Z Mounting: Foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL100-400Z Mounting: Foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL100-450Z Mounting: Foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL100-500Z Mounting: Foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL100-600Z Mounting: Foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL100-700Z Mounting: Foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL100-800Z Mounting: Foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL125-25Z Mounting: Foot | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL125-50Z Mounting: Foot | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL125-75Z Mounting: Foot | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL125-100Z Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL125-125Z Mounting: Foot | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL125-150Z Mounting: Foot | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL125-175Z Mounting: Foot | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL125-200Z Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL125-250Z Mounting: Foot | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL125-300Z Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL125-350Z Mounting: Foot | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL125-400Z Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL125-450Z Mounting: Foot | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL125-500Z Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL125-600Z Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL125-700Z Mounting: Foot | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL125-800Z Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL125-1000Z Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes
MDB1WF32-25Z Mounting: Flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF32-50Z Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF32-75Z Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF32-100Z Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF32-125Z Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF32-150Z Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF32-175Z Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF32-200Z Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF32-250Z Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF32-300Z Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF32-350Z Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF32-400Z Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF32-450Z Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF32-500Z Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF40-25Z Mounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF40-50Z Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF40-75Z Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF40-100Z Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF40-125Z Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF40-150Z Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF40-175Z Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF40-200Z Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF40-250Z Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF40-300Z Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF40-350Z Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF40-400Z Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF40-450Z Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF40-500Z Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF50-25Z Mounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF50-50Z Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF50-75Z Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF50-100Z Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF50-125Z Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF50-150Z Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF50-175Z Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF50-200Z Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF50-250Z Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF50-300Z Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF50-350Z Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF50-400Z Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF50-450Z Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF50-500Z Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF50-600Z Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF63-25Z Mounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF63-50Z Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF63-75Z Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF63-100Z Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF63-125Z Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF63-150Z Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF63-175Z Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF63-200Z Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF63-250Z Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF63-300Z Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF63-350Z Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF63-400Z Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF63-450Z Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF63-500Z Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF63-600Z Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF80-25Z Mounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF80-50Z Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF80-75Z Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF80-100Z Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF80-125Z Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF80-150Z Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF80-175Z Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF80-200Z Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF80-250Z Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF80-300Z Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF80-350Z Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF80-400Z Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF80-450Z Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF80-500Z Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF80-600Z Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF80-700Z Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF80-800Z Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF100-25Z Mounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF100-50Z Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF100-75Z Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF100-100Z Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF100-125Z Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF100-150Z Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF100-175Z Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF100-200Z Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF100-250Z Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF100-300Z Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF100-350Z Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF100-400Z Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF100-450Z Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF100-500Z Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF100-600Z Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF100-700Z Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF100-800Z Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF125-25Z Mounting: Flange | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF125-50Z Mounting: Flange | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF125-75Z Mounting: Flange | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF125-100Z Mounting: Flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF125-125Z Mounting: Flange | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF125-150Z Mounting: Flange | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF125-175Z Mounting: Flange | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF125-200Z Mounting: Flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF125-250Z Mounting: Flange | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF125-300Z Mounting: Flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF125-350Z Mounting: Flange | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF125-400Z Mounting: Flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF125-450Z Mounting: Flange | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF125-500Z Mounting: Flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF125-600Z Mounting: Flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF125-700Z Mounting: Flange | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF125-800Z Mounting: Flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF125-1000Z Mounting: Flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes
Round Body CylindersSMC
660 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MB1W Square Tube Air Cylinder (Double Rod, ø32 to ø125)

Brand SMC·Round Body Cylinders

Available part numbers (660)

MB1WB32-25Z, MB1WB32-50Z, MB1WB32-75Z, MB1WB32-100Z, MB1WB32-125Z, MB1WB32-150Z, MB1WB32-175Z, MB1WB32-200Z, MB1WB32-250Z, MB1WB32-300Z + 650 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MB1WB32-25ZMounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB32-50ZMounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB32-75ZMounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB32-100ZMounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB32-125ZMounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB32-150ZMounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB32-175ZMounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB32-200ZMounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB32-250ZMounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB32-300ZMounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB32-350ZMounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB32-400ZMounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB32-450ZMounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB32-500ZMounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB40-25ZMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB40-50ZMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB40-75ZMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB40-100ZMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB40-125ZMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB40-150ZMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB40-175ZMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB40-200ZMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB40-250ZMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB40-300ZMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB40-350ZMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB40-400ZMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB40-450ZMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB40-500ZMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB50-25ZMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB50-50ZMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB50-75ZMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB50-100ZMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB50-125ZMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB50-150ZMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB50-175ZMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB50-200ZMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB50-250ZMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB50-300ZMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB50-350ZMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB50-400ZMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB50-450ZMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB50-500ZMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB50-600ZMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB63-25ZMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB63-50ZMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB63-75ZMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB63-100ZMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB63-125ZMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB63-150ZMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB63-175ZMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB63-200ZMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB63-250ZMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB63-300ZMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB63-350ZMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB63-400ZMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB63-450ZMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB63-500ZMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB63-600ZMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB80-25ZMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB80-50ZMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB80-75ZMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB80-100ZMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB80-125ZMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB80-150ZMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB80-175ZMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB80-200ZMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB80-250ZMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB80-300ZMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB80-350ZMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB80-400ZMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB80-450ZMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB80-500ZMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB80-600ZMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB80-700ZMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB80-800ZMounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB100-25ZMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB100-50ZMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB100-75ZMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB100-100ZMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB100-125ZMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB100-150ZMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB100-175ZMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB100-200ZMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB100-250ZMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB100-300ZMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB100-350ZMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB100-400ZMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB100-450ZMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB100-500ZMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB100-600ZMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB100-700ZMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB100-800ZMounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB125-25ZMounting: Basic | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WB125-50ZMounting: Basic | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WB125-75ZMounting: Basic | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WB125-100ZMounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WB125-125ZMounting: Basic | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WB125-150ZMounting: Basic | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WB125-175ZMounting: Basic | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WB125-200ZMounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WB125-250ZMounting: Basic | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WB125-300ZMounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WB125-350ZMounting: Basic | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WB125-400ZMounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WB125-450ZMounting: Basic | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WB125-500ZMounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WB125-600ZMounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WB125-700ZMounting: Basic | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WB125-800ZMounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WB125-1000ZMounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MB1WL32-25ZMounting: Foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL32-50ZMounting: Foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL32-75ZMounting: Foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL32-100ZMounting: Foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL32-125ZMounting: Foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL32-150ZMounting: Foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL32-175ZMounting: Foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL32-200ZMounting: Foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL32-250ZMounting: Foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL32-300ZMounting: Foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL32-350ZMounting: Foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL32-400ZMounting: Foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL32-450ZMounting: Foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL32-500ZMounting: Foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL40-25ZMounting: Foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL40-50ZMounting: Foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL40-75ZMounting: Foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL40-100ZMounting: Foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL40-125ZMounting: Foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL40-150ZMounting: Foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL40-175ZMounting: Foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL40-200ZMounting: Foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL40-250ZMounting: Foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL40-300ZMounting: Foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL40-350ZMounting: Foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL40-400ZMounting: Foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL40-450ZMounting: Foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL40-500ZMounting: Foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL50-25ZMounting: Foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL50-50ZMounting: Foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL50-75ZMounting: Foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL50-100ZMounting: Foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL50-125ZMounting: Foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL50-150ZMounting: Foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL50-175ZMounting: Foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL50-200ZMounting: Foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL50-250ZMounting: Foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL50-300ZMounting: Foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL50-350ZMounting: Foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL50-400ZMounting: Foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL50-450ZMounting: Foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL50-500ZMounting: Foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL50-600ZMounting: Foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL63-25ZMounting: Foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL63-50ZMounting: Foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL63-75ZMounting: Foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL63-100ZMounting: Foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL63-125ZMounting: Foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL63-150ZMounting: Foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL63-175ZMounting: Foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL63-200ZMounting: Foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL63-250ZMounting: Foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL63-300ZMounting: Foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL63-350ZMounting: Foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL63-400ZMounting: Foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL63-450ZMounting: Foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL63-500ZMounting: Foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL63-600ZMounting: Foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL80-25ZMounting: Foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL80-50ZMounting: Foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL80-75ZMounting: Foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL80-100ZMounting: Foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL80-125ZMounting: Foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL80-150ZMounting: Foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL80-175ZMounting: Foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL80-200ZMounting: Foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL80-250ZMounting: Foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL80-300ZMounting: Foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL80-350ZMounting: Foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL80-400ZMounting: Foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL80-450ZMounting: Foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL80-500ZMounting: Foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL80-600ZMounting: Foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL80-700ZMounting: Foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL80-800ZMounting: Foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL100-25ZMounting: Foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL100-50ZMounting: Foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL100-75ZMounting: Foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL100-100ZMounting: Foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL100-125ZMounting: Foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL100-150ZMounting: Foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL100-175ZMounting: Foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL100-200ZMounting: Foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL100-250ZMounting: Foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL100-300ZMounting: Foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL100-350ZMounting: Foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL100-400ZMounting: Foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL100-450ZMounting: Foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL100-500ZMounting: Foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL100-600ZMounting: Foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL100-700ZMounting: Foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL100-800ZMounting: Foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL125-25ZMounting: Foot | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WL125-50ZMounting: Foot | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WL125-75ZMounting: Foot | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WL125-100ZMounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WL125-125ZMounting: Foot | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WL125-150ZMounting: Foot | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WL125-175ZMounting: Foot | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WL125-200ZMounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WL125-250ZMounting: Foot | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WL125-300ZMounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WL125-350ZMounting: Foot | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WL125-400ZMounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WL125-450ZMounting: Foot | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WL125-500ZMounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WL125-600ZMounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WL125-700ZMounting: Foot | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WL125-800ZMounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WL125-1000ZMounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MB1WF32-25ZMounting: Flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF32-50ZMounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF32-75ZMounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF32-100ZMounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF32-125ZMounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF32-150ZMounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF32-175ZMounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF32-200ZMounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF32-250ZMounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF32-300ZMounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF32-350ZMounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF32-400ZMounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF32-450ZMounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF32-500ZMounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF40-25ZMounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF40-50ZMounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF40-75ZMounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF40-100ZMounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF40-125ZMounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF40-150ZMounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF40-175ZMounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF40-200ZMounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF40-250ZMounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF40-300ZMounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF40-350ZMounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF40-400ZMounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF40-450ZMounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF40-500ZMounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF50-25ZMounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF50-50ZMounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF50-75ZMounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF50-100ZMounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF50-125ZMounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF50-150ZMounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF50-175ZMounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF50-200ZMounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF50-250ZMounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF50-300ZMounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF50-350ZMounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF50-400ZMounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF50-450ZMounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF50-500ZMounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF50-600ZMounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF63-25ZMounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF63-50ZMounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF63-75ZMounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF63-100ZMounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF63-125ZMounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF63-150ZMounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF63-175ZMounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF63-200ZMounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF63-250ZMounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF63-300ZMounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF63-350ZMounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF63-400ZMounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF63-450ZMounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF63-500ZMounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF63-600ZMounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF80-25ZMounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF80-50ZMounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF80-75ZMounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF80-100ZMounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF80-125ZMounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF80-150ZMounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF80-175ZMounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF80-200ZMounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF80-250ZMounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF80-300ZMounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF80-350ZMounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF80-400ZMounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF80-450ZMounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF80-500ZMounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF80-600ZMounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF80-700ZMounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF80-800ZMounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF100-25ZMounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF100-50ZMounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF100-75ZMounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF100-100ZMounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF100-125ZMounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF100-150ZMounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF100-175ZMounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF100-200ZMounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF100-250ZMounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF100-300ZMounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF100-350ZMounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF100-400ZMounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF100-450ZMounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF100-500ZMounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF100-600ZMounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF100-700ZMounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF100-800ZMounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF125-25ZMounting: Flange | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: No
MB1WF125-50ZMounting: Flange | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: No
MB1WF125-75ZMounting: Flange | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: No
MB1WF125-100ZMounting: Flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No
MB1WF125-125ZMounting: Flange | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: No
MB1WF125-150ZMounting: Flange | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: No
MB1WF125-175ZMounting: Flange | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: No
MB1WF125-200ZMounting: Flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No
MB1WF125-250ZMounting: Flange | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: No
MB1WF125-300ZMounting: Flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No
MB1WF125-350ZMounting: Flange | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: No
MB1WF125-400ZMounting: Flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No
MB1WF125-450ZMounting: Flange | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: No
MB1WF125-500ZMounting: Flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No
MB1WF125-600ZMounting: Flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No
MB1WF125-700ZMounting: Flange | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: No
MB1WF125-800ZMounting: Flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No
MB1WF125-1000ZMounting: Flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No
MDB1WB32-25ZMounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB32-50ZMounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB32-75ZMounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB32-100ZMounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB32-125ZMounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB32-150ZMounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB32-175ZMounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB32-200ZMounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB32-250ZMounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB32-300ZMounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB32-350ZMounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB32-400ZMounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB32-450ZMounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB32-500ZMounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB40-25ZMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB40-50ZMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB40-75ZMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB40-100ZMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB40-125ZMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB40-150ZMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB40-175ZMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB40-200ZMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB40-250ZMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB40-300ZMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB40-350ZMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB40-400ZMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB40-450ZMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB40-500ZMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB50-25ZMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB50-50ZMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB50-75ZMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB50-100ZMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB50-125ZMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB50-150ZMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB50-175ZMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB50-200ZMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB50-250ZMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB50-300ZMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB50-350ZMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB50-400ZMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB50-450ZMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB50-500ZMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB50-600ZMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB63-25ZMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB63-50ZMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB63-75ZMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB63-100ZMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB63-125ZMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB63-150ZMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB63-175ZMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB63-200ZMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB63-250ZMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB63-300ZMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB63-350ZMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB63-400ZMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB63-450ZMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB63-500ZMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB63-600ZMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB80-25ZMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB80-50ZMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB80-75ZMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB80-100ZMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB80-125ZMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB80-150ZMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB80-175ZMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB80-200ZMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB80-250ZMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB80-300ZMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB80-350ZMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB80-400ZMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB80-450ZMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB80-500ZMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB80-600ZMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB80-700ZMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB80-800ZMounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB100-25ZMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB100-50ZMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB100-75ZMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB100-100ZMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB100-125ZMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB100-150ZMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB100-175ZMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB100-200ZMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB100-250ZMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB100-300ZMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB100-350ZMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB100-400ZMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB100-450ZMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB100-500ZMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB100-600ZMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB100-700ZMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB100-800ZMounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB125-25ZMounting: Basic | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WB125-50ZMounting: Basic | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WB125-75ZMounting: Basic | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WB125-100ZMounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WB125-125ZMounting: Basic | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WB125-150ZMounting: Basic | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WB125-175ZMounting: Basic | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WB125-200ZMounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WB125-250ZMounting: Basic | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WB125-300ZMounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WB125-350ZMounting: Basic | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WB125-400ZMounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WB125-450ZMounting: Basic | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WB125-500ZMounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WB125-600ZMounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WB125-700ZMounting: Basic | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WB125-800ZMounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WB125-1000ZMounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes
MDB1WL32-25ZMounting: Foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL32-50ZMounting: Foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL32-75ZMounting: Foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL32-100ZMounting: Foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL32-125ZMounting: Foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL32-150ZMounting: Foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL32-175ZMounting: Foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL32-200ZMounting: Foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL32-250ZMounting: Foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL32-300ZMounting: Foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL32-350ZMounting: Foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL32-400ZMounting: Foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL32-450ZMounting: Foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL32-500ZMounting: Foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL40-25ZMounting: Foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL40-50ZMounting: Foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL40-75ZMounting: Foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL40-100ZMounting: Foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL40-125ZMounting: Foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL40-150ZMounting: Foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL40-175ZMounting: Foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL40-200ZMounting: Foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL40-250ZMounting: Foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL40-300ZMounting: Foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL40-350ZMounting: Foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL40-400ZMounting: Foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL40-450ZMounting: Foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL40-500ZMounting: Foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL50-25ZMounting: Foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL50-50ZMounting: Foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL50-75ZMounting: Foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL50-100ZMounting: Foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL50-125ZMounting: Foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL50-150ZMounting: Foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL50-175ZMounting: Foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL50-200ZMounting: Foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL50-250ZMounting: Foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL50-300ZMounting: Foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL50-350ZMounting: Foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL50-400ZMounting: Foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL50-450ZMounting: Foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL50-500ZMounting: Foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL50-600ZMounting: Foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL63-25ZMounting: Foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL63-50ZMounting: Foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL63-75ZMounting: Foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL63-100ZMounting: Foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL63-125ZMounting: Foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL63-150ZMounting: Foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL63-175ZMounting: Foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL63-200ZMounting: Foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL63-250ZMounting: Foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL63-300ZMounting: Foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL63-350ZMounting: Foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL63-400ZMounting: Foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL63-450ZMounting: Foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL63-500ZMounting: Foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL63-600ZMounting: Foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL80-25ZMounting: Foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL80-50ZMounting: Foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL80-75ZMounting: Foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL80-100ZMounting: Foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL80-125ZMounting: Foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL80-150ZMounting: Foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL80-175ZMounting: Foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL80-200ZMounting: Foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL80-250ZMounting: Foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL80-300ZMounting: Foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL80-350ZMounting: Foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL80-400ZMounting: Foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL80-450ZMounting: Foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL80-500ZMounting: Foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL80-600ZMounting: Foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL80-700ZMounting: Foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL80-800ZMounting: Foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL100-25ZMounting: Foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL100-50ZMounting: Foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL100-75ZMounting: Foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL100-100ZMounting: Foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL100-125ZMounting: Foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL100-150ZMounting: Foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL100-175ZMounting: Foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL100-200ZMounting: Foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL100-250ZMounting: Foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL100-300ZMounting: Foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL100-350ZMounting: Foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL100-400ZMounting: Foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL100-450ZMounting: Foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL100-500ZMounting: Foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL100-600ZMounting: Foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL100-700ZMounting: Foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL100-800ZMounting: Foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL125-25ZMounting: Foot | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WL125-50ZMounting: Foot | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WL125-75ZMounting: Foot | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WL125-100ZMounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WL125-125ZMounting: Foot | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WL125-150ZMounting: Foot | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WL125-175ZMounting: Foot | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WL125-200ZMounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WL125-250ZMounting: Foot | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WL125-300ZMounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WL125-350ZMounting: Foot | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WL125-400ZMounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WL125-450ZMounting: Foot | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WL125-500ZMounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WL125-600ZMounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WL125-700ZMounting: Foot | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WL125-800ZMounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WL125-1000ZMounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes
MDB1WF32-25ZMounting: Flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF32-50ZMounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF32-75ZMounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF32-100ZMounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF32-125ZMounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF32-150ZMounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF32-175ZMounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF32-200ZMounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF32-250ZMounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF32-300ZMounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF32-350ZMounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF32-400ZMounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF32-450ZMounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF32-500ZMounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF40-25ZMounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF40-50ZMounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF40-75ZMounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF40-100ZMounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF40-125ZMounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF40-150ZMounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF40-175ZMounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF40-200ZMounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF40-250ZMounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF40-300ZMounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF40-350ZMounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF40-400ZMounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF40-450ZMounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF40-500ZMounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF50-25ZMounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF50-50ZMounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF50-75ZMounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF50-100ZMounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF50-125ZMounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF50-150ZMounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF50-175ZMounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF50-200ZMounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF50-250ZMounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF50-300ZMounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF50-350ZMounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF50-400ZMounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF50-450ZMounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF50-500ZMounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF50-600ZMounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF63-25ZMounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF63-50ZMounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF63-75ZMounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF63-100ZMounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF63-125ZMounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF63-150ZMounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF63-175ZMounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF63-200ZMounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF63-250ZMounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF63-300ZMounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF63-350ZMounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF63-400ZMounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF63-450ZMounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF63-500ZMounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF63-600ZMounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF80-25ZMounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF80-50ZMounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF80-75ZMounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF80-100ZMounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF80-125ZMounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF80-150ZMounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF80-175ZMounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF80-200ZMounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF80-250ZMounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF80-300ZMounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF80-350ZMounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF80-400ZMounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF80-450ZMounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF80-500ZMounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF80-600ZMounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF80-700ZMounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF80-800ZMounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF100-25ZMounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF100-50ZMounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF100-75ZMounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF100-100ZMounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF100-125ZMounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF100-150ZMounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF100-175ZMounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF100-200ZMounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF100-250ZMounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF100-300ZMounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF100-350ZMounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF100-400ZMounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF100-450ZMounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF100-500ZMounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF100-600ZMounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF100-700ZMounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF100-800ZMounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF125-25ZMounting: Flange | Bore: ø125 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDB1WF125-50ZMounting: Flange | Bore: ø125 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDB1WF125-75ZMounting: Flange | Bore: ø125 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDB1WF125-100ZMounting: Flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDB1WF125-125ZMounting: Flange | Bore: ø125 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDB1WF125-150ZMounting: Flange | Bore: ø125 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDB1WF125-175ZMounting: Flange | Bore: ø125 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDB1WF125-200ZMounting: Flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDB1WF125-250ZMounting: Flange | Bore: ø125 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDB1WF125-300ZMounting: Flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDB1WF125-350ZMounting: Flange | Bore: ø125 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDB1WF125-400ZMounting: Flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDB1WF125-450ZMounting: Flange | Bore: ø125 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDB1WF125-500ZMounting: Flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDB1WF125-600ZMounting: Flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDB1WF125-700ZMounting: Flange | Bore: ø125 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDB1WF125-800ZMounting: Flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDB1WF125-1000ZMounting: Flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
