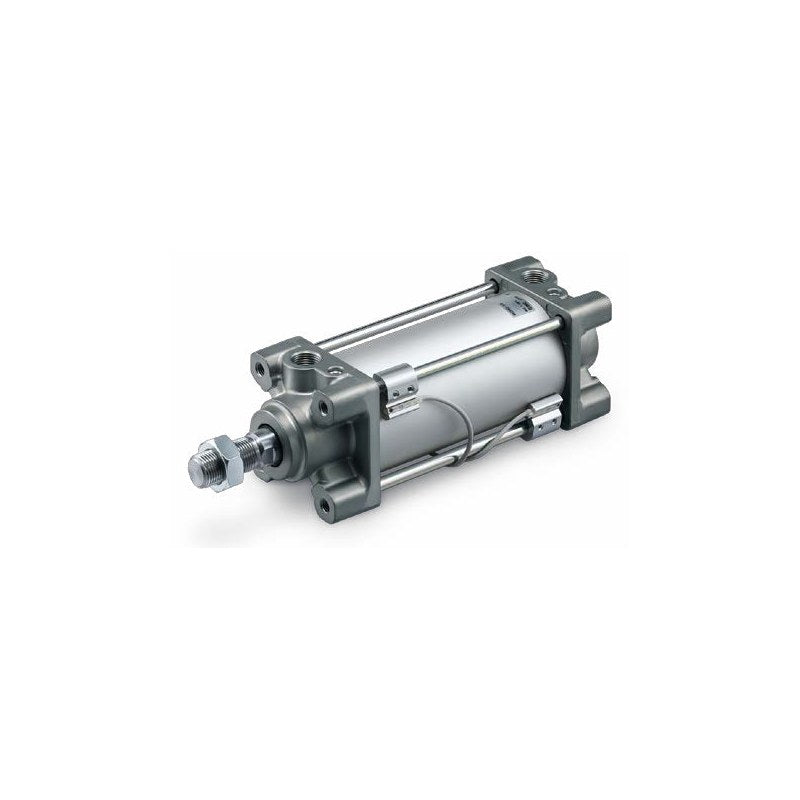

SMC MB2 Air Cylinder (Standard, Double Acting, ø32 to ø125)

SMC MB2 series tie-rod air cylinder, double acting, single rod, ø32 to ø125 mm bore, with or without a built-in auto switch magnet (MDB2).

Key features

Mounting styles: basic (B), axial foot (L), rod flange (F), head flange (G), single clevis (C), double clevis (D), rod trunnion (T)
Built-in magnet models (MD prefix) accept D-M9 solid state and D-A9 reed auto switches, ordered as a suffix (e.g. -M9BW)
Air cushion + rubber cushion as standard; Rc port thread standard, NPT (TN) and G (TF) on order
Bellows (J nylon / K heat resistant tarpaulin), rod end brackets (V single knuckle, W double knuckle, Q rod end) and pivot bracket (N) ordered as suffixes
Made-to-order options (e.g. -XA rod end change, -XB6 heat resistant, -XC6/XC7 stainless parts) available on request

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s
Cushion	Air cushion + rubber cushion
Port thread	Rc (NPT: TN, G: TF on order)
Standard strokes	ø32: 50 to 500; ø40: 50 to 500; ø50: 50 to 600; ø63: 50 to 600; ø80: 50 to 800; ø100: 50 to 800; ø125: 50 to 1000 mm
Source	SMC Korea catalog MB2 (SMCKR_MB2.pdf), p. 5-6

MB2B32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2B63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2B80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2B80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2B80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2B100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2B100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2B100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2B125-50		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2B125-75		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2B125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2B125-125		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2B125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2B125-175		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2B125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2B125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2B125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2B125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2B125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2B125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2B125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2B125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2B125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2B125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2B125-900		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2B125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2L32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2L63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2L80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2L80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2L80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2L100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2L100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2L100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2L125-50		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2L125-75		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2L125-100		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2L125-125		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2L125-150		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2L125-175		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2L125-200		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2L125-250		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2L125-300		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2L125-350		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2L125-400		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2L125-450		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2L125-500		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2L125-600		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2L125-700		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2L125-800		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2L125-900		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2L125-1000		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2F32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2F63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2F80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2F80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2F80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2F100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2F100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2F100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2F125-50		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2F125-75		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2F125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2F125-125		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2F125-150		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2F125-175		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2F125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2F125-250		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2F125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2F125-350		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2F125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2F125-450		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2F125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2F125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2F125-700		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2F125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2F125-900		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2F125-1000		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2G32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2G63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2G80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2G80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2G80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2G100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2G100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2G100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2G125-50		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2G125-75		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2G125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2G125-125		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2G125-150		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2G125-175		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2G125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2G125-250		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2G125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2G125-350		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2G125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2G125-450		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2G125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2G125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2G125-700		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2G125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2G125-900		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2G125-1000		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2C32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C32-125		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C32-175		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C32-350		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C32-450		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C40-125		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C40-175		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C40-350		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C40-450		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C50-125		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C50-175		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C50-350		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C50-450		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C50-600		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2C63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C63-125		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C63-175		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C63-350		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C63-450		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C63-600		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2C80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C80-125		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C80-175		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C80-350		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C80-450		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C80-600		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2C80-700		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2C80-800		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2C100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C100-125		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C100-175		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C100-350		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C100-450		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C100-600		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2C100-700		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2C100-800		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2C125-50		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2C125-75		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2C125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2C125-125		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2C125-150		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2C125-175		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2C125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2C125-250		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2C125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2C125-350		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2C125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2C125-450		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2C125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2C125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2C125-700		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2C125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2C125-900		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2C125-1000		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2D32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D32-125		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D32-175		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D32-350		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D32-450		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D40-125		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D40-175		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D40-350		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D40-450		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D50-125		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D50-175		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D50-350		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D50-450		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D50-600		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2D63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D63-125		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D63-175		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D63-350		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D63-450		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D63-600		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2D80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D80-125		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D80-175		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D80-350		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D80-450		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D80-600		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2D80-700		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2D80-800		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2D100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D100-125		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D100-175		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D100-350		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D100-450		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D100-600		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2D100-700		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2D100-800		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2D125-50		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2D125-75		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2D125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2D125-125		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2D125-150		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2D125-175		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2D125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2D125-250		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2D125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2D125-350		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2D125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2D125-450		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2D125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2D125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2D125-700		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2D125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2D125-900		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2D125-1000		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2T32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T32-125		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T32-175		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T32-350		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T32-450		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T40-125		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T40-175		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T40-350		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T40-450		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T50-125		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T50-175		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T50-350		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T50-450		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T50-600		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2T63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T63-125		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T63-175		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T63-350		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T63-450		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T63-600		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2T80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T80-125		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T80-175		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T80-350		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T80-450		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T80-600		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2T80-700		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2T80-800		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2T100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T100-125		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T100-175		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T100-350		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T100-450		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T100-600		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2T100-700		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2T100-800		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2T125-50		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2T125-75		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2T125-100		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2T125-125		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2T125-150		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2T125-175		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2T125-200		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2T125-250		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2T125-300		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2T125-350		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2T125-400		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2T125-450		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2T125-500		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2T125-600		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2T125-700		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2T125-800		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2T125-900		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2T125-1000		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MDB2B32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2B63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2B80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2B80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2B80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2B100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2B100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2B100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2B125-50		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2B125-75		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2B125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2B125-125		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2B125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2B125-175		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2B125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2B125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2B125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2B125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2B125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2B125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2B125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2B125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2B125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2B125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2B125-900		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2B125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2L32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2L63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2L80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2L80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2L80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2L100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2L100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2L100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2L125-50		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2L125-75		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2L125-100		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2L125-125		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2L125-150		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2L125-175		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2L125-200		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2L125-250		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2L125-300		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2L125-350		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2L125-400		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2L125-450		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2L125-500		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2L125-600		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2L125-700		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2L125-800		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2L125-900		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2L125-1000		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2F32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2F63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2F80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2F80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2F80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2F100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2F100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2F100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2F125-50		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2F125-75		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2F125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2F125-125		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2F125-150		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2F125-175		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2F125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2F125-250		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2F125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2F125-350		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2F125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2F125-450		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2F125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2F125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2F125-700		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2F125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2F125-900		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2F125-1000		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2G32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2G63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2G80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2G80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2G80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2G100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2G100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2G100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2G125-50		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2G125-75		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2G125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2G125-125		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2G125-150		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2G125-175		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2G125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2G125-250		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2G125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2G125-350		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2G125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2G125-450		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2G125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2G125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2G125-700		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2G125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2G125-900		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2G125-1000		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2C32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C32-125		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C32-175		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C32-350		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C32-450		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C40-125		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C40-175		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C40-350		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C40-450		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C50-125		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C50-175		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C50-350		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C50-450		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C50-600		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2C63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C63-125		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C63-175		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C63-350		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C63-450		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C63-600		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2C80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C80-125		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C80-175		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C80-350		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C80-450		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C80-600		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2C80-700		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2C80-800		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2C100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C100-125		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C100-175		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C100-350		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C100-450		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C100-600		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2C100-700		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2C100-800		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2C125-50		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2C125-75		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2C125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2C125-125		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2C125-150		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2C125-175		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2C125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2C125-250		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2C125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2C125-350		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2C125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2C125-450		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2C125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2C125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2C125-700		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2C125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2C125-900		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2C125-1000		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2D32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D32-125		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D32-175		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D32-350		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D32-450		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D40-125		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D40-175		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D40-350		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D40-450		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D50-125		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D50-175		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D50-350		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D50-450		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D50-600		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2D63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D63-125		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D63-175		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D63-350		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D63-450		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D63-600		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2D80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D80-125		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D80-175		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D80-350		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D80-450		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D80-600		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2D80-700		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2D80-800		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2D100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D100-125		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D100-175		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D100-350		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D100-450		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D100-600		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2D100-700		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2D100-800		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2D125-50		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2D125-75		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2D125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2D125-125		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2D125-150		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2D125-175		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2D125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2D125-250		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2D125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2D125-350		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2D125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2D125-450		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2D125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2D125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2D125-700		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2D125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2D125-900		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2D125-1000		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2T32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T32-125		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T32-175		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T32-350		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T32-450		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T40-125		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T40-175		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T40-350		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T40-450		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T50-125		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T50-175		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T50-350		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T50-450		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T50-600		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2T63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T63-125		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T63-175		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T63-350		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T63-450		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T63-600		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2T80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T80-125		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T80-175		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T80-350		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T80-450		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T80-600		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2T80-700		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2T80-800		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2T100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T100-125		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T100-175		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T100-350		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T100-450		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T100-600		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2T100-700		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2T100-800		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2T125-50		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2T125-75		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2T125-100		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2T125-125		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2T125-150		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2T125-175		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2T125-200		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2T125-250		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2T125-300		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2T125-350		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2T125-400		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2T125-450		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2T125-500		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2T125-600		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2T125-700		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2T125-800		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2T125-900		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2T125-1000		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1456 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MB2 Air Cylinder (Standard, Double Acting, ø32 to ø125)

Brand SMC·Round Body Cylinders

Available part numbers (1456)

MB2B32-50, MB2B32-75, MB2B32-100, MB2B32-125, MB2B32-150, MB2B32-175, MB2B32-200, MB2B32-250, MB2B32-300, MB2B32-350 + 1446 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MB2B32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2B63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2B80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2B80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2B80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2B100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2B100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2B100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2B125-50	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2B125-75	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2B125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2B125-125	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2B125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2B125-175	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2B125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2B125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2B125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2B125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2B125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2B125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2B125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2B125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2B125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2B125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2B125-900	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2B125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2L32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2L63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2L80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2L80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2L80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2L100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2L100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2L100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2L125-50	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2L125-75	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2L125-100	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2L125-125	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2L125-150	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2L125-175	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2L125-200	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2L125-250	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2L125-300	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2L125-350	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2L125-400	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2L125-450	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2L125-500	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2L125-600	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2L125-700	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2L125-800	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2L125-900	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2L125-1000	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2F32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2F63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2F80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2F80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2F80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2F100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2F100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2F100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2F125-50	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2F125-75	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2F125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2F125-125	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2F125-150	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2F125-175	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2F125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2F125-250	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2F125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2F125-350	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2F125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2F125-450	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2F125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2F125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2F125-700	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2F125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2F125-900	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2F125-1000	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2G32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2G63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2G80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2G80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2G80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2G100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2G100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2G100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2G125-50	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2G125-75	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2G125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2G125-125	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2G125-150	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2G125-175	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2G125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2G125-250	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2G125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2G125-350	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2G125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2G125-450	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2G125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2G125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2G125-700	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2G125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2G125-900	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2G125-1000	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2C32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C32-125	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C32-175	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C32-350	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C32-450	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C40-125	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C40-175	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C40-350	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C40-450	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C50-125	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C50-175	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C50-350	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C50-450	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C50-600	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2C63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C63-125	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C63-175	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C63-350	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C63-450	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C63-600	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2C80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C80-125	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C80-175	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C80-350	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C80-450	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C80-600	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2C80-700	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2C80-800	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2C100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C100-125	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C100-175	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C100-350	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C100-450	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C100-600	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2C100-700	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2C100-800	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2C125-50	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2C125-75	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2C125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2C125-125	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2C125-150	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2C125-175	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2C125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2C125-250	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2C125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2C125-350	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2C125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2C125-450	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2C125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2C125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2C125-700	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2C125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2C125-900	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2C125-1000	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2D32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D32-125	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D32-175	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D32-350	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D32-450	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D40-125	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D40-175	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D40-350	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D40-450	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D50-125	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D50-175	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D50-350	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D50-450	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D50-600	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2D63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D63-125	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D63-175	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D63-350	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D63-450	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D63-600	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2D80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D80-125	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D80-175	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D80-350	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D80-450	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D80-600	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2D80-700	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2D80-800	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2D100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D100-125	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D100-175	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D100-350	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D100-450	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D100-600	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2D100-700	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2D100-800	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2D125-50	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2D125-75	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2D125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2D125-125	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2D125-150	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2D125-175	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2D125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2D125-250	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2D125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2D125-350	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2D125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2D125-450	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2D125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2D125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2D125-700	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2D125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2D125-900	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2D125-1000	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2T32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T32-125	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T32-175	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T32-350	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T32-450	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T40-125	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T40-175	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T40-350	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T40-450	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T50-125	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T50-175	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T50-350	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T50-450	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T50-600	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2T63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T63-125	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T63-175	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T63-350	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T63-450	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T63-600	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2T80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T80-125	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T80-175	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T80-350	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T80-450	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T80-600	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2T80-700	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2T80-800	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2T100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T100-125	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T100-175	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T100-350	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T100-450	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T100-600	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2T100-700	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2T100-800	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2T125-50	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2T125-75	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2T125-100	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2T125-125	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2T125-150	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2T125-175	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2T125-200	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2T125-250	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2T125-300	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2T125-350	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2T125-400	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2T125-450	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2T125-500	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2T125-600	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2T125-700	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2T125-800	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2T125-900	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2T125-1000	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MDB2B32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2B63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2B80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2B80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2B80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2B100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2B100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2B100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2B125-50	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2B125-75	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2B125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2B125-125	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2B125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2B125-175	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2B125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2B125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2B125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2B125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2B125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2B125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2B125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2B125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2B125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2B125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2B125-900	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2B125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2L32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2L63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2L80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2L80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2L80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2L100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2L100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2L100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2L125-50	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2L125-75	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2L125-100	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2L125-125	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2L125-150	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2L125-175	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2L125-200	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2L125-250	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2L125-300	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2L125-350	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2L125-400	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2L125-450	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2L125-500	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2L125-600	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2L125-700	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2L125-800	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2L125-900	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2L125-1000	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2F32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2F63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2F80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2F80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2F80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2F100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2F100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2F100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2F125-50	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2F125-75	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2F125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2F125-125	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2F125-150	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2F125-175	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2F125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2F125-250	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2F125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2F125-350	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2F125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2F125-450	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2F125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2F125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2F125-700	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2F125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2F125-900	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2F125-1000	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2G32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2G63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2G80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2G80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2G80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2G100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2G100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2G100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2G125-50	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2G125-75	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2G125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2G125-125	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2G125-150	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2G125-175	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2G125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2G125-250	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2G125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2G125-350	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2G125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2G125-450	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2G125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2G125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2G125-700	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2G125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2G125-900	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2G125-1000	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2C32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C32-125	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C32-175	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C32-350	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C32-450	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C40-125	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C40-175	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C40-350	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C40-450	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C50-125	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C50-175	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C50-350	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C50-450	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C50-600	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2C63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C63-125	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C63-175	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C63-350	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C63-450	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C63-600	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2C80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C80-125	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C80-175	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C80-350	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C80-450	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C80-600	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2C80-700	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2C80-800	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2C100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C100-125	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C100-175	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C100-350	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C100-450	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C100-600	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2C100-700	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2C100-800	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2C125-50	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2C125-75	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2C125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2C125-125	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2C125-150	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2C125-175	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2C125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2C125-250	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2C125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2C125-350	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2C125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2C125-450	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2C125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2C125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2C125-700	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2C125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2C125-900	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2C125-1000	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2D32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D32-125	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D32-175	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D32-350	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D32-450	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D40-125	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D40-175	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D40-350	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D40-450	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D50-125	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D50-175	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D50-350	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D50-450	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D50-600	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2D63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D63-125	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D63-175	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D63-350	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D63-450	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D63-600	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2D80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D80-125	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D80-175	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D80-350	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D80-450	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D80-600	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2D80-700	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2D80-800	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2D100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D100-125	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D100-175	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D100-350	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D100-450	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D100-600	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2D100-700	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2D100-800	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2D125-50	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2D125-75	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2D125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2D125-125	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2D125-150	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2D125-175	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2D125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2D125-250	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2D125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2D125-350	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2D125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2D125-450	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2D125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2D125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2D125-700	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2D125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2D125-900	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2D125-1000	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2T32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T32-125	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T32-175	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T32-350	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T32-450	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T40-125	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T40-175	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T40-350	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T40-450	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T50-125	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T50-175	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T50-350	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T50-450	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T50-600	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2T63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T63-125	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T63-175	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T63-350	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T63-450	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T63-600	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2T80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T80-125	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T80-175	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T80-350	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T80-450	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T80-600	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2T80-700	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2T80-800	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2T100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T100-125	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T100-175	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T100-350	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T100-450	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T100-600	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2T100-700	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2T100-800	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2T125-50	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2T125-75	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2T125-100	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2T125-125	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2T125-150	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2T125-175	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2T125-200	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2T125-250	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2T125-300	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2T125-350	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2T125-400	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2T125-450	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2T125-500	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2T125-600	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2T125-700	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2T125-800	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2T125-900	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2T125-1000	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MB2 Air Cylinder (Standard, Double Acting, ø32 to ø125)
