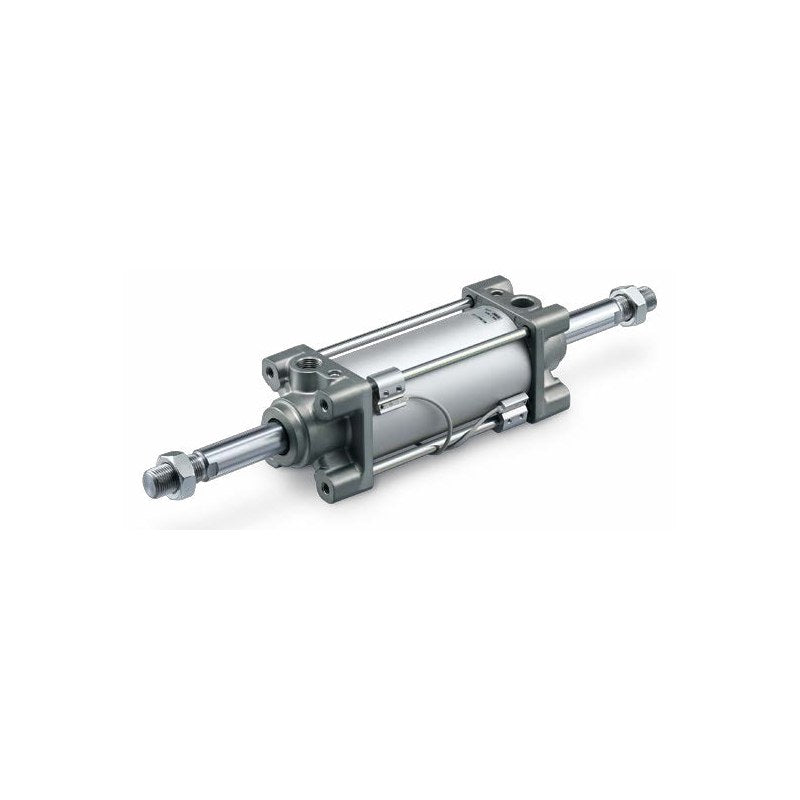

SMC MB2W Air Cylinder (Double Rod, ø32 to ø125)

SMC MB2W series tie-rod air cylinder, double acting, double rod, ø32 to ø125 mm bore, with or without a built-in auto switch magnet (MDB2W).

Key features

Mounting styles: basic (B), axial foot (L), flange (F), rod trunnion (T)
Built-in magnet models (MD prefix) accept D-M9 solid state and D-A9 reed auto switches, ordered as a suffix (e.g. -M9BW)
Air cushion + rubber cushion as standard; Rc port thread standard, NPT (TN) and G (TF) on order
Double rod design with bellows options J/JJ (nylon tarpaulin, one/both sides) and K/KK (heat resistant tarpaulin) as suffixes
Made-to-order options (e.g. -XA rod end change, -XB6 heat resistant, -XC6/XC7 stainless parts) available on request

Specifications

Action	Double acting, double rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s
Cushion	Air cushion + rubber cushion
Port thread	Rc (NPT: TN, G: TF on order)
Standard strokes	ø32: 50 to 500; ø40: 50 to 500; ø50: 50 to 600; ø63: 50 to 600; ø80: 50 to 800; ø100: 50 to 800; ø125: 50 to 1000 mm
Source	SMC Korea catalog MB2 (SMCKR_MB2.pdf), p. 15-16

MB2WB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WB125-50		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WB125-75		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WB125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WB125-125		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WB125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WB125-175		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WB125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WB125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WB125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WB125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WB125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WB125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WB125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WB125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WB125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WB125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WB125-900		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2WB125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2WL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WL125-50		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WL125-75		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WL125-100		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WL125-125		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WL125-150		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WL125-175		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WL125-200		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WL125-250		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WL125-300		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WL125-350		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WL125-400		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WL125-450		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WL125-500		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WL125-600		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WL125-700		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WL125-800		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WL125-900		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2WL125-1000		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2WF32-50		Mounting: Flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF32-75		Mounting: Flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF32-100		Mounting: Flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF32-125		Mounting: Flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF32-150		Mounting: Flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF32-175		Mounting: Flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF32-200		Mounting: Flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF32-250		Mounting: Flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF32-300		Mounting: Flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF32-350		Mounting: Flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF32-400		Mounting: Flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF32-450		Mounting: Flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF32-500		Mounting: Flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF40-50		Mounting: Flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF40-75		Mounting: Flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF40-100		Mounting: Flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF40-125		Mounting: Flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF40-150		Mounting: Flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF40-175		Mounting: Flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF40-200		Mounting: Flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF40-250		Mounting: Flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF40-300		Mounting: Flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF40-350		Mounting: Flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF40-400		Mounting: Flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF40-450		Mounting: Flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF40-500		Mounting: Flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF50-50		Mounting: Flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF50-75		Mounting: Flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF50-100		Mounting: Flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF50-125		Mounting: Flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF50-150		Mounting: Flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF50-175		Mounting: Flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF50-200		Mounting: Flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF50-250		Mounting: Flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF50-300		Mounting: Flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF50-350		Mounting: Flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF50-400		Mounting: Flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF50-450		Mounting: Flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF50-500		Mounting: Flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF50-600		Mounting: Flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WF63-50		Mounting: Flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF63-75		Mounting: Flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF63-100		Mounting: Flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF63-125		Mounting: Flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF63-150		Mounting: Flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF63-175		Mounting: Flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF63-200		Mounting: Flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF63-250		Mounting: Flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF63-300		Mounting: Flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF63-350		Mounting: Flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF63-400		Mounting: Flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF63-450		Mounting: Flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF63-500		Mounting: Flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF63-600		Mounting: Flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WF80-50		Mounting: Flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF80-75		Mounting: Flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF80-100		Mounting: Flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF80-125		Mounting: Flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF80-150		Mounting: Flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF80-175		Mounting: Flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF80-200		Mounting: Flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF80-250		Mounting: Flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF80-300		Mounting: Flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF80-350		Mounting: Flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF80-400		Mounting: Flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF80-450		Mounting: Flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF80-500		Mounting: Flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF80-600		Mounting: Flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WF80-700		Mounting: Flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WF80-800		Mounting: Flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WF100-50		Mounting: Flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF100-75		Mounting: Flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF100-100		Mounting: Flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF100-125		Mounting: Flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF100-150		Mounting: Flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF100-175		Mounting: Flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF100-200		Mounting: Flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF100-250		Mounting: Flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF100-300		Mounting: Flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF100-350		Mounting: Flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF100-400		Mounting: Flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF100-450		Mounting: Flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF100-500		Mounting: Flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF100-600		Mounting: Flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WF100-700		Mounting: Flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WF100-800		Mounting: Flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WF125-50		Mounting: Flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WF125-75		Mounting: Flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WF125-100		Mounting: Flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WF125-125		Mounting: Flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WF125-150		Mounting: Flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WF125-175		Mounting: Flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WF125-200		Mounting: Flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WF125-250		Mounting: Flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WF125-300		Mounting: Flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WF125-350		Mounting: Flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WF125-400		Mounting: Flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WF125-450		Mounting: Flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WF125-500		Mounting: Flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WF125-600		Mounting: Flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WF125-700		Mounting: Flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WF125-800		Mounting: Flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WF125-900		Mounting: Flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2WF125-1000		Mounting: Flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MB2WT32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT32-125		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT32-175		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT32-350		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT32-450		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT40-125		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT40-175		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT40-350		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT40-450		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT50-125		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT50-175		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT50-350		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT50-450		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT50-600		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WT63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT63-125		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT63-175		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT63-350		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT63-450		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT63-600		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WT80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT80-125		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT80-175		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT80-350		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT80-450		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT80-600		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WT80-700		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WT80-800		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WT100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT100-125		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT100-175		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT100-350		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT100-450		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT100-600		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WT100-700		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WT100-800		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WT125-50		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
MB2WT125-75		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
MB2WT125-100		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
MB2WT125-125		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
MB2WT125-150		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
MB2WT125-175		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
MB2WT125-200		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
MB2WT125-250		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
MB2WT125-300		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
MB2WT125-350		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
MB2WT125-400		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
MB2WT125-450		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
MB2WT125-500		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
MB2WT125-600		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
MB2WT125-700		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
MB2WT125-800		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
MB2WT125-900		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
MB2WT125-1000		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
MDB2WB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WB125-50		Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WB125-75		Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WB125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WB125-125		Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WB125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WB125-175		Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WB125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WB125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WB125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WB125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WB125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WB125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WB125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WB125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WB125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WB125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WB125-900		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2WB125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2WL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WL125-50		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WL125-75		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WL125-100		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WL125-125		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WL125-150		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WL125-175		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WL125-200		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WL125-250		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WL125-300		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WL125-350		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WL125-400		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WL125-450		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WL125-500		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WL125-600		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WL125-700		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WL125-800		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WL125-900		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2WL125-1000		Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2WF32-50		Mounting: Flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF32-75		Mounting: Flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF32-100		Mounting: Flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF32-125		Mounting: Flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF32-150		Mounting: Flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF32-175		Mounting: Flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF32-200		Mounting: Flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF32-250		Mounting: Flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF32-300		Mounting: Flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF32-350		Mounting: Flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF32-400		Mounting: Flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF32-450		Mounting: Flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF32-500		Mounting: Flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF40-50		Mounting: Flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF40-75		Mounting: Flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF40-100		Mounting: Flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF40-125		Mounting: Flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF40-150		Mounting: Flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF40-175		Mounting: Flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF40-200		Mounting: Flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF40-250		Mounting: Flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF40-300		Mounting: Flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF40-350		Mounting: Flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF40-400		Mounting: Flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF40-450		Mounting: Flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF40-500		Mounting: Flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF50-50		Mounting: Flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF50-75		Mounting: Flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF50-100		Mounting: Flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF50-125		Mounting: Flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF50-150		Mounting: Flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF50-175		Mounting: Flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF50-200		Mounting: Flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF50-250		Mounting: Flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF50-300		Mounting: Flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF50-350		Mounting: Flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF50-400		Mounting: Flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF50-450		Mounting: Flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF50-500		Mounting: Flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF50-600		Mounting: Flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WF63-50		Mounting: Flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF63-75		Mounting: Flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF63-100		Mounting: Flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF63-125		Mounting: Flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF63-150		Mounting: Flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF63-175		Mounting: Flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF63-200		Mounting: Flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF63-250		Mounting: Flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF63-300		Mounting: Flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF63-350		Mounting: Flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF63-400		Mounting: Flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF63-450		Mounting: Flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF63-500		Mounting: Flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF63-600		Mounting: Flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WF80-50		Mounting: Flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF80-75		Mounting: Flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF80-100		Mounting: Flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF80-125		Mounting: Flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF80-150		Mounting: Flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF80-175		Mounting: Flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF80-200		Mounting: Flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF80-250		Mounting: Flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF80-300		Mounting: Flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF80-350		Mounting: Flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF80-400		Mounting: Flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF80-450		Mounting: Flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF80-500		Mounting: Flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF80-600		Mounting: Flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WF80-700		Mounting: Flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WF80-800		Mounting: Flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WF100-50		Mounting: Flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF100-75		Mounting: Flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF100-100		Mounting: Flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF100-125		Mounting: Flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF100-150		Mounting: Flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF100-175		Mounting: Flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF100-200		Mounting: Flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF100-250		Mounting: Flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF100-300		Mounting: Flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF100-350		Mounting: Flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF100-400		Mounting: Flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF100-450		Mounting: Flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF100-500		Mounting: Flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF100-600		Mounting: Flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WF100-700		Mounting: Flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WF100-800		Mounting: Flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WF125-50		Mounting: Flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WF125-75		Mounting: Flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WF125-100		Mounting: Flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WF125-125		Mounting: Flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WF125-150		Mounting: Flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WF125-175		Mounting: Flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WF125-200		Mounting: Flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WF125-250		Mounting: Flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WF125-300		Mounting: Flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WF125-350		Mounting: Flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WF125-400		Mounting: Flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WF125-450		Mounting: Flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WF125-500		Mounting: Flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WF125-600		Mounting: Flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WF125-700		Mounting: Flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WF125-800		Mounting: Flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WF125-900		Mounting: Flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2WF125-1000		Mounting: Flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
MDB2WT32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT32-125		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT32-175		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT32-350		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT32-450		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT40-125		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT40-175		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT40-350		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT40-450		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT50-125		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT50-175		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT50-350		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT50-450		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT50-600		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WT63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT63-125		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT63-175		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT63-350		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT63-450		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT63-600		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WT80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT80-125		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT80-175		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT80-350		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT80-450		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT80-600		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WT80-700		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WT80-800		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WT100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT100-125		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT100-175		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT100-350		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT100-450		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT100-600		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WT100-700		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WT100-800		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WT125-50		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDB2WT125-75		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDB2WT125-100		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDB2WT125-125		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDB2WT125-150		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDB2WT125-175		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDB2WT125-200		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDB2WT125-250		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDB2WT125-300		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDB2WT125-350		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDB2WT125-400		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDB2WT125-450		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDB2WT125-500		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDB2WT125-600		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDB2WT125-700		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDB2WT125-800		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDB2WT125-900		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
MDB2WT125-1000		Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

832 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MB2W Air Cylinder (Double Rod, ø32 to ø125)

Brand SMC·Round Body Cylinders

Available part numbers (832)

MB2WB32-50, MB2WB32-75, MB2WB32-100, MB2WB32-125, MB2WB32-150, MB2WB32-175, MB2WB32-200, MB2WB32-250, MB2WB32-300, MB2WB32-350 + 822 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MB2WB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WB125-50	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WB125-75	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WB125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WB125-125	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WB125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WB125-175	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WB125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WB125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WB125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WB125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WB125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WB125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WB125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WB125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WB125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WB125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WB125-900	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2WB125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2WL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WL125-50	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WL125-75	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WL125-100	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WL125-125	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WL125-150	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WL125-175	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WL125-200	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WL125-250	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WL125-300	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WL125-350	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WL125-400	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WL125-450	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WL125-500	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WL125-600	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WL125-700	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WL125-800	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WL125-900	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2WL125-1000	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2WF32-50	Mounting: Flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF32-75	Mounting: Flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF32-100	Mounting: Flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF32-125	Mounting: Flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF32-150	Mounting: Flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF32-175	Mounting: Flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF32-200	Mounting: Flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF32-250	Mounting: Flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF32-300	Mounting: Flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF32-350	Mounting: Flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF32-400	Mounting: Flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF32-450	Mounting: Flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF32-500	Mounting: Flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF40-50	Mounting: Flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF40-75	Mounting: Flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF40-100	Mounting: Flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF40-125	Mounting: Flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF40-150	Mounting: Flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF40-175	Mounting: Flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF40-200	Mounting: Flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF40-250	Mounting: Flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF40-300	Mounting: Flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF40-350	Mounting: Flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF40-400	Mounting: Flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF40-450	Mounting: Flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF40-500	Mounting: Flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF50-50	Mounting: Flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF50-75	Mounting: Flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF50-100	Mounting: Flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF50-125	Mounting: Flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF50-150	Mounting: Flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF50-175	Mounting: Flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF50-200	Mounting: Flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF50-250	Mounting: Flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF50-300	Mounting: Flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF50-350	Mounting: Flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF50-400	Mounting: Flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF50-450	Mounting: Flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF50-500	Mounting: Flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF50-600	Mounting: Flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WF63-50	Mounting: Flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF63-75	Mounting: Flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF63-100	Mounting: Flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF63-125	Mounting: Flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF63-150	Mounting: Flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF63-175	Mounting: Flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF63-200	Mounting: Flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF63-250	Mounting: Flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF63-300	Mounting: Flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF63-350	Mounting: Flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF63-400	Mounting: Flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF63-450	Mounting: Flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF63-500	Mounting: Flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF63-600	Mounting: Flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WF80-50	Mounting: Flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF80-75	Mounting: Flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF80-100	Mounting: Flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF80-125	Mounting: Flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF80-150	Mounting: Flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF80-175	Mounting: Flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF80-200	Mounting: Flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF80-250	Mounting: Flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF80-300	Mounting: Flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF80-350	Mounting: Flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF80-400	Mounting: Flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF80-450	Mounting: Flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF80-500	Mounting: Flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF80-600	Mounting: Flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WF80-700	Mounting: Flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WF80-800	Mounting: Flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WF100-50	Mounting: Flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF100-75	Mounting: Flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF100-100	Mounting: Flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF100-125	Mounting: Flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF100-150	Mounting: Flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF100-175	Mounting: Flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF100-200	Mounting: Flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF100-250	Mounting: Flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF100-300	Mounting: Flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF100-350	Mounting: Flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF100-400	Mounting: Flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF100-450	Mounting: Flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF100-500	Mounting: Flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF100-600	Mounting: Flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WF100-700	Mounting: Flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WF100-800	Mounting: Flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WF125-50	Mounting: Flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WF125-75	Mounting: Flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WF125-100	Mounting: Flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WF125-125	Mounting: Flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WF125-150	Mounting: Flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WF125-175	Mounting: Flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WF125-200	Mounting: Flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WF125-250	Mounting: Flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WF125-300	Mounting: Flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WF125-350	Mounting: Flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WF125-400	Mounting: Flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WF125-450	Mounting: Flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WF125-500	Mounting: Flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WF125-600	Mounting: Flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WF125-700	Mounting: Flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WF125-800	Mounting: Flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WF125-900	Mounting: Flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2WF125-1000	Mounting: Flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MB2WT32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT32-125	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT32-175	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT32-350	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT32-450	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT40-125	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT40-175	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT40-350	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT40-450	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT50-125	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT50-175	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT50-350	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT50-450	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT50-600	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WT63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT63-125	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT63-175	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT63-350	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT63-450	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT63-600	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WT80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT80-125	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT80-175	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT80-350	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT80-450	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT80-600	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WT80-700	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WT80-800	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WT100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT100-125	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT100-175	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT100-350	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT100-450	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT100-600	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WT100-700	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WT100-800	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WT125-50	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MB2WT125-75	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MB2WT125-100	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MB2WT125-125	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MB2WT125-150	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MB2WT125-175	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MB2WT125-200	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MB2WT125-250	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MB2WT125-300	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MB2WT125-350	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MB2WT125-400	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MB2WT125-450	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MB2WT125-500	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MB2WT125-600	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MB2WT125-700	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MB2WT125-800	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MB2WT125-900	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No
	MB2WT125-1000	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No
	MDB2WB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WB125-50	Mounting: Basic \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WB125-75	Mounting: Basic \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WB125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WB125-125	Mounting: Basic \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WB125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WB125-175	Mounting: Basic \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WB125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WB125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WB125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WB125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WB125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WB125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WB125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WB125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WB125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WB125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WB125-900	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2WB125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2WL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WL125-50	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WL125-75	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WL125-100	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WL125-125	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WL125-150	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WL125-175	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WL125-200	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WL125-250	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WL125-300	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WL125-350	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WL125-400	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WL125-450	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WL125-500	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WL125-600	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WL125-700	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WL125-800	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WL125-900	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2WL125-1000	Mounting: Axial foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2WF32-50	Mounting: Flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF32-75	Mounting: Flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF32-100	Mounting: Flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF32-125	Mounting: Flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF32-150	Mounting: Flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF32-175	Mounting: Flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF32-200	Mounting: Flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF32-250	Mounting: Flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF32-300	Mounting: Flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF32-350	Mounting: Flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF32-400	Mounting: Flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF32-450	Mounting: Flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF32-500	Mounting: Flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF40-50	Mounting: Flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF40-75	Mounting: Flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF40-100	Mounting: Flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF40-125	Mounting: Flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF40-150	Mounting: Flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF40-175	Mounting: Flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF40-200	Mounting: Flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF40-250	Mounting: Flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF40-300	Mounting: Flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF40-350	Mounting: Flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF40-400	Mounting: Flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF40-450	Mounting: Flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF40-500	Mounting: Flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF50-50	Mounting: Flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF50-75	Mounting: Flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF50-100	Mounting: Flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF50-125	Mounting: Flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF50-150	Mounting: Flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF50-175	Mounting: Flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF50-200	Mounting: Flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF50-250	Mounting: Flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF50-300	Mounting: Flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF50-350	Mounting: Flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF50-400	Mounting: Flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF50-450	Mounting: Flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF50-500	Mounting: Flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF50-600	Mounting: Flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WF63-50	Mounting: Flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF63-75	Mounting: Flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF63-100	Mounting: Flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF63-125	Mounting: Flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF63-150	Mounting: Flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF63-175	Mounting: Flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF63-200	Mounting: Flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF63-250	Mounting: Flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF63-300	Mounting: Flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF63-350	Mounting: Flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF63-400	Mounting: Flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF63-450	Mounting: Flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF63-500	Mounting: Flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF63-600	Mounting: Flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WF80-50	Mounting: Flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF80-75	Mounting: Flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF80-100	Mounting: Flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF80-125	Mounting: Flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF80-150	Mounting: Flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF80-175	Mounting: Flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF80-200	Mounting: Flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF80-250	Mounting: Flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF80-300	Mounting: Flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF80-350	Mounting: Flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF80-400	Mounting: Flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF80-450	Mounting: Flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF80-500	Mounting: Flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF80-600	Mounting: Flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WF80-700	Mounting: Flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WF80-800	Mounting: Flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WF100-50	Mounting: Flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF100-75	Mounting: Flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF100-100	Mounting: Flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF100-125	Mounting: Flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF100-150	Mounting: Flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF100-175	Mounting: Flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF100-200	Mounting: Flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF100-250	Mounting: Flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF100-300	Mounting: Flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF100-350	Mounting: Flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF100-400	Mounting: Flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF100-450	Mounting: Flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF100-500	Mounting: Flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF100-600	Mounting: Flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WF100-700	Mounting: Flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WF100-800	Mounting: Flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WF125-50	Mounting: Flange \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WF125-75	Mounting: Flange \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WF125-100	Mounting: Flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WF125-125	Mounting: Flange \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WF125-150	Mounting: Flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WF125-175	Mounting: Flange \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WF125-200	Mounting: Flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WF125-250	Mounting: Flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WF125-300	Mounting: Flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WF125-350	Mounting: Flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WF125-400	Mounting: Flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WF125-450	Mounting: Flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WF125-500	Mounting: Flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WF125-600	Mounting: Flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WF125-700	Mounting: Flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WF125-800	Mounting: Flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WF125-900	Mounting: Flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2WF125-1000	Mounting: Flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes
	MDB2WT32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT32-125	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT32-175	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT32-350	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT32-450	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT40-125	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT40-175	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT40-350	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT40-450	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT50-125	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT50-175	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT50-350	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT50-450	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT50-600	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WT63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT63-125	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT63-175	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT63-350	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT63-450	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT63-600	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WT80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT80-125	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT80-175	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT80-350	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT80-450	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT80-600	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WT80-700	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WT80-800	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WT100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT100-125	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT100-175	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT100-350	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT100-450	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT100-600	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WT100-700	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WT100-800	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WT125-50	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDB2WT125-75	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDB2WT125-100	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDB2WT125-125	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDB2WT125-150	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDB2WT125-175	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDB2WT125-200	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDB2WT125-250	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDB2WT125-300	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDB2WT125-350	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDB2WT125-400	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDB2WT125-450	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDB2WT125-500	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDB2WT125-600	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDB2WT125-700	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDB2WT125-800	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDB2WT125-900	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes
	MDB2WT125-1000	Mounting: Rod trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MB2W Air Cylinder (Double Rod, ø32 to ø125)
