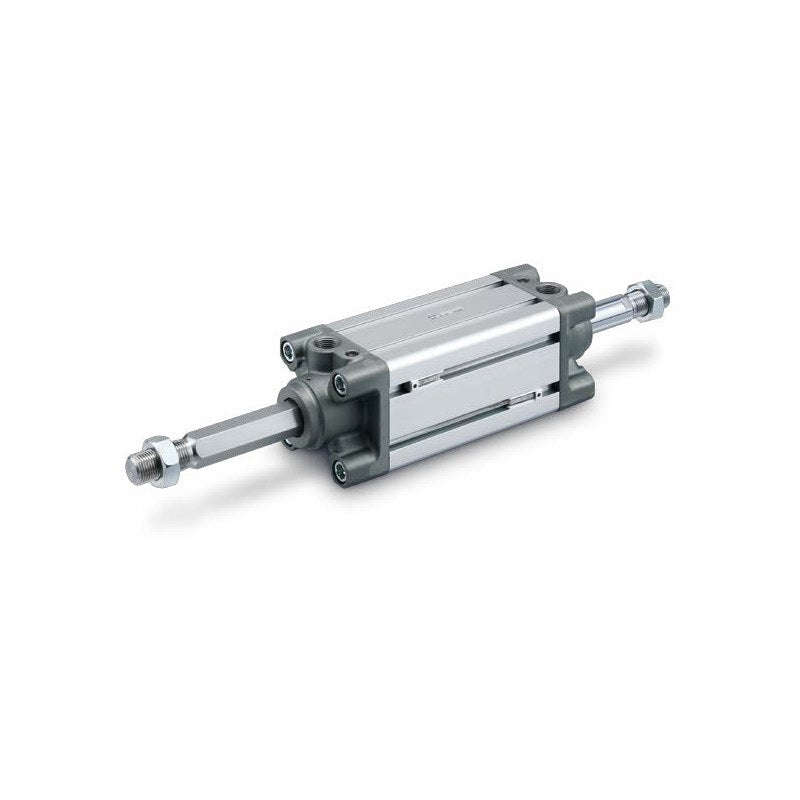

SMC MBP2KW Square Tube Cylinder (Non-Rotating, Double Rod, ø32-ø100)

SMC MBP2KW Square Tube Cylinder (Non-Rotating, Double Rod, ø32-ø100)

SMC MBP2KW series square (profile) tube air cylinder, double acting, double rod, non-rotating rod, ø32 to ø100 mm bore, with or without a built-in auto switch magnet (MDBP2KW).

Key features

  • Mounting styles: basic (B), axial foot (L), flange (F)
  • Built-in magnet models (MD prefix) accept D-M9 solid state and D-A9 reed auto switches, ordered as a suffix (e.g. -M9BW)
  • Air cushion + rubber cushion as standard; Rc port thread standard, NPT (TN) and G (TF) on order
  • Non-rotating piston rod: rotation accuracy ±0.5° (ø32 to ø63), ±0.3° (ø80, ø100)
  • Double rod design with bellows options J/JJ (nylon tarpaulin, one/both sides) and K/KK (heat resistant tarpaulin) as suffixes
  • Made-to-order options (e.g. -XA rod end change, -XB6 heat resistant, -XC6/XC7 stainless parts) available on request

Specifications

Action Double acting, double rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 1000 mm/s
Cushion Air cushion + rubber cushion
Port thread Rc (NPT: TN, G: TF on order)
Rod non-rotating accuracy ±0.5° (ø32 to ø63), ±0.3° (ø80, ø100)
Standard strokes ø32: 50 to 500; ø40: 50 to 500; ø50: 50 to 600; ø63: 50 to 600; ø80: 50 to 800; ø100: 50 to 800 mm
Source SMC Korea catalog MB2 (SMCKR_MB2.pdf), p. 59-60
MBP2KWB32-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB32-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB32-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB32-125 Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB32-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB32-175 Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB32-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB32-350 Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB32-450 Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB40-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB40-175 Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB40-350 Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB40-450 Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB50-50 Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB50-75 Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB50-100 Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB50-125 Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB50-150 Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB50-175 Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB50-200 Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB50-250 Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB50-300 Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB50-350 Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB50-400 Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB50-450 Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB50-500 Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB50-600 Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB63-50 Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB63-75 Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB63-100 Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB63-125 Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB63-150 Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB63-175 Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB63-200 Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB63-250 Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB63-300 Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB63-350 Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB63-400 Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB63-450 Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB63-500 Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB63-600 Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB80-50 Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB80-75 Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB80-100 Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB80-125 Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB80-150 Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB80-175 Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB80-200 Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB80-250 Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB80-300 Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB80-350 Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB80-400 Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB80-450 Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB80-500 Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB80-600 Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB80-700 Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWB80-800 Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWB100-50 Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB100-75 Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB100-100 Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB100-125 Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB100-150 Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB100-175 Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB100-200 Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB100-250 Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB100-300 Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB100-350 Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB100-400 Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB100-450 Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB100-500 Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB100-600 Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB100-700 Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWB100-800 Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWL32-50 Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL32-75 Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL32-100 Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL32-125 Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL32-150 Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL32-175 Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL32-200 Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL32-350 Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL32-450 Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL40-125 Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL40-175 Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL40-350 Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL40-450 Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL50-50 Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL50-75 Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL50-100 Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL50-125 Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL50-150 Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL50-175 Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL50-200 Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL50-250 Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL50-300 Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL50-350 Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL50-400 Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL50-450 Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL50-500 Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL50-600 Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL63-50 Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL63-75 Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL63-100 Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL63-125 Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL63-150 Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL63-175 Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL63-200 Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL63-250 Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL63-300 Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL63-350 Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL63-400 Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL63-450 Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL63-500 Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL63-600 Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL80-50 Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL80-75 Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL80-100 Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL80-125 Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL80-150 Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL80-175 Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL80-200 Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL80-250 Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL80-300 Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL80-350 Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL80-400 Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL80-450 Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL80-500 Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL80-600 Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL80-700 Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWL80-800 Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWL100-50 Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL100-75 Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL100-100 Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL100-125 Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL100-150 Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL100-175 Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL100-200 Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL100-250 Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL100-300 Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL100-350 Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL100-400 Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL100-450 Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL100-500 Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL100-600 Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL100-700 Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWL100-800 Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWF32-50 Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF32-75 Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF32-100 Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF32-125 Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF32-150 Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF32-175 Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF32-200 Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF32-250 Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF32-300 Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF32-350 Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF32-400 Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF32-450 Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF32-500 Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF40-50 Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF40-75 Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF40-100 Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF40-125 Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF40-150 Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF40-175 Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF40-200 Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF40-250 Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF40-300 Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF40-350 Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF40-400 Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF40-450 Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF40-500 Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF50-50 Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF50-75 Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF50-100 Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF50-125 Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF50-150 Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF50-175 Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF50-200 Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF50-250 Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF50-300 Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF50-350 Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF50-400 Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF50-450 Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF50-500 Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF50-600 Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF63-50 Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF63-75 Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF63-100 Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF63-125 Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF63-150 Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF63-175 Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF63-200 Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF63-250 Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF63-300 Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF63-350 Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF63-400 Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF63-450 Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF63-500 Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF63-600 Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF80-50 Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF80-75 Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF80-100 Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF80-125 Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF80-150 Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF80-175 Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF80-200 Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF80-250 Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF80-300 Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF80-350 Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF80-400 Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF80-450 Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF80-500 Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF80-600 Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF80-700 Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWF80-800 Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWF100-50 Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF100-75 Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF100-100 Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF100-125 Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF100-150 Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF100-175 Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF100-200 Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF100-250 Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF100-300 Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF100-350 Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF100-400 Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF100-450 Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF100-500 Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF100-600 Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF100-700 Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWF100-800 Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MDBP2KWB32-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB32-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB32-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB32-125 Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB32-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB32-175 Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB32-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB32-350 Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB32-450 Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB40-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB40-175 Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB40-350 Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB40-450 Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB50-50 Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB50-75 Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB50-100 Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB50-125 Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB50-150 Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB50-175 Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB50-200 Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB50-250 Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB50-300 Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB50-350 Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB50-400 Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB50-450 Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB50-500 Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB50-600 Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB63-50 Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB63-75 Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB63-100 Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB63-125 Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB63-150 Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB63-175 Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB63-200 Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB63-250 Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB63-300 Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB63-350 Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB63-400 Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB63-450 Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB63-500 Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB63-600 Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB80-50 Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB80-75 Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB80-100 Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB80-125 Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB80-150 Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB80-175 Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB80-200 Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB80-250 Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB80-300 Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB80-350 Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB80-400 Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB80-450 Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB80-500 Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB80-600 Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB80-700 Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWB80-800 Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWB100-50 Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB100-75 Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB100-100 Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB100-125 Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB100-150 Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB100-175 Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB100-200 Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB100-250 Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB100-300 Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB100-350 Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB100-400 Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB100-450 Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB100-500 Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB100-600 Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB100-700 Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWB100-800 Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWL32-50 Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL32-75 Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL32-100 Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL32-125 Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL32-150 Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL32-175 Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL32-200 Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL32-350 Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL32-450 Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL40-125 Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL40-175 Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL40-350 Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL40-450 Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL50-50 Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL50-75 Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL50-100 Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL50-125 Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL50-150 Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL50-175 Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL50-200 Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL50-250 Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL50-300 Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL50-350 Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL50-400 Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL50-450 Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL50-500 Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL50-600 Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL63-50 Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL63-75 Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL63-100 Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL63-125 Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL63-150 Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL63-175 Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL63-200 Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL63-250 Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL63-300 Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL63-350 Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL63-400 Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL63-450 Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL63-500 Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL63-600 Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL80-50 Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL80-75 Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL80-100 Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL80-125 Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL80-150 Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL80-175 Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL80-200 Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL80-250 Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL80-300 Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL80-350 Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL80-400 Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL80-450 Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL80-500 Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL80-600 Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL80-700 Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWL80-800 Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWL100-50 Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL100-75 Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL100-100 Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL100-125 Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL100-150 Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL100-175 Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL100-200 Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL100-250 Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL100-300 Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL100-350 Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL100-400 Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL100-450 Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL100-500 Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL100-600 Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL100-700 Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWL100-800 Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWF32-50 Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF32-75 Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF32-100 Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF32-125 Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF32-150 Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF32-175 Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF32-200 Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF32-250 Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF32-300 Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF32-350 Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF32-400 Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF32-450 Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF32-500 Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF40-50 Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF40-75 Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF40-100 Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF40-125 Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF40-150 Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF40-175 Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF40-200 Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF40-250 Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF40-300 Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF40-350 Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF40-400 Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF40-450 Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF40-500 Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF50-50 Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF50-75 Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF50-100 Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF50-125 Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF50-150 Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF50-175 Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF50-200 Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF50-250 Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF50-300 Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF50-350 Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF50-400 Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF50-450 Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF50-500 Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF50-600 Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF63-50 Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF63-75 Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF63-100 Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF63-125 Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF63-150 Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF63-175 Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF63-200 Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF63-250 Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF63-300 Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF63-350 Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF63-400 Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF63-450 Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF63-500 Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF63-600 Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF80-50 Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF80-75 Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF80-100 Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF80-125 Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF80-150 Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF80-175 Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF80-200 Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF80-250 Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF80-300 Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF80-350 Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF80-400 Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF80-450 Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF80-500 Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF80-600 Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF80-700 Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWF80-800 Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWF100-50 Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF100-75 Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF100-100 Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF100-125 Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF100-150 Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF100-175 Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF100-200 Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF100-250 Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF100-300 Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF100-350 Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF100-400 Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF100-450 Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF100-500 Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF100-600 Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF100-700 Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWF100-800 Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
Round Body CylindersSMC
516 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MBP2KW Square Tube Cylinder (Non-Rotating, Double Rod, ø32-ø100)

Brand SMC·Round Body Cylinders

Available part numbers (516)

MBP2KWB32-50, MBP2KWB32-75, MBP2KWB32-100, MBP2KWB32-125, MBP2KWB32-150, MBP2KWB32-175, MBP2KWB32-200, MBP2KWB32-250, MBP2KWB32-300, MBP2KWB32-350 + 506 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBP2KWB32-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB32-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB32-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB32-125Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB32-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB32-175Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB32-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB32-350Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB32-450Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB40-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB40-175Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB40-350Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB40-450Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB50-50Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB50-75Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB50-100Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB50-125Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB50-150Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB50-175Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB50-200Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB50-250Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB50-300Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB50-350Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB50-400Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB50-450Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB50-500Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB50-600Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB63-50Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB63-75Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB63-100Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB63-125Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB63-150Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB63-175Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB63-200Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB63-250Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB63-300Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB63-350Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB63-400Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB63-450Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB63-500Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB63-600Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB80-50Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB80-75Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB80-100Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB80-125Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB80-150Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB80-175Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB80-200Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB80-250Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB80-300Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB80-350Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB80-400Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB80-450Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB80-500Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB80-600Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB80-700Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWB80-800Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWB100-50Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWB100-75Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWB100-100Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWB100-125Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWB100-150Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWB100-175Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWB100-200Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWB100-250Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWB100-300Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWB100-350Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWB100-400Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWB100-450Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWB100-500Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWB100-600Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWB100-700Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWB100-800Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWL32-50Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL32-75Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL32-100Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL32-125Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL32-150Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL32-175Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL32-200Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL32-350Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL32-450Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL40-125Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL40-175Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL40-350Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL40-450Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL50-50Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL50-75Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL50-100Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL50-125Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL50-150Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL50-175Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL50-200Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL50-250Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL50-300Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL50-350Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL50-400Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL50-450Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL50-500Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL50-600Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL63-50Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL63-75Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL63-100Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL63-125Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL63-150Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL63-175Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL63-200Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL63-250Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL63-300Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL63-350Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL63-400Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL63-450Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL63-500Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL63-600Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL80-50Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL80-75Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL80-100Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL80-125Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL80-150Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL80-175Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL80-200Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL80-250Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL80-300Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL80-350Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL80-400Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL80-450Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL80-500Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL80-600Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL80-700Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWL80-800Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWL100-50Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWL100-75Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWL100-100Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWL100-125Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWL100-150Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWL100-175Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWL100-200Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWL100-250Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWL100-300Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWL100-350Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWL100-400Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWL100-450Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWL100-500Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWL100-600Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWL100-700Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWL100-800Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWF32-50Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF32-75Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF32-100Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF32-125Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF32-150Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF32-175Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF32-200Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF32-250Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF32-300Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF32-350Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF32-400Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF32-450Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF32-500Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF40-50Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF40-75Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF40-100Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF40-125Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF40-150Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF40-175Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF40-200Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF40-250Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF40-300Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF40-350Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF40-400Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF40-450Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF40-500Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF50-50Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF50-75Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF50-100Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF50-125Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF50-150Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF50-175Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF50-200Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF50-250Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF50-300Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF50-350Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF50-400Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF50-450Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF50-500Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF50-600Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF63-50Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF63-75Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF63-100Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF63-125Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF63-150Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF63-175Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF63-200Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF63-250Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF63-300Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF63-350Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF63-400Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF63-450Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF63-500Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF63-600Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF80-50Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF80-75Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF80-100Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF80-125Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF80-150Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF80-175Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF80-200Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF80-250Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF80-300Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF80-350Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF80-400Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF80-450Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF80-500Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF80-600Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF80-700Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWF80-800Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MBP2KWF100-50Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MBP2KWF100-75Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MBP2KWF100-100Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MBP2KWF100-125Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MBP2KWF100-150Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MBP2KWF100-175Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MBP2KWF100-200Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MBP2KWF100-250Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MBP2KWF100-300Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MBP2KWF100-350Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MBP2KWF100-400Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MBP2KWF100-450Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MBP2KWF100-500Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MBP2KWF100-600Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MBP2KWF100-700Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MBP2KWF100-800Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MDBP2KWB32-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB32-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB32-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB32-125Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB32-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB32-175Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB32-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB32-350Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB32-450Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB40-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB40-175Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB40-350Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB40-450Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB50-50Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB50-75Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB50-100Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB50-125Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB50-150Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB50-175Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB50-200Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB50-250Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB50-300Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB50-350Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB50-400Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB50-450Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB50-500Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB50-600Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB63-50Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB63-75Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB63-100Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB63-125Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB63-150Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB63-175Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB63-200Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB63-250Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB63-300Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB63-350Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB63-400Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB63-450Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB63-500Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB63-600Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB80-50Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB80-75Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB80-100Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB80-125Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB80-150Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB80-175Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB80-200Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB80-250Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB80-300Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB80-350Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB80-400Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB80-450Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB80-500Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB80-600Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB80-700Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWB80-800Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWB100-50Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWB100-75Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWB100-100Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWB100-125Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWB100-150Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWB100-175Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWB100-200Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWB100-250Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWB100-300Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWB100-350Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWB100-400Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWB100-450Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWB100-500Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWB100-600Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWB100-700Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWB100-800Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWL32-50Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL32-75Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL32-100Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL32-125Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL32-150Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL32-175Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL32-200Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL32-350Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL32-450Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL40-125Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL40-175Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL40-350Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL40-450Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL50-50Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL50-75Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL50-100Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL50-125Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL50-150Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL50-175Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL50-200Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL50-250Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL50-300Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL50-350Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL50-400Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL50-450Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL50-500Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL50-600Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL63-50Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL63-75Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL63-100Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL63-125Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL63-150Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL63-175Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL63-200Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL63-250Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL63-300Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL63-350Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL63-400Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL63-450Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL63-500Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL63-600Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL80-50Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL80-75Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL80-100Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL80-125Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL80-150Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL80-175Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL80-200Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL80-250Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL80-300Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL80-350Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL80-400Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL80-450Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL80-500Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL80-600Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL80-700Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWL80-800Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWL100-50Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWL100-75Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWL100-100Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWL100-125Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWL100-150Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWL100-175Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWL100-200Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWL100-250Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWL100-300Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWL100-350Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWL100-400Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWL100-450Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWL100-500Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWL100-600Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWL100-700Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWL100-800Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWF32-50Mounting: Flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF32-75Mounting: Flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF32-100Mounting: Flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF32-125Mounting: Flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF32-150Mounting: Flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF32-175Mounting: Flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF32-200Mounting: Flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF32-250Mounting: Flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF32-300Mounting: Flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF32-350Mounting: Flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF32-400Mounting: Flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF32-450Mounting: Flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF32-500Mounting: Flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF40-50Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF40-75Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF40-100Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF40-125Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF40-150Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF40-175Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF40-200Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF40-250Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF40-300Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF40-350Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF40-400Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF40-450Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF40-500Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF50-50Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF50-75Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF50-100Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF50-125Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF50-150Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF50-175Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF50-200Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF50-250Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF50-300Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF50-350Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF50-400Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF50-450Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF50-500Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF50-600Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF63-50Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF63-75Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF63-100Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF63-125Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF63-150Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF63-175Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF63-200Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF63-250Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF63-300Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF63-350Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF63-400Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF63-450Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF63-500Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF63-600Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF80-50Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF80-75Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF80-100Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF80-125Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF80-150Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF80-175Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF80-200Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF80-250Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF80-300Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF80-350Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF80-400Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF80-450Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF80-500Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF80-600Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF80-700Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWF80-800Mounting: Flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDBP2KWF100-50Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDBP2KWF100-75Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDBP2KWF100-100Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDBP2KWF100-125Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDBP2KWF100-150Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDBP2KWF100-175Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDBP2KWF100-200Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDBP2KWF100-250Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDBP2KWF100-300Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDBP2KWF100-350Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDBP2KWF100-400Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDBP2KWF100-450Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDBP2KWF100-500Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDBP2KWF100-600Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDBP2KWF100-700Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDBP2KWF100-800Mounting: Flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
