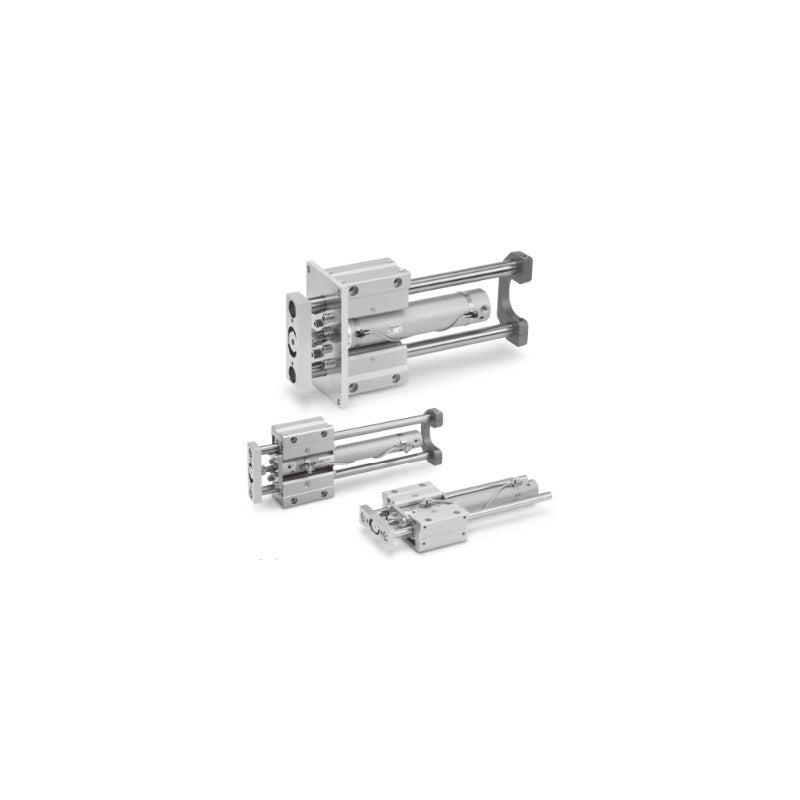

SMC MGC Compact Guide Cylinder (ø20 to ø50)

SMC MGC Compact Guide Cylinder (ø20 to ø50)

SMC MGC series compact guide cylinder, ø20 to ø50 mm bore, integrating a CDG1 basic cylinder with guide rods, air cushion as standard and strokes up to 1000 mm.

Key features

  • Compact unit of basic cylinder and guide rods with air cushion as standard; slide bearing (M) or ball bushing (L)
  • Basic (B) or front mounting flange (F) type; with or without rear plate (R)
  • Long strokes up to 400 mm (ø20) to 1000 mm (ø50)
  • M5 x 0.8 ports for ø20 and ø25; Rc for ø32 to ø50 with NPT (TN) and G (TF) available
  • Built-in magnet as standard; D-M9, D-A9, D-H7, D-C7 and other auto switches ordered as suffix (e.g. MGCLB32-100-R-M9BW)
  • Variations include air-hydro type (MGCH); made-to-order options such as grease-port body (-X440) and heat-resistant cylinder (-XB6)

Specifications

Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (horizontal, no load)
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 750 mm/s
Cushion Air cushion
Lubrication Not required (non-lube)
Stroke length tolerance +1.9/+0.2 mm
Basic cylinder CDG1ZA
Source SMC Korea catalog (SMCKR_MGC.pdf), p. 708-709
MGCMB20-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-75-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-100-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-125-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-150-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-200-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-250-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-300-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-350-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-400-R Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-75-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-100-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-125-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-150-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-200-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-250-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-300-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-350-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-400-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-450-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-500-R Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCMB32-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-75-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMB32-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-100-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMB32-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-125-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMB32-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-150-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMB32-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-200-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMB32-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-250-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMB32-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-300-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMB32-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-350-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMB32-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-400-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMB32-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-450-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMB32-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-500-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMB32-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-600-R Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMB40-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-75-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMB40-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-100-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMB40-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-125-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMB40-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-150-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMB40-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-200-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMB40-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-250-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMB40-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-300-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMB40-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-350-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMB40-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-400-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMB40-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-450-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMB40-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-500-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMB40-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-600-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMB40-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-700-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCMB40-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-800-R Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCMB50-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-75-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCMB50-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-100-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCMB50-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-125-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCMB50-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-150-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCMB50-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-200-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCMB50-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-250-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCMB50-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-300-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCMB50-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-350-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCMB50-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-400-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCMB50-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-450-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCMB50-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-500-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCMB50-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-600-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCMB50-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-700-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCMB50-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-800-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCMB50-900 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-900-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCMB50-1000 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-1000-R Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCMF20-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-75-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-100-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-125-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-150-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-200-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-250-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-300-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-350-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-400-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-75-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-100-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-125-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-150-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-200-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-250-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-300-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-350-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-400-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-450-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-500-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCMF32-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-75-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMF32-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-100-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMF32-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-125-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMF32-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-150-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMF32-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-200-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMF32-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-250-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMF32-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-300-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMF32-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-350-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMF32-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-400-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMF32-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-450-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMF32-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-500-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMF32-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-600-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMF40-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-75-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMF40-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-100-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMF40-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-125-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMF40-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-150-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMF40-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-200-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMF40-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-250-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMF40-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-300-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMF40-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-350-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMF40-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-400-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMF40-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-450-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMF40-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-500-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMF40-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-600-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMF40-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-700-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCMF40-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-800-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCMF50-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-75-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCMF50-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-100-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCMF50-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-125-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCMF50-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-150-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCMF50-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-200-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCMF50-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-250-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCMF50-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-300-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCMF50-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-350-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCMF50-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-400-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCMF50-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-450-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCMF50-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-500-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCMF50-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-600-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCMF50-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-700-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCMF50-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-800-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCMF50-900 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-900-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCMF50-1000 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-1000-R Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCLB20-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-75-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-100-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-125-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-150-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-200-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-250-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-300-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-350-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-400-R Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-75-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-100-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-125-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-150-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-200-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-250-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-300-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-350-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-400-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-450-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-500-R Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCLB32-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-75-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLB32-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-100-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLB32-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-125-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLB32-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-150-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLB32-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-200-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLB32-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-250-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLB32-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-300-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLB32-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-350-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLB32-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-400-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLB32-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-450-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLB32-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-500-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLB32-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-600-R Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLB40-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-75-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLB40-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-100-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLB40-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-125-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLB40-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-150-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLB40-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-200-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLB40-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-250-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLB40-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-300-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLB40-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-350-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLB40-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-400-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLB40-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-450-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLB40-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-500-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLB40-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-600-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLB40-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-700-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCLB40-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-800-R Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCLB50-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-75-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCLB50-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-100-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCLB50-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-125-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCLB50-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-150-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCLB50-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-200-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCLB50-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-250-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCLB50-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-300-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCLB50-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-350-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCLB50-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-400-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCLB50-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-450-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCLB50-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-500-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCLB50-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-600-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCLB50-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-700-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCLB50-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-800-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCLB50-900 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-900-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCLB50-1000 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-1000-R Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCLF20-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-75-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-100-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-125-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-150-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-200-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-250-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-300-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-350-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-400-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-75-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-100-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-125-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-150-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-200-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-250-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-300-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-350-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-400-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-450-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-500-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCLF32-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-75-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLF32-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-100-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLF32-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-125-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLF32-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-150-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLF32-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-200-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLF32-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-250-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLF32-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-300-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLF32-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-350-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLF32-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-400-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLF32-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-450-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLF32-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-500-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLF32-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-600-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLF40-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-75-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLF40-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-100-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLF40-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-125-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLF40-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-150-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLF40-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-200-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLF40-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-250-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLF40-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-300-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLF40-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-350-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLF40-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-400-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLF40-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-450-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLF40-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-500-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLF40-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-600-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLF40-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-700-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCLF40-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-800-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCLF50-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-75-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCLF50-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-100-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCLF50-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-125-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCLF50-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-150-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCLF50-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-200-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCLF50-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-250-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCLF50-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-300-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCLF50-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-350-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCLF50-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-400-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCLF50-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-450-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCLF50-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-500-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCLF50-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-600-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCLF50-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-700-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCLF50-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-800-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCLF50-900 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-900-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCLF50-1000 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-1000-R Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
Guided CylindersSMC
496 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGC Compact Guide Cylinder (ø20 to ø50)

Brand SMC·Guided Cylinders

Available part numbers (496)

MGCMB20-75, MGCMB20-75-R, MGCMB20-100, MGCMB20-100-R, MGCMB20-125, MGCMB20-125-R, MGCMB20-150, MGCMB20-150-R, MGCMB20-200, MGCMB20-200-R + 486 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGCMB20-75Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-75-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-100Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-100-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-125Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-125-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-150Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-150-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-200Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-200-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-250Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-250-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-300Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-300-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-350Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-350-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMB20-400Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB20-400-RBearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-75Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-75-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-100Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-100-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-125Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-125-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-150Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-150-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-200Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-200-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-250Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-250-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-300Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-300-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-350Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-350-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-400Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-400-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-450Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-450-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCMB25-500Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCMB25-500-RBearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCMB32-75Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-75-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMB32-100Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-100-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMB32-125Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-125-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMB32-150Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-150-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMB32-200Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-200-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMB32-250Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-250-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMB32-300Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-300-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMB32-350Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-350-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMB32-400Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-400-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMB32-450Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-450-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMB32-500Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-500-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMB32-600Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMB32-600-RBearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMB40-75Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-75-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMB40-100Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-100-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMB40-125Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-125-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMB40-150Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-150-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMB40-200Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-200-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMB40-250Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-250-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMB40-300Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-300-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMB40-350Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-350-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMB40-400Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-400-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMB40-450Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-450-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMB40-500Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-500-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMB40-600Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-600-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMB40-700Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-700-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCMB40-800Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCMB40-800-RBearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCMB50-75Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-75-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCMB50-100Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-100-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCMB50-125Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-125-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCMB50-150Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-150-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCMB50-200Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-200-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCMB50-250Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-250-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCMB50-300Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-300-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCMB50-350Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-350-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCMB50-400Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-400-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCMB50-450Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-450-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCMB50-500Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-500-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCMB50-600Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-600-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCMB50-700Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-700-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCMB50-800Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-800-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCMB50-900Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-900-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCMB50-1000Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCMB50-1000-RBearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCMF20-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-75-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-100-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-125-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-150-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-200-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-250-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-300-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-350-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMF20-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF20-400-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-75-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-100-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-125-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-150-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-200-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-250-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-300-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-350-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-400-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-450-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCMF25-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCMF25-500-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCMF32-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-75-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMF32-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-100-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMF32-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-125-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMF32-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-150-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMF32-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-200-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMF32-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-250-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMF32-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-300-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMF32-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-350-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMF32-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-400-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMF32-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-450-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMF32-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-500-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMF32-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMF32-600-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMF40-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-75-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCMF40-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-100-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCMF40-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-125-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCMF40-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-150-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCMF40-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-200-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCMF40-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-250-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCMF40-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-300-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCMF40-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-350-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCMF40-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-400-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCMF40-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-450-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCMF40-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-500-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCMF40-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-600-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCMF40-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-700-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCMF40-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCMF40-800-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCMF50-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-75-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCMF50-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-100-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCMF50-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-125-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCMF50-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-150-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCMF50-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-200-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCMF50-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-250-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCMF50-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-300-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCMF50-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-350-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCMF50-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-400-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCMF50-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-450-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCMF50-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-500-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCMF50-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-600-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCMF50-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-700-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCMF50-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-800-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCMF50-900Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-900-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCMF50-1000Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCMF50-1000-RBearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCLB20-75Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-75-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-100Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-100-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-125Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-125-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-150Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-150-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-200Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-200-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-250Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-250-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-300Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-300-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-350Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-350-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLB20-400Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB20-400-RBearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-75Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-75-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-100Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-100-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-125Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-125-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-150Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-150-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-200Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-200-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-250Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-250-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-300Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-300-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-350Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-350-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-400Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-400-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-450Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-450-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCLB25-500Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCLB25-500-RBearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCLB32-75Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-75-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLB32-100Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-100-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLB32-125Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-125-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLB32-150Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-150-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLB32-200Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-200-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLB32-250Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-250-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLB32-300Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-300-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLB32-350Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-350-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLB32-400Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-400-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLB32-450Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-450-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLB32-500Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-500-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLB32-600Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLB32-600-RBearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLB40-75Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-75-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLB40-100Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-100-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLB40-125Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-125-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLB40-150Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-150-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLB40-200Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-200-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLB40-250Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-250-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLB40-300Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-300-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLB40-350Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-350-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLB40-400Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-400-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLB40-450Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-450-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLB40-500Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-500-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLB40-600Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-600-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLB40-700Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-700-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCLB40-800Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCLB40-800-RBearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCLB50-75Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-75-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCLB50-100Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-100-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCLB50-125Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-125-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCLB50-150Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-150-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCLB50-200Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-200-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCLB50-250Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-250-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCLB50-300Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-300-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCLB50-350Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-350-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCLB50-400Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-400-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCLB50-450Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-450-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCLB50-500Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-500-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCLB50-600Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-600-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCLB50-700Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-700-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCLB50-800Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-800-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCLB50-900Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-900-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCLB50-1000Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCLB50-1000-RBearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4
MGCLF20-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-75-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-100-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-125-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-150-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-200-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-250-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-300-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-350-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLF20-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF20-400-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-75-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-100-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-125-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-150-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-200-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-250-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-300-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-350-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-400-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-450-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Rear plate: With | Port: M5 x 0.8
MGCLF25-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: Without | Port: M5 x 0.8
MGCLF25-500-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Rear plate: With | Port: M5 x 0.8
MGCLF32-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-75-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLF32-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-100-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLF32-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-125-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLF32-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-150-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLF32-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-200-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLF32-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-250-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLF32-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-300-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLF32-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-350-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLF32-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-400-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLF32-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-450-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLF32-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-500-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLF32-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLF32-600-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLF40-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-75-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/8
MGCLF40-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-100-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/8
MGCLF40-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-125-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/8
MGCLF40-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-150-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/8
MGCLF40-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-200-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/8
MGCLF40-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-250-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/8
MGCLF40-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-300-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/8
MGCLF40-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-350-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/8
MGCLF40-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-400-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/8
MGCLF40-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-450-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/8
MGCLF40-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-500-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/8
MGCLF40-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-600-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/8
MGCLF40-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-700-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/8
MGCLF40-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/8
MGCLF40-800-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/8
MGCLF50-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-75-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Rear plate: With | Port: Rc1/4
MGCLF50-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-100-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Rear plate: With | Port: Rc1/4
MGCLF50-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-125-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Rear plate: With | Port: Rc1/4
MGCLF50-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-150-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Rear plate: With | Port: Rc1/4
MGCLF50-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-200-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Rear plate: With | Port: Rc1/4
MGCLF50-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-250-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Rear plate: With | Port: Rc1/4
MGCLF50-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-300-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Rear plate: With | Port: Rc1/4
MGCLF50-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-350-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Rear plate: With | Port: Rc1/4
MGCLF50-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-400-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Rear plate: With | Port: Rc1/4
MGCLF50-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-450-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Rear plate: With | Port: Rc1/4
MGCLF50-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-500-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Rear plate: With | Port: Rc1/4
MGCLF50-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-600-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Rear plate: With | Port: Rc1/4
MGCLF50-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-700-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Rear plate: With | Port: Rc1/4
MGCLF50-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-800-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Rear plate: With | Port: Rc1/4
MGCLF50-900Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-900-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Rear plate: With | Port: Rc1/4
MGCLF50-1000Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: Without | Port: Rc1/4
MGCLF50-1000-RBearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Rear plate: With | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
