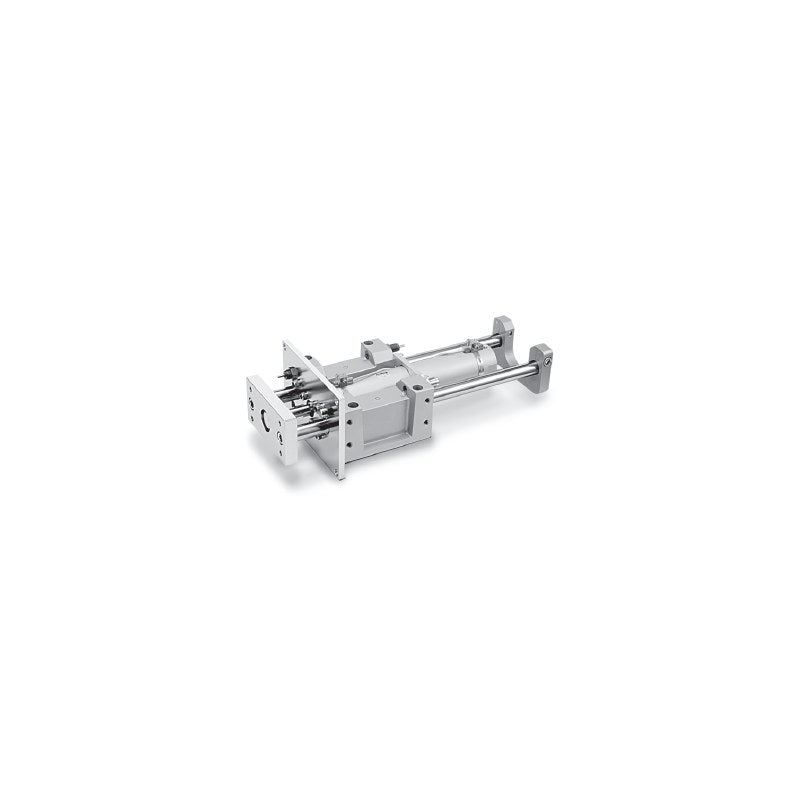

SMC MGG End Lock Guide Cylinder (ø20 to ø40)

SMC MGG series guide cylinder with end lock, ø20 to ø40 mm bore, holding the piston at the head or rod end to prevent dropping on air pressure loss.

Key features

End lock at head end (H) or rod end (R) with manual release non-locking (N) or locking (L) type; backlash 2 mm or less
Holding force (max.): 215 N (ø20), 330 N (ø25), 550 N (ø32), 860 N (ø40)
Slide bearing (M) or ball bushing (L) guide; basic (B) or front mounting flange (F) type; long strokes available
Shock absorbers and adjusting bolts fitted as standard; Rc port thread, NPT (TN) and G (TF) available
Built-in magnet as standard; auto switches ordered as suffix (e.g. MGGLB32-100-HN-M9BW)

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa (horizontal, no load)
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 1000 mm/s (ø20 to ø63), 50 to 700 mm/s (ø80, ø100)
Cushion	Rubber cushion (cylinder), 2 built-in shock absorbers (guide)
Stroke adjustment range (one side)	0 to -10 mm (ø20), 0 to -15 mm (ø25 to ø100)
Stroke length tolerance	+1.9/+0.2 mm (up to 1000 st), +2.3/+0.2 mm (1001 st and over)
Basic cylinder	CDBG1BN (end lock cylinder)
Source	SMC Korea catalog (SMCKR_MGG.pdf), p. 688-689

MGGMB20-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB20-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB20-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB20-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB20-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB25-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB25-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB25-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB25-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB32-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB32-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB32-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB32-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-700-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-700-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-700-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-700-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB40-800-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB40-800-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB40-800-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB40-800-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF20-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF20-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF20-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF20-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF25-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF25-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF25-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF25-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF32-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF32-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF32-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF32-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-700-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-700-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-700-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-700-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF40-800-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF40-800-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF40-800-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF40-800-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB20-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB20-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB20-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB20-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB25-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB25-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB25-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB25-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB32-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB32-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB32-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB32-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-700-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-700-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-700-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-700-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB40-800-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB40-800-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB40-800-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB40-800-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF20-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF20-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF20-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF20-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF25-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF25-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF25-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF25-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF32-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF32-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF32-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF32-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-700-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-700-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-700-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-700-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF40-800-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF40-800-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF40-800-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF40-800-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking

Guided CylindersSMC

736 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGG End Lock Guide Cylinder (ø20 to ø40)

Brand SMC·Guided Cylinders

Available part numbers (736)

MGGMB20-75-HN, MGGMB20-75-HL, MGGMB20-75-RN, MGGMB20-75-RL, MGGMB20-100-HN, MGGMB20-100-HL, MGGMB20-100-RN, MGGMB20-100-RL, MGGMB20-125-HN, MGGMB20-125-HL + 726 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGGMB20-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB20-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB20-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB20-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB20-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB25-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB25-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB25-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB25-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB32-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB32-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB32-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB32-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-700-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-700-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-700-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-700-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB40-800-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB40-800-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB40-800-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB40-800-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF20-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF20-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF20-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF20-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF25-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF25-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF25-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF25-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF32-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF32-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF32-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF32-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-700-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-700-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-700-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-700-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF40-800-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF40-800-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF40-800-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF40-800-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB20-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB20-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB20-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB20-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB25-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB25-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB25-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB25-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB32-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB32-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB32-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB32-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-700-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-700-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-700-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-700-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB40-800-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB40-800-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB40-800-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB40-800-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF20-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF20-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF20-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF20-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø20 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF25-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF25-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF25-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF25-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø25 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF32-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF32-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF32-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF32-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø32 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-700-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-700-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-700-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-700-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF40-800-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF40-800-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF40-800-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF40-800-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø40 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGG End Lock Guide Cylinder (ø20 to ø40)
