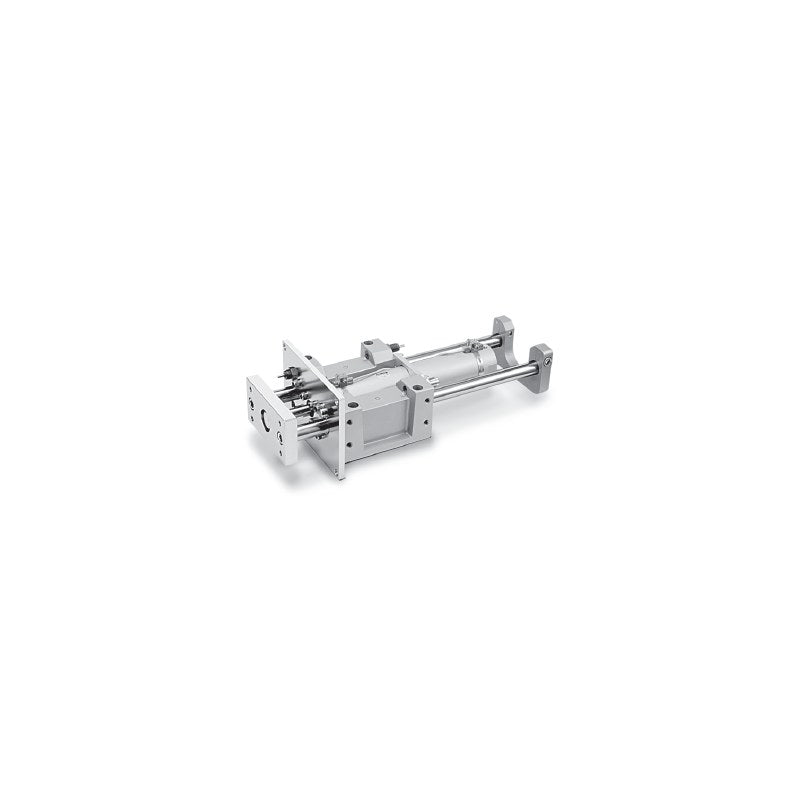

SMC MGG End Lock Guide Cylinder (ø50 to ø100)

SMC MGG series guide cylinder with end lock, ø50 to ø100 mm bore, holding the piston at the head or rod end to prevent dropping on air pressure loss.

Key features

End lock at head end (H) or rod end (R) with manual release non-locking (N) or locking (L) type; backlash 2 mm or less
Holding force (max.): 1340 N (ø50), 2140 N (ø63), 3450 N (ø80), 5390 N (ø100)
Slide bearing (M) or ball bushing (L) guide; basic (B) or front mounting flange (F) type; long strokes available
Shock absorbers and adjusting bolts fitted as standard; Rc port thread, NPT (TN) and G (TF) available
Built-in magnet as standard; auto switches ordered as suffix (e.g. MGGLB32-100-HN-M9BW)

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa (horizontal, no load)
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 1000 mm/s (ø20 to ø63), 50 to 700 mm/s (ø80, ø100)
Cushion	Rubber cushion (cylinder), 2 built-in shock absorbers (guide)
Stroke adjustment range (one side)	0 to -10 mm (ø20), 0 to -15 mm (ø25 to ø100)
Stroke length tolerance	+1.9/+0.2 mm (up to 1000 st), +2.3/+0.2 mm (1001 st and over)
Basic cylinder	CDBG1BN (end lock cylinder)
Source	SMC Korea catalog (SMCKR_MGG.pdf), p. 688-689

MGGMB50-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-700-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-700-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-700-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-700-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-800-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-800-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-800-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-800-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-900-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-900-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-900-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-900-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB50-1000-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB50-1000-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB50-1000-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB50-1000-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-700-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-700-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-700-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-700-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-800-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-800-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-800-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-800-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-900-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-900-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-900-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-900-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-1000-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-1000-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-1000-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-1000-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB63-1100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB63-1100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB63-1100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB63-1100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-700-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-700-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-700-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-700-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-800-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-800-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-800-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-800-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-900-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-900-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-900-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-900-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-1000-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-1000-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-1000-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-1000-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-1100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-1100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-1100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-1100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB80-1200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB80-1200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB80-1200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB80-1200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-75-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-75-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-75-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-75-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-125-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-125-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-125-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-125-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-150-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-150-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-150-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-150-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-250-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-250-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-250-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-250-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-350-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-350-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-350-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-350-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-400-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-400-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-400-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-400-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-450-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-450-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-450-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-450-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-500-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-500-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-500-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-500-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-600-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-600-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-600-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-600-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-700-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-700-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-700-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-700-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-800-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-800-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-800-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-800-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-900-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-900-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-900-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-900-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-1000-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-1000-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-1000-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-1000-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-1100-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-1100-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-1100-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-1100-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-1200-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-1200-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-1200-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-1200-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMB100-1300-HN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMB100-1300-HL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMB100-1300-RN		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMB100-1300-RL		Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-700-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-700-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-700-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-700-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-800-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-800-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-800-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-800-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-900-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-900-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-900-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-900-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF50-1000-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF50-1000-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF50-1000-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF50-1000-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-700-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-700-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-700-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-700-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-800-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-800-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-800-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-800-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-900-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-900-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-900-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-900-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-1000-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-1000-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-1000-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-1000-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF63-1100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF63-1100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF63-1100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF63-1100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-700-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-700-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-700-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-700-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-800-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-800-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-800-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-800-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-900-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-900-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-900-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-900-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-1000-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-1000-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-1000-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-1000-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-1100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-1100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-1100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-1100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF80-1200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF80-1200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF80-1200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF80-1200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-75-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-75-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-75-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-75-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-125-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-125-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-125-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-125-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-150-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-150-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-150-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-150-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-250-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-250-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-250-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-250-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-350-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-350-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-350-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-350-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-400-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-400-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-400-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-400-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-450-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-450-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-450-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-450-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-500-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-500-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-500-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-500-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-600-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-600-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-600-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-600-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-700-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-700-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-700-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-700-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-800-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-800-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-800-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-800-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-900-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-900-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-900-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-900-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-1000-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-1000-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-1000-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-1000-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-1100-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-1100-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-1100-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-1100-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-1200-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-1200-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-1200-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-1200-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGMF100-1300-HN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGMF100-1300-HL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGMF100-1300-RN		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGMF100-1300-RL		Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-700-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-700-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-700-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-700-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-800-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-800-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-800-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-800-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-900-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-900-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-900-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-900-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB50-1000-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB50-1000-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB50-1000-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB50-1000-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-700-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-700-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-700-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-700-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-800-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-800-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-800-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-800-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-900-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-900-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-900-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-900-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-1000-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-1000-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-1000-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-1000-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB63-1100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB63-1100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB63-1100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB63-1100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-700-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-700-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-700-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-700-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-800-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-800-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-800-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-800-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-900-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-900-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-900-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-900-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-1000-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-1000-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-1000-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-1000-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-1100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-1100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-1100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-1100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB80-1200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB80-1200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB80-1200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB80-1200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-75-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-75-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-75-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-75-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-125-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-125-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-125-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-125-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-150-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-150-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-150-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-150-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-250-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-250-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-250-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-250-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-350-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-350-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-350-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-350-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-400-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-400-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-400-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-400-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-450-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-450-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-450-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-450-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-500-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-500-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-500-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-500-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-600-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-600-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-600-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-600-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-700-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-700-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-700-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-700-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-800-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-800-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-800-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-800-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-900-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-900-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-900-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-900-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-1000-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-1000-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-1000-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-1000-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-1100-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-1100-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-1100-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-1100-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-1200-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-1200-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-1200-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-1200-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLB100-1300-HN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLB100-1300-HL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLB100-1300-RN		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLB100-1300-RL		Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-700-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-700-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-700-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-700-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-800-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-800-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-800-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-800-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-900-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-900-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-900-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-900-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF50-1000-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF50-1000-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF50-1000-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF50-1000-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-700-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-700-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-700-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-700-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-800-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-800-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-800-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-800-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-900-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-900-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-900-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-900-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-1000-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-1000-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-1000-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-1000-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF63-1100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF63-1100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF63-1100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF63-1100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-700-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-700-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-700-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-700-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-800-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-800-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-800-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-800-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-900-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-900-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-900-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-900-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-1000-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-1000-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-1000-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-1000-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-1100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-1100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-1100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-1100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF80-1200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF80-1200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF80-1200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF80-1200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-75-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-75-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-75-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-75-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-125-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-125-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-125-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-125-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-150-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-150-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-150-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-150-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-250-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-250-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-250-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-250-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-350-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-350-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-350-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-350-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-400-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-400-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-400-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-400-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-450-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-450-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-450-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-450-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-500-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-500-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-500-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-500-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-600-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-600-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-600-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-600-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-700-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-700-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-700-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-700-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-800-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-800-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-800-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-800-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-900-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-900-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-900-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-900-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-1000-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-1000-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-1000-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-1000-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-1100-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-1100-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-1100-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-1100-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-1200-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-1200-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-1200-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-1200-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
MGGLF100-1300-HN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
MGGLF100-1300-HL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
MGGLF100-1300-RN		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
MGGLF100-1300-RL		Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking

Guided CylindersSMC

1120 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGG End Lock Guide Cylinder (ø50 to ø100)

Brand SMC·Guided Cylinders

Available part numbers (1120)

MGGMB50-75-HN, MGGMB50-75-HL, MGGMB50-75-RN, MGGMB50-75-RL, MGGMB50-100-HN, MGGMB50-100-HL, MGGMB50-100-RN, MGGMB50-100-RL, MGGMB50-125-HN, MGGMB50-125-HL + 1110 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGGMB50-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-700-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-700-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-700-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-700-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-800-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-800-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-800-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-800-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-900-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-900-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-900-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-900-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB50-1000-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB50-1000-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB50-1000-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB50-1000-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-700-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-700-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-700-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-700-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-800-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-800-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-800-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-800-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-900-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-900-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-900-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-900-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-1000-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-1000-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-1000-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-1000-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB63-1100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB63-1100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB63-1100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB63-1100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-700-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-700-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-700-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-700-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-800-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-800-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-800-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-800-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-900-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-900-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-900-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-900-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-1000-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-1000-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-1000-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-1000-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-1100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-1100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-1100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-1100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB80-1200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB80-1200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB80-1200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB80-1200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-75-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-75-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-75-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-75-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-125-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-125-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-125-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-125-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-150-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-150-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-150-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-150-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-250-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-250-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-250-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-250-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-350-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-350-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-350-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-350-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-400-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-400-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-400-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-400-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-450-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-450-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-450-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-450-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-500-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-500-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-500-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-500-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-600-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-600-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-600-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-600-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-700-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-700-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-700-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-700-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-800-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-800-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-800-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-800-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-900-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-900-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-900-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-900-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-1000-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-1000-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-1000-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-1000-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-1100-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-1100-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-1100-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-1100-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-1200-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-1200-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-1200-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-1200-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMB100-1300-HN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMB100-1300-HL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMB100-1300-RN	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMB100-1300-RL	Bearing: Slide bearing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-700-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-700-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-700-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-700-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-800-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-800-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-800-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-800-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-900-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-900-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-900-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-900-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF50-1000-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF50-1000-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF50-1000-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF50-1000-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-700-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-700-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-700-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-700-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-800-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-800-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-800-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-800-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-900-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-900-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-900-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-900-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-1000-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-1000-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-1000-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-1000-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF63-1100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF63-1100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF63-1100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF63-1100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-700-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-700-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-700-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-700-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-800-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-800-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-800-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-800-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-900-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-900-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-900-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-900-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-1000-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-1000-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-1000-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-1000-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-1100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-1100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-1100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-1100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF80-1200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF80-1200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF80-1200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF80-1200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-75-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-75-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-75-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-75-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-125-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-125-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-125-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-125-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-150-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-150-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-150-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-150-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-250-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-250-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-250-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-250-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-350-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-350-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-350-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-350-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-400-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-400-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-400-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-400-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-450-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-450-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-450-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-450-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-500-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-500-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-500-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-500-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-600-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-600-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-600-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-600-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-700-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-700-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-700-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-700-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-800-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-800-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-800-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-800-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-900-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-900-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-900-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-900-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-1000-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-1000-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-1000-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-1000-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-1100-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-1100-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-1100-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-1100-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-1200-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-1200-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-1200-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-1200-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGMF100-1300-HN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGMF100-1300-HL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGMF100-1300-RN	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGMF100-1300-RL	Bearing: Slide bearing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-700-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-700-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-700-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-700-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-800-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-800-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-800-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-800-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-900-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-900-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-900-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-900-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB50-1000-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB50-1000-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB50-1000-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB50-1000-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-700-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-700-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-700-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-700-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-800-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-800-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-800-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-800-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-900-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-900-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-900-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-900-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-1000-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-1000-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-1000-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-1000-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB63-1100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB63-1100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB63-1100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB63-1100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-700-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-700-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-700-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-700-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-800-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-800-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-800-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-800-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-900-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-900-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-900-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-900-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-1000-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-1000-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-1000-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-1000-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-1100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-1100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-1100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-1100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB80-1200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB80-1200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB80-1200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB80-1200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-75-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-75-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-75-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-75-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-125-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-125-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-125-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-125-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-150-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-150-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-150-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-150-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-250-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-250-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-250-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-250-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-350-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-350-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-350-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-350-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-400-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-400-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-400-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-400-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-450-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-450-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-450-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-450-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-500-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-500-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-500-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-500-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-600-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-600-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-600-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-600-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-700-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-700-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-700-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-700-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-800-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-800-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-800-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-800-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-900-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-900-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-900-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-900-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-1000-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-1000-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-1000-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-1000-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-1100-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-1100-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-1100-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-1100-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-1200-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-1200-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-1200-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-1200-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLB100-1300-HN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLB100-1300-HL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLB100-1300-RN	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLB100-1300-RL	Bearing: Ball bushing \| Mounting: Basic \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-700-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-700-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-700-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-700-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-800-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-800-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-800-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-800-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-900-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-900-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-900-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-900-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF50-1000-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF50-1000-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF50-1000-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF50-1000-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø50 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-700-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-700-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-700-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-700-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-800-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-800-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-800-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-800-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-900-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-900-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-900-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-900-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-1000-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-1000-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-1000-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-1000-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF63-1100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF63-1100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF63-1100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF63-1100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø63 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-700-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-700-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-700-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-700-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-800-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-800-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-800-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-800-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-900-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-900-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-900-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-900-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-1000-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-1000-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-1000-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-1000-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-1100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-1100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-1100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-1100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF80-1200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF80-1200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF80-1200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF80-1200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø80 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-75-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-75-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-75-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-75-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 75 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-125-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-125-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-125-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-125-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 125 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-150-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-150-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-150-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-150-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 150 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-250-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-250-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-250-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-250-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 250 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 300 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-350-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-350-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-350-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-350-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 350 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-400-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-400-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-400-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-400-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 400 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-450-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-450-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-450-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-450-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 450 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-500-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-500-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-500-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-500-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 500 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-600-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-600-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-600-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-600-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 600 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-700-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-700-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-700-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-700-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 700 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-800-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-800-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-800-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-800-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 800 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-900-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-900-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-900-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-900-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 900 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-1000-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-1000-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-1000-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-1000-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1000 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-1100-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-1100-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-1100-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-1100-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1100 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-1200-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-1200-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-1200-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-1200-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1200 mm \| Lock position: Rod end lock \| Manual release: Locking
	MGGLF100-1300-HN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Non-locking
	MGGLF100-1300-HL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Head end lock \| Manual release: Locking
	MGGLF100-1300-RN	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Non-locking
	MGGLF100-1300-RL	Bearing: Ball bushing \| Mounting: Front mounting flange \| Bore: ø100 mm \| Stroke: 1300 mm \| Lock position: Rod end lock \| Manual release: Locking

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGG End Lock Guide Cylinder (ø50 to ø100)
