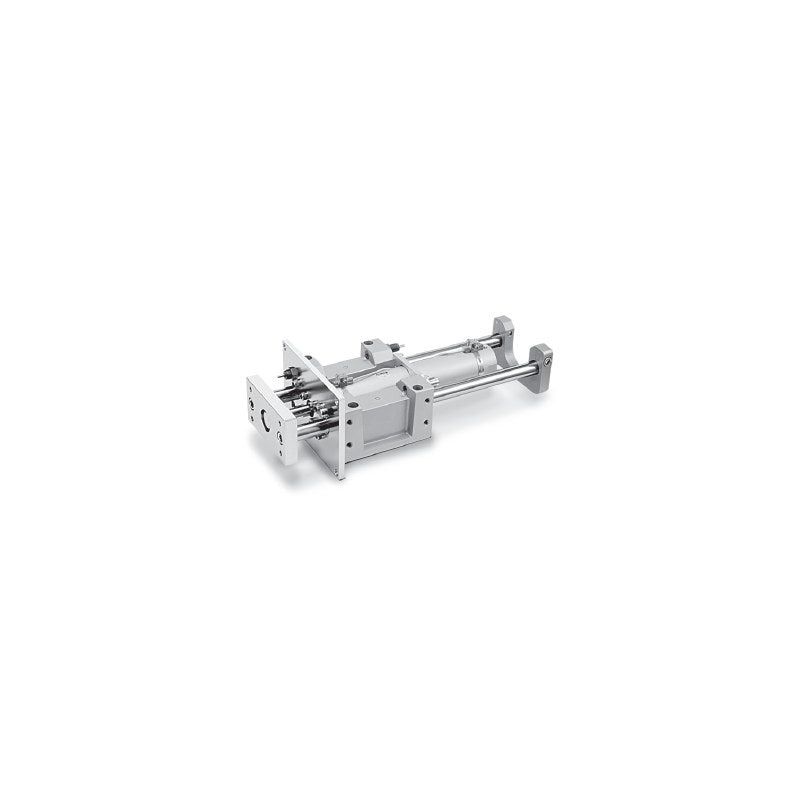

SMC MGG Guide Cylinder (ø20 to ø100)

SMC MGG Guide Cylinder (ø20 to ø100)

SMC MGG series guide cylinder, ø20 to ø100 mm bore, a linear motion unit combining a CDG1 basic cylinder and guide rods compactly, with built-in shock absorbers and strokes up to 1300 mm.

Key features

  • Basic cylinder and guide rods integrated in one compact unit; slide bearing (M) or ball bushing (L) guide
  • Basic (B) or front mounting flange (F) type; long strokes up to 400 mm (ø20) to 1300 mm (ø100)
  • Shock absorbers and adjusting bolts fitted as standard for impact absorption and fine stroke adjustment
  • Rc port thread as standard; NPT (TN) and G (TF) available
  • Built-in magnet as standard; D-M9, D-A9, D-G59, D-B54 and other auto switches ordered as suffix (e.g. -M9BW)
  • Variations include air-hydro type (MGGH), water-resistant types and front-mounting flange specs; other intermediate strokes made to order

Specifications

Action Double acting
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (horizontal, no load)
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 1000 mm/s (ø20 to ø63), 50 to 700 mm/s (ø80, ø100)
Cushion Rubber cushion (cylinder), 2 built-in shock absorbers (guide)
Stroke adjustment range (one side) 0 to -10 mm (ø20), 0 to -15 mm (ø25 to ø100)
Stroke length tolerance +1.9/+0.2 mm (up to 1000 st), +2.3/+0.2 mm (1001 st and over)
Source SMC Korea catalog (SMCKR_MGG.pdf), p. 668-669
MGGMB20-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGMB40-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-900 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-1000 Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-900 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-1000 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-1100 Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGMB80-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-900 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1000 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1100 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1200 Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGMB100-75 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-100 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-125 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-150 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-200 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-250 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-300 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-350 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-400 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-450 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-500 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-600 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-700 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-800 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-900 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1000 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1100 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1200 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1300 Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGMF20-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGMF40-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-900 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-1000 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-900 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-1000 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-1100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGMF80-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-900 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1000 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGMF100-75 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-125 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-150 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-250 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-350 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-400 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-450 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-500 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-600 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-700 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-800 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-900 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1000 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1100 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1200 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1300 Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGLB20-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGLB40-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-900 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-1000 Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-900 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-1000 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-1100 Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGLB80-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-900 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1000 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1100 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1200 Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGLB100-75 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-100 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-125 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-150 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-200 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-250 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-300 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-350 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-400 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-450 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-500 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-600 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-700 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-800 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-900 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1000 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1100 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1200 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1300 Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGLF20-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGLF40-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-900 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-1000 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-900 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-1000 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-1100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGLF80-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-900 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1000 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGLF100-75 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-125 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-150 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-250 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-350 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-400 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-450 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-500 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-600 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-700 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-800 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-900 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1000 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1100 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1200 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1300 Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
Guided CylindersSMC
464 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGG Guide Cylinder (ø20 to ø100)

Brand SMC·Guided Cylinders

Available part numbers (464)

MGGMB20-75, MGGMB20-100, MGGMB20-125, MGGMB20-150, MGGMB20-200, MGGMB20-250, MGGMB20-300, MGGMB20-350, MGGMB20-400, MGGMB25-75 + 454 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGGMB20-75Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-100Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-125Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-150Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-200Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB20-250Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-300Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-350Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB20-400Bearing: Slide bearing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-75Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-100Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-125Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-150Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-200Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-250Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-300Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMB25-350Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-400Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-450Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMB25-500Bearing: Slide bearing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-75Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-100Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-125Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-150Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-200Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-250Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-300Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMB32-350Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-400Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-450Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-500Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMB32-600Bearing: Slide bearing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGMB40-75Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-100Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-125Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-150Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-200Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-250Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-300Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB40-350Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-400Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-450Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-500Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-600Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-700Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB40-800Bearing: Slide bearing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-75Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-100Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-125Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-150Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-200Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-250Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-300Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB50-350Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-400Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-450Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-500Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-600Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-700Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-800Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-900Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMB50-1000Bearing: Slide bearing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-75Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-100Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-125Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-150Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-200Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-250Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-300Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMB63-350Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-400Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-450Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-500Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-600Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-700Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-800Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-900Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-1000Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMB63-1100Bearing: Slide bearing | Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGMB80-75Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-100Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-125Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-150Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-200Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-250Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-300Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGMB80-350Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-400Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-450Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-500Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-600Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-700Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-800Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-900Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1000Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1100Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGMB80-1200Bearing: Slide bearing | Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGMB100-75Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-100Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-125Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-150Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-200Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-250Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-300Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGMB100-350Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-400Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-450Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-500Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-600Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-700Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-800Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-900Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1000Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1100Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1200Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGMB100-1300Bearing: Slide bearing | Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGMF20-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF20-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF20-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMF25-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMF25-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGMF32-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGMF32-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGMF40-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF40-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF40-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF50-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-900Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMF50-1000Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGMF63-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-900Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-1000Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGMF63-1100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGMF80-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGMF80-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-900Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1000Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGMF80-1200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGMF100-75Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-125Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-150Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-250Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGMF100-350Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-400Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-450Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-500Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-600Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-700Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-800Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-900Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1000Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1100Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1200Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGMF100-1300Bearing: Slide bearing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGLB20-75Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-100Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-125Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-150Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-200Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB20-250Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-300Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-350Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB20-400Bearing: Ball bushing | Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-75Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-100Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-125Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-150Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-200Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-250Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-300Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLB25-350Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-400Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-450Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLB25-500Bearing: Ball bushing | Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-75Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-100Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-125Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-150Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-200Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-250Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-300Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLB32-350Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-400Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-450Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-500Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLB32-600Bearing: Ball bushing | Mounting: Basic | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGLB40-75Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-100Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-125Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-150Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-200Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-250Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-300Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB40-350Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-400Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-450Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-500Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-600Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-700Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB40-800Bearing: Ball bushing | Mounting: Basic | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-75Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-100Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-125Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-150Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-200Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-250Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-300Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB50-350Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-400Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-450Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-500Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-600Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-700Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-800Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-900Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLB50-1000Bearing: Ball bushing | Mounting: Basic | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-75Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-100Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-125Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-150Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-200Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-250Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-300Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLB63-350Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-400Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-450Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-500Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-600Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-700Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-800Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-900Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-1000Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLB63-1100Bearing: Ball bushing | Mounting: Basic | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGLB80-75Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-100Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-125Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-150Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-200Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-250Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-300Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGLB80-350Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-400Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-450Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-500Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-600Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-700Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-800Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-900Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1000Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1100Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGLB80-1200Bearing: Ball bushing | Mounting: Basic | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGLB100-75Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-100Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-125Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-150Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-200Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-250Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-300Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGLB100-350Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-400Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-450Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-500Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-600Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-700Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-800Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-900Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1000Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1100Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1200Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGLB100-1300Bearing: Ball bushing | Mounting: Basic | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2
MGGLF20-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF20-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 250 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 300 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF20-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø20 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLF25-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLF25-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø25 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/8
MGGLF32-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/8
MGGLF32-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø32 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/8
MGGLF40-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF40-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF40-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø40 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF50-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-900Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLF50-1000Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø50 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/4
MGGLF63-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-900Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-1000Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/4
MGGLF63-1100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø63 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/4
MGGLF80-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc3/8
MGGLF80-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-900Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1000Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc3/8
MGGLF80-1200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø80 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc3/8
MGGLF100-75Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 75 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 100 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-125Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 125 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-150Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 150 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 200 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-250Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 250 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 300 mm | Stroke range: Standard | Port: Rc1/2
MGGLF100-350Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 350 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-400Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 400 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-450Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 450 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-500Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 500 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-600Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 600 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-700Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 700 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-800Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 800 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-900Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 900 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1000Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1000 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1100Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1100 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1200Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1200 mm | Stroke range: Long | Port: Rc1/2
MGGLF100-1300Bearing: Ball bushing | Mounting: Front mounting flange | Bore: ø100 mm | Stroke: 1300 mm | Stroke range: Long | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
