SMC MGJ Mini Guide Rod Cylinder (ø6, ø10)

SMC MGJ Mini Guide Rod Cylinder (ø6, ø10)

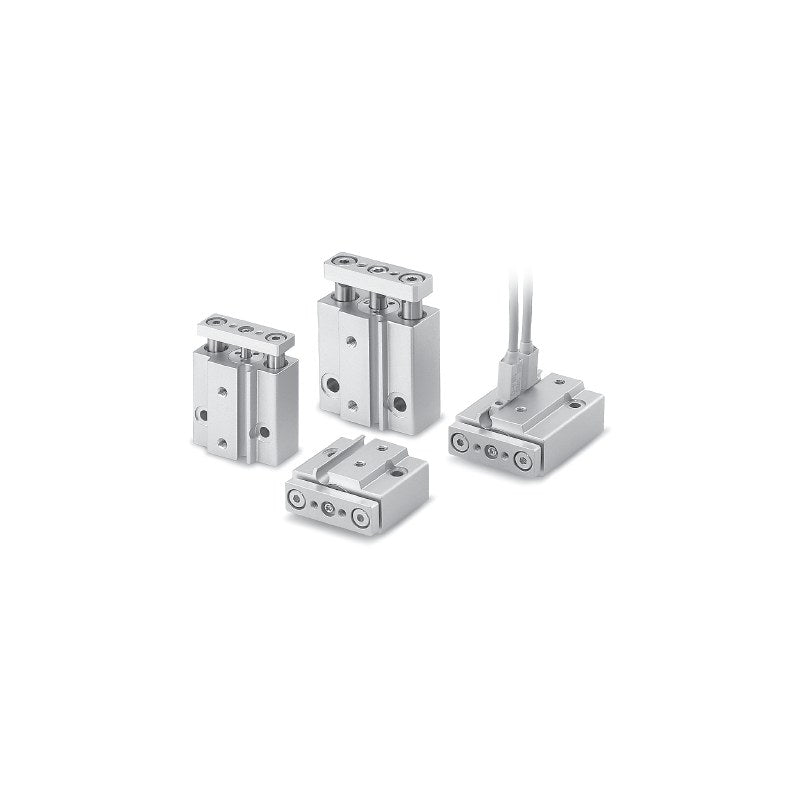

SMC MGJ series mini guide rod cylinder, double acting, ø6 and ø10 mm bore, with integrated guide rods for non-rotating accuracy of ±0.1 degrees in a very small body.

Key features

  • Non-rotating accuracy of ±0.1 degrees thanks to twin guide rods (ø5 mm for ø6 bore, ø6 mm for ø10 bore)
  • Can be mounted from two directions; wiring and piping are concentrated on one side
  • Built-in magnet as standard; two D-F8N/F8P/F8B auto switches can be mounted even at 5 mm stroke (ordered as suffix, e.g. MGJ6-10-F8N)
  • Intermediate strokes in 1 mm increments available by fitting spacers to a standard-stroke cylinder (e.g. MGJ6-9)
  • Rubber cushions on both ends; non-lube operation; M3 x 0.5 piping ports

Specifications

Action Double acting
Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Cushion Rubber cushion on both ends
Lubrication Not required (non-lube)
Stroke length tolerance +1.0/0 mm
Port size M3 x 0.5
Auto switch Built-in magnet; D-F8 series switches
Source SMC Korea catalog (SMCKR_MGJ.pdf), p. 519-521
MGJ6-5 Bore: ø6 mm | Stroke: 5 mm | Guide rod: ø5 mm
MGJ6-10 Bore: ø6 mm | Stroke: 10 mm | Guide rod: ø5 mm
MGJ6-15 Bore: ø6 mm | Stroke: 15 mm | Guide rod: ø5 mm
MGJ10-5 Bore: ø10 mm | Stroke: 5 mm | Guide rod: ø6 mm
MGJ10-10 Bore: ø10 mm | Stroke: 10 mm | Guide rod: ø6 mm
MGJ10-15 Bore: ø10 mm | Stroke: 15 mm | Guide rod: ø6 mm
MGJ10-20 Bore: ø10 mm | Stroke: 20 mm | Guide rod: ø6 mm
Guided CylindersSMC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGJ Mini Guide Rod Cylinder (ø6, ø10)

Brand SMC·Guided Cylinders

Available part numbers (7)

MGJ6-5, MGJ6-10, MGJ6-15, MGJ10-5, MGJ10-10, MGJ10-15, MGJ10-20

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGJ6-5Bore: ø6 mm | Stroke: 5 mm | Guide rod: ø5 mm
MGJ6-10Bore: ø6 mm | Stroke: 10 mm | Guide rod: ø5 mm
MGJ6-15Bore: ø6 mm | Stroke: 15 mm | Guide rod: ø5 mm
MGJ10-5Bore: ø10 mm | Stroke: 5 mm | Guide rod: ø6 mm
MGJ10-10Bore: ø10 mm | Stroke: 10 mm | Guide rod: ø6 mm
MGJ10-15Bore: ø10 mm | Stroke: 15 mm | Guide rod: ø6 mm
MGJ10-20Bore: ø10 mm | Stroke: 20 mm | Guide rod: ø6 mm
