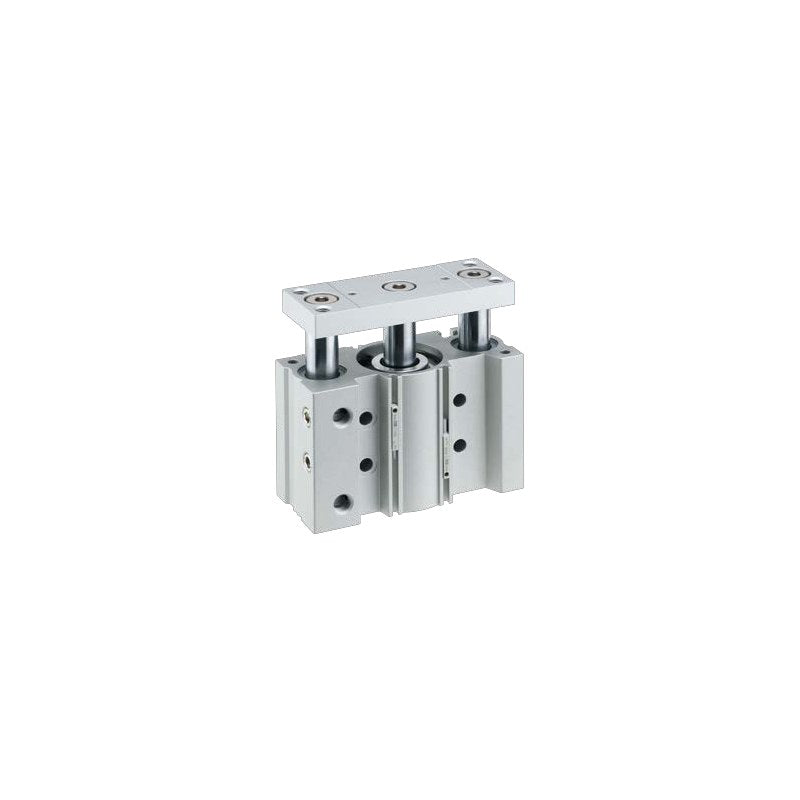

SMC MGPK Compact Guided Thin Cylinder (ø6 to ø50)

SMC MGPK series compact guided thin cylinder, ø6 to ø50 mm bore, up to 41% lighter and 28% smaller than the MGP series with aluminium or carbon steel plate, rubber cushion or air cushion (H) versions.

Key features

Plate material selectable: aluminium alloy (A) for weight reduction or carbon steel (F); slide bearing (M) or ball bushing (L, ø16 and ø32 only)
Air cushion type (suffix H after stroke, ø12 to ø50, slide bearing) combines air cushion and damper to reduce impact noise at stroke end
Lube-retainer on slide bearing guide rods keeps lubrication and prevents foreign matter ingress (ø12 to ø50)
Port position selectable: top/side ported right (standard), left symmetric (L), top ported (P) or left top ported (LT); M thread (ø6 to ø16) or Rc, NPT (TN) and G (TF) port threads
Built-in magnet as standard; D-M9 and D-A9 series auto switches mount directly on two faces (ordered as suffix, e.g. -M9BW)
Intermediate strokes by spacer (1 mm steps up to ø32, 5 mm steps for ø40 and ø50), e.g. MGPKAM16-39

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.0 MPa (ø6 to ø10), 1.5 MPa (ø12 to ø50)
Max. operating pressure	0.7 MPa (ø6 to ø10), 1.0 MPa (ø12 to ø50)
Min. operating pressure	0.1 to 0.2 MPa depending on bore
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Lubrication	Not required (non-lube)
Stroke length tolerance	+1.5/0 mm
Auto switch	Built-in magnet; D-M9, D-A9 series
Source	SMC Korea catalog CAT.KS20-270E (SMCKR_MGPK.pdf), p. 8-9, 32-33

MGPKAM6-5		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM6-10		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM6-15		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM6-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM6-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM6-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-5		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-10		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-15		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM8-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-5		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-10		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-15		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM10-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-10		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM12-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-10		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM16-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAM20-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-175		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM20-200		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-20		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-30		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-40		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-175		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM25-200		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-175		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM32-200		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-175		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM40-200		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-25		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-50		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-75		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-100		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-125		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-150		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-175		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM50-200		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL16-10		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-20		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-30		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-40		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-50		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-75		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-100		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-125		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL16-150		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKAL32-25		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-50		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-75		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-100		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-125		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-150		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-175		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAL32-200		Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM6-5		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM6-10		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM6-15		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM6-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM6-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM6-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-5		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-10		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-15		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM8-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-5		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-10		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-15		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM10-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-10		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM12-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-10		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM16-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFM20-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-175		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM20-200		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-20		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-30		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-40		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-175		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM25-200		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-175		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM32-200		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-175		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM40-200		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-25		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-50		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-75		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-100		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-125		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-150		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-175		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFM50-200		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL16-10		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-20		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-30		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-40		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-50		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-75		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-100		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-125		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL16-150		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
MGPKFL32-25		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-50		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-75		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-100		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-125		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-150		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-175		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
MGPKFL32-200		Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
MGPKAM12-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM12-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM12-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM12-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM12-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM12-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM16-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKAM20-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-175H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM20-200H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-175H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM25-200H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-175H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM32-200H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-175H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM40-200H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-25H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-50H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-75H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-100H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-125H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-150H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-175H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKAM50-200H		Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM12-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM12-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM12-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM12-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM12-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM12-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM16-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
MGPKFM20-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-175H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM20-200H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-175H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM25-200H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-175H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM32-200H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-175H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM40-200H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-25H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-50H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-75H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-100H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-125H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-150H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-175H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
MGPKFM50-200H		Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc

Guided CylindersSMC

306 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGPK Compact Guided Thin Cylinder (ø6 to ø50)

Brand SMC·Guided Cylinders

Available part numbers (306)

MGPKAM6-5, MGPKAM6-10, MGPKAM6-15, MGPKAM6-20, MGPKAM6-25, MGPKAM6-30, MGPKAM8-5, MGPKAM8-10, MGPKAM8-15, MGPKAM8-20 + 296 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGPKAM6-5	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM6-10	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM6-15	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM6-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM6-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM6-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-5	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-10	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-15	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM8-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-5	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-10	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-15	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM10-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-10	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM12-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-10	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM16-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAM20-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-175	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM20-200	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-20	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-30	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-40	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-175	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM25-200	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-175	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM32-200	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-175	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM40-200	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-25	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-50	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-75	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-100	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-125	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-150	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-175	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM50-200	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL16-10	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-20	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-30	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-40	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-50	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-75	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-100	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-125	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL16-150	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKAL32-25	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-50	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-75	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-100	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-125	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-150	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-175	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAL32-200	Plate: Aluminium alloy \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM6-5	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM6-10	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM6-15	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM6-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM6-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM6-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø6 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-5	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-10	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-15	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM8-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø8 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-5	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 5 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-10	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-15	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 15 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM10-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø10 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-10	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM12-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-10	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM16-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFM20-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-175	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM20-200	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-20	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-30	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-40	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-175	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM25-200	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-175	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM32-200	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-175	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM40-200	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-25	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-50	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-75	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-100	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-125	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-150	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-175	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFM50-200	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL16-10	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-20	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-30	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-40	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-50	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-75	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-100	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-125	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL16-150	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: M thread
	MGPKFL32-25	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-50	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-75	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-100	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-125	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-150	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-175	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKFL32-200	Plate: Carbon steel \| Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Port thread: Rc
	MGPKAM12-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM12-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM12-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM12-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM12-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM12-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM16-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKAM20-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-175H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM20-200H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-175H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM25-200H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-175H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM32-200H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-175H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM40-200H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-25H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-50H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-75H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-100H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-125H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-150H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-175H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKAM50-200H	Plate: Aluminium alloy \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM12-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM12-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM12-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM12-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM12-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM12-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM16-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: M thread
	MGPKFM20-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-175H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM20-200H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-175H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM25-200H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-175H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM32-200H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-175H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM40-200H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-25H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-50H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-75H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-100H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-125H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-150H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-175H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Cushion: Air + rubber \| Port thread: Rc
	MGPKFM50-200H	Plate: Carbon steel \| Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Cushion: Air + rubber \| Port thread: Rc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGPK Compact Guided Thin Cylinder (ø6 to ø50)
