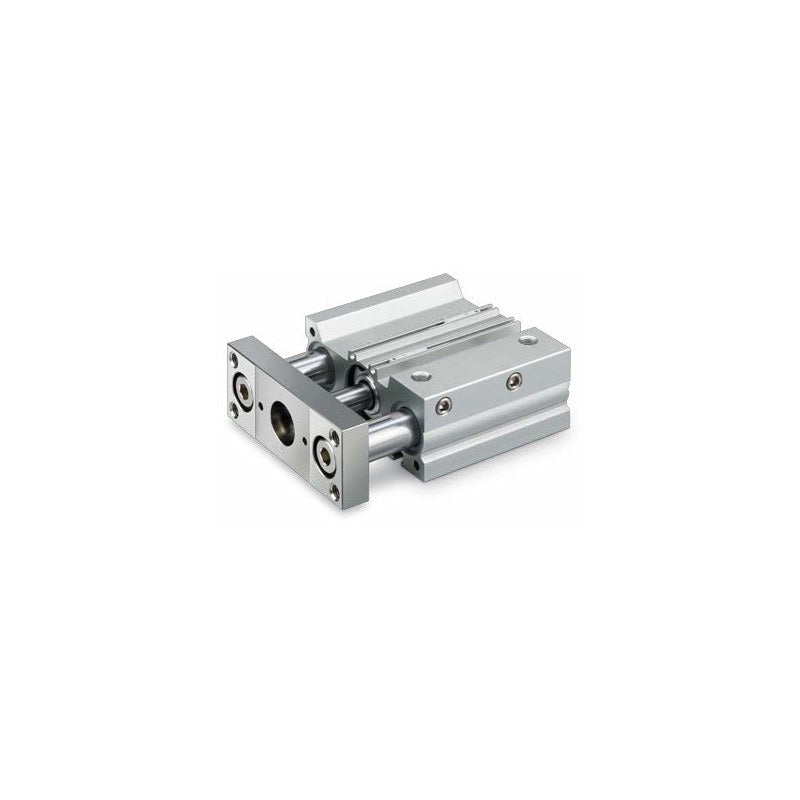

SMC MGPKS Compact Guided Thin Cylinder, Heavy Duty (ø12 to ø50)

SMC MGPKS series heavy-duty compact guided thin cylinder, ø12 to ø50 mm bore, with carbon steel plate and slide bearing for higher lateral load resistance in the compact MGPK body.

Key features

High-load version of the MGPK compact guided cylinder with carbon steel plate (F) and slide bearing (M)
Rubber cushions on both ends; non-lube operation
M5 x 0.8 ports for ø12 and ø16; Rc as standard for ø20 to ø50, NPT (TN) and G (TF) available
Built-in magnet as standard for D-M9 and D-A9 series auto switches (ordered as suffix, e.g. -M9BW)
Intermediate strokes by spacer (1 mm steps up to ø32, 5 mm steps for ø40 and ø50), e.g. MGPKSFM16-39

Specifications

Action	Double acting
Fluid	Air
Plate material	Carbon steel
Bearing	Slide bearing
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.12 MPa (ø12, ø16), 0.1 MPa (ø20 to ø50)
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	Rubber cushion on both ends
Stroke length tolerance	+1.5/0 mm
Source	SMC Korea catalog CAT.KS20-270E (SMCKR_MGPK.pdf), p. 45-46

MGPKSFM12-10		Bore: ø12 mm \| Stroke: 10 mm \| Port thread: M thread
MGPKSFM12-20		Bore: ø12 mm \| Stroke: 20 mm \| Port thread: M thread
MGPKSFM12-30		Bore: ø12 mm \| Stroke: 30 mm \| Port thread: M thread
MGPKSFM12-40		Bore: ø12 mm \| Stroke: 40 mm \| Port thread: M thread
MGPKSFM12-50		Bore: ø12 mm \| Stroke: 50 mm \| Port thread: M thread
MGPKSFM12-75		Bore: ø12 mm \| Stroke: 75 mm \| Port thread: M thread
MGPKSFM12-100		Bore: ø12 mm \| Stroke: 100 mm \| Port thread: M thread
MGPKSFM12-125		Bore: ø12 mm \| Stroke: 125 mm \| Port thread: M thread
MGPKSFM12-150		Bore: ø12 mm \| Stroke: 150 mm \| Port thread: M thread
MGPKSFM16-10		Bore: ø16 mm \| Stroke: 10 mm \| Port thread: M thread
MGPKSFM16-20		Bore: ø16 mm \| Stroke: 20 mm \| Port thread: M thread
MGPKSFM16-30		Bore: ø16 mm \| Stroke: 30 mm \| Port thread: M thread
MGPKSFM16-40		Bore: ø16 mm \| Stroke: 40 mm \| Port thread: M thread
MGPKSFM16-50		Bore: ø16 mm \| Stroke: 50 mm \| Port thread: M thread
MGPKSFM16-75		Bore: ø16 mm \| Stroke: 75 mm \| Port thread: M thread
MGPKSFM16-100		Bore: ø16 mm \| Stroke: 100 mm \| Port thread: M thread
MGPKSFM16-125		Bore: ø16 mm \| Stroke: 125 mm \| Port thread: M thread
MGPKSFM16-150		Bore: ø16 mm \| Stroke: 150 mm \| Port thread: M thread
MGPKSFM20-20		Bore: ø20 mm \| Stroke: 20 mm \| Port thread: Rc
MGPKSFM20-30		Bore: ø20 mm \| Stroke: 30 mm \| Port thread: Rc
MGPKSFM20-40		Bore: ø20 mm \| Stroke: 40 mm \| Port thread: Rc
MGPKSFM20-50		Bore: ø20 mm \| Stroke: 50 mm \| Port thread: Rc
MGPKSFM20-75		Bore: ø20 mm \| Stroke: 75 mm \| Port thread: Rc
MGPKSFM20-100		Bore: ø20 mm \| Stroke: 100 mm \| Port thread: Rc
MGPKSFM20-125		Bore: ø20 mm \| Stroke: 125 mm \| Port thread: Rc
MGPKSFM20-150		Bore: ø20 mm \| Stroke: 150 mm \| Port thread: Rc
MGPKSFM20-175		Bore: ø20 mm \| Stroke: 175 mm \| Port thread: Rc
MGPKSFM20-200		Bore: ø20 mm \| Stroke: 200 mm \| Port thread: Rc
MGPKSFM25-20		Bore: ø25 mm \| Stroke: 20 mm \| Port thread: Rc
MGPKSFM25-30		Bore: ø25 mm \| Stroke: 30 mm \| Port thread: Rc
MGPKSFM25-40		Bore: ø25 mm \| Stroke: 40 mm \| Port thread: Rc
MGPKSFM25-50		Bore: ø25 mm \| Stroke: 50 mm \| Port thread: Rc
MGPKSFM25-75		Bore: ø25 mm \| Stroke: 75 mm \| Port thread: Rc
MGPKSFM25-100		Bore: ø25 mm \| Stroke: 100 mm \| Port thread: Rc
MGPKSFM25-125		Bore: ø25 mm \| Stroke: 125 mm \| Port thread: Rc
MGPKSFM25-150		Bore: ø25 mm \| Stroke: 150 mm \| Port thread: Rc
MGPKSFM25-175		Bore: ø25 mm \| Stroke: 175 mm \| Port thread: Rc
MGPKSFM25-200		Bore: ø25 mm \| Stroke: 200 mm \| Port thread: Rc
MGPKSFM32-25		Bore: ø32 mm \| Stroke: 25 mm \| Port thread: Rc
MGPKSFM32-50		Bore: ø32 mm \| Stroke: 50 mm \| Port thread: Rc
MGPKSFM32-75		Bore: ø32 mm \| Stroke: 75 mm \| Port thread: Rc
MGPKSFM32-100		Bore: ø32 mm \| Stroke: 100 mm \| Port thread: Rc
MGPKSFM32-125		Bore: ø32 mm \| Stroke: 125 mm \| Port thread: Rc
MGPKSFM32-150		Bore: ø32 mm \| Stroke: 150 mm \| Port thread: Rc
MGPKSFM32-175		Bore: ø32 mm \| Stroke: 175 mm \| Port thread: Rc
MGPKSFM32-200		Bore: ø32 mm \| Stroke: 200 mm \| Port thread: Rc
MGPKSFM40-25		Bore: ø40 mm \| Stroke: 25 mm \| Port thread: Rc
MGPKSFM40-50		Bore: ø40 mm \| Stroke: 50 mm \| Port thread: Rc
MGPKSFM40-75		Bore: ø40 mm \| Stroke: 75 mm \| Port thread: Rc
MGPKSFM40-100		Bore: ø40 mm \| Stroke: 100 mm \| Port thread: Rc
MGPKSFM40-125		Bore: ø40 mm \| Stroke: 125 mm \| Port thread: Rc
MGPKSFM40-150		Bore: ø40 mm \| Stroke: 150 mm \| Port thread: Rc
MGPKSFM40-175		Bore: ø40 mm \| Stroke: 175 mm \| Port thread: Rc
MGPKSFM40-200		Bore: ø40 mm \| Stroke: 200 mm \| Port thread: Rc
MGPKSFM50-25		Bore: ø50 mm \| Stroke: 25 mm \| Port thread: Rc
MGPKSFM50-50		Bore: ø50 mm \| Stroke: 50 mm \| Port thread: Rc
MGPKSFM50-75		Bore: ø50 mm \| Stroke: 75 mm \| Port thread: Rc
MGPKSFM50-100		Bore: ø50 mm \| Stroke: 100 mm \| Port thread: Rc
MGPKSFM50-125		Bore: ø50 mm \| Stroke: 125 mm \| Port thread: Rc
MGPKSFM50-150		Bore: ø50 mm \| Stroke: 150 mm \| Port thread: Rc
MGPKSFM50-175		Bore: ø50 mm \| Stroke: 175 mm \| Port thread: Rc
MGPKSFM50-200		Bore: ø50 mm \| Stroke: 200 mm \| Port thread: Rc

Guided CylindersSMC

62 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGPKS Compact Guided Thin Cylinder, Heavy Duty (ø12 to ø50)

Brand SMC·Guided Cylinders

Available part numbers (62)

MGPKSFM12-10, MGPKSFM12-20, MGPKSFM12-30, MGPKSFM12-40, MGPKSFM12-50, MGPKSFM12-75, MGPKSFM12-100, MGPKSFM12-125, MGPKSFM12-150, MGPKSFM16-10 + 52 more — see full table ↓
