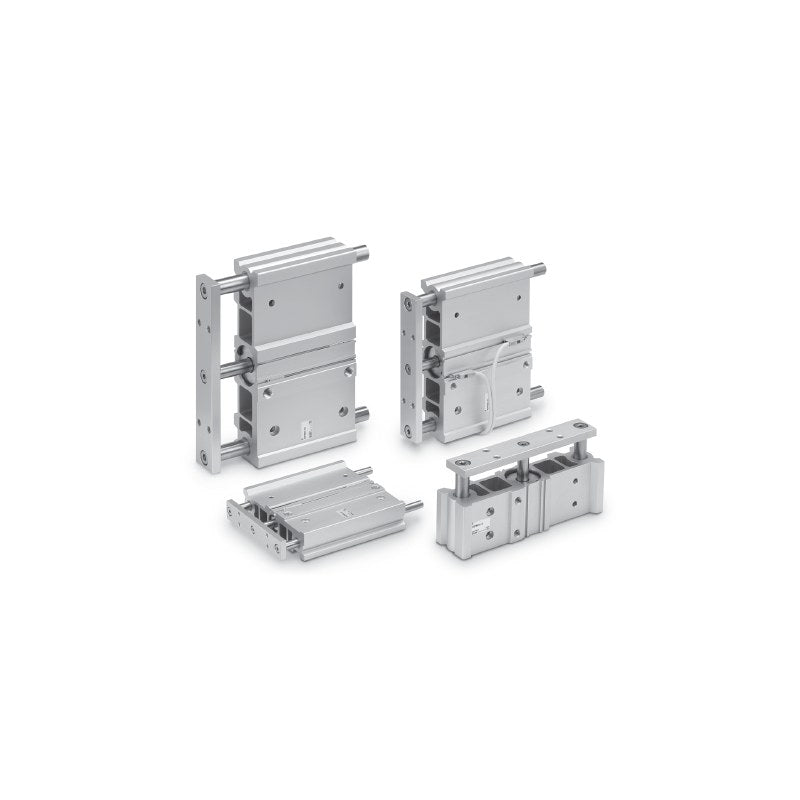

SMC MGPW Guided Thin Cylinder, Wide Type (ø20 to ø63)

SMC MGPW series wide-type guided thin cylinder, ø20 to ø63 mm bore, with guide pitch doubled versus the standard MGP for up to three times the allowable plate rotational torque.

Key features

Guide pitch twice that of the basic MGP type; allowable plate rotational torque improved up to 3 times, ideal for pushers and lifters
Three bearing types: slide bearing (M), ball bushing (L) and high-precision ball bushing (A)
Three mounting styles: top, bottom and side mounting
Rc port thread as standard; NPT (TN) and G (TF) available; side-ported type as made-to-order (-X867)
Built-in magnet as standard for D-M9, D-A9 and D-P3DWA auto switches (ordered as suffix, e.g. -M9BW)
Intermediate strokes by spacer (1 mm steps for ø20 to ø32, 5 mm steps for ø40 to ø63), e.g. MGPWM20-49

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	Rubber cushion on both ends
Lubrication	Not required (non-lube)
Stroke length tolerance	+1.5/0 mm
Port thread	Rc (standard)
Source	SMC Korea catalog (SMCKR_MGPW.pdf), p. 624-625

MGPWM20-25		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm
MGPWM20-50		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm
MGPWM20-75		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm
MGPWM20-100		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm
MGPWM20-125		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm
MGPWM20-150		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm
MGPWM20-175		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm
MGPWM20-200		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm
MGPWM25-25		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm
MGPWM25-50		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm
MGPWM25-75		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm
MGPWM25-100		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm
MGPWM25-125		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm
MGPWM25-150		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm
MGPWM25-175		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm
MGPWM25-200		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm
MGPWM32-25		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm
MGPWM32-50		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm
MGPWM32-75		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm
MGPWM32-100		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm
MGPWM32-125		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm
MGPWM32-150		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm
MGPWM32-175		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm
MGPWM32-200		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm
MGPWM40-25		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm
MGPWM40-50		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm
MGPWM40-75		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm
MGPWM40-100		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm
MGPWM40-125		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm
MGPWM40-150		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm
MGPWM40-175		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm
MGPWM40-200		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm
MGPWM50-25		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm
MGPWM50-50		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm
MGPWM50-75		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm
MGPWM50-100		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm
MGPWM50-125		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm
MGPWM50-150		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm
MGPWM50-175		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm
MGPWM50-200		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm
MGPWM63-25		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 25 mm
MGPWM63-50		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 50 mm
MGPWM63-75		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 75 mm
MGPWM63-100		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 100 mm
MGPWM63-125		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 125 mm
MGPWM63-150		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 150 mm
MGPWM63-175		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 175 mm
MGPWM63-200		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 200 mm
MGPWL20-25		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 25 mm
MGPWL20-50		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 50 mm
MGPWL20-75		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 75 mm
MGPWL20-100		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 100 mm
MGPWL20-125		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 125 mm
MGPWL20-150		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 150 mm
MGPWL20-175		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 175 mm
MGPWL20-200		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 200 mm
MGPWL25-25		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 25 mm
MGPWL25-50		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 50 mm
MGPWL25-75		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 75 mm
MGPWL25-100		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 100 mm
MGPWL25-125		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 125 mm
MGPWL25-150		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 150 mm
MGPWL25-175		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 175 mm
MGPWL25-200		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 200 mm
MGPWL32-25		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm
MGPWL32-50		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm
MGPWL32-75		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm
MGPWL32-100		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm
MGPWL32-125		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm
MGPWL32-150		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm
MGPWL32-175		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm
MGPWL32-200		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm
MGPWL40-25		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 25 mm
MGPWL40-50		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 50 mm
MGPWL40-75		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 75 mm
MGPWL40-100		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 100 mm
MGPWL40-125		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 125 mm
MGPWL40-150		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 150 mm
MGPWL40-175		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 175 mm
MGPWL40-200		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 200 mm
MGPWL50-25		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 25 mm
MGPWL50-50		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 50 mm
MGPWL50-75		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 75 mm
MGPWL50-100		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 100 mm
MGPWL50-125		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 125 mm
MGPWL50-150		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 150 mm
MGPWL50-175		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 175 mm
MGPWL50-200		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 200 mm
MGPWL63-25		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 25 mm
MGPWL63-50		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 50 mm
MGPWL63-75		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 75 mm
MGPWL63-100		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 100 mm
MGPWL63-125		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 125 mm
MGPWL63-150		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 150 mm
MGPWL63-175		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 175 mm
MGPWL63-200		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 200 mm
MGPWA20-25		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 25 mm
MGPWA20-50		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 50 mm
MGPWA20-75		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 75 mm
MGPWA20-100		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 100 mm
MGPWA20-125		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 125 mm
MGPWA20-150		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 150 mm
MGPWA20-175		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 175 mm
MGPWA20-200		Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 200 mm
MGPWA25-25		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 25 mm
MGPWA25-50		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 50 mm
MGPWA25-75		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 75 mm
MGPWA25-100		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 100 mm
MGPWA25-125		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 125 mm
MGPWA25-150		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 150 mm
MGPWA25-175		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 175 mm
MGPWA25-200		Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 200 mm
MGPWA32-25		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 25 mm
MGPWA32-50		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 50 mm
MGPWA32-75		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 75 mm
MGPWA32-100		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 100 mm
MGPWA32-125		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 125 mm
MGPWA32-150		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 150 mm
MGPWA32-175		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 175 mm
MGPWA32-200		Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 200 mm
MGPWA40-25		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 25 mm
MGPWA40-50		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 50 mm
MGPWA40-75		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 75 mm
MGPWA40-100		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 100 mm
MGPWA40-125		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 125 mm
MGPWA40-150		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 150 mm
MGPWA40-175		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 175 mm
MGPWA40-200		Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 200 mm
MGPWA50-25		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 25 mm
MGPWA50-50		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 50 mm
MGPWA50-75		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 75 mm
MGPWA50-100		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 100 mm
MGPWA50-125		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 125 mm
MGPWA50-150		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 150 mm
MGPWA50-175		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 175 mm
MGPWA50-200		Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 200 mm
MGPWA63-25		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 25 mm
MGPWA63-50		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 50 mm
MGPWA63-75		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 75 mm
MGPWA63-100		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 100 mm
MGPWA63-125		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 125 mm
MGPWA63-150		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 150 mm
MGPWA63-175		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 175 mm
MGPWA63-200		Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 200 mm

Guided CylindersSMC

144 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGPW Guided Thin Cylinder, Wide Type (ø20 to ø63)

Brand SMC·Guided Cylinders

Available part numbers (144)

MGPWM20-25, MGPWM20-50, MGPWM20-75, MGPWM20-100, MGPWM20-125, MGPWM20-150, MGPWM20-175, MGPWM20-200, MGPWM25-25, MGPWM25-50 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGPWM20-25	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 25 mm
	MGPWM20-50	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm
	MGPWM20-75	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm
	MGPWM20-100	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm
	MGPWM20-125	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm
	MGPWM20-150	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm
	MGPWM20-175	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm
	MGPWM20-200	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm
	MGPWM25-25	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 25 mm
	MGPWM25-50	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm
	MGPWM25-75	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm
	MGPWM25-100	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm
	MGPWM25-125	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm
	MGPWM25-150	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm
	MGPWM25-175	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm
	MGPWM25-200	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm
	MGPWM32-25	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm
	MGPWM32-50	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm
	MGPWM32-75	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm
	MGPWM32-100	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm
	MGPWM32-125	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm
	MGPWM32-150	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm
	MGPWM32-175	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm
	MGPWM32-200	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm
	MGPWM40-25	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm
	MGPWM40-50	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm
	MGPWM40-75	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm
	MGPWM40-100	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm
	MGPWM40-125	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm
	MGPWM40-150	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm
	MGPWM40-175	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm
	MGPWM40-200	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm
	MGPWM50-25	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm
	MGPWM50-50	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm
	MGPWM50-75	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm
	MGPWM50-100	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm
	MGPWM50-125	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm
	MGPWM50-150	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm
	MGPWM50-175	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm
	MGPWM50-200	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm
	MGPWM63-25	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 25 mm
	MGPWM63-50	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 50 mm
	MGPWM63-75	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 75 mm
	MGPWM63-100	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 100 mm
	MGPWM63-125	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 125 mm
	MGPWM63-150	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 150 mm
	MGPWM63-175	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 175 mm
	MGPWM63-200	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 200 mm
	MGPWL20-25	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 25 mm
	MGPWL20-50	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 50 mm
	MGPWL20-75	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 75 mm
	MGPWL20-100	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 100 mm
	MGPWL20-125	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 125 mm
	MGPWL20-150	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 150 mm
	MGPWL20-175	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 175 mm
	MGPWL20-200	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 200 mm
	MGPWL25-25	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 25 mm
	MGPWL25-50	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 50 mm
	MGPWL25-75	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 75 mm
	MGPWL25-100	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 100 mm
	MGPWL25-125	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 125 mm
	MGPWL25-150	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 150 mm
	MGPWL25-175	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 175 mm
	MGPWL25-200	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 200 mm
	MGPWL32-25	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm
	MGPWL32-50	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm
	MGPWL32-75	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm
	MGPWL32-100	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm
	MGPWL32-125	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm
	MGPWL32-150	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm
	MGPWL32-175	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm
	MGPWL32-200	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm
	MGPWL40-25	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 25 mm
	MGPWL40-50	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 50 mm
	MGPWL40-75	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 75 mm
	MGPWL40-100	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 100 mm
	MGPWL40-125	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 125 mm
	MGPWL40-150	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 150 mm
	MGPWL40-175	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 175 mm
	MGPWL40-200	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 200 mm
	MGPWL50-25	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 25 mm
	MGPWL50-50	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 50 mm
	MGPWL50-75	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 75 mm
	MGPWL50-100	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 100 mm
	MGPWL50-125	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 125 mm
	MGPWL50-150	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 150 mm
	MGPWL50-175	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 175 mm
	MGPWL50-200	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 200 mm
	MGPWL63-25	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 25 mm
	MGPWL63-50	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 50 mm
	MGPWL63-75	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 75 mm
	MGPWL63-100	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 100 mm
	MGPWL63-125	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 125 mm
	MGPWL63-150	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 150 mm
	MGPWL63-175	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 175 mm
	MGPWL63-200	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 200 mm
	MGPWA20-25	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 25 mm
	MGPWA20-50	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 50 mm
	MGPWA20-75	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 75 mm
	MGPWA20-100	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 100 mm
	MGPWA20-125	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 125 mm
	MGPWA20-150	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 150 mm
	MGPWA20-175	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 175 mm
	MGPWA20-200	Bearing: High-precision ball bushing \| Bore: ø20 mm \| Stroke: 200 mm
	MGPWA25-25	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 25 mm
	MGPWA25-50	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 50 mm
	MGPWA25-75	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 75 mm
	MGPWA25-100	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 100 mm
	MGPWA25-125	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 125 mm
	MGPWA25-150	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 150 mm
	MGPWA25-175	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 175 mm
	MGPWA25-200	Bearing: High-precision ball bushing \| Bore: ø25 mm \| Stroke: 200 mm
	MGPWA32-25	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 25 mm
	MGPWA32-50	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 50 mm
	MGPWA32-75	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 75 mm
	MGPWA32-100	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 100 mm
	MGPWA32-125	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 125 mm
	MGPWA32-150	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 150 mm
	MGPWA32-175	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 175 mm
	MGPWA32-200	Bearing: High-precision ball bushing \| Bore: ø32 mm \| Stroke: 200 mm
	MGPWA40-25	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 25 mm
	MGPWA40-50	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 50 mm
	MGPWA40-75	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 75 mm
	MGPWA40-100	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 100 mm
	MGPWA40-125	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 125 mm
	MGPWA40-150	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 150 mm
	MGPWA40-175	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 175 mm
	MGPWA40-200	Bearing: High-precision ball bushing \| Bore: ø40 mm \| Stroke: 200 mm
	MGPWA50-25	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 25 mm
	MGPWA50-50	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 50 mm
	MGPWA50-75	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 75 mm
	MGPWA50-100	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 100 mm
	MGPWA50-125	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 125 mm
	MGPWA50-150	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 150 mm
	MGPWA50-175	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 175 mm
	MGPWA50-200	Bearing: High-precision ball bushing \| Bore: ø50 mm \| Stroke: 200 mm
	MGPWA63-25	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 25 mm
	MGPWA63-50	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 50 mm
	MGPWA63-75	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 75 mm
	MGPWA63-100	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 100 mm
	MGPWA63-125	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 125 mm
	MGPWA63-150	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 150 mm
	MGPWA63-175	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 175 mm
	MGPWA63-200	Bearing: High-precision ball bushing \| Bore: ø63 mm \| Stroke: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGPW Guided Thin Cylinder, Wide Type (ø20 to ø63)
