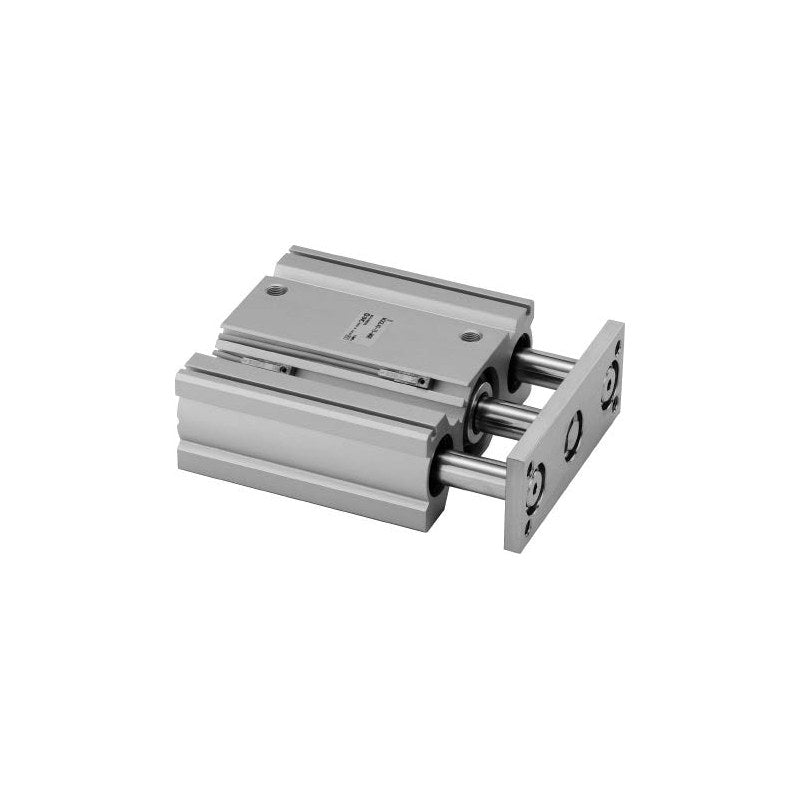

SMC MGQ Guided Thin Cylinder (ø12 to ø100)

SMC MGQ series guided thin cylinder, ø12 to ø100 mm bore, an air cylinder with integrated guide offering lateral load resistance and high non-rotating accuracy in a space-saving body.

Key features

Compact design with integrated guide, suited to stoppers and lifters on conveyor lines
Two guide rod bearing types: slide bearing (M) and ball bushing (L)
M5 x 0.8 ports for ø12 and ø16; Rc as standard for ø20 to ø100, NPT (TN) and G (TF) available
Built-in magnet on all models for D-M9 and D-A9 series auto switches (ordered as suffix, e.g. -M9BW)
Made-to-order options include helical insert threads (-X168), bottom mounting (-X367) and long ball bushing (-X399)
Intermediate strokes by spacer (1 mm steps up to ø32, 5 mm steps for ø40 to ø100)

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.12 MPa (ø12, ø16), 0.1 MPa (ø20 to ø100)
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s (ø12 to ø63), 50 to 400 mm/s (ø80, ø100)
Cushion	Rubber cushion on both ends
Lubrication	Not required (non-lube)
Stroke length tolerance	+1.5/0 mm
Source	SMC Korea catalog (SMCKR_MGQ.pdf), p. 648-649

MGQM12-10		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
MGQM12-20		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
MGQM12-30		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
MGQM12-40		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
MGQM12-50		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
MGQM12-75		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
MGQM12-100		Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
MGQM16-10		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
MGQM16-20		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
MGQM16-30		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
MGQM16-40		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
MGQM16-50		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
MGQM16-75		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
MGQM16-100		Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
MGQM20-20		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Port thread: Rc
MGQM20-30		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Port thread: Rc
MGQM20-40		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Port thread: Rc
MGQM20-50		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM20-75		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM20-100		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM20-125		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM20-150		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM20-175		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM20-200		Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM25-20		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Port thread: Rc
MGQM25-30		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Port thread: Rc
MGQM25-40		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Port thread: Rc
MGQM25-50		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM25-75		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM25-100		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM25-125		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM25-150		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM25-175		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM25-200		Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM32-25		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM32-50		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM32-75		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM32-100		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM32-125		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM32-150		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM32-175		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM32-200		Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM40-25		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM40-50		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM40-75		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM40-100		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM40-125		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM40-150		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM40-175		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM40-200		Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM50-25		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM50-50		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM50-75		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM50-100		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM50-125		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM50-150		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM50-175		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM50-200		Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM63-25		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM63-50		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM63-75		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM63-100		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM63-125		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM63-150		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM63-175		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM63-200		Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM80-25		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM80-50		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM80-75		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM80-100		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM80-125		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM80-150		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM80-175		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM80-200		Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 200 mm \| Port thread: Rc
MGQM100-25		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 25 mm \| Port thread: Rc
MGQM100-50		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 50 mm \| Port thread: Rc
MGQM100-75		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 75 mm \| Port thread: Rc
MGQM100-100		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 100 mm \| Port thread: Rc
MGQM100-125		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 125 mm \| Port thread: Rc
MGQM100-150		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 150 mm \| Port thread: Rc
MGQM100-175		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 175 mm \| Port thread: Rc
MGQM100-200		Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL12-10		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
MGQL12-20		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
MGQL12-30		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
MGQL12-40		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
MGQL12-50		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
MGQL12-75		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
MGQL12-100		Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
MGQL16-10		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
MGQL16-20		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
MGQL16-30		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
MGQL16-40		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
MGQL16-50		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
MGQL16-75		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
MGQL16-100		Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
MGQL20-20		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 20 mm \| Port thread: Rc
MGQL20-30		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 30 mm \| Port thread: Rc
MGQL20-40		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 40 mm \| Port thread: Rc
MGQL20-50		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL20-75		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL20-100		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL20-125		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL20-150		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL20-175		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL20-200		Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL25-20		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 20 mm \| Port thread: Rc
MGQL25-30		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 30 mm \| Port thread: Rc
MGQL25-40		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 40 mm \| Port thread: Rc
MGQL25-50		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL25-75		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL25-100		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL25-125		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL25-150		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL25-175		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL25-200		Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL32-25		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL32-50		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL32-75		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL32-100		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL32-125		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL32-150		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL32-175		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL32-200		Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL40-25		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL40-50		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL40-75		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL40-100		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL40-125		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL40-150		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL40-175		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL40-200		Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL50-25		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL50-50		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL50-75		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL50-100		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL50-125		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL50-150		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL50-175		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL50-200		Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL63-25		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL63-50		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL63-75		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL63-100		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL63-125		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL63-150		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL63-175		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL63-200		Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL80-25		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL80-50		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL80-75		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL80-100		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL80-125		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL80-150		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL80-175		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL80-200		Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 200 mm \| Port thread: Rc
MGQL100-25		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 25 mm \| Port thread: Rc
MGQL100-50		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 50 mm \| Port thread: Rc
MGQL100-75		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 75 mm \| Port thread: Rc
MGQL100-100		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 100 mm \| Port thread: Rc
MGQL100-125		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 125 mm \| Port thread: Rc
MGQL100-150		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 150 mm \| Port thread: Rc
MGQL100-175		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 175 mm \| Port thread: Rc
MGQL100-200		Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 200 mm \| Port thread: Rc

Guided CylindersSMC

164 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGQ Guided Thin Cylinder (ø12 to ø100)

Brand SMC·Guided Cylinders

Available part numbers (164)

MGQM12-10, MGQM12-20, MGQM12-30, MGQM12-40, MGQM12-50, MGQM12-75, MGQM12-100, MGQM16-10, MGQM16-20, MGQM16-30 + 154 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGQM12-10	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
	MGQM12-20	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
	MGQM12-30	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
	MGQM12-40	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
	MGQM12-50	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
	MGQM12-75	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
	MGQM12-100	Bearing: Slide bearing \| Bore: ø12 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
	MGQM16-10	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
	MGQM16-20	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
	MGQM16-30	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
	MGQM16-40	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
	MGQM16-50	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
	MGQM16-75	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
	MGQM16-100	Bearing: Slide bearing \| Bore: ø16 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
	MGQM20-20	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 20 mm \| Port thread: Rc
	MGQM20-30	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 30 mm \| Port thread: Rc
	MGQM20-40	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 40 mm \| Port thread: Rc
	MGQM20-50	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM20-75	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM20-100	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM20-125	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM20-150	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM20-175	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM20-200	Bearing: Slide bearing \| Bore: ø20 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM25-20	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 20 mm \| Port thread: Rc
	MGQM25-30	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 30 mm \| Port thread: Rc
	MGQM25-40	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 40 mm \| Port thread: Rc
	MGQM25-50	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM25-75	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM25-100	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM25-125	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM25-150	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM25-175	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM25-200	Bearing: Slide bearing \| Bore: ø25 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM32-25	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM32-50	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM32-75	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM32-100	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM32-125	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM32-150	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM32-175	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM32-200	Bearing: Slide bearing \| Bore: ø32 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM40-25	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM40-50	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM40-75	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM40-100	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM40-125	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM40-150	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM40-175	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM40-200	Bearing: Slide bearing \| Bore: ø40 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM50-25	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM50-50	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM50-75	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM50-100	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM50-125	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM50-150	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM50-175	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM50-200	Bearing: Slide bearing \| Bore: ø50 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM63-25	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM63-50	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM63-75	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM63-100	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM63-125	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM63-150	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM63-175	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM63-200	Bearing: Slide bearing \| Bore: ø63 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM80-25	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM80-50	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM80-75	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM80-100	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM80-125	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM80-150	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM80-175	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM80-200	Bearing: Slide bearing \| Bore: ø80 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQM100-25	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQM100-50	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQM100-75	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQM100-100	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQM100-125	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQM100-150	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQM100-175	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQM100-200	Bearing: Slide bearing \| Bore: ø100 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL12-10	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
	MGQL12-20	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
	MGQL12-30	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
	MGQL12-40	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
	MGQL12-50	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
	MGQL12-75	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
	MGQL12-100	Bearing: Ball bushing \| Bore: ø12 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
	MGQL16-10	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 10 mm \| Port thread: M5 x 0.8
	MGQL16-20	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 20 mm \| Port thread: M5 x 0.8
	MGQL16-30	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 30 mm \| Port thread: M5 x 0.8
	MGQL16-40	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 40 mm \| Port thread: M5 x 0.8
	MGQL16-50	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 50 mm \| Port thread: M5 x 0.8
	MGQL16-75	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 75 mm \| Port thread: M5 x 0.8
	MGQL16-100	Bearing: Ball bushing \| Bore: ø16 mm \| Stroke: 100 mm \| Port thread: M5 x 0.8
	MGQL20-20	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 20 mm \| Port thread: Rc
	MGQL20-30	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 30 mm \| Port thread: Rc
	MGQL20-40	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 40 mm \| Port thread: Rc
	MGQL20-50	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL20-75	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL20-100	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL20-125	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL20-150	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL20-175	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL20-200	Bearing: Ball bushing \| Bore: ø20 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL25-20	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 20 mm \| Port thread: Rc
	MGQL25-30	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 30 mm \| Port thread: Rc
	MGQL25-40	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 40 mm \| Port thread: Rc
	MGQL25-50	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL25-75	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL25-100	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL25-125	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL25-150	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL25-175	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL25-200	Bearing: Ball bushing \| Bore: ø25 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL32-25	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL32-50	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL32-75	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL32-100	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL32-125	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL32-150	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL32-175	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL32-200	Bearing: Ball bushing \| Bore: ø32 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL40-25	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL40-50	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL40-75	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL40-100	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL40-125	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL40-150	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL40-175	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL40-200	Bearing: Ball bushing \| Bore: ø40 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL50-25	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL50-50	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL50-75	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL50-100	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL50-125	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL50-150	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL50-175	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL50-200	Bearing: Ball bushing \| Bore: ø50 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL63-25	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL63-50	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL63-75	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL63-100	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL63-125	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL63-150	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL63-175	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL63-200	Bearing: Ball bushing \| Bore: ø63 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL80-25	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL80-50	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL80-75	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL80-100	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL80-125	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL80-150	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL80-175	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL80-200	Bearing: Ball bushing \| Bore: ø80 mm \| Stroke: 200 mm \| Port thread: Rc
	MGQL100-25	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 25 mm \| Port thread: Rc
	MGQL100-50	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 50 mm \| Port thread: Rc
	MGQL100-75	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 75 mm \| Port thread: Rc
	MGQL100-100	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 100 mm \| Port thread: Rc
	MGQL100-125	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 125 mm \| Port thread: Rc
	MGQL100-150	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 150 mm \| Port thread: Rc
	MGQL100-175	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 175 mm \| Port thread: Rc
	MGQL100-200	Bearing: Ball bushing \| Bore: ø100 mm \| Stroke: 200 mm \| Port thread: Rc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGQ Guided Thin Cylinder (ø12 to ø100)
