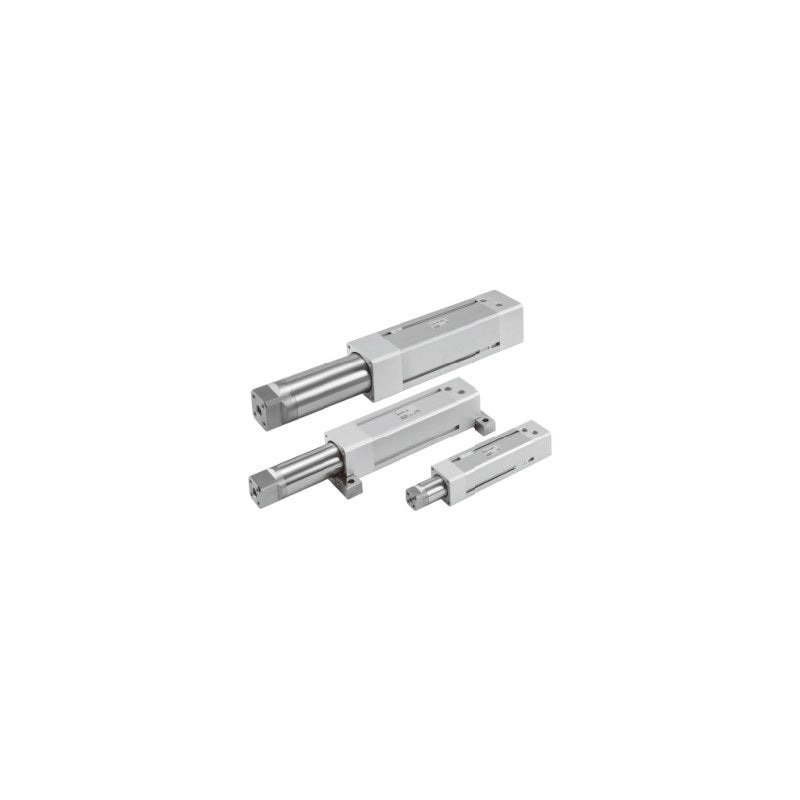

SMC MGZ Non-Rotating Double Power Cylinder (ø20-ø80, End Lock)

SMC MGZ series non-rotating double power cylinder delivering about twice the extending force of a standard cylinder of the same bore, with built-in rotation guide; rod-end lock version for ø40-ø63.

Key features

Extending (OUT) force about double that of a standard cylinder of the same bore; built-in non-rotating guide
Seven bores ø20 to ø80, standard strokes 75 to 300 mm and long strokes up to 800 mm (ø20/25) or 1000 mm (ø32-ø80)
Mounting: basic, axial foot (L), rod flange (F), head flange (G); coil scraper (Z) option for dusty environments
Rod-end end lock (suffix R after stroke) for ø40, ø50, ø63 holds position when air is exhausted
Built-in magnet; D-M9/D-A9 auto switches ordered as suffix; port TN (NPT) / TF (G) and -X1247 rod end female thread on order

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	Standard stroke 0.08 MPa, long stroke 0.12 MPa, end lock 0.2 MPa
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C, no freezing)
Piston speed	OUT 50-700 mm/s; IN 50-350 (ø20/25), 50-450 mm/s
Cushion	Rubber bumper
Lubrication	Not required (non-lube)
Port thread	M5x0.8 (ø20), Rc (ø25-ø80)
Magnet	Built-in
Source	SMC Korea catalog MGZ/MGZR (SMCKR_MGZ_MGZR.pdf), p. 758-759, 763-764 (PDF p. 8-9, 13-14)

MGZ20-75		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ20-100		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ20-125		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ20-150		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ20-175		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ20-200		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ20-250		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ20-300		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ20-350		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ20-400		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ20-450		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ20-500		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ20-600		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ20-700		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ20-800		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ20Z-75		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ20Z-100		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ20Z-125		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ20Z-150		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ20Z-175		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ20Z-200		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ20Z-250		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ20Z-300		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ20Z-350		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ20Z-400		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ20Z-450		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ20Z-500		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ20Z-600		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ20Z-700		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ20Z-800		Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ25-75		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ25-100		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ25-125		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ25-150		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ25-175		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ25-200		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ25-250		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ25-300		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ25-350		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ25-400		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ25-450		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ25-500		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ25-600		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ25-700		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ25-800		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ25Z-75		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ25Z-100		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ25Z-125		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ25Z-150		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ25Z-175		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ25Z-200		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ25Z-250		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ25Z-300		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ25Z-350		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ25Z-400		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ25Z-450		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ25Z-500		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ25Z-600		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ25Z-700		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ25Z-800		Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ32-75		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ32-100		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ32-125		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ32-150		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ32-175		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ32-200		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ32-250		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ32-300		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ32-350		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ32-400		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ32-450		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ32-500		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ32-600		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ32-700		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ32-800		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ32-900		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ32-1000		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ32Z-75		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ32Z-100		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ32Z-125		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ32Z-150		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ32Z-175		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ32Z-200		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ32Z-250		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ32Z-300		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ32Z-350		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ32Z-400		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ32Z-450		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ32Z-500		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ32Z-600		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ32Z-700		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ32Z-800		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ32Z-900		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZ32Z-1000		Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZ40-75		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ40-100		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ40-125		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ40-150		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ40-175		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ40-200		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ40-250		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ40-300		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ40-350		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ40-400		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ40-450		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ40-500		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ40-600		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ40-700		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ40-800		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ40-900		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ40-1000		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ40Z-75		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ40Z-100		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ40Z-125		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ40Z-150		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ40Z-175		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ40Z-200		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ40Z-250		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ40Z-300		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ40Z-350		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ40Z-400		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ40Z-450		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ40Z-500		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ40Z-600		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ40Z-700		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ40Z-800		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ40Z-900		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZ40Z-1000		Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZ50-75		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ50-100		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ50-125		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ50-150		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ50-175		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ50-200		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ50-250		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ50-300		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ50-350		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ50-400		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ50-450		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ50-500		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ50-600		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ50-700		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ50-800		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ50-900		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ50-1000		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ50Z-75		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ50Z-100		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ50Z-125		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ50Z-150		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ50Z-175		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ50Z-200		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ50Z-250		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ50Z-300		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ50Z-350		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ50Z-400		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ50Z-450		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ50Z-500		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ50Z-600		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ50Z-700		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ50Z-800		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ50Z-900		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZ50Z-1000		Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZ63-75		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ63-100		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ63-125		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ63-150		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ63-175		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ63-200		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ63-250		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ63-300		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ63-350		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ63-400		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ63-450		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ63-500		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ63-600		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ63-700		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ63-800		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ63-900		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ63-1000		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ63Z-75		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ63Z-100		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ63Z-125		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ63Z-150		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ63Z-175		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ63Z-200		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ63Z-250		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ63Z-300		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ63Z-350		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ63Z-400		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ63Z-450		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ63Z-500		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ63Z-600		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ63Z-700		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ63Z-800		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ63Z-900		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZ63Z-1000		Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZ80-75		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ80-100		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ80-125		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ80-150		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ80-175		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ80-200		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ80-250		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ80-300		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ80-350		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ80-400		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ80-450		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ80-500		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ80-600		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ80-700		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ80-800		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ80-900		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ80-1000		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ80Z-75		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZ80Z-100		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZ80Z-125		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZ80Z-150		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZ80Z-175		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZ80Z-200		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZ80Z-250		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZ80Z-300		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZ80Z-350		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZ80Z-400		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZ80Z-450		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZ80Z-500		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZ80Z-600		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZ80Z-700		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZ80Z-800		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZ80Z-900		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZ80Z-1000		Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZL20-75		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL20-100		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL20-125		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL20-150		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL20-175		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL20-200		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL20-250		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL20-300		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL20-350		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL20-400		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL20-450		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL20-500		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL20-600		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL20-700		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL20-800		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL20Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL20Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL20Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL20Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL20Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL20Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL20Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL20Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL20Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL20Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL20Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL20Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL20Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL20Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL20Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL25-75		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL25-100		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL25-125		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL25-150		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL25-175		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL25-200		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL25-250		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL25-300		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL25-350		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL25-400		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL25-450		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL25-500		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL25-600		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL25-700		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL25-800		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL25Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL25Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL25Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL25Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL25Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL25Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL25Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL25Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL25Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL25Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL25Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL25Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL25Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL25Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL25Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL32-75		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL32-100		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL32-125		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL32-150		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL32-175		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL32-200		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL32-250		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL32-300		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL32-350		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL32-400		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL32-450		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL32-500		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL32-600		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL32-700		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL32-800		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL32-900		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL32-1000		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL32Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL32Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL32Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL32Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL32Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL32Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL32Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL32Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL32Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL32Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL32Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL32Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL32Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL32Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL32Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL32Z-900		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZL32Z-1000		Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZL40-75		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL40-100		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL40-125		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL40-150		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL40-175		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL40-200		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL40-250		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL40-300		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL40-350		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL40-400		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL40-450		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL40-500		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL40-600		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL40-700		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL40-800		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL40-900		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL40-1000		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL40Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL40Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL40Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL40Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL40Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL40Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL40Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL40Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL40Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL40Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL40Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL40Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL40Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL40Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL40Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL40Z-900		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZL40Z-1000		Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZL50-75		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL50-100		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL50-125		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL50-150		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL50-175		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL50-200		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL50-250		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL50-300		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL50-350		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL50-400		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL50-450		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL50-500		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL50-600		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL50-700		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL50-800		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL50-900		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL50-1000		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL50Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL50Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL50Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL50Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL50Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL50Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL50Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL50Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL50Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL50Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL50Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL50Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL50Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL50Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL50Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL50Z-900		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZL50Z-1000		Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZL63-75		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL63-100		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL63-125		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL63-150		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL63-175		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL63-200		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL63-250		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL63-300		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL63-350		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL63-400		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL63-450		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL63-500		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL63-600		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL63-700		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL63-800		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL63-900		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL63-1000		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL63Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL63Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL63Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL63Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL63Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL63Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL63Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL63Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL63Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL63Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL63Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL63Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL63Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL63Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL63Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL63Z-900		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZL63Z-1000		Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZL80-75		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL80-100		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL80-125		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL80-150		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL80-175		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL80-200		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL80-250		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL80-300		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL80-350		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL80-400		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL80-450		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL80-500		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL80-600		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL80-700		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL80-800		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL80-900		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL80-1000		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL80Z-75		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZL80Z-100		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZL80Z-125		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZL80Z-150		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZL80Z-175		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZL80Z-200		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZL80Z-250		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZL80Z-300		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZL80Z-350		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZL80Z-400		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZL80Z-450		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZL80Z-500		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZL80Z-600		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZL80Z-700		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZL80Z-800		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZL80Z-900		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZL80Z-1000		Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZF20-75		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF20-100		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF20-125		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF20-150		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF20-175		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF20-200		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF20-250		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF20-300		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF20-350		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF20-400		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF20-450		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF20-500		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF20-600		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF20-700		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF20-800		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF20Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF20Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF20Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF20Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF20Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF20Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF20Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF20Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF20Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF20Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF20Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF20Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF20Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF20Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF20Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF25-75		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF25-100		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF25-125		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF25-150		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF25-175		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF25-200		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF25-250		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF25-300		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF25-350		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF25-400		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF25-450		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF25-500		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF25-600		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF25-700		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF25-800		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF25Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF25Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF25Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF25Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF25Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF25Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF25Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF25Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF25Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF25Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF25Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF25Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF25Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF25Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF25Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF32-75		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF32-100		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF32-125		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF32-150		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF32-175		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF32-200		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF32-250		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF32-300		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF32-350		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF32-400		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF32-450		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF32-500		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF32-600		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF32-700		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF32-800		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF32-900		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF32-1000		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF32Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF32Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF32Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF32Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF32Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF32Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF32Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF32Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF32Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF32Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF32Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF32Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF32Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF32Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF32Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF32Z-900		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZF32Z-1000		Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZF40-75		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF40-100		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF40-125		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF40-150		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF40-175		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF40-200		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF40-250		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF40-300		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF40-350		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF40-400		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF40-450		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF40-500		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF40-600		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF40-700		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF40-800		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF40-900		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF40-1000		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF40Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF40Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF40Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF40Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF40Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF40Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF40Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF40Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF40Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF40Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF40Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF40Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF40Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF40Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF40Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF40Z-900		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZF40Z-1000		Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZF50-75		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF50-100		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF50-125		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF50-150		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF50-175		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF50-200		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF50-250		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF50-300		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF50-350		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF50-400		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF50-450		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF50-500		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF50-600		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF50-700		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF50-800		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF50-900		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF50-1000		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF50Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF50Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF50Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF50Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF50Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF50Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF50Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF50Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF50Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF50Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF50Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF50Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF50Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF50Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF50Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF50Z-900		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZF50Z-1000		Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZF63-75		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF63-100		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF63-125		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF63-150		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF63-175		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF63-200		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF63-250		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF63-300		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF63-350		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF63-400		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF63-450		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF63-500		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF63-600		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF63-700		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF63-800		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF63-900		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF63-1000		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF63Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF63Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF63Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF63Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF63Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF63Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF63Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF63Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF63Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF63Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF63Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF63Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF63Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF63Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF63Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF63Z-900		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZF63Z-1000		Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZF80-75		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF80-100		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF80-125		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF80-150		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF80-175		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF80-200		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF80-250		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF80-300		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF80-350		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF80-400		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF80-450		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF80-500		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF80-600		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF80-700		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF80-800		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF80-900		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF80-1000		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF80Z-75		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZF80Z-100		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZF80Z-125		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZF80Z-150		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZF80Z-175		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZF80Z-200		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZF80Z-250		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZF80Z-300		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZF80Z-350		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZF80Z-400		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZF80Z-450		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZF80Z-500		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZF80Z-600		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZF80Z-700		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZF80Z-800		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZF80Z-900		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZF80Z-1000		Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZG20-75		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG20-100		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG20-125		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG20-150		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG20-175		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG20-200		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG20-250		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG20-300		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG20-350		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG20-400		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG20-450		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG20-500		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG20-600		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG20-700		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG20-800		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG20Z-75		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG20Z-100		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG20Z-125		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG20Z-150		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG20Z-175		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG20Z-200		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG20Z-250		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG20Z-300		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG20Z-350		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG20Z-400		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG20Z-450		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG20Z-500		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG20Z-600		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG20Z-700		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG20Z-800		Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG25-75		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG25-100		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG25-125		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG25-150		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG25-175		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG25-200		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG25-250		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG25-300		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG25-350		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG25-400		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG25-450		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG25-500		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG25-600		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG25-700		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG25-800		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG25Z-75		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG25Z-100		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG25Z-125		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG25Z-150		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG25Z-175		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG25Z-200		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG25Z-250		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG25Z-300		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG25Z-350		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG25Z-400		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG25Z-450		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG25Z-500		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG25Z-600		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG25Z-700		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG25Z-800		Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG32-75		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG32-100		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG32-125		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG32-150		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG32-175		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG32-200		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG32-250		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG32-300		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG32-350		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG32-400		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG32-450		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG32-500		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG32-600		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG32-700		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG32-800		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG32-900		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG32-1000		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG32Z-75		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG32Z-100		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG32Z-125		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG32Z-150		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG32Z-175		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG32Z-200		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG32Z-250		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG32Z-300		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG32Z-350		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG32Z-400		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG32Z-450		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG32Z-500		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG32Z-600		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG32Z-700		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG32Z-800		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG32Z-900		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZG32Z-1000		Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZG40-75		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG40-100		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG40-125		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG40-150		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG40-175		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG40-200		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG40-250		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG40-300		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG40-350		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG40-400		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG40-450		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG40-500		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG40-600		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG40-700		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG40-800		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG40-900		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG40-1000		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG40Z-75		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG40Z-100		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG40Z-125		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG40Z-150		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG40Z-175		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG40Z-200		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG40Z-250		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG40Z-300		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG40Z-350		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG40Z-400		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG40Z-450		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG40Z-500		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG40Z-600		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG40Z-700		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG40Z-800		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG40Z-900		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZG40Z-1000		Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZG50-75		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG50-100		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG50-125		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG50-150		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG50-175		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG50-200		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG50-250		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG50-300		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG50-350		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG50-400		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG50-450		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG50-500		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG50-600		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG50-700		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG50-800		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG50-900		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG50-1000		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG50Z-75		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG50Z-100		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG50Z-125		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG50Z-150		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG50Z-175		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG50Z-200		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG50Z-250		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG50Z-300		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG50Z-350		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG50Z-400		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG50Z-450		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG50Z-500		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG50Z-600		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG50Z-700		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG50Z-800		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG50Z-900		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZG50Z-1000		Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZG63-75		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG63-100		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG63-125		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG63-150		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG63-175		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG63-200		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG63-250		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG63-300		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG63-350		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG63-400		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG63-450		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG63-500		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG63-600		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG63-700		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG63-800		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG63-900		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG63-1000		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG63Z-75		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG63Z-100		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG63Z-125		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG63Z-150		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG63Z-175		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG63Z-200		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG63Z-250		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG63Z-300		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG63Z-350		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG63Z-400		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG63Z-450		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG63Z-500		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG63Z-600		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG63Z-700		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG63Z-800		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG63Z-900		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZG63Z-1000		Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZG80-75		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG80-100		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG80-125		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG80-150		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG80-175		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG80-200		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG80-250		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG80-300		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG80-350		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG80-400		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG80-450		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG80-500		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG80-600		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG80-700		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG80-800		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG80-900		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG80-1000		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG80Z-75		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
MGZG80Z-100		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
MGZG80Z-125		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
MGZG80Z-150		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
MGZG80Z-175		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
MGZG80Z-200		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
MGZG80Z-250		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
MGZG80Z-300		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
MGZG80Z-350		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
MGZG80Z-400		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
MGZG80Z-450		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
MGZG80Z-500		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
MGZG80Z-600		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
MGZG80Z-700		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
MGZG80Z-800		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
MGZG80Z-900		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
MGZG80Z-1000		Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
MGZ40-75R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ40-100R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ40-125R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ40-150R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ40-175R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ40-200R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ40-250R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ40-300R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ40-350R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ40-400R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ40-450R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ40-500R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ40-600R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ40-700R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ40-800R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ40-900R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ40-1000R		Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ50-75R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ50-100R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ50-125R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ50-150R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ50-175R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ50-200R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ50-250R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ50-300R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ50-350R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ50-400R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ50-450R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ50-500R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ50-600R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ50-700R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ50-800R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ50-900R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ50-1000R		Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZ63-75R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZ63-100R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZ63-125R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZ63-150R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZ63-175R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZ63-200R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZ63-250R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZ63-300R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZ63-350R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZ63-400R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZ63-450R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZ63-500R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZ63-600R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZ63-700R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZ63-800R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZ63-900R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZ63-1000R		Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL40-75R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL40-100R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL40-125R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL40-150R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL40-175R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL40-200R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL40-250R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL40-300R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL40-350R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL40-400R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL40-450R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL40-500R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL40-600R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL40-700R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL40-800R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL40-900R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL40-1000R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL50-75R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL50-100R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL50-125R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL50-150R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL50-175R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL50-200R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL50-250R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL50-300R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL50-350R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL50-400R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL50-450R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL50-500R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL50-600R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL50-700R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL50-800R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL50-900R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL50-1000R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZL63-75R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZL63-100R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZL63-125R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZL63-150R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZL63-175R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZL63-200R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZL63-250R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZL63-300R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZL63-350R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZL63-400R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZL63-450R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZL63-500R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZL63-600R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZL63-700R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZL63-800R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZL63-900R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZL63-1000R		Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF40-75R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF40-100R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF40-125R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF40-150R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF40-175R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF40-200R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF40-250R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF40-300R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF40-350R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF40-400R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF40-450R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF40-500R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF40-600R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF40-700R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF40-800R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF40-900R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF40-1000R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF50-75R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF50-100R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF50-125R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF50-150R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF50-175R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF50-200R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF50-250R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF50-300R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF50-350R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF50-400R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF50-450R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF50-500R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF50-600R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF50-700R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF50-800R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF50-900R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF50-1000R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZF63-75R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZF63-100R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZF63-125R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZF63-150R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZF63-175R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZF63-200R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZF63-250R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZF63-300R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZF63-350R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZF63-400R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZF63-450R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZF63-500R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZF63-600R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZF63-700R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZF63-800R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZF63-900R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZF63-1000R		Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG40-75R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG40-100R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG40-125R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG40-150R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG40-175R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG40-200R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG40-250R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG40-300R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG40-350R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG40-400R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG40-450R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG40-500R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG40-600R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG40-700R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG40-800R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG40-900R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG40-1000R		Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG50-75R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG50-100R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG50-125R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG50-150R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG50-175R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG50-200R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG50-250R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG50-300R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG50-350R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG50-400R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG50-450R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG50-500R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG50-600R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG50-700R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG50-800R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG50-900R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG50-1000R		Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
MGZG63-75R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
MGZG63-100R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
MGZG63-125R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
MGZG63-150R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
MGZG63-175R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
MGZG63-200R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
MGZG63-250R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
MGZG63-300R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
MGZG63-350R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
MGZG63-400R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
MGZG63-450R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
MGZG63-500R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
MGZG63-600R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
MGZG63-700R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
MGZG63-800R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
MGZG63-900R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
MGZG63-1000R		Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without

Round Body CylindersSMC

1124 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MGZ Non-Rotating Double Power Cylinder (ø20-ø80, End Lock)

Brand SMC·Round Body Cylinders

Available part numbers (1124)

MGZ20-75, MGZ20-100, MGZ20-125, MGZ20-150, MGZ20-175, MGZ20-200, MGZ20-250, MGZ20-300, MGZ20-350, MGZ20-400 + 1114 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGZ20-75	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ20-100	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ20-125	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ20-150	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ20-175	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ20-200	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ20-250	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ20-300	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ20-350	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ20-400	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ20-450	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ20-500	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ20-600	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ20-700	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ20-800	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ20Z-75	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ20Z-100	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ20Z-125	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ20Z-150	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ20Z-175	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ20Z-200	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ20Z-250	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ20Z-300	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ20Z-350	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ20Z-400	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ20Z-450	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ20Z-500	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ20Z-600	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ20Z-700	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ20Z-800	Type: Basic \| Mounting: Basic \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ25-75	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ25-100	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ25-125	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ25-150	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ25-175	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ25-200	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ25-250	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ25-300	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ25-350	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ25-400	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ25-450	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ25-500	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ25-600	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ25-700	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ25-800	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ25Z-75	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ25Z-100	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ25Z-125	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ25Z-150	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ25Z-175	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ25Z-200	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ25Z-250	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ25Z-300	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ25Z-350	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ25Z-400	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ25Z-450	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ25Z-500	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ25Z-600	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ25Z-700	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ25Z-800	Type: Basic \| Mounting: Basic \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ32-75	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ32-100	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ32-125	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ32-150	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ32-175	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ32-200	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ32-250	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ32-300	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ32-350	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ32-400	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ32-450	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ32-500	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ32-600	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ32-700	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ32-800	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ32-900	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ32-1000	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ32Z-75	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ32Z-100	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ32Z-125	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ32Z-150	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ32Z-175	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ32Z-200	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ32Z-250	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ32Z-300	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ32Z-350	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ32Z-400	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ32Z-450	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ32Z-500	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ32Z-600	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ32Z-700	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ32Z-800	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ32Z-900	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZ32Z-1000	Type: Basic \| Mounting: Basic \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZ40-75	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ40-100	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ40-125	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ40-150	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ40-175	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ40-200	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ40-250	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ40-300	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ40-350	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ40-400	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ40-450	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ40-500	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ40-600	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ40-700	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ40-800	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ40-900	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ40-1000	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ40Z-75	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ40Z-100	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ40Z-125	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ40Z-150	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ40Z-175	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ40Z-200	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ40Z-250	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ40Z-300	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ40Z-350	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ40Z-400	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ40Z-450	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ40Z-500	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ40Z-600	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ40Z-700	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ40Z-800	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ40Z-900	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZ40Z-1000	Type: Basic \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZ50-75	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ50-100	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ50-125	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ50-150	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ50-175	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ50-200	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ50-250	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ50-300	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ50-350	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ50-400	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ50-450	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ50-500	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ50-600	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ50-700	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ50-800	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ50-900	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ50-1000	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ50Z-75	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ50Z-100	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ50Z-125	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ50Z-150	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ50Z-175	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ50Z-200	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ50Z-250	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ50Z-300	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ50Z-350	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ50Z-400	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ50Z-450	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ50Z-500	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ50Z-600	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ50Z-700	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ50Z-800	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ50Z-900	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZ50Z-1000	Type: Basic \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZ63-75	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ63-100	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ63-125	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ63-150	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ63-175	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ63-200	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ63-250	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ63-300	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ63-350	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ63-400	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ63-450	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ63-500	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ63-600	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ63-700	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ63-800	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ63-900	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ63-1000	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ63Z-75	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ63Z-100	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ63Z-125	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ63Z-150	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ63Z-175	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ63Z-200	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ63Z-250	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ63Z-300	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ63Z-350	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ63Z-400	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ63Z-450	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ63Z-500	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ63Z-600	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ63Z-700	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ63Z-800	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ63Z-900	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZ63Z-1000	Type: Basic \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZ80-75	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ80-100	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ80-125	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ80-150	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ80-175	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ80-200	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ80-250	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ80-300	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ80-350	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ80-400	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ80-450	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ80-500	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ80-600	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ80-700	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ80-800	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ80-900	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ80-1000	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ80Z-75	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZ80Z-100	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZ80Z-125	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZ80Z-150	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZ80Z-175	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZ80Z-200	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZ80Z-250	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZ80Z-300	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZ80Z-350	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZ80Z-400	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZ80Z-450	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZ80Z-500	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZ80Z-600	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZ80Z-700	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZ80Z-800	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZ80Z-900	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZ80Z-1000	Type: Basic \| Mounting: Basic \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZL20-75	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL20-100	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL20-125	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL20-150	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL20-175	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL20-200	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL20-250	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL20-300	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL20-350	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL20-400	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL20-450	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL20-500	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL20-600	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL20-700	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL20-800	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL20Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL20Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL20Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL20Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL20Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL20Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL20Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL20Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL20Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL20Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL20Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL20Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL20Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL20Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL20Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL25-75	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL25-100	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL25-125	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL25-150	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL25-175	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL25-200	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL25-250	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL25-300	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL25-350	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL25-400	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL25-450	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL25-500	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL25-600	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL25-700	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL25-800	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL25Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL25Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL25Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL25Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL25Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL25Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL25Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL25Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL25Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL25Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL25Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL25Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL25Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL25Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL25Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL32-75	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL32-100	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL32-125	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL32-150	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL32-175	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL32-200	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL32-250	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL32-300	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL32-350	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL32-400	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL32-450	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL32-500	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL32-600	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL32-700	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL32-800	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL32-900	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL32-1000	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL32Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL32Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL32Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL32Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL32Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL32Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL32Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL32Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL32Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL32Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL32Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL32Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL32Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL32Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL32Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL32Z-900	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZL32Z-1000	Type: Basic \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZL40-75	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL40-100	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL40-125	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL40-150	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL40-175	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL40-200	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL40-250	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL40-300	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL40-350	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL40-400	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL40-450	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL40-500	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL40-600	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL40-700	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL40-800	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL40-900	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL40-1000	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL40Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL40Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL40Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL40Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL40Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL40Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL40Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL40Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL40Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL40Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL40Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL40Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL40Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL40Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL40Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL40Z-900	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZL40Z-1000	Type: Basic \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZL50-75	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL50-100	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL50-125	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL50-150	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL50-175	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL50-200	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL50-250	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL50-300	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL50-350	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL50-400	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL50-450	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL50-500	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL50-600	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL50-700	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL50-800	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL50-900	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL50-1000	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL50Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL50Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL50Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL50Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL50Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL50Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL50Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL50Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL50Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL50Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL50Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL50Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL50Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL50Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL50Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL50Z-900	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZL50Z-1000	Type: Basic \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZL63-75	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL63-100	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL63-125	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL63-150	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL63-175	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL63-200	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL63-250	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL63-300	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL63-350	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL63-400	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL63-450	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL63-500	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL63-600	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL63-700	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL63-800	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL63-900	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL63-1000	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL63Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL63Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL63Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL63Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL63Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL63Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL63Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL63Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL63Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL63Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL63Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL63Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL63Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL63Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL63Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL63Z-900	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZL63Z-1000	Type: Basic \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZL80-75	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL80-100	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL80-125	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL80-150	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL80-175	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL80-200	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL80-250	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL80-300	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL80-350	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL80-400	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL80-450	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL80-500	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL80-600	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL80-700	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL80-800	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL80-900	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL80-1000	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL80Z-75	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZL80Z-100	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZL80Z-125	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZL80Z-150	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZL80Z-175	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZL80Z-200	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZL80Z-250	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZL80Z-300	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZL80Z-350	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZL80Z-400	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZL80Z-450	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZL80Z-500	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZL80Z-600	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZL80Z-700	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZL80Z-800	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZL80Z-900	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZL80Z-1000	Type: Basic \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZF20-75	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF20-100	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF20-125	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF20-150	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF20-175	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF20-200	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF20-250	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF20-300	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF20-350	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF20-400	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF20-450	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF20-500	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF20-600	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF20-700	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF20-800	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF20Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF20Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF20Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF20Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF20Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF20Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF20Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF20Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF20Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF20Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF20Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF20Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF20Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF20Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF20Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF25-75	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF25-100	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF25-125	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF25-150	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF25-175	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF25-200	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF25-250	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF25-300	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF25-350	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF25-400	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF25-450	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF25-500	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF25-600	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF25-700	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF25-800	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF25Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF25Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF25Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF25Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF25Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF25Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF25Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF25Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF25Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF25Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF25Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF25Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF25Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF25Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF25Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF32-75	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF32-100	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF32-125	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF32-150	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF32-175	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF32-200	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF32-250	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF32-300	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF32-350	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF32-400	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF32-450	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF32-500	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF32-600	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF32-700	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF32-800	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF32-900	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF32-1000	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF32Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF32Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF32Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF32Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF32Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF32Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF32Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF32Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF32Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF32Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF32Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF32Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF32Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF32Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF32Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF32Z-900	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZF32Z-1000	Type: Basic \| Mounting: Rod flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZF40-75	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF40-100	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF40-125	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF40-150	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF40-175	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF40-200	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF40-250	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF40-300	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF40-350	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF40-400	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF40-450	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF40-500	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF40-600	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF40-700	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF40-800	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF40-900	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF40-1000	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF40Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF40Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF40Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF40Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF40Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF40Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF40Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF40Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF40Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF40Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF40Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF40Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF40Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF40Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF40Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF40Z-900	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZF40Z-1000	Type: Basic \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZF50-75	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF50-100	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF50-125	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF50-150	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF50-175	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF50-200	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF50-250	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF50-300	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF50-350	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF50-400	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF50-450	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF50-500	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF50-600	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF50-700	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF50-800	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF50-900	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF50-1000	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF50Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF50Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF50Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF50Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF50Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF50Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF50Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF50Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF50Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF50Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF50Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF50Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF50Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF50Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF50Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF50Z-900	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZF50Z-1000	Type: Basic \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZF63-75	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF63-100	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF63-125	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF63-150	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF63-175	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF63-200	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF63-250	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF63-300	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF63-350	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF63-400	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF63-450	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF63-500	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF63-600	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF63-700	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF63-800	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF63-900	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF63-1000	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF63Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF63Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF63Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF63Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF63Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF63Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF63Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF63Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF63Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF63Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF63Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF63Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF63Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF63Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF63Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF63Z-900	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZF63Z-1000	Type: Basic \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZF80-75	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF80-100	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF80-125	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF80-150	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF80-175	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF80-200	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF80-250	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF80-300	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF80-350	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF80-400	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF80-450	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF80-500	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF80-600	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF80-700	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF80-800	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF80-900	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF80-1000	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF80Z-75	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZF80Z-100	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZF80Z-125	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZF80Z-150	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZF80Z-175	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZF80Z-200	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZF80Z-250	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZF80Z-300	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZF80Z-350	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZF80Z-400	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZF80Z-450	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZF80Z-500	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZF80Z-600	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZF80Z-700	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZF80Z-800	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZF80Z-900	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZF80Z-1000	Type: Basic \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZG20-75	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG20-100	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG20-125	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG20-150	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG20-175	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG20-200	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG20-250	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG20-300	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG20-350	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG20-400	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG20-450	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG20-500	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG20-600	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG20-700	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG20-800	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG20Z-75	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG20Z-100	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG20Z-125	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG20Z-150	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG20Z-175	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG20Z-200	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG20Z-250	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG20Z-300	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG20Z-350	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG20Z-400	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG20Z-450	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG20Z-500	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG20Z-600	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG20Z-700	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG20Z-800	Type: Basic \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG25-75	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG25-100	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG25-125	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG25-150	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG25-175	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG25-200	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG25-250	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG25-300	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG25-350	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG25-400	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG25-450	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG25-500	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG25-600	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG25-700	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG25-800	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG25Z-75	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG25Z-100	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG25Z-125	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG25Z-150	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG25Z-175	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG25Z-200	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG25Z-250	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG25Z-300	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG25Z-350	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG25Z-400	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG25Z-450	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG25Z-500	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG25Z-600	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG25Z-700	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG25Z-800	Type: Basic \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG32-75	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG32-100	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG32-125	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG32-150	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG32-175	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG32-200	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG32-250	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG32-300	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG32-350	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG32-400	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG32-450	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG32-500	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG32-600	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG32-700	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG32-800	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG32-900	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG32-1000	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG32Z-75	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG32Z-100	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG32Z-125	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG32Z-150	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG32Z-175	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG32Z-200	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG32Z-250	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG32Z-300	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG32Z-350	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG32Z-400	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG32Z-450	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG32Z-500	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG32Z-600	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG32Z-700	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG32Z-800	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG32Z-900	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZG32Z-1000	Type: Basic \| Mounting: Head flange \| Bore: 32 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZG40-75	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG40-100	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG40-125	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG40-150	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG40-175	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG40-200	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG40-250	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG40-300	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG40-350	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG40-400	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG40-450	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG40-500	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG40-600	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG40-700	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG40-800	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG40-900	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG40-1000	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG40Z-75	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG40Z-100	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG40Z-125	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG40Z-150	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG40Z-175	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG40Z-200	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG40Z-250	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG40Z-300	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG40Z-350	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG40Z-400	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG40Z-450	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG40Z-500	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG40Z-600	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG40Z-700	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG40Z-800	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG40Z-900	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZG40Z-1000	Type: Basic \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZG50-75	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG50-100	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG50-125	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG50-150	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG50-175	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG50-200	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG50-250	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG50-300	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG50-350	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG50-400	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG50-450	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG50-500	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG50-600	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG50-700	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG50-800	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG50-900	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG50-1000	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG50Z-75	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG50Z-100	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG50Z-125	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG50Z-150	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG50Z-175	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG50Z-200	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG50Z-250	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG50Z-300	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG50Z-350	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG50Z-400	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG50Z-450	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG50Z-500	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG50Z-600	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG50Z-700	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG50Z-800	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG50Z-900	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZG50Z-1000	Type: Basic \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZG63-75	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG63-100	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG63-125	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG63-150	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG63-175	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG63-200	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG63-250	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG63-300	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG63-350	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG63-400	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG63-450	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG63-500	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG63-600	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG63-700	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG63-800	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG63-900	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG63-1000	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG63Z-75	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG63Z-100	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG63Z-125	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG63Z-150	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG63Z-175	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG63Z-200	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG63Z-250	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG63Z-300	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG63Z-350	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG63Z-400	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG63Z-450	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG63Z-500	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG63Z-600	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG63Z-700	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG63Z-800	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG63Z-900	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZG63Z-1000	Type: Basic \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZG80-75	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG80-100	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG80-125	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG80-150	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG80-175	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG80-200	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG80-250	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG80-300	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG80-350	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG80-400	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG80-450	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG80-500	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG80-600	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG80-700	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG80-800	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG80-900	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG80-1000	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG80Z-75	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm (Standard) \| Coil scraper: With
	MGZG80Z-100	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm (Standard) \| Coil scraper: With
	MGZG80Z-125	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm (Standard) \| Coil scraper: With
	MGZG80Z-150	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm (Standard) \| Coil scraper: With
	MGZG80Z-175	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm (Standard) \| Coil scraper: With
	MGZG80Z-200	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm (Standard) \| Coil scraper: With
	MGZG80Z-250	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm (Standard) \| Coil scraper: With
	MGZG80Z-300	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm (Standard) \| Coil scraper: With
	MGZG80Z-350	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm (Long) \| Coil scraper: With
	MGZG80Z-400	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm (Long) \| Coil scraper: With
	MGZG80Z-450	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm (Long) \| Coil scraper: With
	MGZG80Z-500	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm (Long) \| Coil scraper: With
	MGZG80Z-600	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm (Long) \| Coil scraper: With
	MGZG80Z-700	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm (Long) \| Coil scraper: With
	MGZG80Z-800	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 800 mm (Long) \| Coil scraper: With
	MGZG80Z-900	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 900 mm (Long) \| Coil scraper: With
	MGZG80Z-1000	Type: Basic \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 1000 mm (Long) \| Coil scraper: With
	MGZ40-75R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ40-100R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ40-125R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ40-150R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ40-175R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ40-200R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ40-250R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ40-300R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ40-350R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ40-400R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ40-450R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ40-500R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ40-600R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ40-700R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ40-800R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ40-900R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ40-1000R	Type: Rod end lock \| Mounting: Basic \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ50-75R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ50-100R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ50-125R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ50-150R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ50-175R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ50-200R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ50-250R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ50-300R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ50-350R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ50-400R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ50-450R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ50-500R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ50-600R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ50-700R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ50-800R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ50-900R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ50-1000R	Type: Rod end lock \| Mounting: Basic \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZ63-75R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZ63-100R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZ63-125R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZ63-150R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZ63-175R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZ63-200R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZ63-250R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZ63-300R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZ63-350R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZ63-400R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZ63-450R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZ63-500R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZ63-600R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZ63-700R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZ63-800R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZ63-900R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZ63-1000R	Type: Rod end lock \| Mounting: Basic \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL40-75R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL40-100R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL40-125R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL40-150R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL40-175R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL40-200R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL40-250R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL40-300R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL40-350R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL40-400R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL40-450R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL40-500R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL40-600R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL40-700R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL40-800R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL40-900R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL40-1000R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL50-75R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL50-100R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL50-125R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL50-150R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL50-175R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL50-200R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL50-250R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL50-300R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL50-350R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL50-400R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL50-450R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL50-500R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL50-600R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL50-700R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL50-800R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL50-900R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL50-1000R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZL63-75R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZL63-100R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZL63-125R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZL63-150R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZL63-175R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZL63-200R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZL63-250R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZL63-300R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZL63-350R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZL63-400R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZL63-450R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZL63-500R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZL63-600R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZL63-700R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZL63-800R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZL63-900R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZL63-1000R	Type: Rod end lock \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF40-75R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF40-100R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF40-125R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF40-150R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF40-175R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF40-200R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF40-250R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF40-300R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF40-350R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF40-400R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF40-450R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF40-500R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF40-600R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF40-700R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF40-800R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF40-900R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF40-1000R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF50-75R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF50-100R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF50-125R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF50-150R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF50-175R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF50-200R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF50-250R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF50-300R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF50-350R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF50-400R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF50-450R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF50-500R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF50-600R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF50-700R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF50-800R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF50-900R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF50-1000R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZF63-75R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZF63-100R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZF63-125R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZF63-150R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZF63-175R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZF63-200R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZF63-250R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZF63-300R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZF63-350R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZF63-400R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZF63-450R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZF63-500R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZF63-600R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZF63-700R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZF63-800R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZF63-900R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZF63-1000R	Type: Rod end lock \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG40-75R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG40-100R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG40-125R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG40-150R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG40-175R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG40-200R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG40-250R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG40-300R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG40-350R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG40-400R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG40-450R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG40-500R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG40-600R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG40-700R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG40-800R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG40-900R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG40-1000R	Type: Rod end lock \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG50-75R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG50-100R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG50-125R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG50-150R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG50-175R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG50-200R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG50-250R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG50-300R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG50-350R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG50-400R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG50-450R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG50-500R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG50-600R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG50-700R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG50-800R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG50-900R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG50-1000R	Type: Rod end lock \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without
	MGZG63-75R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm (Standard) \| Coil scraper: Without
	MGZG63-100R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm (Standard) \| Coil scraper: Without
	MGZG63-125R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm (Standard) \| Coil scraper: Without
	MGZG63-150R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm (Standard) \| Coil scraper: Without
	MGZG63-175R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm (Standard) \| Coil scraper: Without
	MGZG63-200R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm (Standard) \| Coil scraper: Without
	MGZG63-250R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm (Standard) \| Coil scraper: Without
	MGZG63-300R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm (Standard) \| Coil scraper: Without
	MGZG63-350R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm (Long) \| Coil scraper: Without
	MGZG63-400R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm (Long) \| Coil scraper: Without
	MGZG63-450R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm (Long) \| Coil scraper: Without
	MGZG63-500R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm (Long) \| Coil scraper: Without
	MGZG63-600R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm (Long) \| Coil scraper: Without
	MGZG63-700R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm (Long) \| Coil scraper: Without
	MGZG63-800R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm (Long) \| Coil scraper: Without
	MGZG63-900R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 900 mm (Long) \| Coil scraper: Without
	MGZG63-1000R	Type: Rod end lock \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 1000 mm (Long) \| Coil scraper: Without

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MGZ Non-Rotating Double Power Cylinder (ø20-ø80, End Lock)
