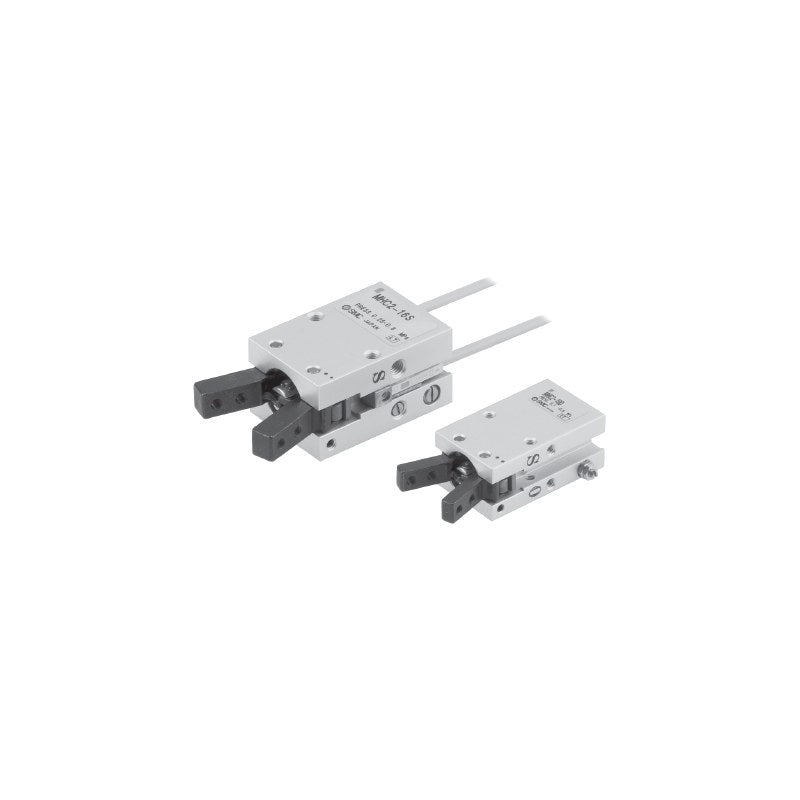

SMC MHC2 Angular Air Gripper (Standard, Bore 6 to 25 mm)

SMC MHC2 standard angular-style (fulcrum open/close) air gripper with a double piston mechanism for compact size and high gripping moment, bore 6 to 25 mm.

Key features

Double piston mechanism gives a compact body with large gripping force
Built-in variable throttle; indicator-equipped solid state auto switches mountable
Double acting or single acting (normally open) versions
Jaw opening/closing angle 30 to -10 degrees (both sides)
Auto switches D-M9 series ordered as suffix; bracket BMG2-012 needed when ordered separately
Made to order: -X4 heat resistant, -X5 FKM seals, -X50 no magnet, -X56 axial piping, -X64/-X65 jaw mounting, -X79 food grease

Specifications

Fluid	Air
Operating pressure	Double 0.1 to 0.6 MPa, single 0.25 to 0.6 MPa (6 mm: 0.15/0.3 to 0.6)
Ambient and fluid temperature	-10 to 60 C
Repeatability	+/-0.01 mm (6 mm: +/-0.02 mm)
Max. operating frequency	180 c.p.m.
Lubrication	Not required
Opening/closing angle	30 to -10 deg (both sides)
Gripping moment note	Effective value at 0.5 MPa
Source	SMC Korea catalog MHC2 (SMCKR_MHC2.pdf), p. 807-808; MHC2-6 from (SMCKR_MHC_A_2-6_MHCM2-7.pdf), p. 796-797

MHC2-6D		Bore: 6 mm \| Action: Double acting \| Gripping moment: 0.038 N.m \| Mass: 22 g
MHC2-6S		Bore: 6 mm \| Action: Single acting, normally open \| Gripping moment: 0.024 N.m \| Mass: 22 g
MHC2-10D		Bore: 10 mm \| Action: Double acting \| Gripping moment: 0.10 N.m \| Mass: 39 g
MHC2-10S		Bore: 10 mm \| Action: Single acting, normally open \| Gripping moment: 0.070 N.m \| Mass: 39 g
MHC2-16D		Bore: 16 mm \| Action: Double acting \| Gripping moment: 0.39 N.m \| Mass: 91 g
MHC2-16S		Bore: 16 mm \| Action: Single acting, normally open \| Gripping moment: 0.31 N.m \| Mass: 92 g
MHC2-20D		Bore: 20 mm \| Action: Double acting \| Gripping moment: 0.70 N.m \| Mass: 180 g
MHC2-20S		Bore: 20 mm \| Action: Single acting, normally open \| Gripping moment: 0.54 N.m \| Mass: 183 g
MHC2-25D		Bore: 25 mm \| Action: Double acting \| Gripping moment: 1.36 N.m \| Mass: 311 g
MHC2-25S		Bore: 25 mm \| Action: Single acting, normally open \| Gripping moment: 1.08 N.m \| Mass: 316 g
