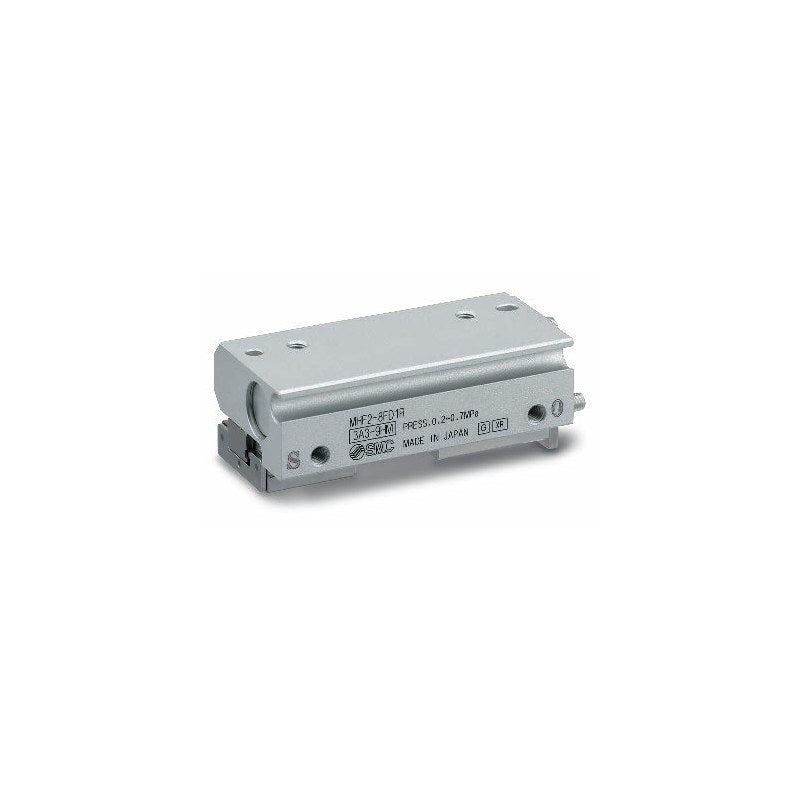

SMC MHF2-F Low Profile Air Gripper (One Finger Fixed, ø8 to ø20)

SMC MHF2-F series low-profile air gripper with one fixed finger and one moving finger, double acting, side piping, ø8 to ø20.

Key features

One finger fixed: width reduced up to 25% and mass up to 25% versus standard MHF2
Fixed finger position adjustable with built-in stroke adjusting unit
Three stroke choices per bore (short, middle, long); side piping (R)
Standardized positioning pin holes; mountable from 3 directions
Built-in magnet for D-M9 series solid state auto switches (ordered as suffix)

Specifications

Fluid	Air
Action	Double acting
Piping	Side piping (R)
Operating pressure	0.2 to 0.7 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Max. operating frequency	Short/middle 120 c.p.m., long 60 c.p.m.
Lubrication	Not required
Grip force note	Effective value per finger at 0.5 MPa, L=20 mm
Auto switch (option)	D-M9 series solid state (3-wire, 2-wire)
Source	SMC Korea catalog CAT.KS20-263A (SMCKR_MHF2-F.pdf), p. 7-8 (PDF p. 8-9)

MHF2-8FDR		Bore: ø8 mm \| Stroke type: Short \| Stroke (one side): 4 mm \| Grip force/finger: 19 N
MHF2-8FD1R		Bore: ø8 mm \| Stroke type: Middle \| Stroke (one side): 8 mm \| Grip force/finger: 19 N
MHF2-8FD2R		Bore: ø8 mm \| Stroke type: Long \| Stroke (one side): 16 mm \| Grip force/finger: 19 N
MHF2-12FDR		Bore: ø12 mm \| Stroke type: Short \| Stroke (one side): 6 mm \| Grip force/finger: 48 N
MHF2-12FD1R		Bore: ø12 mm \| Stroke type: Middle \| Stroke (one side): 12 mm \| Grip force/finger: 48 N
MHF2-12FD2R		Bore: ø12 mm \| Stroke type: Long \| Stroke (one side): 24 mm \| Grip force/finger: 48 N
MHF2-16FDR		Bore: ø16 mm \| Stroke type: Short \| Stroke (one side): 8 mm \| Grip force/finger: 90 N
MHF2-16FD1R		Bore: ø16 mm \| Stroke type: Middle \| Stroke (one side): 16 mm \| Grip force/finger: 90 N
MHF2-16FD2R		Bore: ø16 mm \| Stroke type: Long \| Stroke (one side): 32 mm \| Grip force/finger: 90 N
MHF2-20FDR		Bore: ø20 mm \| Stroke type: Short \| Stroke (one side): 10 mm \| Grip force/finger: 141 N
MHF2-20FD1R		Bore: ø20 mm \| Stroke type: Middle \| Stroke (one side): 20 mm \| Grip force/finger: 141 N
MHF2-20FD2R		Bore: ø20 mm \| Stroke type: Long \| Stroke (one side): 40 mm \| Grip force/finger: 141 N

Air GrippersSMC

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHF2-F Low Profile Air Gripper (One Finger Fixed, ø8 to ø20)

Brand SMC·Air Grippers

Available part numbers (12)

MHF2-8FDR, MHF2-8FD1R, MHF2-8FD2R, MHF2-12FDR, MHF2-12FD1R, MHF2-12FD2R, MHF2-16FDR, MHF2-16FD1R, MHF2-16FD2R, MHF2-20FDR + 2 more — see full table ↓
