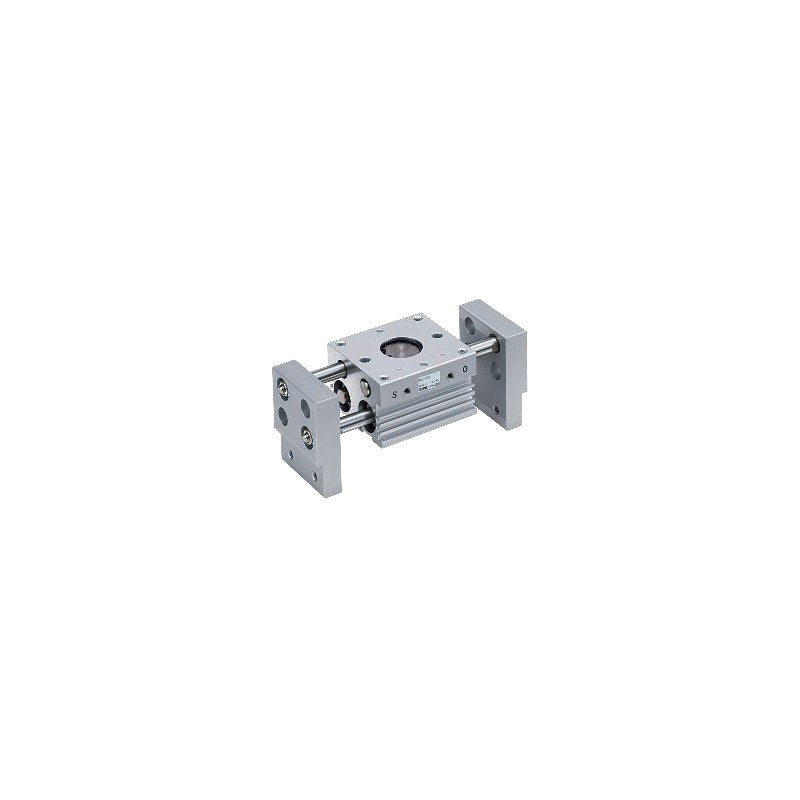

SMC MHL2 Wide Type Parallel Air Gripper (ø10 to ø40)

SMC MHL2 series wide-opening parallel style 2-finger air gripper with long stroke for gripping workpieces of various diameters, bore ø10 to ø40.

Key features

Long stroke: one gripper handles a wide range of workpiece widths (short, middle, long stroke versions)
Double piston construction: compact body with high gripping force
Oil-impregnated bearings supporting both ends of every shaft
Built-in magnet; Solid state auto switches D-M9N/M9P/M9B (V, W, A variants) mount on the body; switch symbol, quantity (S = 1 pc) and lead length are ordered as suffixes; n pcs also selectable
ø32/ø40 with TN (NPT) / TF (G) port thread options
Made-to-order: -X4 heat resistant, -X5, -X28 closing width adjusting bolt, -X50, -X53, -X63, -X79/-X79A, -X85 powder resistant, -X86 scraper

Specifications

Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.6 MPa (ø10), 0.1 to 0.6 MPa (ø16-40)
Ambient and fluid temperature	-10 to 60°C (no freezing)
Repeatability	±0.1 mm
Lubrication	Not required
Max. operating frequency	60 c.p.m (short), 40 c.p.m (ø10-25 D1/D2), 30/20 c.p.m (ø32-40)
Gripping force note	Effective force at 0.5 MPa, L = 40 mm (ø10-25), 80 mm (ø32-40)
Source	SMC Korea catalog MHL2 (SMCKR_MHL2-Z.pdf), p. 3-4 (PDF p. 4-5)

MHL2-10DZ		Bore: 10 mm \| Stroke: Short 20 mm \| Gripping force: 14 N \| Mass: 280 g \| Port thread: M thread
MHL2-10D1Z		Bore: 10 mm \| Stroke: Middle 40 mm \| Gripping force: 14 N \| Mass: 355 g \| Port thread: M thread
MHL2-10D2Z		Bore: 10 mm \| Stroke: Long 60 mm \| Gripping force: 14 N \| Mass: 430 g \| Port thread: M thread
MHL2-16DZ		Bore: 16 mm \| Stroke: Short 30 mm \| Gripping force: 45 N \| Mass: 525 g \| Port thread: M thread
MHL2-16D1Z		Bore: 16 mm \| Stroke: Middle 60 mm \| Gripping force: 45 N \| Mass: 725 g \| Port thread: M thread
MHL2-16D2Z		Bore: 16 mm \| Stroke: Long 80 mm \| Gripping force: 45 N \| Mass: 845 g \| Port thread: M thread
MHL2-20DZ		Bore: 20 mm \| Stroke: Short 40 mm \| Gripping force: 74 N \| Mass: 940 g \| Port thread: M thread
MHL2-20D1Z		Bore: 20 mm \| Stroke: Middle 80 mm \| Gripping force: 74 N \| Mass: 1,335 g \| Port thread: M thread
MHL2-20D2Z		Bore: 20 mm \| Stroke: Long 100 mm \| Gripping force: 74 N \| Mass: 1,520 g \| Port thread: M thread
MHL2-25DZ		Bore: 25 mm \| Stroke: Short 50 mm \| Gripping force: 131 N \| Mass: 1,565 g \| Port thread: M thread
MHL2-25D1Z		Bore: 25 mm \| Stroke: Middle 100 mm \| Gripping force: 131 N \| Mass: 2,295 g \| Port thread: M thread
MHL2-25D2Z		Bore: 25 mm \| Stroke: Long 120 mm \| Gripping force: 131 N \| Mass: 2,525 g \| Port thread: M thread
MHL2-32DZ		Bore: 32 mm \| Stroke: Short 70 mm \| Gripping force: 228 N \| Mass: 2,875 g \| Port thread: Rc
MHL2-32D1Z		Bore: 32 mm \| Stroke: Middle 120 mm \| Gripping force: 228 N \| Mass: 3,770 g \| Port thread: Rc
MHL2-32D2Z		Bore: 32 mm \| Stroke: Long 160 mm \| Gripping force: 228 N \| Mass: 4,585 g \| Port thread: Rc
MHL2-40DZ		Bore: 40 mm \| Stroke: Short 100 mm \| Gripping force: 396 N \| Mass: 5,230 g \| Port thread: Rc
MHL2-40D1Z		Bore: 40 mm \| Stroke: Middle 160 mm \| Gripping force: 396 N \| Mass: 6,760 g \| Port thread: Rc
MHL2-40D2Z		Bore: 40 mm \| Stroke: Long 200 mm \| Gripping force: 396 N \| Mass: 7,825 g \| Port thread: Rc

Air GrippersSMC

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHL2 Wide Type Parallel Air Gripper (ø10 to ø40)

Brand SMC·Air Grippers

Available part numbers (18)

MHL2-10DZ, MHL2-10D1Z, MHL2-10D2Z, MHL2-16DZ, MHL2-16D1Z, MHL2-16D2Z, MHL2-20DZ, MHL2-20D1Z, MHL2-20D2Z, MHL2-25DZ + 8 more — see full table ↓
