SMC MHS4 Parallel Air Gripper, 4-Finger (ø16 to ø63)

SMC MHS4 Parallel Air Gripper, 4-Finger (ø16 to ø63)

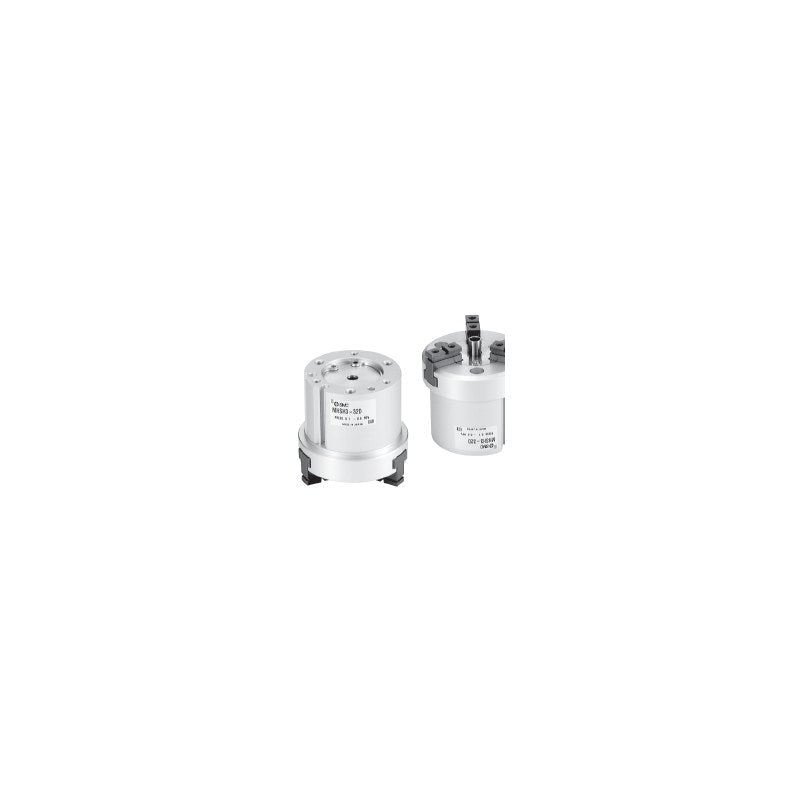

SMC MHS4 series double-acting parallel style air gripper with 4 fingers, in bore sizes ø16 to ø63.

Key features

  • 4-finger parallel opening/closing, double acting, external and internal gripping
  • Gripping force values are effective force per finger at 0.5 MPa
  • Built-in magnet; Solid state auto switches D-M9N/M9P/M9B (V, W, A variants) mount on the body; switch symbol, quantity (S = 1 pc) and lead length are ordered as suffixes
  • Made-to-order options: -X4 heat resistant (100°C), -X5 fluororubber seals, -X50 without magnet, -X53 EPDM seals, -X56 side ported, -X63 fluorine grease, -X79/-X79A food grease

Specifications

Fluid Air
Action Double acting
Operating pressure 0.2 to 0.6 MPa (ø16-25), 0.1 to 0.6 MPa (ø32 and up)
Ambient and fluid temperature -10 to 60°C
Repeatability ±0.01 mm
Lubrication Not required
Max. operating frequency 120 c.p.m (ø16-25), 60 c.p.m (ø32-63)
Magnet Built-in (auto switch capable)
Port thread M thread
Number of fingers 4
Source SMC Korea catalog MHS2/MHS3/MHS4 (SMCKR_MHS2_MHS3_MHS4.pdf), p. 754-755 (PDF p. 60-61)
MHS4-16D Bore: 16 mm | Stroke (diameter): 4 mm | Gripping force ext./int.: 10/12 N | Mass: 66 g
MHS4-20D Bore: 20 mm | Stroke (diameter): 4 mm | Gripping force ext./int.: 19/21 N | Mass: 110 g
MHS4-25D Bore: 25 mm | Stroke (diameter): 6 mm | Gripping force ext./int.: 31/35 N | Mass: 154 g
MHS4-32D Bore: 32 mm | Stroke (diameter): 8 mm | Gripping force ext./int.: 55/61 N | Mass: 300 g
MHS4-40D Bore: 40 mm | Stroke (diameter): 8 mm | Gripping force ext./int.: 88/97 N | Mass: 390 g
MHS4-50D Bore: 50 mm | Stroke (diameter): 12 mm | Gripping force ext./int.: 140/153 N | Mass: 590 g
MHS4-63D Bore: 63 mm | Stroke (diameter): 16 mm | Gripping force ext./int.: 251/268 N | Mass: 1,095 g
