SMC MHT2 Toggle Air Gripper (Bore 32 to 63 mm)

SMC MHT2 Toggle Air Gripper (Bore 32 to 63 mm)

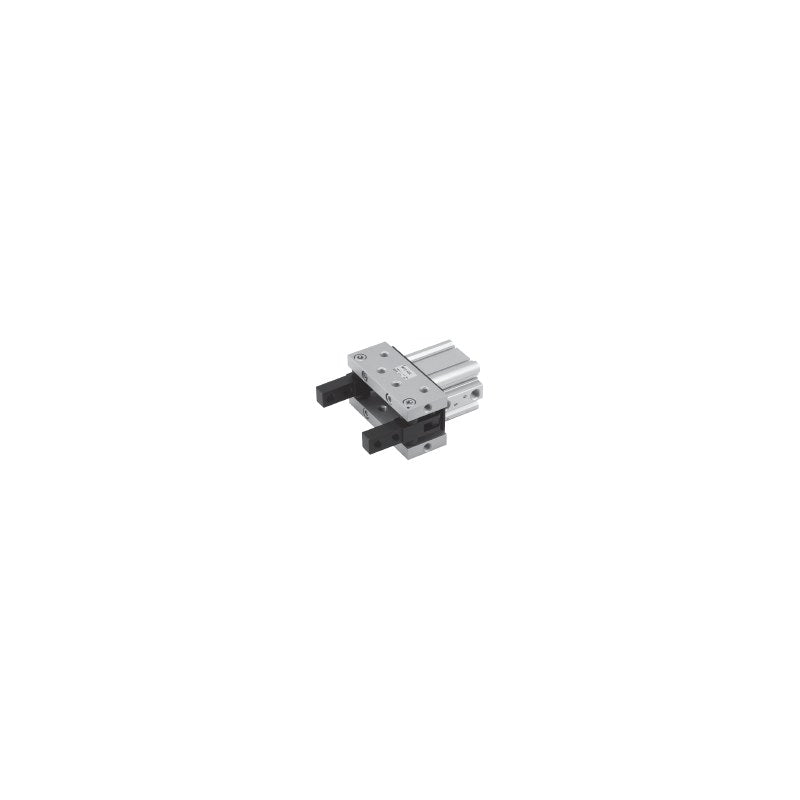

SMC MHT2 toggle-type air gripper for heavy workpieces; the toggle mechanism holds the workpiece even when air pressure drops, bore 32 to 63 mm.

Key features

  • Toggle mechanism maintains grip at air supply loss
  • Suited for gripping heavy workpieces; large gripping moment up to 106 N.m
  • Double acting, external gripping
  • Rc ports standard (NPT: TN, G: TF on order)
  • Auto switches D-M9 series and reed D-A9 series mountable (ordered as suffix)
  • Made to order: -X5060 long-stroke cylinder, -X5070 head-side inflow, -X4, -X5, -X50, -X63

Specifications

Fluid Air
Action Double acting
Operating pressure 0.1 to 0.6 MPa
Ambient and fluid temperature 5 to 60 C
Lubrication Not required
Port thread Rc
Gripping moment note Effective value at 0.5 MPa
Source SMC Korea catalog MHT2 (SMCKR_MHT2.pdf), p. 818-819 (PDF p. 2-3)
MHT2-32DZ Bore: 32 mm | Jaw opening angle: -3 to 28 deg | Gripping moment: 12.4 N.m | Mass: 790 g
MHT2-40DZ Bore: 40 mm | Jaw opening angle: -3 to 27 deg | Gripping moment: 36.0 N.m | Mass: 1070 g
MHT2-50DZ Bore: 50 mm | Jaw opening angle: -2 to 23 deg | Gripping moment: 63.0 N.m | Mass: 1890 g
MHT2-63DZ Bore: 63 mm | Jaw opening angle: -2 to 23 deg | Gripping moment: 106 N.m | Mass: 2720 g
