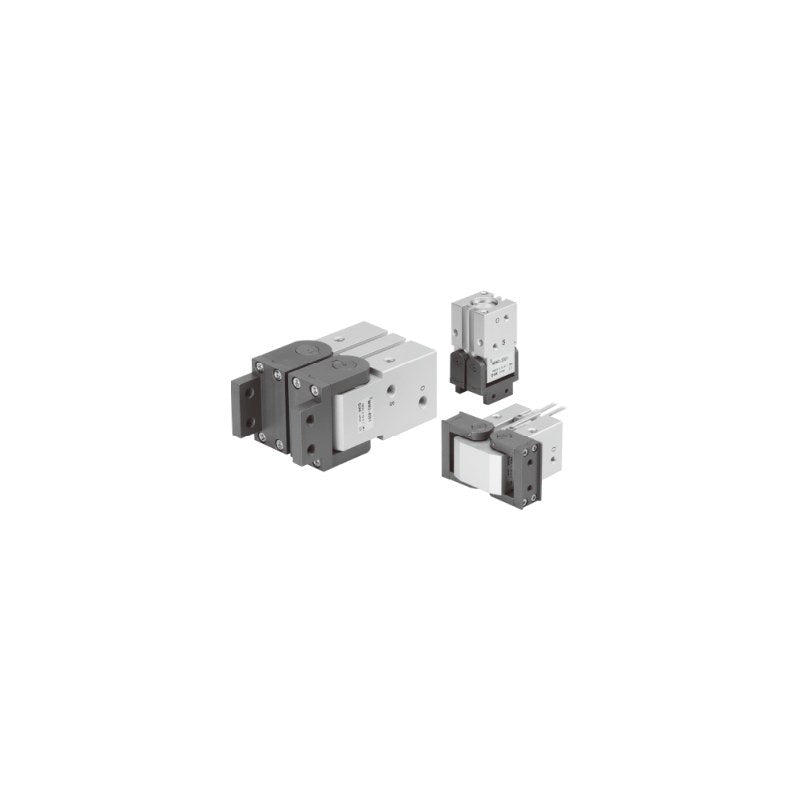

SMC MHW2 180 deg Angular Air Gripper (Rack and Pinion, 20 to 50 mm)

SMC MHW2 rack-and-pinion air gripper with 180 degree jaw opening for large gripping moment, bore 20 to 50 mm.

Key features

180 degree jaw opening; rack and pinion mechanism
Double acting, external gripping; gripping moment up to 8.27 N.m
Finger options: flat finger (standard) or tapped mounting in opening/closing direction (1)
Ports M thread (20, 25 mm) or Rc (32 to 50 mm) standard; NPT (TN) and G (TF) on order for 32 to 50 mm
Solid state auto switches D-M9 series mountable (ordered as suffix); bracket BMG2-012 when ordered separately
Made to order: -X4, -X5, -X50, -X53, -X63, -X79, -X79A

Specifications

Fluid	Air
Action	Double acting
Operating pressure	0.15 to 0.7 MPa
Ambient and fluid temperature	-10 to 60 C
Repeatability	+/-0.2 mm
Max. operating frequency	60 c.p.m. (20, 25 mm), 30 c.p.m. (32 to 50 mm)
Lubrication	Not required
Opening angle	180 deg (both sides)
Gripping moment note	Effective value at 0.5 MPa
Source	SMC Korea catalog MHW2 (SMCKR_MHW2.pdf), p. 843-844 (PDF p. 1-2)

MHW2-20D		Bore: 20 mm \| Finger option: Flat finger (standard) \| Gripping moment: 0.30 N.m \| Closing angle: -5 deg \| Port thread: M thread \| Mass: 300 g
MHW2-20D1		Bore: 20 mm \| Finger option: Tapped mounting (open/close dir.) \| Gripping moment: 0.30 N.m \| Closing angle: -5 deg \| Port thread: M thread \| Mass: 320 g
MHW2-25D		Bore: 25 mm \| Finger option: Flat finger (standard) \| Gripping moment: 0.73 N.m \| Closing angle: -6 deg \| Port thread: M thread \| Mass: 510 g
MHW2-25D1		Bore: 25 mm \| Finger option: Tapped mounting (open/close dir.) \| Gripping moment: 0.73 N.m \| Closing angle: -6 deg \| Port thread: M thread \| Mass: 540 g
MHW2-32D		Bore: 32 mm \| Finger option: Flat finger (standard) \| Gripping moment: 1.61 N.m \| Closing angle: -5 deg \| Port thread: Rc \| Mass: 910 g
MHW2-32D1		Bore: 32 mm \| Finger option: Tapped mounting (open/close dir.) \| Gripping moment: 1.61 N.m \| Closing angle: -5 deg \| Port thread: Rc \| Mass: 950 g
MHW2-40D		Bore: 40 mm \| Finger option: Flat finger (standard) \| Gripping moment: 3.70 N.m \| Closing angle: -5 deg \| Port thread: Rc \| Mass: 2140 g
MHW2-40D1		Bore: 40 mm \| Finger option: Tapped mounting (open/close dir.) \| Gripping moment: 3.70 N.m \| Closing angle: -5 deg \| Port thread: Rc \| Mass: 2270 g
MHW2-50D		Bore: 50 mm \| Finger option: Flat finger (standard) \| Gripping moment: 8.27 N.m \| Closing angle: -4 deg \| Port thread: Rc \| Mass: 5100 g
MHW2-50D1		Bore: 50 mm \| Finger option: Tapped mounting (open/close dir.) \| Gripping moment: 8.27 N.m \| Closing angle: -4 deg \| Port thread: Rc \| Mass: 5350 g
