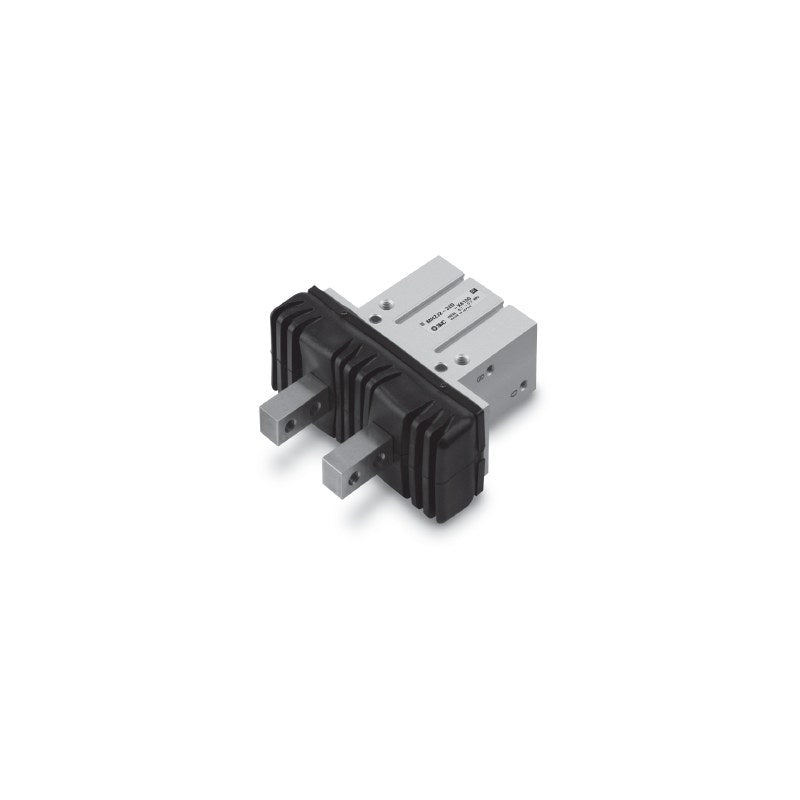

SMC MHZ2 Parallel Air Gripper (Standard, ø6 to ø40)

SMC MHZ2 Parallel Air Gripper (Standard, ø6 to ø40)

SMC MHZ2 series standard parallel-style air gripper with integrated linear guide, 2 fingers, in bores ø6 to ø40 with double and single acting types.

Key features

  • Linear guide integrated with the body for high rigidity and high accuracy (repeatability ±0.01 mm up to ø25)
  • Jaw options: basic, side tapped, through-hole and flat jaw; ø10 to ø25 also in narrow (MHQ2 compatible) N, N1, N2 types
  • End boss body options for ø10 to ø25: lateral piping (E), axial dual one-touch (W, double acting), axial one-touch (K) or M5 port (M, single acting)
  • Built-in magnet for D-M9 series solid state auto switches (ordered as suffix, e.g. -M9BW; 0.5/1/3/5 m leads)
  • Clean series (11-MHZ2), jaw speed needle (-X46), MHQ2/MHQG2 compatible flat jaw (-X51) and other -X specs on order

Specifications

Fluid Air
Number of fingers 2
Operating pressure, double acting ø6 0.15-0.7, ø10 0.2-0.7, ø16-40 0.1-0.7 MPa
Operating pressure, single acting ø6 0.3-0.7, ø10 0.35-0.7, ø16-40 0.25-0.7 MPa
Ambient and fluid temperature -10 to 60°C
Repeatability ø6-25 ±0.01 mm, ø32/40 ±0.02 mm
Max. operating frequency ø6-25 180 c.p.m., ø32/40 60 c.p.m.
Lubrication Not required
Gripping force per finger, double acting (external) ø6 3.3 N to ø40 254 N at 0.5 MPa
Auto switch (option) D-M9N/M9P/M9B, M9NW/PW/BW, M9NA/PA/BA, F8
Source SMC Korea catalog MHZ Series (SMCKR_MHZ.pdf), p. 496-499, 512 (PDF p. 28-31, 44)
MHZ2-6D Bore: ø6 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D1 Bore: ø6 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D2 Bore: ø6 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D3 Bore: ø6 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S Bore: ø6 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S1 Bore: ø6 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S2 Bore: ø6 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S3 Bore: ø6 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C1 Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C2 Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C3 Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DE Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DW Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D1 Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D1E Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D1W Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D2 Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D2E Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D2W Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D3 Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D3E Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D3W Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DN Bore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DNE Bore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DNW Bore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DN1 Bore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DN1E Bore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DN1W Bore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DN2 Bore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DN2E Bore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DN2W Bore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10S Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SE Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SK Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SM Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S1 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S1E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S1K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S1M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S2 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S2E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S2K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S2M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S3 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S3E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S3K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S3M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SN Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SNE Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SNK Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SNM Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SN1 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SN1E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SN1K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SN1M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SN2 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SN2E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SN2K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SN2M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CE Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CK Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CM Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C1 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C1E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C1K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C1M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C2 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C2E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C2K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C2M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C3 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C3E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C3K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C3M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CN Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CNE Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CNK Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CNM Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CN1 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CN1E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CN1K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CN1M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CN2 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CN2E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CN2K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CN2M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-16D Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DE Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DW Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D1 Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D1E Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D1W Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D2 Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D2E Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D2W Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D3 Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D3E Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D3W Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DN Bore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DNE Bore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DNW Bore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DN1 Bore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DN1E Bore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DN1W Bore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DN2 Bore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DN2E Bore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DN2W Bore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16S Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SE Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SK Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SM Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S1 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S1E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S1K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S1M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S2 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S2E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S2K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S2M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S3 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S3E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S3K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S3M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SN Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SNE Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SNK Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SNM Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SN1 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SN1E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SN1K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SN1M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SN2 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SN2E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SN2K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SN2M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CE Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CK Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CM Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C1 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C1E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C1K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C1M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C2 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C2E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C2K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C2M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C3 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C3E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C3K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C3M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CN Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CNE Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CNK Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CNM Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CN1 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CN1E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CN1K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CN1M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CN2 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CN2E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CN2K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CN2M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-20D Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DE Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DW Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D1 Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D1E Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D1W Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D2 Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D2E Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D2W Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D3 Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D3E Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D3W Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DN Bore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DNE Bore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DNW Bore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DN1 Bore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DN1E Bore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DN1W Bore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DN2 Bore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DN2E Bore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DN2W Bore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20S Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SE Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SK Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SM Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S1 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S1E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S1K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S1M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S2 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S2E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S2K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S2M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S3 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S3E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S3K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S3M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SN Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SNE Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SNK Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SNM Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SN1 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SN1E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SN1K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SN1M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SN2 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SN2E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SN2K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SN2M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CE Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CK Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CM Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C1 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C1E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C1K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C1M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C2 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C2E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C2K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C2M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C3 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C3E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C3K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C3M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CN Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CNE Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CNK Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CNM Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CN1 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CN1E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CN1K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CN1M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CN2 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CN2E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CN2K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CN2M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-25D Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DE Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DW Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D1 Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D1E Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D1W Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D2 Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D2E Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D2W Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D3 Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D3E Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D3W Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DN Bore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DNE Bore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DNW Bore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DN1 Bore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DN1E Bore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DN1W Bore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DN2 Bore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DN2E Bore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DN2W Bore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25S Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SE Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SK Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SM Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S1 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S1E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S1K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S1M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S2 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S2E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S2K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S2M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S3 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S3E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S3K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S3M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SN Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SNE Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SNK Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SNM Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SN1 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SN1E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SN1K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SN1M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SN2 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SN2E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SN2K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SN2M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CE Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CK Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CM Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C1 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C1E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C1K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C1M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C2 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C2E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C2K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C2M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C3 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C3E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C3K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C3M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CN Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CNE Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CNK Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CNM Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CN1 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CN1E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CN1K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CN1M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CN2 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CN2E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CN2K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CN2M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-32D Bore: ø32 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D1 Bore: ø32 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D2 Bore: ø32 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D3 Bore: ø32 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S Bore: ø32 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S1 Bore: ø32 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S2 Bore: ø32 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S3 Bore: ø32 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C1 Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C2 Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C3 Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-40D Bore: ø40 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D1 Bore: ø40 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D2 Bore: ø40 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D3 Bore: ø40 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S Bore: ø40 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S1 Bore: ø40 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S2 Bore: ø40 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S3 Bore: ø40 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C1 Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C2 Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C3 Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm
Air GrippersSMC
344 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHZ2 Parallel Air Gripper (Standard, ø6 to ø40)

Brand SMC·Air Grippers

Available part numbers (344)

MHZ2-6D, MHZ2-6D1, MHZ2-6D2, MHZ2-6D3, MHZ2-6S, MHZ2-6S1, MHZ2-6S2, MHZ2-6S3, MHZ2-6C, MHZ2-6C1 + 334 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MHZ2-6DBore: ø6 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D1Bore: ø6 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D2Bore: ø6 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6D3Bore: ø6 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6SBore: ø6 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S1Bore: ø6 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S2Bore: ø6 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6S3Bore: ø6 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6CBore: ø6 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C1Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C2Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-6C3Bore: ø6 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DEBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DWBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D1Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D1EBore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D1WBore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D2Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D2EBore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D2WBore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10D3Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10D3EBore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10D3WBore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DNBore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DNEBore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DNWBore: ø10 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DN1Bore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DN1EBore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DN1WBore: ø10 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10DN2Bore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10DN2EBore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10DN2WBore: ø10 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 4 mm
MHZ2-10SBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SEBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SKBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SMBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S1Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S1EBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S1KBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S1MBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S2Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S2EBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S2KBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S2MBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10S3Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10S3EBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10S3KBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10S3MBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SNBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SNEBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SNKBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SNMBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SN1Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SN1EBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SN1KBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SN1MBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10SN2Bore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10SN2EBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10SN2KBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10SN2MBore: ø10 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CEBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CKBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CMBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C1Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C1EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C1KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C1MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C2Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C2EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C2KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C2MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10C3Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10C3EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10C3KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10C3MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CNBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CNEBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CNKBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CNMBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CN1Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CN1EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CN1KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CN1MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-10CN2Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 4 mm
MHZ2-10CN2EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 4 mm
MHZ2-10CN2KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 4 mm
MHZ2-10CN2MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 4 mm
MHZ2-16DBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DEBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DWBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D1Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D1EBore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D1WBore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D2Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D2EBore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D2WBore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16D3Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16D3EBore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16D3WBore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DNBore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DNEBore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DNWBore: ø16 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DN1Bore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DN1EBore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DN1WBore: ø16 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16DN2Bore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16DN2EBore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16DN2WBore: ø16 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 6 mm
MHZ2-16SBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SEBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SKBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SMBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S1Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S1EBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S1KBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S1MBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S2Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S2EBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S2KBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S2MBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16S3Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16S3EBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16S3KBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16S3MBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SNBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SNEBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SNKBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SNMBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SN1Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SN1EBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SN1KBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SN1MBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16SN2Bore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16SN2EBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16SN2KBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16SN2MBore: ø16 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CEBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CKBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CMBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C1Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C1EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C1KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C1MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C2Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C2EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C2KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C2MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16C3Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16C3EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16C3KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16C3MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CNBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CNEBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CNKBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CNMBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CN1Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CN1EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CN1KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CN1MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-16CN2Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 6 mm
MHZ2-16CN2EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 6 mm
MHZ2-16CN2KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 6 mm
MHZ2-16CN2MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 6 mm
MHZ2-20DBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DEBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DWBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D1Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D1EBore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D1WBore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D2Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D2EBore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D2WBore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20D3Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20D3EBore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20D3WBore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DNBore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DNEBore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DNWBore: ø20 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DN1Bore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DN1EBore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DN1WBore: ø20 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20DN2Bore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20DN2EBore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20DN2WBore: ø20 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 10 mm
MHZ2-20SBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SEBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SKBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SMBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S1Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S1EBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S1KBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S1MBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S2Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S2EBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S2KBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S2MBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20S3Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20S3EBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20S3KBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20S3MBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SNBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SNEBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SNKBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SNMBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SN1Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SN1EBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SN1KBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SN1MBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20SN2Bore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20SN2EBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20SN2KBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20SN2MBore: ø20 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CEBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CKBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CMBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C1Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C1EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C1KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C1MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C2Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C2EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C2KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C2MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20C3Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20C3EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20C3KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20C3MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CNBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CNEBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CNKBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CNMBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CN1Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CN1EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CN1KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CN1MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-20CN2Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 10 mm
MHZ2-20CN2EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 10 mm
MHZ2-20CN2KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 10 mm
MHZ2-20CN2MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 10 mm
MHZ2-25DBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DEBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DWBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D1Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D1EBore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D1WBore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D2Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D2EBore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D2WBore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25D3Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25D3EBore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25D3WBore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DNBore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DNEBore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DNWBore: ø25 mm | Action: Double acting | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DN1Bore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DN1EBore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DN1WBore: ø25 mm | Action: Double acting | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25DN2Bore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25DN2EBore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25DN2WBore: ø25 mm | Action: Double acting | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 14 mm
MHZ2-25SBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SEBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SKBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SMBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S1Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S1EBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S1KBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S1MBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S2Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S2EBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S2KBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S2MBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25S3Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25S3EBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25S3KBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25S3MBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SNBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SNEBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SNKBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SNMBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SN1Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SN1EBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SN1KBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SN1MBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25SN2Bore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25SN2EBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25SN2KBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25SN2MBore: ø25 mm | Action: Single acting, normally open | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CEBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CKBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CMBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C1Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C1EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C1KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C1MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C2Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C2EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C2KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C2MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25C3Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25C3EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25C3KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25C3MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CNBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CNEBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CNKBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CNMBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, basic (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CN1Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CN1EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CN1KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CN1MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, side tapped (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-25CN2Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: Basic | Stroke (both sides): 14 mm
MHZ2-25CN2EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, lateral piping | Stroke (both sides): 14 mm
MHZ2-25CN2KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 14 mm
MHZ2-25CN2MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Narrow, through-hole (MHQ2 compat.) | Body: End boss, axial, M5 port | Stroke (both sides): 14 mm
MHZ2-32DBore: ø32 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D1Bore: ø32 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D2Bore: ø32 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32D3Bore: ø32 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32SBore: ø32 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S1Bore: ø32 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S2Bore: ø32 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32S3Bore: ø32 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32CBore: ø32 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C1Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C2Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZ2-32C3Bore: ø32 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZ2-40DBore: ø40 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D1Bore: ø40 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D2Bore: ø40 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40D3Bore: ø40 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40SBore: ø40 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S1Bore: ø40 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S2Bore: ø40 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40S3Bore: ø40 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40CBore: ø40 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C1Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C2Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 30 mm
MHZ2-40C3Bore: ø40 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 30 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
