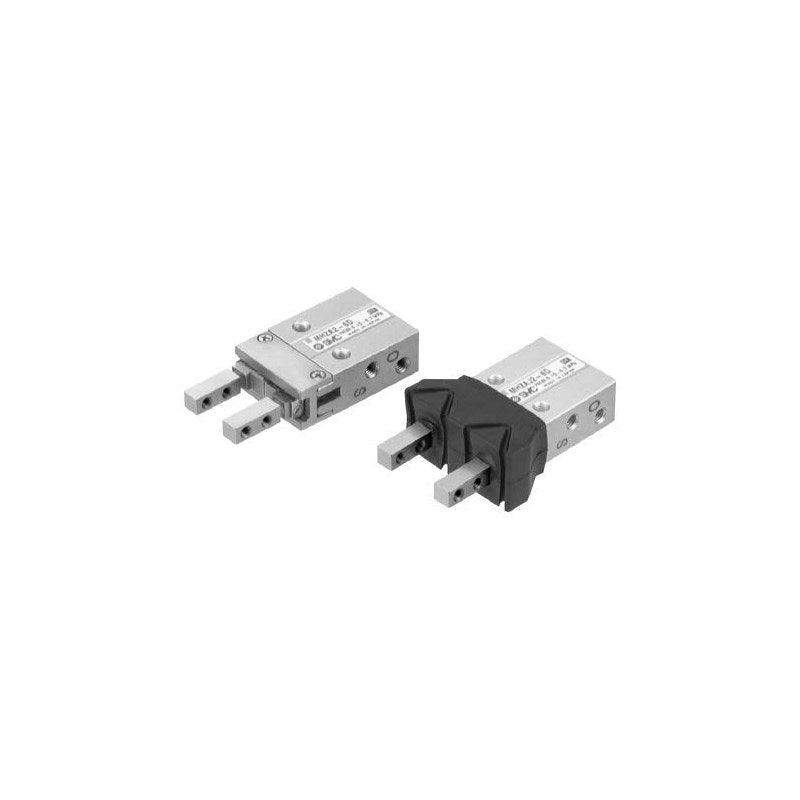

SMC MHZA2-6/MHZAJ2-6 Miniature Parallel Air Gripper (ø6)

SMC MHZA2-6/MHZAJ2-6 Miniature Parallel Air Gripper (ø6)

SMC MHZA2-6 and MHZAJ2-6 compact ø6 parallel-style air grippers without auto switch magnet, standard or with dust cover.

Key features

  • Compact ø6 bore, 4 mm stroke (both sides), mass 26 g (MHZA2) / 27 g (MHZAJ2)
  • No auto switch (compact series); repeatability ±0.01 mm, up to 180 c.p.m.
  • MHZA2 jaw options: basic, side tapped (1), through-hole (2), flat jaw (3)
  • End boss body options: lateral M3 (E), axial ø4 hose nipple (H), ø4 one-touch (K) or M3 (M) for single acting
  • MHZAJ2 dust cover in chloroprene (standard), fluororubber (F) or silicone (S)

Specifications

Fluid Air
Bore ø6 mm
Number of fingers 2
Operating pressure Double acting 0.15-0.7 MPa, single acting 0.3-0.7 MPa
Ambient and fluid temperature -10 to 60°C
Repeatability ±0.01 mm
Max. operating frequency 180 c.p.m.
Opening/closing stroke 4 mm (both sides)
Gripping force per finger Double acting: external 3.3 N, internal 6.1 N at 0.5 MPa
Port size M3x0.5
Source SMC Korea catalog MHZ Series (SMCKR_MHZ.pdf), p. 486-487, 493 (PDF p. 18-19, 25)
MHZA2-6D Type: Standard (MHZA2) | Action: Double acting | Jaw: Basic | Body: Basic | Dust cover: None
MHZA2-6DE Type: Standard (MHZA2) | Action: Double acting | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6D1 Type: Standard (MHZA2) | Action: Double acting | Jaw: Side tapped | Body: Basic | Dust cover: None
MHZA2-6D1E Type: Standard (MHZA2) | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6D2 Type: Standard (MHZA2) | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Dust cover: None
MHZA2-6D2E Type: Standard (MHZA2) | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6D3 Type: Standard (MHZA2) | Action: Double acting | Jaw: Flat jaw | Body: Basic | Dust cover: None
MHZA2-6D3E Type: Standard (MHZA2) | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6S Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Dust cover: None
MHZA2-6SE Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6SH Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6SK Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6SM Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6S1 Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Dust cover: None
MHZA2-6S1E Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6S1H Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6S1K Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6S1M Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6S2 Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Dust cover: None
MHZA2-6S2E Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6S2H Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6S2K Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6S2M Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6S3 Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Dust cover: None
MHZA2-6S3E Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6S3H Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6S3K Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6S3M Type: Standard (MHZA2) | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6C Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Dust cover: None
MHZA2-6CE Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6CH Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6CK Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6CM Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6C1 Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Dust cover: None
MHZA2-6C1E Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6C1H Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6C1K Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6C1M Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6C2 Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Dust cover: None
MHZA2-6C2E Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6C2H Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6C2K Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6C2M Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M3 port | Dust cover: None
MHZA2-6C3 Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Dust cover: None
MHZA2-6C3E Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral M3 port | Dust cover: None
MHZA2-6C3H Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, ø4 hose nipple | Dust cover: None
MHZA2-6C3K Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, ø4 one-touch | Dust cover: None
MHZA2-6C3M Type: Standard (MHZA2) | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M3 port | Dust cover: None
MHZAJ2-6D Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: Basic | Dust cover: Chloroprene (CR)
MHZAJ2-6DF Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: Basic | Dust cover: Fluororubber (FKM)
MHZAJ2-6DS Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: Basic | Dust cover: Silicone rubber
MHZAJ2-6DE Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Chloroprene (CR)
MHZAJ2-6DEF Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Fluororubber (FKM)
MHZAJ2-6DES Type: Dust cover (MHZAJ2) | Action: Double acting | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Silicone rubber
MHZAJ2-6S Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Dust cover: Chloroprene (CR)
MHZAJ2-6SF Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Dust cover: Fluororubber (FKM)
MHZAJ2-6SS Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Dust cover: Silicone rubber
MHZAJ2-6SE Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Chloroprene (CR)
MHZAJ2-6SEF Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Fluororubber (FKM)
MHZAJ2-6SES Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Silicone rubber
MHZAJ2-6SH Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Chloroprene (CR)
MHZAJ2-6SHF Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Fluororubber (FKM)
MHZAJ2-6SHS Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Silicone rubber
MHZAJ2-6SK Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Chloroprene (CR)
MHZAJ2-6SKF Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Fluororubber (FKM)
MHZAJ2-6SKS Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Silicone rubber
MHZAJ2-6SM Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Chloroprene (CR)
MHZAJ2-6SMF Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Fluororubber (FKM)
MHZAJ2-6SMS Type: Dust cover (MHZAJ2) | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Silicone rubber
MHZAJ2-6C Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Dust cover: Chloroprene (CR)
MHZAJ2-6CF Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Dust cover: Fluororubber (FKM)
MHZAJ2-6CS Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Dust cover: Silicone rubber
MHZAJ2-6CE Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Chloroprene (CR)
MHZAJ2-6CEF Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Fluororubber (FKM)
MHZAJ2-6CES Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral M3 port | Dust cover: Silicone rubber
MHZAJ2-6CH Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Chloroprene (CR)
MHZAJ2-6CHF Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Fluororubber (FKM)
MHZAJ2-6CHS Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 hose nipple | Dust cover: Silicone rubber
MHZAJ2-6CK Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Chloroprene (CR)
MHZAJ2-6CKF Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Fluororubber (FKM)
MHZAJ2-6CKS Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, ø4 one-touch | Dust cover: Silicone rubber
MHZAJ2-6CM Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Chloroprene (CR)
MHZAJ2-6CMF Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Fluororubber (FKM)
MHZAJ2-6CMS Type: Dust cover (MHZAJ2) | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M3 port | Dust cover: Silicone rubber
Air GrippersSMC
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHZA2-6/MHZAJ2-6 Miniature Parallel Air Gripper (ø6)

Brand SMC·Air Grippers

Available part numbers (84)

MHZA2-6D, MHZA2-6DE, MHZA2-6D1, MHZA2-6D1E, MHZA2-6D2, MHZA2-6D2E, MHZA2-6D3, MHZA2-6D3E, MHZA2-6S, MHZA2-6SE + 74 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
