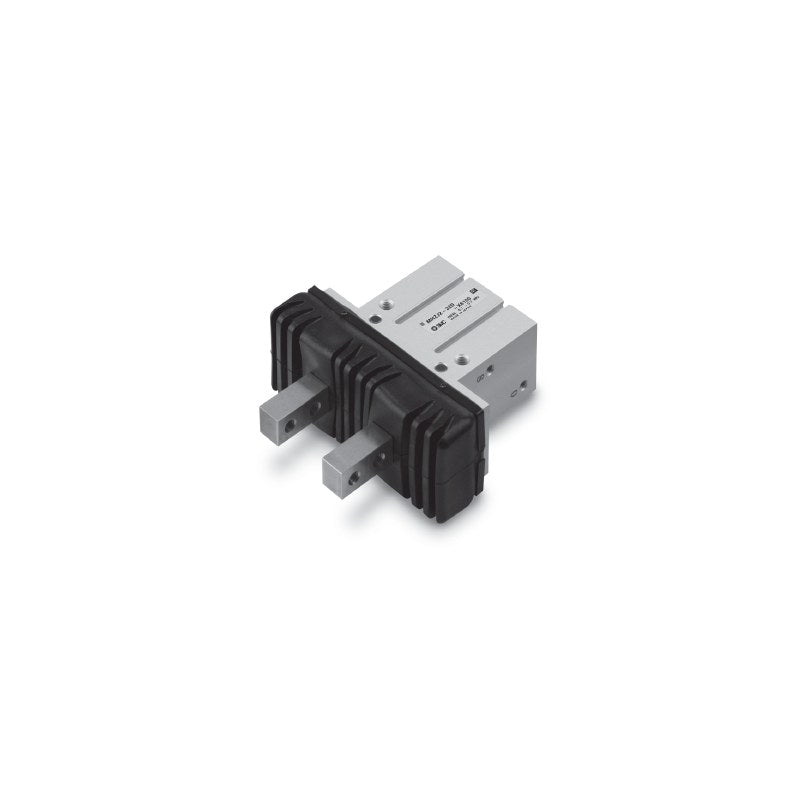

SMC MHZJ2 Parallel Air Gripper (With Dust Cover, ø6 to ø25)

SMC MHZJ2 Parallel Air Gripper (With Dust Cover, ø6 to ø25)

SMC MHZJ2 series parallel-style air gripper with dust cover protecting the guide from dust and coolant, bores ø6 to ø25, double and single acting.

Key features

  • Dust cover in chloroprene (standard), fluororubber (F) or silicone rubber (S)
  • End boss body options for ø10 to ø25: E, W (double acting), K and M (single acting); ø6 basic body only
  • Built-in magnet for D-M9 series solid state auto switches (ordered as suffix)
  • ø32 and ø40 with dust cover are made to order (-X6100)
  • Made-to-order options include heat resistant (-X4), FKM seals (-X5), spring assist (-X7/-X12), no magnet (-X50)

Specifications

Fluid Air
Number of fingers 2
Operating pressure, double acting ø6 0.15-0.7, ø10 0.2-0.7, ø16-25 0.1-0.7 MPa
Operating pressure, single acting ø6 0.3-0.7, ø10 0.35-0.7, ø16-25 0.25-0.7 MPa
Ambient and fluid temperature -10 to 60°C
Repeatability ±0.01 mm
Max. operating frequency 180 c.p.m.
Lubrication Not required
Gripping force per finger, double acting (external) ø6 3.3 N to ø25 65 N at 0.5 MPa
Source SMC Korea catalog MHZ Series (SMCKR_MHZ.pdf), p. 528-529, 537, 539 (PDF p. 60-61, 69, 71)
MHZJ2-6D Bore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6DF Bore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6DS Bore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-6S Bore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6SF Bore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6SS Bore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-6C Bore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6CF Bore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6CS Bore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10D Bore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DF Bore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DS Bore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10DE Bore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DEF Bore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DES Bore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10DW Bore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DWF Bore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DWS Bore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10S Bore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SF Bore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SS Bore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SE Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SEF Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SES Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SK Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SKF Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SKS Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SM Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SMF Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SMS Bore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10C Bore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CF Bore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CS Bore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CE Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CEF Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CES Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CK Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CKF Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CKS Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CM Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CMF Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CMS Bore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-16D Bore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DF Bore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DS Bore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16DE Bore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DEF Bore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DES Bore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16DW Bore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DWF Bore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DWS Bore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16S Bore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SF Bore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SS Bore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SE Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SEF Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SES Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SK Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SKF Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SKS Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SM Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SMF Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SMS Bore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16C Bore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CF Bore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CS Bore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CE Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CEF Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CES Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CK Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CKF Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CKS Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CM Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CMF Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CMS Bore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-20D Bore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DF Bore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DS Bore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20DE Bore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DEF Bore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DES Bore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20DW Bore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DWF Bore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DWS Bore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20S Bore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SF Bore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SS Bore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SE Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SEF Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SES Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SK Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SKF Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SKS Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SM Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SMF Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SMS Bore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20C Bore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CF Bore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CS Bore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CE Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CEF Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CES Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CK Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CKF Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CKS Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CM Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CMF Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CMS Bore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-25D Bore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DF Bore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DS Bore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25DE Bore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DEF Bore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DES Bore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25DW Bore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DWF Bore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DWS Bore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25S Bore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SF Bore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SS Bore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SE Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SEF Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SES Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SK Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SKF Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SKS Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SM Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SMF Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SMS Bore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25C Bore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CF Bore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CS Bore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CE Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CEF Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CES Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CK Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CKF Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CKS Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CM Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CMF Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CMS Bore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
Air GrippersSMC
141 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHZJ2 Parallel Air Gripper (With Dust Cover, ø6 to ø25)

Brand SMC·Air Grippers

Available part numbers (141)

MHZJ2-6D, MHZJ2-6DF, MHZJ2-6DS, MHZJ2-6S, MHZJ2-6SF, MHZJ2-6SS, MHZJ2-6C, MHZJ2-6CF, MHZJ2-6CS, MHZJ2-10D + 131 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MHZJ2-6DBore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6DFBore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6DSBore: ø6 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-6SBore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6SFBore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6SSBore: ø6 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-6CBore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-6CFBore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-6CSBore: ø6 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10DBore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DFBore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DSBore: ø10 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10DEBore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DEFBore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DESBore: ø10 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10DWBore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10DWFBore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10DWSBore: ø10 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SBore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SFBore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SSBore: ø10 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SEBore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SEFBore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SESBore: ø10 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SKBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SKFBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SKSBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10SMBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10SMFBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10SMSBore: ø10 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CBore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CFBore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CSBore: ø10 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CEBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CEFBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CESBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CKBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CKFBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CKSBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-10CMBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 4 mm
MHZJ2-10CMFBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 4 mm
MHZJ2-10CMSBore: ø10 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 4 mm
MHZJ2-16DBore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DFBore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DSBore: ø16 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16DEBore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DEFBore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DESBore: ø16 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16DWBore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16DWFBore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16DWSBore: ø16 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SBore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SFBore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SSBore: ø16 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SEBore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SEFBore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SESBore: ø16 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SKBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SKFBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SKSBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16SMBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16SMFBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16SMSBore: ø16 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CBore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CFBore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CSBore: ø16 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CEBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CEFBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CESBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CKBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CKFBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CKSBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-16CMBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 6 mm
MHZJ2-16CMFBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 6 mm
MHZJ2-16CMSBore: ø16 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 6 mm
MHZJ2-20DBore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DFBore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DSBore: ø20 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20DEBore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DEFBore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DESBore: ø20 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20DWBore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20DWFBore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20DWSBore: ø20 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SBore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SFBore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SSBore: ø20 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SEBore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SEFBore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SESBore: ø20 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SKBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SKFBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SKSBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20SMBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20SMFBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20SMSBore: ø20 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CBore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CFBore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CSBore: ø20 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CEBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CEFBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CESBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CKBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CKFBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CKSBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-20CMBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 10 mm
MHZJ2-20CMFBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 10 mm
MHZJ2-20CMSBore: ø20 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 10 mm
MHZJ2-25DBore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DFBore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DSBore: ø25 mm | Action: Double acting | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25DEBore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DEFBore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DESBore: ø25 mm | Action: Double acting | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25DWBore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25DWFBore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25DWSBore: ø25 mm | Action: Double acting | Body: End boss, axial, dual one-touch | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SBore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SFBore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SSBore: ø25 mm | Action: Single acting, normally open | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SEBore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SEFBore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SESBore: ø25 mm | Action: Single acting, normally open | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SKBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SKFBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SKSBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25SMBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25SMFBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25SMSBore: ø25 mm | Action: Single acting, normally open | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CBore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CFBore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CSBore: ø25 mm | Action: Single acting, normally closed | Body: Basic | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CEBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CEFBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CESBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, lateral piping | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CKBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CKFBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CKSBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, one-touch fitting | Dust cover: Silicone rubber | Stroke (both sides): 14 mm
MHZJ2-25CMBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Chloroprene (CR) | Stroke (both sides): 14 mm
MHZJ2-25CMFBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Fluororubber (FKM) | Stroke (both sides): 14 mm
MHZJ2-25CMSBore: ø25 mm | Action: Single acting, normally closed | Body: End boss, axial, M5 port | Dust cover: Silicone rubber | Stroke (both sides): 14 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
