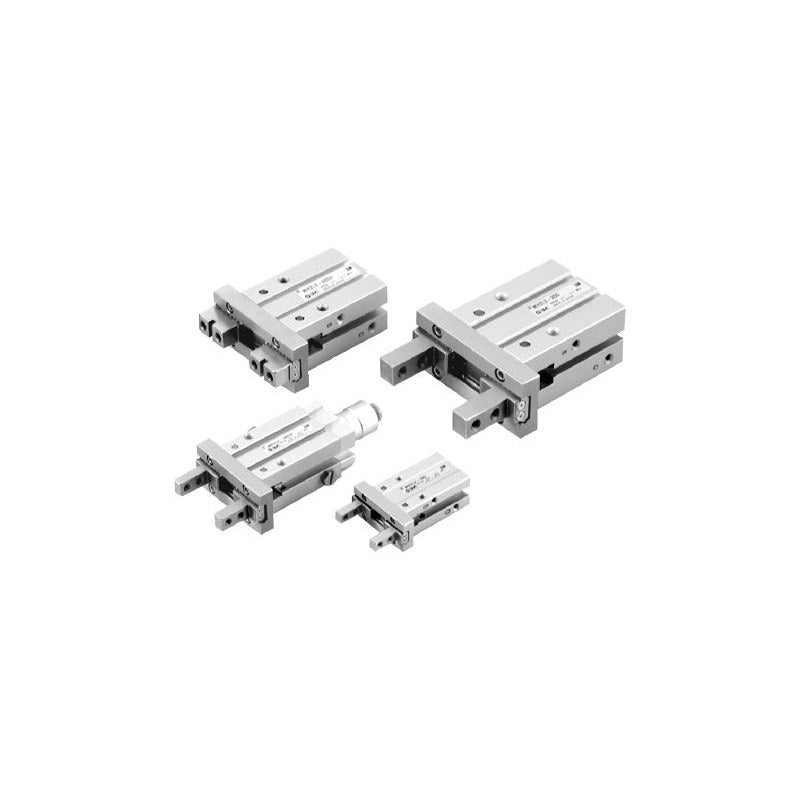

SMC MHZL2 Parallel Air Gripper (Long Stroke, ø10 to ø25)

SMC MHZL2 Parallel Air Gripper (Long Stroke, ø10 to ø25)

SMC MHZL2 series long-stroke parallel-style air gripper with integrated linear guide, 2 fingers, bores ø10 to ø25, double and single acting.

Key features

  • Opening/closing stroke about twice that of MHZ2 (8 to 22 mm both sides)
  • Jaw options: basic, side tapped (1), through-hole (2) and flat jaw (3)
  • End boss body options: lateral piping (E), axial dual one-touch (W, double acting), axial one-touch (K) or M5 port (M, single acting)
  • Built-in magnet for D-M9 series solid state auto switches (ordered as suffix)
  • Dust cover (-X6110) and other -X made-to-order specs available

Specifications

Fluid Air
Number of fingers 2
Operating pressure, double acting ø10 0.2-0.7, ø16-25 0.1-0.7 MPa
Operating pressure, single acting ø10 0.35-0.7, ø16-25 0.25-0.7 MPa
Ambient and fluid temperature -10 to 60°C
Repeatability ±0.01 mm
Max. operating frequency 120 c.p.m.
Lubrication Not required
Gripping force per finger, double acting (external) ø10 11 N to ø25 65 N at 0.5 MPa
Auto switch (option) D-M9 series solid state, F8 series
Source SMC Korea catalog MHZ Series (SMCKR_MHZ.pdf), p. 514-515, 522 (PDF p. 46-47, 54)
MHZL2-10D Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10DE Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10DW Bore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D1 Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D1E Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D1W Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D2 Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D2E Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D2W Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D3 Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D3E Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D3W Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10S Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10SE Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10SK Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10SM Bore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S1 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S1E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S1K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S1M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S2 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S2E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S2K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S2M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S3 Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S3E Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S3K Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S3M Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10CE Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10CK Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10CM Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C1 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C1E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C1K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C1M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C2 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C2E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C2K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C2M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C3 Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C3E Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C3K Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C3M Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-16D Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16DE Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16DW Bore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D1 Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D1E Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D1W Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D2 Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D2E Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D2W Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D3 Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D3E Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D3W Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16S Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16SE Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16SK Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16SM Bore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S1 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S1E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S1K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S1M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S2 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S2E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S2K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S2M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S3 Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S3E Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S3K Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S3M Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16CE Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16CK Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16CM Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C1 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C1E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C1K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C1M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C2 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C2E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C2K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C2M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C3 Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C3E Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C3K Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C3M Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-20D Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20DE Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20DW Bore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D1 Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D1E Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D1W Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D2 Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D2E Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D2W Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D3 Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D3E Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D3W Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20S Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20SE Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20SK Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20SM Bore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S1 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S1E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S1K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S1M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S2 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S2E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S2K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S2M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S3 Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S3E Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S3K Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S3M Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20CE Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20CK Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20CM Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C1 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C1E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C1K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C1M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C2 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C2E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C2K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C2M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C3 Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C3E Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C3K Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C3M Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-25D Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25DE Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25DW Bore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D1 Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D1E Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D1W Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D2 Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D2E Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D2W Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D3 Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D3E Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D3W Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25S Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25SE Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25SK Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25SM Bore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S1 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S1E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S1K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S1M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S2 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S2E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S2K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S2M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S3 Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S3E Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S3K Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S3M Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25CE Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25CK Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25CM Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C1 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C1E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C1K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C1M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C2 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C2E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C2K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C2M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C3 Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C3E Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C3K Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C3M Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
Air GrippersSMC
176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MHZL2 Parallel Air Gripper (Long Stroke, ø10 to ø25)

Brand SMC·Air Grippers

Available part numbers (176)

MHZL2-10D, MHZL2-10DE, MHZL2-10DW, MHZL2-10D1, MHZL2-10D1E, MHZL2-10D1W, MHZL2-10D2, MHZL2-10D2E, MHZL2-10D2W, MHZL2-10D3 + 166 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MHZL2-10DBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10DEBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10DWBore: ø10 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D1Bore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D1EBore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D1WBore: ø10 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D2Bore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D2EBore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D2WBore: ø10 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10D3Bore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10D3EBore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10D3WBore: ø10 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 8 mm
MHZL2-10SBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10SEBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10SKBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10SMBore: ø10 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S1Bore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S1EBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S1KBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S1MBore: ø10 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S2Bore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S2EBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S2KBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S2MBore: ø10 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10S3Bore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10S3EBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10S3KBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10S3MBore: ø10 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10CBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10CEBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10CKBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10CMBore: ø10 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C1Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C1EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C1KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C1MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C2Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C2EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C2KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C2MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-10C3Bore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 8 mm
MHZL2-10C3EBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 8 mm
MHZL2-10C3KBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 8 mm
MHZL2-10C3MBore: ø10 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 8 mm
MHZL2-16DBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16DEBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16DWBore: ø16 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D1Bore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D1EBore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D1WBore: ø16 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D2Bore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D2EBore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D2WBore: ø16 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16D3Bore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16D3EBore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16D3WBore: ø16 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 12 mm
MHZL2-16SBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16SEBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16SKBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16SMBore: ø16 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S1Bore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S1EBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S1KBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S1MBore: ø16 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S2Bore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S2EBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S2KBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S2MBore: ø16 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16S3Bore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16S3EBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16S3KBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16S3MBore: ø16 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16CBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16CEBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16CKBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16CMBore: ø16 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C1Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C1EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C1KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C1MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C2Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C2EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C2KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C2MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-16C3Bore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 12 mm
MHZL2-16C3EBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 12 mm
MHZL2-16C3KBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 12 mm
MHZL2-16C3MBore: ø16 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 12 mm
MHZL2-20DBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20DEBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20DWBore: ø20 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D1Bore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D1EBore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D1WBore: ø20 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D2Bore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D2EBore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D2WBore: ø20 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20D3Bore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20D3EBore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20D3WBore: ø20 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 18 mm
MHZL2-20SBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20SEBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20SKBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20SMBore: ø20 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S1Bore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S1EBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S1KBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S1MBore: ø20 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S2Bore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S2EBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S2KBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S2MBore: ø20 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20S3Bore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20S3EBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20S3KBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20S3MBore: ø20 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20CBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20CEBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20CKBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20CMBore: ø20 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C1Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C1EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C1KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C1MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C2Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C2EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C2KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C2MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-20C3Bore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 18 mm
MHZL2-20C3EBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 18 mm
MHZL2-20C3KBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 18 mm
MHZL2-20C3MBore: ø20 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 18 mm
MHZL2-25DBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25DEBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25DWBore: ø25 mm | Action: Double acting | Jaw: Basic | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D1Bore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D1EBore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D1WBore: ø25 mm | Action: Double acting | Jaw: Side tapped | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D2Bore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D2EBore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D2WBore: ø25 mm | Action: Double acting | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25D3Bore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25D3EBore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25D3WBore: ø25 mm | Action: Double acting | Jaw: Flat jaw | Body: End boss, axial, dual one-touch | Stroke (both sides): 22 mm
MHZL2-25SBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25SEBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25SKBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25SMBore: ø25 mm | Action: Single acting, normally open | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S1Bore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S1EBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S1KBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S1MBore: ø25 mm | Action: Single acting, normally open | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S2Bore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S2EBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S2KBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S2MBore: ø25 mm | Action: Single acting, normally open | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25S3Bore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25S3EBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25S3KBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25S3MBore: ø25 mm | Action: Single acting, normally open | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25CBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25CEBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25CKBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25CMBore: ø25 mm | Action: Single acting, normally closed | Jaw: Basic | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C1Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C1EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C1KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C1MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Side tapped | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C2Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C2EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C2KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C2MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Through-hole (open/close dir.) | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm
MHZL2-25C3Bore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: Basic | Stroke (both sides): 22 mm
MHZL2-25C3EBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, lateral piping | Stroke (both sides): 22 mm
MHZL2-25C3KBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, one-touch fitting | Stroke (both sides): 22 mm
MHZL2-25C3MBore: ø25 mm | Action: Single acting, normally closed | Jaw: Flat jaw | Body: End boss, axial, M5 port | Stroke (both sides): 22 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
