SMC MIW/MIS Escapement (2-Finger / 1-Finger, ø8 to ø32)

SMC MIW/MIS Escapement (2-Finger / 1-Finger, ø8 to ø32)

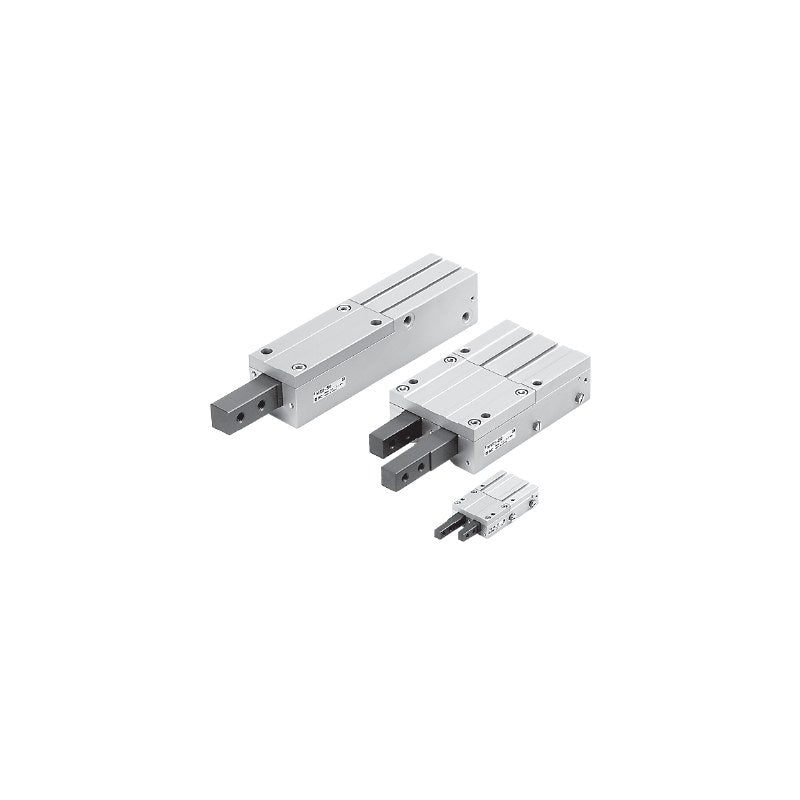

SMC MIW (2-finger) and MIS (1-finger) series escapement cylinders, ø8 to ø32 mm, for reliably separating workpieces flowing continuously on conveyors and chutes.

Key features

  • MIW 2-finger type alternately operates two fingers to feed workpieces one at a time; MIS 1-finger type for single stop/release
  • Finger options: basic, top/bottom tapped (1) or front tapped incl. end face (2)
  • Optional stroke adjusting unit (A) on the retract end: adjustment range 4 to 20 mm depending on bore
  • Optional scraper (S); built-in magnet for D-M9 solid state auto switches (ordered as suffix)
  • M thread ports (ø8 to ø25) or Rc1/8 (ø32); NPT (TN) and G (TF) for ø32
  • Made to order: heat resistant -X4 (to 100°C), fluororubber seals -X5, fluorine grease -X63, food grade grease -X79

Specifications

Action Double acting
Fluid Air
Operating pressure 0.2 to 0.7 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Lubrication Not required (non-lube)
Stroke tolerance +1/0 mm
Magnet Built-in
Port M3 x 0.5 (ø8), M5 x 0.8 (ø12 to ø25), Rc1/8 (ø32)
Source SMC Korea catalog MIW/MIS (SMCKR_MIW_MIS.pdf), p. 672-673
MIW8-8D Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW8-8DS Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW8-8DA Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW8-8DAS Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW8-8D1 Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW8-8D1S Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW8-8D1A Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW8-8D1AS Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW8-8D2 Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW8-8D2S Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW8-8D2A Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW8-8D2AS Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW12-12D Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW12-12DS Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW12-12DA Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW12-12DAS Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW12-12D1 Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW12-12D1S Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW12-12D1A Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW12-12D1AS Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW12-12D2 Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW12-12D2S Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW12-12D2A Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW12-12D2AS Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW20-20D Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW20-20DS Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW20-20DA Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW20-20DAS Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW20-20D1 Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW20-20D1S Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW20-20D1A Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW20-20D1AS Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW20-20D2 Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW20-20D2S Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW20-20D2A Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW20-20D2AS Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW25-25D Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW25-25DS Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW25-25DA Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW25-25DAS Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW25-25D1 Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW25-25D1S Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW25-25D1A Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW25-25D1AS Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW25-25D2 Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW25-25D2S Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW25-25D2A Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW25-25D2AS Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW32-32D Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW32-32DS Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW32-32DA Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW32-32DAS Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW32-32D1 Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW32-32D1S Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW32-32D1A Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW32-32D1AS Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW32-32D2 Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW32-32D2S Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW32-32D2A Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW32-32D2AS Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS8-10D Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS8-10DS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS8-10DA Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS8-10DAS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS8-10D1 Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS8-10D1S Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS8-10D1A Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS8-10D1AS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS8-10D2 Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS8-10D2S Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS8-10D2A Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS8-10D2AS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS8-20D Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS8-20DS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS8-20DA Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS8-20DAS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS8-20D1 Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS8-20D1S Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS8-20D1A Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS8-20D1AS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS8-20D2 Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS8-20D2S Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS8-20D2A Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS8-20D2AS Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-10D Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-10DS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-10DA Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-10DAS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-10D1 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-10D1S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-10D1A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-10D1AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-10D2 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-10D2S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-10D2A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-10D2AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-20D Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-20DS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-20DA Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-20DAS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-20D1 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-20D1S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-20D1A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-20D1AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-20D2 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-20D2S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-20D2A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-20D2AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-30D Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-30DS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-30DA Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-30DAS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-30D1 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-30D1S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-30D1A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-30D1AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-30D2 Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-30D2S Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-30D2A Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-30D2AS Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-10D Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-10DS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-10DA Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-10DAS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-10D1 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-10D1S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-10D1A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-10D1AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-10D2 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-10D2S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-10D2A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-10D2AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-20D Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-20DS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-20DA Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-20DAS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-20D1 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-20D1S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-20D1A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-20D1AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-20D2 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-20D2S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-20D2A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-20D2AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-30D Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-30DS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-30DA Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-30DAS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-30D1 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-30D1S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-30D1A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-30D1AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-30D2 Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-30D2S Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-30D2A Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-30D2AS Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS25-30D Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS25-30DS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS25-30DA Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS25-30DAS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS25-30D1 Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS25-30D1S Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS25-30D1A Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS25-30D1AS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS25-30D2 Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS25-30D2S Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS25-30D2A Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS25-30D2AS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS25-50D Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS25-50DS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS25-50DA Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS25-50DAS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS25-50D1 Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS25-50D1S Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS25-50D1A Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS25-50D1AS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS25-50D2 Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS25-50D2S Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS25-50D2A Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS25-50D2AS Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS32-30D Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS32-30DS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS32-30DA Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS32-30DAS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS32-30D1 Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS32-30D1S Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS32-30D1A Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS32-30D1AS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS32-30D2 Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS32-30D2S Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS32-30D2A Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS32-30D2AS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS32-50D Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS32-50DS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS32-50DA Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS32-50DAS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS32-50D1 Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS32-50D1S Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS32-50D1A Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS32-50D1AS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS32-50D2 Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS32-50D2S Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS32-50D2A Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS32-50D2AS Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
AccessoriesSMC
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MIW/MIS Escapement (2-Finger / 1-Finger, ø8 to ø32)

Brand SMC·Accessories

Available part numbers (204)

MIW8-8D, MIW8-8DS, MIW8-8DA, MIW8-8DAS, MIW8-8D1, MIW8-8D1S, MIW8-8D1A, MIW8-8D1AS, MIW8-8D2, MIW8-8D2S + 194 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MIW8-8DType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW8-8DSType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW8-8DAType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW8-8DASType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW8-8D1Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW8-8D1SType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW8-8D1AType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW8-8D1ASType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW8-8D2Type: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW8-8D2SType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW8-8D2AType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW8-8D2ASType: 2 fingers (MIW) | Bore: ø8 mm | Stroke: 8 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW12-12DType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW12-12DSType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW12-12DAType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW12-12DASType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW12-12D1Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW12-12D1SType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW12-12D1AType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW12-12D1ASType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW12-12D2Type: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW12-12D2SType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW12-12D2AType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW12-12D2ASType: 2 fingers (MIW) | Bore: ø12 mm | Stroke: 12 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW20-20DType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW20-20DSType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW20-20DAType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW20-20DASType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW20-20D1Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW20-20D1SType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW20-20D1AType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW20-20D1ASType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW20-20D2Type: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW20-20D2SType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW20-20D2AType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW20-20D2ASType: 2 fingers (MIW) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW25-25DType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW25-25DSType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW25-25DAType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW25-25DASType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW25-25D1Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW25-25D1SType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW25-25D1AType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW25-25D1ASType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW25-25D2Type: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW25-25D2SType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW25-25D2AType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW25-25D2ASType: 2 fingers (MIW) | Bore: ø25 mm | Stroke: 25 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIW32-32DType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIW32-32DSType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIW32-32DAType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIW32-32DASType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIW32-32D1Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIW32-32D1SType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIW32-32D1AType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIW32-32D1ASType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIW32-32D2Type: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIW32-32D2SType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIW32-32D2AType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIW32-32D2ASType: 2 fingers (MIW) | Bore: ø32 mm | Stroke: 32 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS8-10DType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS8-10DSType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS8-10DAType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS8-10DASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS8-10D1Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS8-10D1SType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS8-10D1AType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS8-10D1ASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS8-10D2Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS8-10D2SType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS8-10D2AType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS8-10D2ASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS8-20DType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS8-20DSType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS8-20DAType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS8-20DASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS8-20D1Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS8-20D1SType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS8-20D1AType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS8-20D1ASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS8-20D2Type: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS8-20D2SType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS8-20D2AType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS8-20D2ASType: 1 finger (MIS) | Bore: ø8 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-10DType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-10DSType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-10DAType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-10DASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-10D1Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-10D1SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-10D1AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-10D1ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-10D2Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-10D2SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-10D2AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-10D2ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-20DType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-20DSType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-20DAType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-20DASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-20D1Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-20D1SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-20D1AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-20D1ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-20D2Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-20D2SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-20D2AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-20D2ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS12-30DType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS12-30DSType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS12-30DAType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS12-30DASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS12-30D1Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS12-30D1SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS12-30D1AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS12-30D1ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS12-30D2Type: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS12-30D2SType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS12-30D2AType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS12-30D2ASType: 1 finger (MIS) | Bore: ø12 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-10DType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-10DSType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-10DAType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-10DASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-10D1Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-10D1SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-10D1AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-10D1ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-10D2Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-10D2SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-10D2AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-10D2ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 10 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-20DType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-20DSType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-20DAType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-20DASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-20D1Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-20D1SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-20D1AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-20D1ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-20D2Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-20D2SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-20D2AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-20D2ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 20 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS20-30DType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS20-30DSType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS20-30DAType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS20-30DASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS20-30D1Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS20-30D1SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS20-30D1AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS20-30D1ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS20-30D2Type: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS20-30D2SType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS20-30D2AType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS20-30D2ASType: 1 finger (MIS) | Bore: ø20 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS25-30DType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS25-30DSType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS25-30DAType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS25-30DASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS25-30D1Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS25-30D1SType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS25-30D1AType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS25-30D1ASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS25-30D2Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS25-30D2SType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS25-30D2AType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS25-30D2ASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS25-50DType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS25-50DSType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS25-50DAType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS25-50DASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS25-50D1Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS25-50D1SType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS25-50D1AType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS25-50D1ASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS25-50D2Type: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS25-50D2SType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS25-50D2AType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS25-50D2ASType: 1 finger (MIS) | Bore: ø25 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS32-30DType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS32-30DSType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS32-30DAType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS32-30DASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS32-30D1Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS32-30D1SType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS32-30D1AType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS32-30D1ASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS32-30D2Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS32-30D2SType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS32-30D2AType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS32-30D2ASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 30 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes
MIS32-50DType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: No
MIS32-50DSType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: No | Scraper: Yes
MIS32-50DAType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: No
MIS32-50DASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Basic | Stroke adjuster: Yes | Scraper: Yes
MIS32-50D1Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: No
MIS32-50D1SType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: No | Scraper: Yes
MIS32-50D1AType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: No
MIS32-50D1ASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Top/bottom tapped | Stroke adjuster: Yes | Scraper: Yes
MIS32-50D2Type: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: No
MIS32-50D2SType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: No | Scraper: Yes
MIS32-50D2AType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: No
MIS32-50D2ASType: 1 finger (MIS) | Bore: ø32 mm | Stroke: 50 mm | Finger: Front tapped (5 faces) | Stroke adjuster: Yes | Scraper: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
