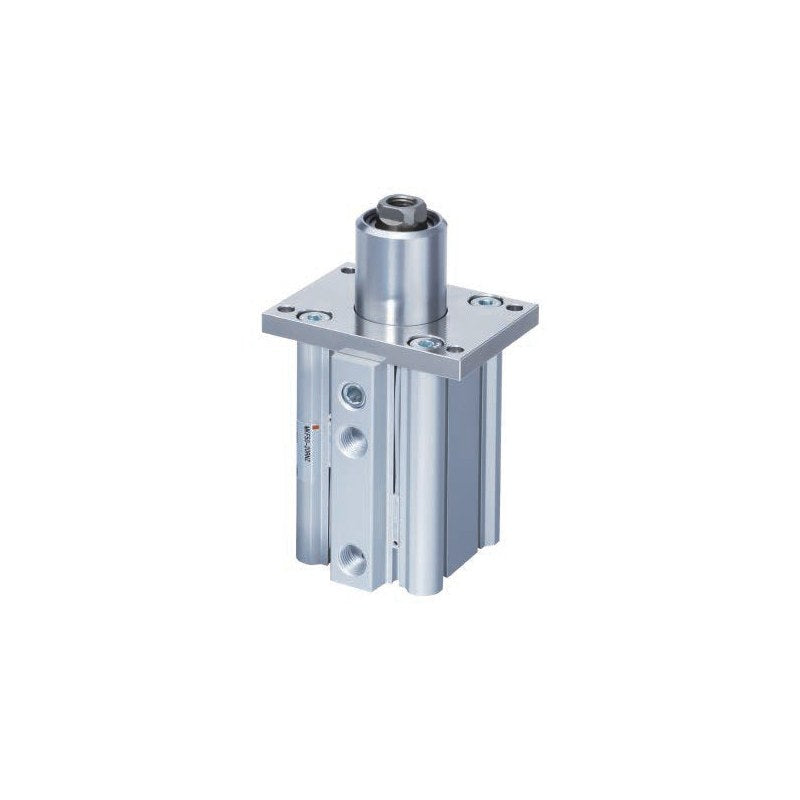

SMC MK Rotary Clamp Cylinder (Standard Type, ø12 to ø63)

SMC MK Rotary Clamp Cylinder (Standard Type, ø12 to ø63)

SMC MK series rotary clamp cylinder, standard type, that rotates 90° and then clamps, ø12 to ø63 mm bore, with built-in magnet and clockwise or counterclockwise rotation.

Key features

  • Allowable moment of inertia three times the previous MK (equal to heavy duty MK2), overall length kept compact
  • Clamp strokes 10, 20, 30 mm, plus 50 mm for ø32 to ø63; rotation angle 90° ±10°
  • Mounting: through-hole/both ends tapped (B), rod flange (F), head flange (G); arm attached (N) option
  • Built-in magnet; small auto switches mount on 4 surfaces (ø20/ø25 2 surfaces), strong magnetic field D-P3DWA for ø32 to ø63
  • Packing set and guide pin replaceable on all sizes; NPT (TN), G (TF) ports and -X made-to-order ordered as suffixes

Specifications

Action Double acting
Rotation angle 90° ±10°
Fluid Air
Proof pressure 1.5 MPa
Operating pressure range 0.1 to 1 MPa (ø63 0.1 to 0.6 MPa)
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch
Theoretical clamp force (0.5 MPa) ø12 40 N to ø63 1400 N
Rotary stroke ø12 7.5, ø16 9.5, ø20/25 15, ø32 to ø63 19 mm
Piston speed 50 to 200 mm/s
Cushion Rubber bumper
Lubrication Not required
Source SMC Korea catalog MK Series (SMCKR_MK-Z.pdf), p. 397-417 (PDF p. 1-21, How to Order PDF p. 7-8)
MKB12-10RZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-10LZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB12-20RZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-20LZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB12-30RZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-30LZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-10RZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-10LZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-20RZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-20LZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-30RZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-30LZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-10RZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-10LZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-20RZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-20LZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-30RZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-30LZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-10RZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-10LZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-20RZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-20LZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-30RZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-30LZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB32-10RZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-10LZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-20RZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-20LZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-30RZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-30LZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-50RZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-50RNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-50LZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-50LNZ Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-10RZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-10LZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-20RZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-20LZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-30RZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-30LZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-50RZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-50RNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-50LZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-50LNZ Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB50-10RZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-10LZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-20RZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-20LZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-30RZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-30LZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-50RZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-50RNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-50LZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-50LNZ Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-10RZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-10RNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-10LZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-10LNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-20RZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-20RNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-20LZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-20LNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-30RZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-30RNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-30LZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-30LNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-50RZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-50RNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-50LZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-50LNZ Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF12-10RZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-10RNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-10LZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-10LNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF12-20RZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-20RNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-20LZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-20LNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF12-30RZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-30RNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-30LZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-30LNZ Mounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-10RZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-10RNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-10LZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-10LNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-20RZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-20RNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-20LZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-20LNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-30RZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-30RNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-30LZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-30LNZ Mounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-10RZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-10RNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-10LZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-10LNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-20RZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-20RNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-20LZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-20LNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-30RZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-30RNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-30LZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-30LNZ Mounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-10RZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-10RNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-10LZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-10LNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-20RZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-20RNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-20LZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-20LNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-30RZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-30RNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-30LZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-30LNZ Mounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF32-10RZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-10RNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-10LZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-10LNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-20RZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-20RNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-20LZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-20LNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-30RZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-30RNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-30LZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-30LNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-50RZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-50RNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-50LZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-50LNZ Mounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-10RZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-10RNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-10LZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-10LNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-20RZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-20RNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-20LZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-20LNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-30RZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-30RNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-30LZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-30LNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-50RZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-50RNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-50LZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-50LNZ Mounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF50-10RZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-10RNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-10LZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-10LNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-20RZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-20RNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-20LZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-20LNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-30RZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-30RNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-30LZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-30LNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-50RZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-50RNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-50LZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-50LNZ Mounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-10RZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-10RNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-10LZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-10LNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-20RZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-20RNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-20LZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-20LNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-30RZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-30RNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-30LZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-30LNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-50RZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-50RNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-50LZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-50LNZ Mounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG12-10RZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-10RNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-10LZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-10LNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG12-20RZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-20RNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-20LZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-20LNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG12-30RZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-30RNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-30LZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-30LNZ Mounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-10RZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-10RNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-10LZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-10LNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-20RZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-20RNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-20LZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-20LNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-30RZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-30RNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-30LZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-30LNZ Mounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-10RZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-10RNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-10LZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-10LNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-20RZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-20RNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-20LZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-20LNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-30RZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-30RNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-30LZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-30LNZ Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-10RZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-10RNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-10LZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-10LNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-20RZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-20RNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-20LZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-20LNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-30RZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-30RNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-30LZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-30LNZ Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG32-10RZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-10RNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-10LZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-10LNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-20RZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-20RNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-20LZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-20LNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-30RZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-30RNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-30LZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-30LNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-50RZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-50RNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-50LZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-50LNZ Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-10RZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-10RNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-10LZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-10LNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-20RZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-20RNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-20LZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-20LNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-30RZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-30RNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-30LZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-30LNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-50RZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-50RNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-50LZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-50LNZ Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG50-10RZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-10RNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-10LZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-10LNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-20RZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-20RNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-20LZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-20LNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-30RZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-30RNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-30LZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-30LNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-50RZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-50RNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-50LZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-50LNZ Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-10RZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-10RNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-10LZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-10LNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-20RZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-20RNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-20LZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-20LNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-30RZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-30RNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-30LZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-30LNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-50RZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-50RNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-50LZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-50LNZ Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
Clamp CylindersSMC
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MK Rotary Clamp Cylinder (Standard Type, ø12 to ø63)

Brand SMC·Clamp Cylinders

Available part numbers (336)

MKB12-10RZ, MKB12-10RNZ, MKB12-10LZ, MKB12-10LNZ, MKB12-20RZ, MKB12-20RNZ, MKB12-20LZ, MKB12-20LNZ, MKB12-30RZ, MKB12-30RNZ + 326 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MKB12-10RZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-10RNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-10LZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-10LNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB12-20RZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-20RNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-20LZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-20LNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB12-30RZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB12-30RNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB12-30LZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB12-30LNZMounting: Through-hole/both ends tapped | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-10RZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-10RNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-10LZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-10LNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-20RZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-20RNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-20LZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-20LNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB16-30RZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB16-30RNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB16-30LZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB16-30LNZMounting: Through-hole/both ends tapped | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-10RZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-10RNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-10LZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-10LNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-20RZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-20RNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-20LZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-20LNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB20-30RZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB20-30RNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB20-30LZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB20-30LNZMounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-10RZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-10RNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-10LZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-10LNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-20RZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-20RNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-20LZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-20LNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB25-30RZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKB25-30RNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKB25-30LZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKB25-30LNZMounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKB32-10RZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-10RNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-10LZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-10LNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-20RZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-20RNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-20LZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-20LNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-30RZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-30RNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-30LZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-30LNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB32-50RZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB32-50RNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB32-50LZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB32-50LNZMounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-10RZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-10RNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-10LZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-10LNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-20RZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-20RNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-20LZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-20LNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-30RZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-30RNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-30LZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-30LNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB40-50RZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKB40-50RNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKB40-50LZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKB40-50LNZMounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKB50-10RZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-10RNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-10LZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-10LNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-20RZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-20RNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-20LZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-20LNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-30RZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-30RNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-30LZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-30LNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB50-50RZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB50-50RNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB50-50LZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB50-50LNZMounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-10RZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-10RNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-10LZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-10LNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-20RZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-20RNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-20LZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-20LNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-30RZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-30RNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-30LZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-30LNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKB63-50RZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKB63-50RNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKB63-50LZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKB63-50LNZMounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF12-10RZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-10RNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-10LZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-10LNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF12-20RZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-20RNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-20LZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-20LNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF12-30RZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF12-30RNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF12-30LZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF12-30LNZMounting: Rod flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-10RZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-10RNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-10LZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-10LNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-20RZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-20RNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-20LZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-20LNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF16-30RZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF16-30RNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF16-30LZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF16-30LNZMounting: Rod flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-10RZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-10RNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-10LZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-10LNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-20RZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-20RNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-20LZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-20LNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF20-30RZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF20-30RNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF20-30LZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF20-30LNZMounting: Rod flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-10RZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-10RNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-10LZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-10LNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-20RZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-20RNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-20LZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-20LNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF25-30RZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKF25-30RNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKF25-30LZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKF25-30LNZMounting: Rod flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKF32-10RZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-10RNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-10LZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-10LNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-20RZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-20RNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-20LZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-20LNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-30RZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-30RNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-30LZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-30LNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF32-50RZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF32-50RNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF32-50LZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF32-50LNZMounting: Rod flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-10RZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-10RNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-10LZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-10LNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-20RZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-20RNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-20LZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-20LNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-30RZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-30RNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-30LZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-30LNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF40-50RZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKF40-50RNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKF40-50LZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKF40-50LNZMounting: Rod flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKF50-10RZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-10RNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-10LZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-10LNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-20RZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-20RNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-20LZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-20LNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-30RZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-30RNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-30LZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-30LNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF50-50RZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF50-50RNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF50-50LZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF50-50LNZMounting: Rod flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-10RZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-10RNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-10LZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-10LNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-20RZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-20RNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-20LZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-20LNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-30RZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-30RNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-30LZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-30LNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKF63-50RZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKF63-50RNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKF63-50LZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKF63-50LNZMounting: Rod flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG12-10RZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-10RNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-10LZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-10LNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG12-20RZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-20RNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-20LZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-20LNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG12-30RZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG12-30RNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG12-30LZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG12-30LNZMounting: Head flange | Bore: ø12 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-10RZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-10RNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-10LZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-10LNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-20RZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-20RNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-20LZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-20LNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG16-30RZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG16-30RNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG16-30LZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG16-30LNZMounting: Head flange | Bore: ø16 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-10RZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-10RNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-10LZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-10LNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-20RZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-20RNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-20LZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-20LNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG20-30RZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG20-30RNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG20-30LZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG20-30LNZMounting: Head flange | Bore: ø20 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-10RZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-10RNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-10LZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-10LNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-20RZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-20RNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-20LZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-20LNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG25-30RZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MKG25-30RNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MKG25-30LZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MKG25-30LNZMounting: Head flange | Bore: ø25 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MKG32-10RZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-10RNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-10LZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-10LNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-20RZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-20RNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-20LZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-20LNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-30RZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-30RNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-30LZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-30LNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG32-50RZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG32-50RNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG32-50LZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG32-50LNZMounting: Head flange | Bore: ø32 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-10RZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-10RNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-10LZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-10LNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-20RZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-20RNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-20LZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-20LNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-30RZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-30RNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-30LZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-30LNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG40-50RZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MKG40-50RNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MKG40-50LZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MKG40-50LNZMounting: Head flange | Bore: ø40 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MKG50-10RZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-10RNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-10LZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-10LNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-20RZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-20RNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-20LZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-20LNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-30RZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-30RNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-30LZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-30LNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG50-50RZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG50-50RNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG50-50LZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG50-50LNZMounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-10RZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-10RNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-10LZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-10LNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-20RZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-20RNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-20LZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-20LNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-30RZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-30RNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-30LZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-30LNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 30 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MKG63-50RZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MKG63-50RNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MKG63-50LZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MKG63-50LNZMounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
