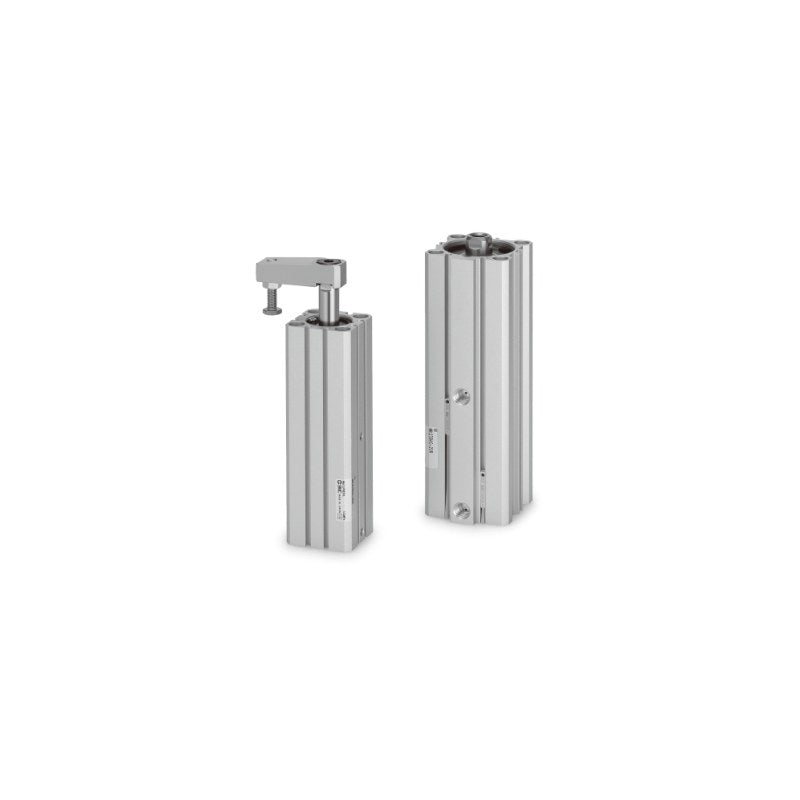

SMC MK2T Rotary Clamp Cylinder (Double Guide Type, ø20 to ø63)

SMC MK2T Rotary Clamp Cylinder (Double Guide Type, ø20 to ø63)

SMC MK2T series rotary clamp cylinder, double guide type with two guide rollers in the rotating mechanism for improved non-rotating and rotation accuracy, ø20 to ø63 mm bore, with built-in magnet.

Key features

  • Two guide rollers: non-rotating accuracy ±0.5° (ø32 to ø63) and rotation angle 90° ±5°
  • Allowable moment of inertia three times the MK series (ø32/ø40); horizontal mounting possible
  • Clamp strokes 10/20 mm (ø20 to ø40) and 20/50 mm (ø50, ø63); clockwise (R) or counterclockwise (L) rotation
  • Mounting: through-hole/both ends tapped (B) or head flange (G); arm attached (N) option; mounting pitch compatible with MK
  • Built-in magnet; small auto switches on 4 surfaces (ø20/ø25); NPT (TN), G (TF), -XC89/-XC91 spatter resistant and -X1859 ordered as suffixes

Specifications

Action Double acting
Rotation angle 90° ±5°
Fluid Air
Proof pressure 1.5 MPa
Operating pressure range 0.1 to 1 MPa
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch
Theoretical clamp force (0.5 MPa) ø20 100 N to ø63 1300 N
Rotary stroke ø20/25 19, ø32/40 29, ø50/63 33 mm
Non-rotating accuracy ±1.0° (ø20/ø25), ±0.5° (ø32 to ø63)
Piston speed 50 to 200 mm/s
Cushion Rubber bumper
Source SMC Korea catalog MK2T Series (SMCKR_MK2T.pdf), p. 419-434 (PDF p. 1-16, How to Order PDF p. 4-5)
MK2TB20-10R Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TB20-10RN Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TB20-10L Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TB20-10LN Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TB20-20R Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TB20-20RN Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TB20-20L Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TB20-20LN Mounting: Through-hole/both ends tapped | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TB25-10R Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TB25-10RN Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TB25-10L Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TB25-10LN Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TB25-20R Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TB25-20RN Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TB25-20L Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TB25-20LN Mounting: Through-hole/both ends tapped | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TB32-10R Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TB32-10RN Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TB32-10L Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TB32-10LN Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TB32-20R Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TB32-20RN Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TB32-20L Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TB32-20LN Mounting: Through-hole/both ends tapped | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TB40-10R Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TB40-10RN Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TB40-10L Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TB40-10LN Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TB40-20R Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TB40-20RN Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TB40-20L Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TB40-20LN Mounting: Through-hole/both ends tapped | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TB50-20R Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TB50-20RN Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TB50-20L Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TB50-20LN Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TB50-50R Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TB50-50RN Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TB50-50L Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TB50-50LN Mounting: Through-hole/both ends tapped | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TB63-20R Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TB63-20RN Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TB63-20L Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TB63-20LN Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TB63-50R Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TB63-50RN Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TB63-50L Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TB63-50LN Mounting: Through-hole/both ends tapped | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TG20-10R Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TG20-10RN Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TG20-10L Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TG20-10LN Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TG20-20R Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TG20-20RN Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TG20-20L Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TG20-20LN Mounting: Head flange | Bore: ø20 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TG25-10R Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TG25-10RN Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TG25-10L Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TG25-10LN Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TG25-20R Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: M5x0.8
MK2TG25-20RN Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: M5x0.8
MK2TG25-20L Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: M5x0.8
MK2TG25-20LN Mounting: Head flange | Bore: ø25 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: M5x0.8
MK2TG32-10R Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TG32-10RN Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TG32-10L Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TG32-10LN Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TG32-20R Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TG32-20RN Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TG32-20L Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TG32-20LN Mounting: Head flange | Bore: ø32 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TG40-10R Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TG40-10RN Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TG40-10L Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TG40-10LN Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 10 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TG40-20R Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/8
MK2TG40-20RN Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/8
MK2TG40-20L Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/8
MK2TG40-20LN Mounting: Head flange | Bore: ø40 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/8
MK2TG50-20R Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TG50-20RN Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TG50-20L Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TG50-20LN Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TG50-50R Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TG50-50RN Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TG50-50L Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TG50-50LN Mounting: Head flange | Bore: ø50 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TG63-20R Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TG63-20RN Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TG63-20L Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TG63-20LN Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 20 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
MK2TG63-50R Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: Without arm | Port: Rc1/4
MK2TG63-50RN Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Clockwise | Arm: With arm | Port: Rc1/4
MK2TG63-50L Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: Without arm | Port: Rc1/4
MK2TG63-50LN Mounting: Head flange | Bore: ø63 mm | Clamp stroke: 50 mm | Rotation: Counterclockwise | Arm: With arm | Port: Rc1/4
Clamp CylindersSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MK2T Rotary Clamp Cylinder (Double Guide Type, ø20 to ø63)

Brand SMC·Clamp Cylinders

Available part numbers (96)

MK2TB20-10R, MK2TB20-10RN, MK2TB20-10L, MK2TB20-10LN, MK2TB20-20R, MK2TB20-20RN, MK2TB20-20L, MK2TB20-20LN, MK2TB25-10R, MK2TB25-10RN + 86 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
