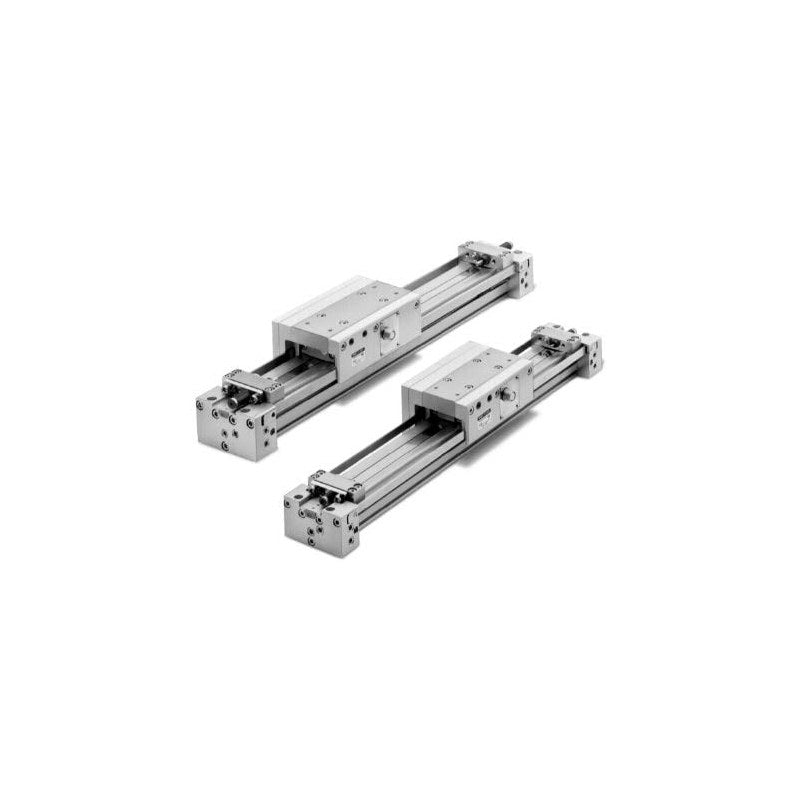

SMC ML2B High Rodless Scale Cylinder with Brake (25/32/40 mm)

SMC ML2B High Rodless Scale Cylinder with Brake (25/32/40 mm)

SMC ML2B series mechanically jointed rodless cylinder with built-in brake and stroke sensor for measuring and stopping the slide table at any position.

Key features

  • Control types: brake + scale (standard), scale only (S), brake only (B)
  • Strokes 1 to 2000 mm in 1 mm steps; 0.1 mm resolution, +/-0.2 mm accuracy with CEU5
  • Stroke adjustment units with shock absorber and adjusting bolt (L, LS, L6, L7 and combinations)
  • Centralized and side piping ports for drive air
  • Built-in magnet for D-Y7 auto switches

Specifications

Action Double acting
Fluid Air
Operating pressure Cylinder 0.1 to 0.8 MPa, brake 0.3 to 0.5 MPa
Brake Spring + pneumatic lock
Piston speed 100 to 1500 mm/s (positioning 100 to 500)
Ambient and fluid temperature 5 to 60 C
Cushion Air cushion both ends
Port size Rc1/8 (25, 32), Rc1/4 (40)
Resolution / accuracy 0.1 mm / +/-0.2 mm
Sensor enclosure IP50
Source SMC Korea catalog ML2B (SMCKR_ML2B.pdf), p. 1113-1114 (PDF p. 9-10)
ML2B25-100 Bore: 25 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B25-100L Bore: 25 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25-200 Bore: 25 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B25-200L Bore: 25 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25-300 Bore: 25 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B25-300L Bore: 25 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25-400 Bore: 25 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B25-400L Bore: 25 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25-500 Bore: 25 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B25-500L Bore: 25 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25-600 Bore: 25 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B25-600L Bore: 25 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25-700 Bore: 25 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B25-700L Bore: 25 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25-800 Bore: 25 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B25-800L Bore: 25 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25-1000 Bore: 25 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25-1000L Bore: 25 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25-1200 Bore: 25 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25-1200L Bore: 25 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25-1500 Bore: 25 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25-1500L Bore: 25 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25-2000 Bore: 25 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25-2000L Bore: 25 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B25S-100 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B25S-100L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25S-200 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B25S-200L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25S-300 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B25S-300L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25S-400 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B25S-400L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25S-500 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B25S-500L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25S-600 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B25S-600L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25S-700 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B25S-700L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25S-800 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B25S-800L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25S-1000 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25S-1000L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25S-1200 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25S-1200L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25S-1500 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25S-1500L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25S-2000 Bore: 25 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25S-2000L Bore: 25 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B25B-100 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B25B-100L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25B-200 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B25B-200L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25B-300 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B25B-300L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25B-400 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B25B-400L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25B-500 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B25B-500L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25B-600 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B25B-600L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25B-700 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B25B-700L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25B-800 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B25B-800L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25B-1000 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25B-1000L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25B-1200 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25B-1200L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25B-1500 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25B-1500L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25B-2000 Bore: 25 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25B-2000L Bore: 25 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32-100 Bore: 32 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B32-100L Bore: 32 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32-200 Bore: 32 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B32-200L Bore: 32 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32-300 Bore: 32 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B32-300L Bore: 32 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32-400 Bore: 32 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B32-400L Bore: 32 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32-500 Bore: 32 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B32-500L Bore: 32 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32-600 Bore: 32 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B32-600L Bore: 32 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32-700 Bore: 32 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B32-700L Bore: 32 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32-800 Bore: 32 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B32-800L Bore: 32 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32-1000 Bore: 32 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32-1000L Bore: 32 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32-1200 Bore: 32 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32-1200L Bore: 32 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32-1500 Bore: 32 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32-1500L Bore: 32 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32-2000 Bore: 32 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32-2000L Bore: 32 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32S-100 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B32S-100L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32S-200 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B32S-200L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32S-300 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B32S-300L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32S-400 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B32S-400L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32S-500 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B32S-500L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32S-600 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B32S-600L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32S-700 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B32S-700L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32S-800 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B32S-800L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32S-1000 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32S-1000L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32S-1200 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32S-1200L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32S-1500 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32S-1500L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32S-2000 Bore: 32 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32S-2000L Bore: 32 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32B-100 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B32B-100L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32B-200 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B32B-200L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32B-300 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B32B-300L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32B-400 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B32B-400L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32B-500 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B32B-500L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32B-600 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B32B-600L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32B-700 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B32B-700L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32B-800 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B32B-800L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32B-1000 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32B-1000L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32B-1200 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32B-1200L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32B-1500 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32B-1500L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32B-2000 Bore: 32 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32B-2000L Bore: 32 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40-100 Bore: 40 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B40-100L Bore: 40 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40-200 Bore: 40 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B40-200L Bore: 40 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40-300 Bore: 40 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B40-300L Bore: 40 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40-400 Bore: 40 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B40-400L Bore: 40 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40-500 Bore: 40 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B40-500L Bore: 40 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40-600 Bore: 40 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B40-600L Bore: 40 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40-700 Bore: 40 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B40-700L Bore: 40 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40-800 Bore: 40 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B40-800L Bore: 40 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40-1000 Bore: 40 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40-1000L Bore: 40 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40-1200 Bore: 40 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40-1200L Bore: 40 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40-1500 Bore: 40 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40-1500L Bore: 40 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40-2000 Bore: 40 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40-2000L Bore: 40 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40S-100 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B40S-100L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40S-200 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B40S-200L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40S-300 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B40S-300L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40S-400 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B40S-400L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40S-500 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B40S-500L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40S-600 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B40S-600L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40S-700 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B40S-700L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40S-800 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B40S-800L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40S-1000 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40S-1000L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40S-1200 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40S-1200L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40S-1500 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40S-1500L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40S-2000 Bore: 40 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40S-2000L Bore: 40 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40B-100 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B40B-100L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40B-200 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B40B-200L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40B-300 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B40B-300L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40B-400 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B40B-400L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40B-500 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B40B-500L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40B-600 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B40B-600L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40B-700 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B40B-700L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40B-800 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B40B-800L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40B-1000 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40B-1000L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40B-1200 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40B-1200L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40B-1500 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40B-1500L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40B-2000 Bore: 40 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40B-2000L Bore: 40 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
Rodless CylindersSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ML2B High Rodless Scale Cylinder with Brake (25/32/40 mm)

Brand SMC·Rodless Cylinders

Available part numbers (216)

ML2B25-100, ML2B25-100L, ML2B25-200, ML2B25-200L, ML2B25-300, ML2B25-300L, ML2B25-400, ML2B25-400L, ML2B25-500, ML2B25-500L + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ML2B25-100Bore: 25 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B25-100LBore: 25 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25-200Bore: 25 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B25-200LBore: 25 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25-300Bore: 25 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B25-300LBore: 25 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25-400Bore: 25 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B25-400LBore: 25 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25-500Bore: 25 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B25-500LBore: 25 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25-600Bore: 25 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B25-600LBore: 25 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25-700Bore: 25 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B25-700LBore: 25 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25-800Bore: 25 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B25-800LBore: 25 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25-1000Bore: 25 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25-1000LBore: 25 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25-1200Bore: 25 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25-1200LBore: 25 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25-1500Bore: 25 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25-1500LBore: 25 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25-2000Bore: 25 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25-2000LBore: 25 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B25S-100Bore: 25 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B25S-100LBore: 25 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25S-200Bore: 25 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B25S-200LBore: 25 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25S-300Bore: 25 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B25S-300LBore: 25 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25S-400Bore: 25 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B25S-400LBore: 25 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25S-500Bore: 25 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B25S-500LBore: 25 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25S-600Bore: 25 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B25S-600LBore: 25 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25S-700Bore: 25 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B25S-700LBore: 25 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25S-800Bore: 25 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B25S-800LBore: 25 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25S-1000Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25S-1000LBore: 25 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25S-1200Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25S-1200LBore: 25 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25S-1500Bore: 25 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25S-1500LBore: 25 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25S-2000Bore: 25 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25S-2000LBore: 25 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B25B-100Bore: 25 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B25B-100LBore: 25 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B25B-200Bore: 25 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B25B-200LBore: 25 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B25B-300Bore: 25 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B25B-300LBore: 25 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B25B-400Bore: 25 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B25B-400LBore: 25 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B25B-500Bore: 25 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B25B-500LBore: 25 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B25B-600Bore: 25 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B25B-600LBore: 25 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B25B-700Bore: 25 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B25B-700LBore: 25 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B25B-800Bore: 25 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B25B-800LBore: 25 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B25B-1000Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B25B-1000LBore: 25 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B25B-1200Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B25B-1200LBore: 25 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B25B-1500Bore: 25 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B25B-1500LBore: 25 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B25B-2000Bore: 25 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B25B-2000LBore: 25 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32-100Bore: 32 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B32-100LBore: 32 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32-200Bore: 32 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B32-200LBore: 32 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32-300Bore: 32 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B32-300LBore: 32 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32-400Bore: 32 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B32-400LBore: 32 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32-500Bore: 32 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B32-500LBore: 32 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32-600Bore: 32 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B32-600LBore: 32 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32-700Bore: 32 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B32-700LBore: 32 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32-800Bore: 32 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B32-800LBore: 32 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32-1000Bore: 32 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32-1000LBore: 32 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32-1200Bore: 32 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32-1200LBore: 32 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32-1500Bore: 32 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32-1500LBore: 32 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32-2000Bore: 32 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32-2000LBore: 32 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32S-100Bore: 32 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B32S-100LBore: 32 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32S-200Bore: 32 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B32S-200LBore: 32 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32S-300Bore: 32 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B32S-300LBore: 32 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32S-400Bore: 32 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B32S-400LBore: 32 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32S-500Bore: 32 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B32S-500LBore: 32 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32S-600Bore: 32 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B32S-600LBore: 32 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32S-700Bore: 32 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B32S-700LBore: 32 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32S-800Bore: 32 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B32S-800LBore: 32 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32S-1000Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32S-1000LBore: 32 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32S-1200Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32S-1200LBore: 32 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32S-1500Bore: 32 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32S-1500LBore: 32 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32S-2000Bore: 32 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32S-2000LBore: 32 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B32B-100Bore: 32 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B32B-100LBore: 32 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B32B-200Bore: 32 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B32B-200LBore: 32 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B32B-300Bore: 32 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B32B-300LBore: 32 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B32B-400Bore: 32 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B32B-400LBore: 32 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B32B-500Bore: 32 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B32B-500LBore: 32 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B32B-600Bore: 32 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B32B-600LBore: 32 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B32B-700Bore: 32 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B32B-700LBore: 32 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B32B-800Bore: 32 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B32B-800LBore: 32 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B32B-1000Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B32B-1000LBore: 32 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B32B-1200Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B32B-1200LBore: 32 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B32B-1500Bore: 32 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B32B-1500LBore: 32 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B32B-2000Bore: 32 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B32B-2000LBore: 32 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40-100Bore: 40 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: None
ML2B40-100LBore: 40 mm | Control: Brake + scale | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40-200Bore: 40 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: None
ML2B40-200LBore: 40 mm | Control: Brake + scale | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40-300Bore: 40 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: None
ML2B40-300LBore: 40 mm | Control: Brake + scale | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40-400Bore: 40 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: None
ML2B40-400LBore: 40 mm | Control: Brake + scale | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40-500Bore: 40 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: None
ML2B40-500LBore: 40 mm | Control: Brake + scale | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40-600Bore: 40 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: None
ML2B40-600LBore: 40 mm | Control: Brake + scale | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40-700Bore: 40 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: None
ML2B40-700LBore: 40 mm | Control: Brake + scale | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40-800Bore: 40 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: None
ML2B40-800LBore: 40 mm | Control: Brake + scale | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40-1000Bore: 40 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40-1000LBore: 40 mm | Control: Brake + scale | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40-1200Bore: 40 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40-1200LBore: 40 mm | Control: Brake + scale | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40-1500Bore: 40 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40-1500LBore: 40 mm | Control: Brake + scale | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40-2000Bore: 40 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40-2000LBore: 40 mm | Control: Brake + scale | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40S-100Bore: 40 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: None
ML2B40S-100LBore: 40 mm | Control: Scale only (no brake) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40S-200Bore: 40 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: None
ML2B40S-200LBore: 40 mm | Control: Scale only (no brake) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40S-300Bore: 40 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: None
ML2B40S-300LBore: 40 mm | Control: Scale only (no brake) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40S-400Bore: 40 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: None
ML2B40S-400LBore: 40 mm | Control: Scale only (no brake) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40S-500Bore: 40 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: None
ML2B40S-500LBore: 40 mm | Control: Scale only (no brake) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40S-600Bore: 40 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: None
ML2B40S-600LBore: 40 mm | Control: Scale only (no brake) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40S-700Bore: 40 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: None
ML2B40S-700LBore: 40 mm | Control: Scale only (no brake) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40S-800Bore: 40 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: None
ML2B40S-800LBore: 40 mm | Control: Scale only (no brake) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40S-1000Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40S-1000LBore: 40 mm | Control: Scale only (no brake) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40S-1200Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40S-1200LBore: 40 mm | Control: Scale only (no brake) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40S-1500Bore: 40 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40S-1500LBore: 40 mm | Control: Scale only (no brake) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40S-2000Bore: 40 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40S-2000LBore: 40 mm | Control: Scale only (no brake) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides
ML2B40B-100Bore: 40 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: None
ML2B40B-100LBore: 40 mm | Control: Brake only (no scale) | Stroke: 100 mm | Stroke adjust unit: L unit both sides
ML2B40B-200Bore: 40 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: None
ML2B40B-200LBore: 40 mm | Control: Brake only (no scale) | Stroke: 200 mm | Stroke adjust unit: L unit both sides
ML2B40B-300Bore: 40 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: None
ML2B40B-300LBore: 40 mm | Control: Brake only (no scale) | Stroke: 300 mm | Stroke adjust unit: L unit both sides
ML2B40B-400Bore: 40 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: None
ML2B40B-400LBore: 40 mm | Control: Brake only (no scale) | Stroke: 400 mm | Stroke adjust unit: L unit both sides
ML2B40B-500Bore: 40 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: None
ML2B40B-500LBore: 40 mm | Control: Brake only (no scale) | Stroke: 500 mm | Stroke adjust unit: L unit both sides
ML2B40B-600Bore: 40 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: None
ML2B40B-600LBore: 40 mm | Control: Brake only (no scale) | Stroke: 600 mm | Stroke adjust unit: L unit both sides
ML2B40B-700Bore: 40 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: None
ML2B40B-700LBore: 40 mm | Control: Brake only (no scale) | Stroke: 700 mm | Stroke adjust unit: L unit both sides
ML2B40B-800Bore: 40 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: None
ML2B40B-800LBore: 40 mm | Control: Brake only (no scale) | Stroke: 800 mm | Stroke adjust unit: L unit both sides
ML2B40B-1000Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: None
ML2B40B-1000LBore: 40 mm | Control: Brake only (no scale) | Stroke: 1000 mm | Stroke adjust unit: L unit both sides
ML2B40B-1200Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: None
ML2B40B-1200LBore: 40 mm | Control: Brake only (no scale) | Stroke: 1200 mm | Stroke adjust unit: L unit both sides
ML2B40B-1500Bore: 40 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: None
ML2B40B-1500LBore: 40 mm | Control: Brake only (no scale) | Stroke: 1500 mm | Stroke adjust unit: L unit both sides
ML2B40B-2000Bore: 40 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: None
ML2B40B-2000LBore: 40 mm | Control: Brake only (no scale) | Stroke: 2000 mm | Stroke adjust unit: L unit both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
