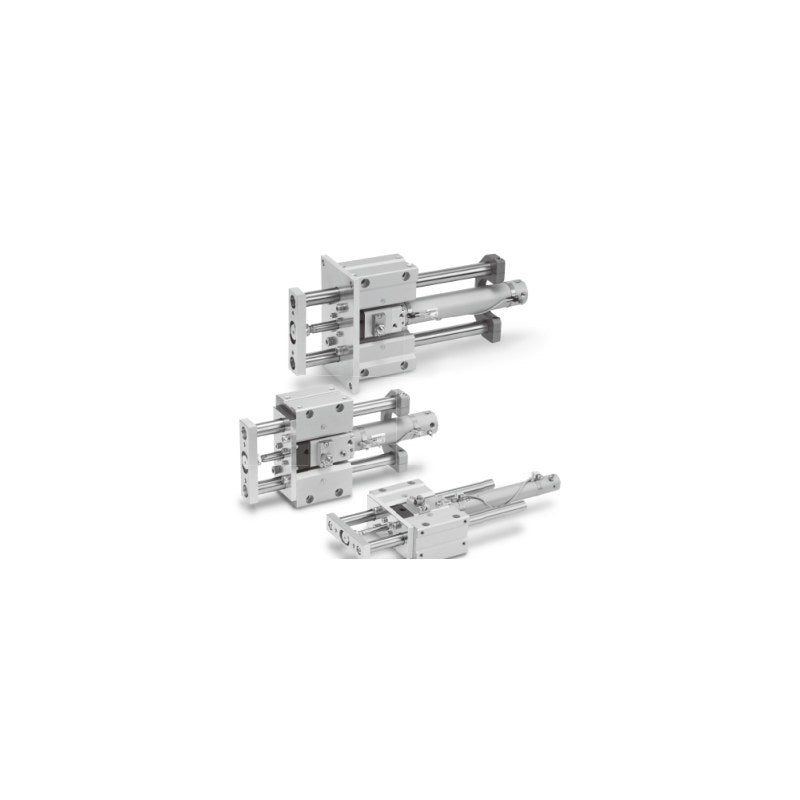

SMC MLGC Guided Cylinder with Fine Lock (Bore 20 to 40 mm)

SMC MLGC series compact guided cylinder with a built-in fine lock cylinder, combining guide rods and a bidirectional lock for intermediate stops and drop prevention.

Key features

Fine lock cylinder (CDLG1 based) and guide rods integrated in a compact body; new guide body 9% lighter than previous MLGCLB20-100
Locks in both directions; spring lock, pneumatic lock or combined spring/pneumatic lock
Slide bearing (M) or ball bushing (L) guide; basic or front flange mounting; optional rear plate (R)
Air cushion standard; built-in magnet on all models for auto switch position detection
Standard and long strokes listed; NPT port (TN), auto switches and extra machining (-XC79) ordered as suffixes

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.2 MPa (horizontal, no load)
Piston speed	50 to 500 mm/s
Cushion	Air cushion
Ambient and fluid temperature	-10 to 60°C
Cylinder port	M5x0.8 (20, 25), Rc1/8 (32, 40)
Magnet	Built-in (all models)
Lock direction	Both directions
Source	SMC Korea catalog MLGC (SMCKR_MLGC.pdf), p. 1009-1012 (PDF p. 1-4)

MLGCMB20-75-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-75-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-75-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-75-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-75-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-75-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-100-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-100-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-100-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-100-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-100-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-100-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-125-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-125-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-125-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-125-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-125-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-125-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-150-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-150-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-150-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-150-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-150-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-150-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-200-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-200-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-200-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-200-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-200-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-200-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-250-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-250-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-250-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-250-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-250-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-250-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-300-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-300-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-300-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-300-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-300-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-300-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-350-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-350-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-350-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-350-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-350-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-350-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB20-400-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB20-400-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-400-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB20-400-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB20-400-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB20-400-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-75-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-75-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-75-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-75-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-75-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-75-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-100-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-100-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-100-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-100-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-100-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-100-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-125-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-125-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-125-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-125-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-125-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-125-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-150-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-150-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-150-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-150-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-150-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-150-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-200-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-200-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-200-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-200-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-200-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-200-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-250-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-250-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-250-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-250-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-250-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-250-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-300-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-300-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-300-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-300-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-300-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-300-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-350-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-350-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-350-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-350-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-350-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-350-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-400-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-400-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-400-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-400-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-400-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-400-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-450-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-450-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-450-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-450-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-450-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-450-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB25-500-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB25-500-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-500-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB25-500-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB25-500-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB25-500-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-75-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-75-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-75-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-75-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-75-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-75-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-100-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-100-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-100-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-100-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-100-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-100-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-125-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-125-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-125-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-125-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-125-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-125-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-150-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-150-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-150-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-150-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-150-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-150-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-200-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-200-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-200-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-200-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-200-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-200-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-250-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-250-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-250-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-250-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-250-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-250-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-300-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-300-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-300-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-300-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-300-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-300-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-350-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-350-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-350-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-350-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-350-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-350-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-400-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-400-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-400-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-400-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-400-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-400-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-450-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-450-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-450-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-450-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-450-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-450-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-500-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-500-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-500-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-500-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-500-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-500-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB32-600-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB32-600-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-600-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB32-600-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB32-600-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB32-600-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-75-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-75-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-75-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-75-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-75-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-75-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-100-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-100-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-100-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-100-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-100-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-100-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-125-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-125-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-125-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-125-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-125-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-125-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-150-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-150-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-150-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-150-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-150-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-150-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-200-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-200-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-200-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-200-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-200-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-200-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-250-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-250-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-250-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-250-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-250-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-250-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-300-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-300-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-300-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-300-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-300-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-300-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-350-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-350-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-350-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-350-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-350-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-350-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-400-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-400-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-400-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-400-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-400-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-400-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-450-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-450-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-450-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-450-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-450-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-450-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-500-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-500-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-500-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-500-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-500-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-500-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-600-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-600-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-600-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-600-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-600-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-600-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-700-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-700-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-700-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-700-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-700-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-700-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMB40-800-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMB40-800-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-800-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMB40-800-R-E		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMB40-800-R-P		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMB40-800-R-D		Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-75-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-75-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-75-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-75-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-75-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-75-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-100-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-100-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-100-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-100-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-100-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-100-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-125-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-125-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-125-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-125-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-125-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-125-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-150-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-150-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-150-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-150-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-150-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-150-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-200-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-200-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-200-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-200-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-200-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-200-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-250-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-250-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-250-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-250-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-250-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-250-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-300-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-300-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-300-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-300-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-300-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-300-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-350-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-350-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-350-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-350-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-350-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-350-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF20-400-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF20-400-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-400-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF20-400-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF20-400-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF20-400-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-75-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-75-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-75-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-75-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-75-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-75-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-100-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-100-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-100-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-100-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-100-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-100-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-125-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-125-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-125-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-125-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-125-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-125-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-150-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-150-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-150-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-150-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-150-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-150-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-200-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-200-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-200-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-200-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-200-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-200-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-250-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-250-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-250-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-250-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-250-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-250-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-300-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-300-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-300-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-300-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-300-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-300-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-350-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-350-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-350-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-350-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-350-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-350-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-400-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-400-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-400-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-400-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-400-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-400-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-450-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-450-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-450-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-450-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-450-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-450-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF25-500-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF25-500-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-500-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF25-500-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF25-500-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF25-500-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-75-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-75-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-75-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-75-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-75-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-75-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-100-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-100-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-100-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-100-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-100-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-100-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-125-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-125-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-125-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-125-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-125-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-125-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-150-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-150-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-150-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-150-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-150-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-150-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-200-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-200-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-200-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-200-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-200-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-200-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-250-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-250-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-250-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-250-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-250-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-250-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-300-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-300-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-300-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-300-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-300-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-300-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-350-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-350-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-350-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-350-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-350-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-350-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-400-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-400-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-400-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-400-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-400-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-400-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-450-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-450-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-450-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-450-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-450-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-450-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-500-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-500-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-500-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-500-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-500-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-500-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF32-600-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF32-600-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-600-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF32-600-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF32-600-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF32-600-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-75-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-75-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-75-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-75-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-75-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-75-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-100-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-100-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-100-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-100-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-100-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-100-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-125-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-125-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-125-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-125-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-125-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-125-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-150-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-150-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-150-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-150-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-150-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-150-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-200-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-200-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-200-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-200-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-200-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-200-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-250-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-250-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-250-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-250-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-250-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-250-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-300-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-300-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-300-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-300-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-300-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-300-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-350-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-350-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-350-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-350-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-350-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-350-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-400-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-400-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-400-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-400-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-400-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-400-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-450-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-450-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-450-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-450-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-450-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-450-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-500-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-500-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-500-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-500-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-500-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-500-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-600-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-600-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-600-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-600-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-600-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-600-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-700-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-700-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-700-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-700-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-700-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-700-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCMF40-800-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCMF40-800-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-800-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCMF40-800-R-E		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCMF40-800-R-P		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCMF40-800-R-D		Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-75-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-75-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-75-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-75-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-75-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-75-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-100-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-100-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-100-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-100-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-100-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-100-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-125-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-125-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-125-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-125-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-125-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-125-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-150-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-150-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-150-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-150-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-150-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-150-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-200-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-200-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-200-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-200-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-200-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-200-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-250-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-250-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-250-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-250-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-250-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-250-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-300-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-300-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-300-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-300-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-300-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-300-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-350-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-350-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-350-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-350-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-350-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-350-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB20-400-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB20-400-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-400-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB20-400-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB20-400-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB20-400-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-75-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-75-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-75-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-75-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-75-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-75-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-100-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-100-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-100-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-100-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-100-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-100-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-125-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-125-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-125-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-125-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-125-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-125-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-150-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-150-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-150-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-150-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-150-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-150-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-200-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-200-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-200-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-200-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-200-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-200-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-250-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-250-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-250-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-250-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-250-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-250-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-300-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-300-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-300-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-300-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-300-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-300-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-350-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-350-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-350-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-350-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-350-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-350-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-400-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-400-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-400-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-400-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-400-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-400-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-450-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-450-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-450-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-450-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-450-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-450-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB25-500-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB25-500-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-500-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB25-500-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB25-500-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB25-500-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-75-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-75-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-75-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-75-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-75-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-75-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-100-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-100-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-100-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-100-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-100-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-100-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-125-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-125-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-125-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-125-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-125-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-125-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-150-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-150-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-150-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-150-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-150-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-150-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-200-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-200-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-200-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-200-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-200-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-200-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-250-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-250-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-250-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-250-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-250-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-250-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-300-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-300-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-300-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-300-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-300-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-300-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-350-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-350-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-350-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-350-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-350-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-350-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-400-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-400-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-400-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-400-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-400-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-400-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-450-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-450-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-450-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-450-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-450-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-450-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-500-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-500-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-500-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-500-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-500-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-500-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB32-600-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB32-600-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-600-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB32-600-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB32-600-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB32-600-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-75-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-75-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-75-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-75-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-75-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-75-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-100-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-100-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-100-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-100-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-100-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-100-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-125-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-125-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-125-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-125-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-125-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-125-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-150-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-150-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-150-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-150-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-150-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-150-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-200-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-200-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-200-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-200-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-200-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-200-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-250-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-250-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-250-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-250-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-250-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-250-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-300-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-300-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-300-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-300-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-300-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-300-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-350-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-350-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-350-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-350-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-350-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-350-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-400-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-400-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-400-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-400-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-400-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-400-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-450-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-450-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-450-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-450-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-450-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-450-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-500-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-500-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-500-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-500-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-500-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-500-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-600-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-600-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-600-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-600-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-600-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-600-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-700-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-700-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-700-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-700-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-700-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-700-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLB40-800-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLB40-800-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-800-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLB40-800-R-E		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLB40-800-R-P		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLB40-800-R-D		Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-75-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-75-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-75-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-75-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-75-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-75-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-100-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-100-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-100-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-100-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-100-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-100-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-125-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-125-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-125-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-125-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-125-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-125-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-150-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-150-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-150-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-150-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-150-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-150-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-200-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-200-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-200-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-200-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-200-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-200-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-250-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-250-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-250-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-250-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-250-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-250-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-300-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-300-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-300-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-300-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-300-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-300-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-350-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-350-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-350-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-350-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-350-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-350-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF20-400-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF20-400-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-400-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF20-400-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF20-400-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF20-400-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-75-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-75-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-75-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-75-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-75-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-75-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-100-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-100-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-100-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-100-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-100-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-100-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-125-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-125-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-125-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-125-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-125-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-125-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-150-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-150-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-150-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-150-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-150-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-150-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-200-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-200-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-200-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-200-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-200-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-200-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-250-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-250-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-250-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-250-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-250-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-250-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-300-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-300-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-300-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-300-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-300-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-300-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-350-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-350-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-350-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-350-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-350-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-350-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-400-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-400-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-400-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-400-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-400-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-400-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-450-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-450-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-450-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-450-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-450-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-450-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF25-500-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF25-500-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-500-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF25-500-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF25-500-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF25-500-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-75-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-75-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-75-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-75-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-75-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-75-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-100-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-100-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-100-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-100-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-100-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-100-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-125-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-125-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-125-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-125-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-125-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-125-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-150-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-150-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-150-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-150-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-150-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-150-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-200-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-200-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-200-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-200-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-200-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-200-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-250-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-250-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-250-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-250-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-250-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-250-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-300-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-300-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-300-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-300-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-300-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-300-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-350-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-350-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-350-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-350-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-350-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-350-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-400-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-400-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-400-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-400-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-400-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-400-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-450-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-450-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-450-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-450-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-450-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-450-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-500-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-500-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-500-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-500-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-500-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-500-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF32-600-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF32-600-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-600-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF32-600-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF32-600-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF32-600-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-75-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-75-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-75-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-75-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-75-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-75-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-100-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-100-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-100-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-100-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-100-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-100-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-125-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-125-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-125-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-125-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-125-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-125-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-150-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-150-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-150-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-150-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-150-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-150-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-200-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-200-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-200-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-200-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-200-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-200-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-250-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-250-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-250-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-250-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-250-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-250-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-300-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-300-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-300-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-300-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-300-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-300-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-350-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-350-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-350-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-350-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-350-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-350-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-400-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-400-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-400-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-400-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-400-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-400-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-450-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-450-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-450-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-450-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-450-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-450-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-500-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-500-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-500-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-500-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-500-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-500-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-600-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-600-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-600-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-600-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-600-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-600-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-700-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-700-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-700-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-700-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-700-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-700-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
MLGCLF40-800-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
MLGCLF40-800-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-800-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
MLGCLF40-800-R-E		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
MLGCLF40-800-R-P		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
MLGCLF40-800-R-D		Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock

Guided CylindersSMC

1104 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MLGC Guided Cylinder with Fine Lock (Bore 20 to 40 mm)

Brand SMC·Guided Cylinders

Available part numbers (1104)

MLGCMB20-75-E, MLGCMB20-75-P, MLGCMB20-75-D, MLGCMB20-75-R-E, MLGCMB20-75-R-P, MLGCMB20-75-R-D, MLGCMB20-100-E, MLGCMB20-100-P, MLGCMB20-100-D, MLGCMB20-100-R-E + 1094 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MLGCMB20-75-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-75-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-75-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-75-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-75-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-75-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-100-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-100-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-100-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-100-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-100-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-100-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-125-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-125-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-125-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-125-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-125-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-125-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-150-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-150-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-150-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-150-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-150-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-150-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-200-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-200-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-200-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-200-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-200-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-200-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-250-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-250-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-250-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-250-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-250-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-250-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-300-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-300-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-300-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-300-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-300-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-300-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-350-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-350-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-350-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-350-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-350-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-350-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB20-400-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB20-400-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-400-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB20-400-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB20-400-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB20-400-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-75-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-75-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-75-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-75-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-75-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-75-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-100-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-100-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-100-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-100-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-100-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-100-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-125-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-125-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-125-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-125-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-125-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-125-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-150-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-150-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-150-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-150-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-150-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-150-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-200-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-200-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-200-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-200-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-200-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-200-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-250-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-250-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-250-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-250-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-250-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-250-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-300-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-300-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-300-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-300-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-300-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-300-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-350-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-350-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-350-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-350-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-350-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-350-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-400-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-400-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-400-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-400-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-400-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-400-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-450-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-450-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-450-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-450-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-450-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-450-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB25-500-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB25-500-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-500-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB25-500-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB25-500-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB25-500-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-75-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-75-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-75-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-75-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-75-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-75-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-100-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-100-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-100-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-100-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-100-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-100-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-125-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-125-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-125-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-125-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-125-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-125-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-150-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-150-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-150-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-150-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-150-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-150-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-200-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-200-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-200-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-200-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-200-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-200-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-250-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-250-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-250-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-250-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-250-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-250-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-300-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-300-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-300-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-300-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-300-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-300-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-350-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-350-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-350-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-350-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-350-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-350-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-400-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-400-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-400-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-400-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-400-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-400-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-450-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-450-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-450-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-450-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-450-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-450-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-500-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-500-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-500-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-500-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-500-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-500-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB32-600-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB32-600-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-600-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB32-600-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB32-600-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB32-600-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-75-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-75-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-75-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-75-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-75-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-75-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-100-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-100-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-100-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-100-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-100-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-100-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-125-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-125-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-125-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-125-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-125-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-125-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-150-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-150-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-150-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-150-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-150-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-150-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-200-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-200-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-200-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-200-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-200-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-200-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-250-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-250-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-250-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-250-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-250-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-250-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-300-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-300-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-300-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-300-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-300-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-300-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-350-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-350-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-350-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-350-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-350-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-350-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-400-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-400-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-400-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-400-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-400-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-400-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-450-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-450-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-450-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-450-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-450-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-450-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-500-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-500-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-500-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-500-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-500-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-500-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-600-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-600-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-600-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-600-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-600-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-600-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-700-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-700-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-700-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-700-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-700-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-700-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMB40-800-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMB40-800-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-800-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMB40-800-R-E	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMB40-800-R-P	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMB40-800-R-D	Bearing: Slide bearing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-75-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-75-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-75-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-75-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-75-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-75-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-100-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-100-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-100-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-100-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-100-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-100-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-125-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-125-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-125-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-125-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-125-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-125-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-150-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-150-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-150-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-150-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-150-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-150-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-200-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-200-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-200-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-200-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-200-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-200-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-250-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-250-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-250-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-250-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-250-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-250-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-300-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-300-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-300-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-300-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-300-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-300-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-350-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-350-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-350-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-350-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-350-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-350-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF20-400-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF20-400-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-400-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF20-400-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF20-400-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF20-400-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-75-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-75-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-75-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-75-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-75-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-75-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-100-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-100-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-100-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-100-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-100-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-100-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-125-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-125-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-125-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-125-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-125-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-125-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-150-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-150-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-150-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-150-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-150-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-150-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-200-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-200-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-200-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-200-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-200-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-200-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-250-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-250-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-250-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-250-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-250-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-250-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-300-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-300-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-300-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-300-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-300-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-300-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-350-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-350-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-350-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-350-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-350-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-350-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-400-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-400-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-400-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-400-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-400-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-400-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-450-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-450-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-450-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-450-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-450-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-450-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF25-500-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF25-500-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-500-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF25-500-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF25-500-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF25-500-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-75-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-75-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-75-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-75-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-75-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-75-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-100-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-100-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-100-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-100-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-100-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-100-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-125-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-125-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-125-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-125-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-125-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-125-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-150-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-150-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-150-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-150-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-150-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-150-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-200-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-200-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-200-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-200-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-200-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-200-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-250-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-250-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-250-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-250-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-250-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-250-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-300-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-300-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-300-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-300-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-300-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-300-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-350-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-350-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-350-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-350-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-350-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-350-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-400-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-400-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-400-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-400-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-400-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-400-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-450-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-450-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-450-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-450-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-450-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-450-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-500-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-500-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-500-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-500-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-500-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-500-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF32-600-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF32-600-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-600-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF32-600-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF32-600-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF32-600-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-75-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-75-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-75-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-75-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-75-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-75-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-100-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-100-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-100-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-100-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-100-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-100-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-125-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-125-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-125-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-125-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-125-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-125-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-150-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-150-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-150-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-150-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-150-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-150-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-200-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-200-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-200-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-200-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-200-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-200-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-250-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-250-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-250-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-250-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-250-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-250-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-300-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-300-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-300-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-300-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-300-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-300-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-350-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-350-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-350-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-350-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-350-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-350-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-400-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-400-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-400-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-400-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-400-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-400-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-450-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-450-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-450-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-450-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-450-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-450-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-500-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-500-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-500-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-500-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-500-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-500-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-600-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-600-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-600-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-600-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-600-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-600-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-700-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-700-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-700-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-700-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-700-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-700-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCMF40-800-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCMF40-800-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-800-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCMF40-800-R-E	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCMF40-800-R-P	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCMF40-800-R-D	Bearing: Slide bearing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-75-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-75-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-75-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-75-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-75-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-75-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-100-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-100-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-100-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-100-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-100-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-100-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-125-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-125-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-125-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-125-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-125-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-125-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-150-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-150-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-150-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-150-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-150-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-150-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-200-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-200-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-200-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-200-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-200-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-200-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-250-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-250-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-250-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-250-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-250-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-250-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-300-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-300-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-300-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-300-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-300-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-300-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-350-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-350-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-350-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-350-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-350-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-350-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB20-400-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB20-400-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-400-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB20-400-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB20-400-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB20-400-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-75-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-75-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-75-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-75-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-75-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-75-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-100-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-100-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-100-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-100-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-100-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-100-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-125-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-125-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-125-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-125-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-125-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-125-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-150-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-150-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-150-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-150-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-150-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-150-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-200-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-200-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-200-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-200-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-200-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-200-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-250-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-250-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-250-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-250-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-250-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-250-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-300-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-300-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-300-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-300-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-300-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-300-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-350-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-350-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-350-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-350-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-350-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-350-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-400-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-400-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-400-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-400-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-400-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-400-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-450-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-450-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-450-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-450-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-450-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-450-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB25-500-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB25-500-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-500-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB25-500-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB25-500-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB25-500-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-75-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-75-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-75-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-75-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-75-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-75-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-100-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-100-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-100-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-100-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-100-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-100-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-125-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-125-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-125-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-125-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-125-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-125-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-150-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-150-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-150-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-150-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-150-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-150-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-200-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-200-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-200-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-200-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-200-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-200-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-250-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-250-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-250-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-250-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-250-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-250-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-300-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-300-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-300-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-300-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-300-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-300-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-350-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-350-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-350-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-350-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-350-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-350-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-400-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-400-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-400-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-400-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-400-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-400-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-450-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-450-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-450-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-450-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-450-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-450-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-500-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-500-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-500-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-500-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-500-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-500-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB32-600-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB32-600-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-600-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB32-600-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB32-600-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB32-600-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-75-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-75-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-75-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-75-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-75-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-75-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-100-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-100-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-100-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-100-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-100-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-100-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-125-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-125-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-125-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-125-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-125-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-125-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-150-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-150-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-150-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-150-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-150-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-150-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-200-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-200-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-200-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-200-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-200-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-200-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-250-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-250-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-250-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-250-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-250-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-250-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-300-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-300-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-300-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-300-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-300-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-300-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-350-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-350-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-350-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-350-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-350-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-350-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-400-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-400-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-400-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-400-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-400-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-400-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-450-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-450-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-450-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-450-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-450-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-450-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-500-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-500-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-500-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-500-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-500-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-500-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-600-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-600-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-600-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-600-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-600-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-600-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-700-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-700-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-700-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-700-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-700-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-700-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLB40-800-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLB40-800-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-800-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLB40-800-R-E	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLB40-800-R-P	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLB40-800-R-D	Bearing: Ball bushing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-75-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-75-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-75-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-75-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-75-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-75-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-100-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-100-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-100-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-100-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-100-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-100-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-125-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-125-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-125-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-125-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-125-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-125-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-150-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-150-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-150-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-150-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-150-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-150-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-200-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-200-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-200-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-200-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-200-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-200-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-250-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-250-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-250-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-250-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-250-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-250-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-300-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-300-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-300-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-300-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-300-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-300-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-350-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-350-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-350-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-350-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-350-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-350-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF20-400-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF20-400-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-400-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF20-400-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF20-400-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF20-400-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 20 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-75-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-75-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-75-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-75-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-75-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-75-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-100-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-100-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-100-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-100-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-100-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-100-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-125-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-125-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-125-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-125-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-125-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-125-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-150-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-150-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-150-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-150-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-150-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-150-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-200-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-200-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-200-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-200-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-200-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-200-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-250-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-250-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-250-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-250-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-250-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-250-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-300-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-300-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-300-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-300-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-300-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-300-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-350-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-350-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-350-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-350-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-350-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-350-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-400-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-400-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-400-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-400-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-400-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-400-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-450-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-450-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-450-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-450-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-450-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-450-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF25-500-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF25-500-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-500-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF25-500-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF25-500-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF25-500-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 25 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-75-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-75-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-75-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-75-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-75-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-75-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-100-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-100-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-100-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-100-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-100-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-100-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-125-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-125-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-125-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-125-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-125-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-125-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-150-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-150-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-150-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-150-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-150-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-150-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-200-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-200-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-200-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-200-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-200-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-200-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-250-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-250-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-250-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-250-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-250-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-250-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-300-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-300-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-300-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-300-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-300-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-300-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-350-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-350-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-350-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-350-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-350-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-350-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-400-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-400-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-400-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-400-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-400-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-400-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-450-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-450-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-450-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-450-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-450-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-450-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-500-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-500-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-500-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-500-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-500-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-500-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF32-600-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF32-600-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-600-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF32-600-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF32-600-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF32-600-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 32 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-75-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-75-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-75-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-75-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-75-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-75-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 75 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-100-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-100-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-100-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-100-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-100-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-100-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 100 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-125-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-125-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-125-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-125-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-125-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-125-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 125 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-150-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-150-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-150-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-150-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-150-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-150-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 150 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-200-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-200-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-200-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-200-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-200-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-200-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 200 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-250-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-250-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-250-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-250-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-250-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-250-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 250 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-300-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-300-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-300-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-300-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-300-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-300-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 300 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-350-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-350-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-350-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-350-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-350-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-350-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 350 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-400-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-400-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-400-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-400-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-400-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-400-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 400 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-450-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-450-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-450-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-450-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-450-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-450-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 450 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-500-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-500-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-500-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-500-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-500-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-500-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 500 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-600-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-600-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-600-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-600-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-600-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-600-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 600 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-700-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-700-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-700-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-700-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-700-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-700-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 700 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock
	MLGCLF40-800-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring lock (exhaust lock)
	MLGCLF40-800-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-800-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: None \| Lock: Spring and pneumatic lock
	MLGCLF40-800-R-E	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring lock (exhaust lock)
	MLGCLF40-800-R-P	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Pneumatic lock (pressure lock)
	MLGCLF40-800-R-D	Bearing: Ball bushing \| Mounting: Front flange \| Bore: 40 mm \| Stroke: 800 mm \| Rear plate: With rear plate \| Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MLGC Guided Cylinder with Fine Lock (Bore 20 to 40 mm)
