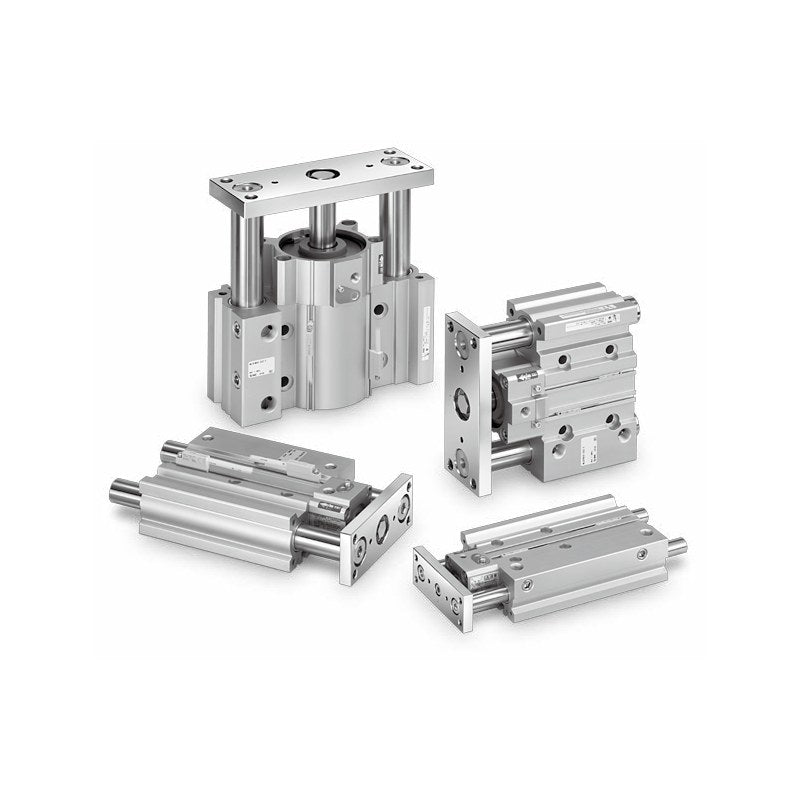

SMC MLGP Compact Guide Cylinder with Lock (ø20 to ø100)

SMC MLGP Compact Guide Cylinder with Lock (ø20 to ø100)

SMC MLGP series compact guide cylinder with an end spring lock unit, ø20 to ø100 mm bore, with slide or ball bushing bearings and lock in the extension or retraction direction.

Key features

  • Spring (exhaust) lock in one direction, extension (F) or retraction (B); prevents drops of guided loads on air loss
  • Slide bearing (M) for wear resistance and high loads, ball bushing bearing (L) for smooth, accurate operation
  • Built-in magnet as standard; compact auto switches (D-M9, D-A9, D-P3DWA) mount directly on two faces without brackets
  • Mass reduced up to 17% and guide rods up to 22 mm shorter versus previous MLGP; mounting dimensions interchangeable
  • Positioning pin holes on three faces; mounting from top, bottom tap, T-slot or base; piping from top or side
  • NPT (TN) / G (TF) ports; intermediate strokes by spacer; made-to-order guide rod end change (-XA), additional machining (-XC79)

Specifications

Action Double acting, with spring lock
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa (0.15 MPa if lock release air is separate)
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 400 mm/s
Cushion Rubber cushion on both ends
Lubrication Not required (non-lube)
Lock release / start pressure 0.2 MPa or more / 0.05 MPa or more
Holding force (max. static load) ø20 157, ø25 245, ø32 402, ø40 629, ø50 982, ø63 1559, ø80 2513, ø100 3927 N
Source SMC Korea catalog MLGP (SMCKR_MLGP-Z.pdf), p. 3, 5-6 (PDF p. 4, 6-7)
MLGPM20-20Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-20Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-30Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-30Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-40Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-40Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-50Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-50Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-75Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-75Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-100Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-100Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-125Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-125Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-150Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-150Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-175Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-175Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-200Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-200Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-250Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-250Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-300Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-300Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-350Z-F Bearing: Slide bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-350Z-B Bearing: Slide bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-20Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-20Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-30Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-30Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-40Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-40Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-50Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-50Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-75Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-75Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-100Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-100Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-125Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-125Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-150Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-150Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-175Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-175Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-200Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-200Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-250Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-250Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-300Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-300Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-350Z-F Bearing: Slide bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-350Z-B Bearing: Slide bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-25Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-25Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-50Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-50Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-75Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-75Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-100Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-100Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-125Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-125Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-150Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-150Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-175Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-175Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-200Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-200Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-250Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-250Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-300Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-300Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-350Z-F Bearing: Slide bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-350Z-B Bearing: Slide bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-25Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-25Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-50Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-50Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-75Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-75Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-100Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-100Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-125Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-125Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-150Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-150Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-175Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-175Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-200Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-200Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-250Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-250Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-300Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-300Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-350Z-F Bearing: Slide bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-350Z-B Bearing: Slide bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM50-25Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-25Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-50Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-50Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-75Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-75Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-100Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-100Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-125Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-125Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-150Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-150Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-175Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-175Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-200Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-200Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-250Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-250Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-300Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-300Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-350Z-F Bearing: Slide bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-350Z-B Bearing: Slide bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-25Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-25Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-50Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-50Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-75Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-75Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-100Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-100Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-125Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-125Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-150Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-150Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-175Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-175Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-200Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-200Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-250Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-250Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-300Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-300Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-350Z-F Bearing: Slide bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-350Z-B Bearing: Slide bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM80-25Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-25Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-50Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-50Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-75Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-75Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-100Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-100Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-125Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-125Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-150Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-150Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-175Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-175Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-200Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-200Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-250Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-250Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-300Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-300Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-350Z-F Bearing: Slide bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-350Z-B Bearing: Slide bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-50Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-50Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-75Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-75Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-100Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-100Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-125Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-125Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-150Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-150Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-175Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-175Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-200Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-200Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-250Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-250Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-300Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-300Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-350Z-F Bearing: Slide bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-350Z-B Bearing: Slide bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL20-20Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-20Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-30Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-30Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-40Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-40Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-50Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-50Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-75Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-75Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-100Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-100Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-125Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-125Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-150Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-150Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-175Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-175Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-200Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-200Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-250Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-250Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-300Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-300Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-350Z-F Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-350Z-B Bearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-20Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-20Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-30Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-30Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-40Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-40Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-50Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-50Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-75Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-75Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-100Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-100Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-125Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-125Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-150Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-150Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-175Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-175Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-200Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-200Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-250Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-250Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-300Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-300Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-350Z-F Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-350Z-B Bearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-25Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-25Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-50Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-50Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-75Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-75Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-100Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-100Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-125Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-125Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-150Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-150Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-175Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-175Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-200Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-200Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-250Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-250Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-300Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-300Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-350Z-F Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-350Z-B Bearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-25Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-25Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-50Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-50Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-75Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-75Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-100Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-100Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-125Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-125Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-150Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-150Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-175Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-175Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-200Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-200Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-250Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-250Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-300Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-300Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-350Z-F Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-350Z-B Bearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL50-25Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-25Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-50Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-50Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-75Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-75Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-100Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-100Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-125Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-125Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-150Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-150Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-175Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-175Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-200Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-200Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-250Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-250Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-300Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-300Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-350Z-F Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-350Z-B Bearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-25Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-25Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-50Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-50Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-75Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-75Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-100Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-100Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-125Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-125Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-150Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-150Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-175Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-175Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-200Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-200Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-250Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-250Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-300Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-300Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-350Z-F Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-350Z-B Bearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL80-25Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-25Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-50Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-50Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-75Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-75Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-100Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-100Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-125Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-125Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-150Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-150Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-175Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-175Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-200Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-200Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-250Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-250Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-300Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-300Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-350Z-F Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-350Z-B Bearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-50Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-50Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-75Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-75Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-100Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-100Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-125Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-125Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-150Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-150Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-175Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-175Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-200Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-200Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-250Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-250Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-300Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-300Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-350Z-F Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-350Z-B Bearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
Guided CylindersSMC
364 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MLGP Compact Guide Cylinder with Lock (ø20 to ø100)

Brand SMC·Guided Cylinders

Available part numbers (364)

MLGPM20-20Z-F, MLGPM20-20Z-B, MLGPM20-30Z-F, MLGPM20-30Z-B, MLGPM20-40Z-F, MLGPM20-40Z-B, MLGPM20-50Z-F, MLGPM20-50Z-B, MLGPM20-75Z-F, MLGPM20-75Z-B + 354 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MLGPM20-20Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-20Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-30Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-30Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-40Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-40Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-50Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-50Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-75Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-75Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-100Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-100Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-125Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-125Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-150Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-150Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-175Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-175Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-200Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-200Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-250Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-250Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-300Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-300Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM20-350Z-FBearing: Slide bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM20-350Z-BBearing: Slide bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-20Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-20Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-30Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-30Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-40Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-40Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-50Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-50Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-75Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-75Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-100Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-100Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-125Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-125Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-150Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-150Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-175Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-175Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-200Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-200Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-250Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-250Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-300Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-300Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM25-350Z-FBearing: Slide bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM25-350Z-BBearing: Slide bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-25Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-25Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-50Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-50Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-75Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-75Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-100Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-100Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-125Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-125Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-150Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-150Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-175Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-175Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-200Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-200Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-250Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-250Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-300Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-300Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM32-350Z-FBearing: Slide bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM32-350Z-BBearing: Slide bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-25Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-25Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-50Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-50Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-75Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-75Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-100Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-100Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-125Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-125Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-150Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-150Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-175Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-175Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-200Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-200Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-250Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-250Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-300Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-300Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM40-350Z-FBearing: Slide bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPM40-350Z-BBearing: Slide bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPM50-25Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-25Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-50Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-50Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-75Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-75Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-100Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-100Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-125Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-125Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-150Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-150Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-175Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-175Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-200Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-200Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-250Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-250Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-300Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-300Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM50-350Z-FBearing: Slide bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM50-350Z-BBearing: Slide bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-25Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-25Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-50Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-50Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-75Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-75Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-100Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-100Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-125Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-125Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-150Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-150Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-175Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-175Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-200Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-200Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-250Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-250Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-300Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-300Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM63-350Z-FBearing: Slide bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPM63-350Z-BBearing: Slide bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPM80-25Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-25Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-50Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-50Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-75Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-75Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-100Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-100Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-125Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-125Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-150Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-150Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-175Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-175Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-200Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-200Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-250Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-250Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-300Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-300Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM80-350Z-FBearing: Slide bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM80-350Z-BBearing: Slide bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-50Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-50Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-75Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-75Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-100Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-100Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-125Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-125Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-150Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-150Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-175Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-175Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-200Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-200Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-250Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-250Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-300Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-300Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPM100-350Z-FBearing: Slide bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPM100-350Z-BBearing: Slide bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL20-20Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-20Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-30Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-30Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-40Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-40Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-50Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-50Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-75Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-75Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-100Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-100Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-125Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-125Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-150Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-150Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-175Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-175Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-200Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-200Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-250Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-250Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-300Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-300Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL20-350Z-FBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL20-350Z-BBearing: Ball bushing bearing | Bore: ø20 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-20Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-20Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 20 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-30Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-30Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 30 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-40Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-40Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 40 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-50Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-50Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-75Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-75Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-100Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-100Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-125Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-125Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-150Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-150Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-175Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-175Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-200Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-200Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-250Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-250Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-300Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-300Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL25-350Z-FBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL25-350Z-BBearing: Ball bushing bearing | Bore: ø25 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-25Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-25Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-50Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-50Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-75Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-75Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-100Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-100Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-125Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-125Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-150Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-150Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-175Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-175Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-200Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-200Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-250Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-250Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-300Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-300Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL32-350Z-FBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL32-350Z-BBearing: Ball bushing bearing | Bore: ø32 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-25Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-25Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-50Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-50Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-75Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-75Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-100Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-100Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-125Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-125Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-150Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-150Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-175Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-175Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-200Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-200Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-250Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-250Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-300Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-300Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL40-350Z-FBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/8
MLGPL40-350Z-BBearing: Ball bushing bearing | Bore: ø40 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/8
MLGPL50-25Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-25Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-50Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-50Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-75Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-75Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-100Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-100Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-125Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-125Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-150Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-150Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-175Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-175Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-200Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-200Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-250Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-250Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-300Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-300Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL50-350Z-FBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL50-350Z-BBearing: Ball bushing bearing | Bore: ø50 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-25Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-25Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-50Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-50Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-75Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-75Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-100Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-100Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-125Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-125Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-150Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-150Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-175Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-175Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-200Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-200Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-250Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-250Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-300Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-300Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL63-350Z-FBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc1/4
MLGPL63-350Z-BBearing: Ball bushing bearing | Bore: ø63 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc1/4
MLGPL80-25Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-25Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 25 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-50Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-50Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-75Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-75Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-100Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-100Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-125Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-125Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-150Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-150Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-175Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-175Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-200Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-200Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-250Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-250Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-300Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-300Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL80-350Z-FBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL80-350Z-BBearing: Ball bushing bearing | Bore: ø80 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-50Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-50Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 50 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-75Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-75Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 75 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-100Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-100Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 100 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-125Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-125Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 125 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-150Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-150Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 150 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-175Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-175Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 175 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-200Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-200Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 200 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-250Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-250Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 250 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-300Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-300Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 300 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8
MLGPL100-350Z-FBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Extension (forward) lock | Port: Rc3/8
MLGPL100-350Z-BBearing: Ball bushing bearing | Bore: ø100 mm | Stroke: 350 mm | Lock direction: Retraction (backward) lock | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
