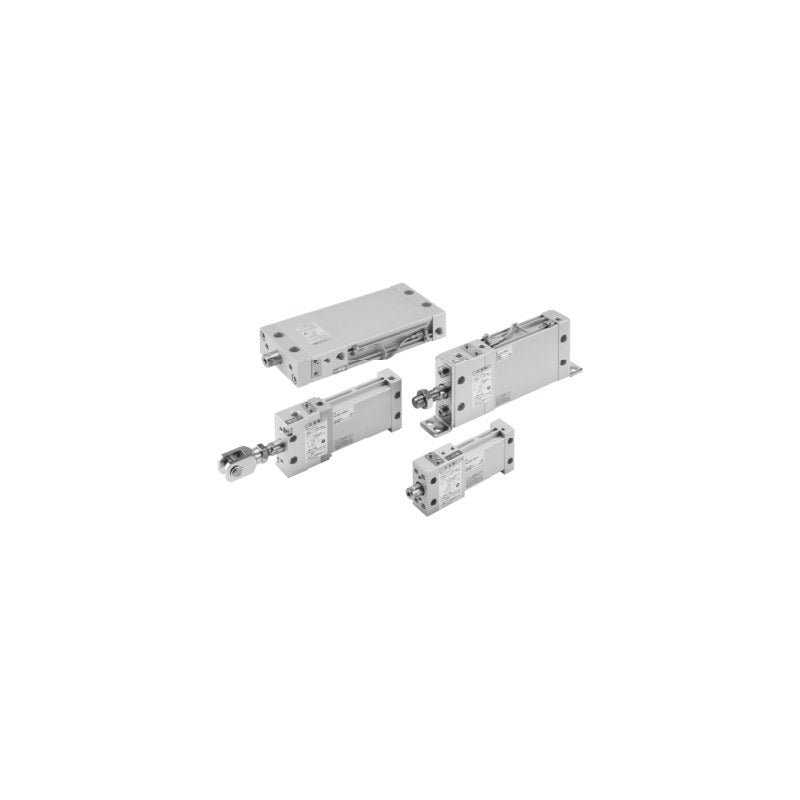

SMC MLU Plate Cylinder with Lock (Size 40 and 50)

SMC MLU series plate (oval piston) cylinder with spring lock, double acting single rod, sizes 40 and 50 (equivalent pressure area of ø40/ø50).

Key features

Oval (plate) piston body for non-rotating rod with a slim end lock unit; rod non-rotating accuracy ±1° (size 25) to ±0.5° (size 40/50)
Spring (exhaust) lock in one direction, extension (F) or retraction (B); prevents drops on pressure loss or emergency stop
Mountings: basic (B), axial foot (L), rod/head flange (F/G), single/double clevis (C/D)
MDLU models have a built-in magnet for D-M9, D-A9 and other auto switches (ordered as suffix)
Options: male rod end (M), NPT (TN) / G (TF) ports (size 32-50); made-to-order improved lock release (-XC87)

Specifications

Action	Double acting, single rod, with spring lock
Fluid	Air
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.2 MPa (0.1 MPa if cylinder and lock ports piped separately)
Ambient and fluid temperature	-10 to 60°C (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Cushion	Rubber cushion (standard)
Max. stroke	300 mm
Holding force (max. static load)	Size 40 629 N, size 50 982 N
Source	SMC Korea catalog MLU (SMCKR_MLU.pdf), p. 902-903 (PDF p. 4-5)

MLUB40-5D-F		Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-5D-B		Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-10D-F		Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-10D-B		Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-15D-F		Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-15D-B		Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-20D-F		Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-20D-B		Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-25D-F		Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-25D-B		Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-30D-F		Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-30D-B		Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-35D-F		Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-35D-B		Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-40D-F		Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-40D-B		Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-45D-F		Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-45D-B		Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-50D-F		Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-50D-B		Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-75D-F		Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-75D-B		Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-100D-F		Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-100D-B		Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-125D-F		Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-125D-B		Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-150D-F		Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-150D-B		Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-175D-F		Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-175D-B		Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-200D-F		Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-200D-B		Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-250D-F		Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-250D-B		Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-300D-F		Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB40-300D-B		Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUB50-5D-F		Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-5D-B		Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-10D-F		Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-10D-B		Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-15D-F		Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-15D-B		Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-20D-F		Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-20D-B		Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-25D-F		Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-25D-B		Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-30D-F		Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-30D-B		Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-35D-F		Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-35D-B		Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-40D-F		Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-40D-B		Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-45D-F		Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-45D-B		Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-50D-F		Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-50D-B		Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-75D-F		Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-75D-B		Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-100D-F		Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-100D-B		Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-125D-F		Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-125D-B		Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-150D-F		Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-150D-B		Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-175D-F		Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-175D-B		Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-200D-F		Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-200D-B		Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-250D-F		Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-250D-B		Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-300D-F		Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUB50-300D-B		Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL40-5D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-5D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-10D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-10D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-15D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-15D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-20D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-20D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-25D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-25D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-30D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-30D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-35D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-35D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-40D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-40D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-45D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-45D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-50D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-50D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-75D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-75D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-100D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-100D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-125D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-125D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-150D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-150D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-175D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-175D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-200D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-200D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-250D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-250D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-300D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL40-300D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUL50-5D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-5D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-10D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-10D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-15D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-15D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-20D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-20D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-25D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-25D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-30D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-30D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-35D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-35D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-40D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-40D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-45D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-45D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-50D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-50D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-75D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-75D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-100D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-100D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-125D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-125D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-150D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-150D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-175D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-175D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-200D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-200D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-250D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-250D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-300D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUL50-300D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF40-5D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-5D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-10D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-10D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-15D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-15D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-20D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-20D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-25D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-25D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-30D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-30D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-35D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-35D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-40D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-40D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-45D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-45D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-50D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-50D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-75D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-75D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-100D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-100D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-125D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-125D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-150D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-150D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-175D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-175D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-200D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-200D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-250D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-250D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-300D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF40-300D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUF50-5D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-5D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-10D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-10D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-15D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-15D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-20D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-20D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-25D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-25D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-30D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-30D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-35D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-35D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-40D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-40D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-45D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-45D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-50D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-50D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-75D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-75D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-100D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-100D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-125D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-125D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-150D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-150D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-175D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-175D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-200D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-200D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-250D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-250D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-300D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUF50-300D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG40-5D-F		Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-5D-B		Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-10D-F		Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-10D-B		Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-15D-F		Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-15D-B		Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-20D-F		Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-20D-B		Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-25D-F		Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-25D-B		Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-30D-F		Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-30D-B		Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-35D-F		Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-35D-B		Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-40D-F		Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-40D-B		Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-45D-F		Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-45D-B		Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-50D-F		Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-50D-B		Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-75D-F		Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-75D-B		Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-100D-F		Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-100D-B		Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-125D-F		Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-125D-B		Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-150D-F		Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-150D-B		Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-175D-F		Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-175D-B		Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-200D-F		Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-200D-B		Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-250D-F		Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-250D-B		Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-300D-F		Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG40-300D-B		Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUG50-5D-F		Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-5D-B		Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-10D-F		Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-10D-B		Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-15D-F		Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-15D-B		Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-20D-F		Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-20D-B		Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-25D-F		Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-25D-B		Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-30D-F		Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-30D-B		Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-35D-F		Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-35D-B		Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-40D-F		Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-40D-B		Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-45D-F		Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-45D-B		Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-50D-F		Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-50D-B		Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-75D-F		Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-75D-B		Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-100D-F		Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-100D-B		Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-125D-F		Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-125D-B		Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-150D-F		Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-150D-B		Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-175D-F		Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-175D-B		Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-200D-F		Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-200D-B		Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-250D-F		Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-250D-B		Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-300D-F		Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUG50-300D-B		Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC40-5D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-5D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-10D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-10D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-15D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-15D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-20D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-20D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-25D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-25D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-30D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-30D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-35D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-35D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-40D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-40D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-45D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-45D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-50D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-50D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-75D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-75D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-100D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-100D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-125D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-125D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-150D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-150D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-175D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-175D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-200D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-200D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-250D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-250D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-300D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC40-300D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUC50-5D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-5D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-10D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-10D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-15D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-15D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-20D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-20D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-25D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-25D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-30D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-30D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-35D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-35D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-40D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-40D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-45D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-45D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-50D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-50D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-75D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-75D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-100D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-100D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-125D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-125D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-150D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-150D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-175D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-175D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-200D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-200D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-250D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-250D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-300D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUC50-300D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD40-5D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-5D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-10D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-10D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-15D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-15D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-20D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-20D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-25D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-25D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-30D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-30D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-35D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-35D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-40D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-40D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-45D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-45D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-50D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-50D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-75D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-75D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-100D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-100D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-125D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-125D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-150D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-150D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-175D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-175D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-200D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-200D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-250D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-250D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-300D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD40-300D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
MLUD50-5D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-5D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-10D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-10D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-15D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-15D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-20D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-20D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-25D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-25D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-30D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-30D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-35D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-35D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-40D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-40D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-45D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-45D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-50D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-50D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-75D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-75D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-100D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-100D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-125D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-125D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-150D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-150D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-175D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-175D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-200D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-200D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-250D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-250D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-300D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
MLUD50-300D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
MDLUB40-5D-F		Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-5D-B		Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-10D-F		Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-10D-B		Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-15D-F		Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-15D-B		Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-20D-F		Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-20D-B		Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-25D-F		Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-25D-B		Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-30D-F		Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-30D-B		Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-35D-F		Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-35D-B		Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-40D-F		Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-40D-B		Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-45D-F		Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-45D-B		Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-50D-F		Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-50D-B		Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-75D-F		Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-75D-B		Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-100D-F		Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-100D-B		Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-125D-F		Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-125D-B		Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-150D-F		Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-150D-B		Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-175D-F		Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-175D-B		Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-200D-F		Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-200D-B		Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-250D-F		Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-250D-B		Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-300D-F		Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB40-300D-B		Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUB50-5D-F		Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-5D-B		Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-10D-F		Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-10D-B		Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-15D-F		Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-15D-B		Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-20D-F		Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-20D-B		Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-25D-F		Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-25D-B		Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-30D-F		Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-30D-B		Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-35D-F		Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-35D-B		Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-40D-F		Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-40D-B		Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-45D-F		Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-45D-B		Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-50D-F		Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-50D-B		Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-75D-F		Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-75D-B		Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-100D-F		Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-100D-B		Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-125D-F		Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-125D-B		Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-150D-F		Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-150D-B		Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-175D-F		Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-175D-B		Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-200D-F		Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-200D-B		Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-250D-F		Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-250D-B		Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-300D-F		Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUB50-300D-B		Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL40-5D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-5D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-10D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-10D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-15D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-15D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-20D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-20D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-25D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-25D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-30D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-30D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-35D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-35D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-40D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-40D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-45D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-45D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-50D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-50D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-75D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-75D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-100D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-100D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-125D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-125D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-150D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-150D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-175D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-175D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-200D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-200D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-250D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-250D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-300D-F		Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL40-300D-B		Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUL50-5D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-5D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-10D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-10D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-15D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-15D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-20D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-20D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-25D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-25D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-30D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-30D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-35D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-35D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-40D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-40D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-45D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-45D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-50D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-50D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-75D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-75D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-100D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-100D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-125D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-125D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-150D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-150D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-175D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-175D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-200D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-200D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-250D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-250D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-300D-F		Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUL50-300D-B		Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF40-5D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-5D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-10D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-10D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-15D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-15D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-20D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-20D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-25D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-25D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-30D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-30D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-35D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-35D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-40D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-40D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-45D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-45D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-50D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-50D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-75D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-75D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-100D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-100D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-125D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-125D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-150D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-150D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-175D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-175D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-200D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-200D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-250D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-250D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-300D-F		Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF40-300D-B		Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUF50-5D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-5D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-10D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-10D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-15D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-15D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-20D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-20D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-25D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-25D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-30D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-30D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-35D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-35D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-40D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-40D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-45D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-45D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-50D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-50D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-75D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-75D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-100D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-100D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-125D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-125D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-150D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-150D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-175D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-175D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-200D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-200D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-250D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-250D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-300D-F		Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUF50-300D-B		Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG40-5D-F		Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-5D-B		Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-10D-F		Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-10D-B		Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-15D-F		Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-15D-B		Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-20D-F		Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-20D-B		Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-25D-F		Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-25D-B		Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-30D-F		Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-30D-B		Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-35D-F		Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-35D-B		Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-40D-F		Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-40D-B		Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-45D-F		Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-45D-B		Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-50D-F		Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-50D-B		Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-75D-F		Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-75D-B		Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-100D-F		Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-100D-B		Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-125D-F		Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-125D-B		Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-150D-F		Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-150D-B		Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-175D-F		Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-175D-B		Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-200D-F		Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-200D-B		Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-250D-F		Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-250D-B		Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-300D-F		Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG40-300D-B		Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUG50-5D-F		Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-5D-B		Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-10D-F		Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-10D-B		Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-15D-F		Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-15D-B		Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-20D-F		Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-20D-B		Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-25D-F		Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-25D-B		Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-30D-F		Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-30D-B		Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-35D-F		Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-35D-B		Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-40D-F		Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-40D-B		Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-45D-F		Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-45D-B		Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-50D-F		Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-50D-B		Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-75D-F		Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-75D-B		Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-100D-F		Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-100D-B		Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-125D-F		Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-125D-B		Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-150D-F		Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-150D-B		Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-175D-F		Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-175D-B		Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-200D-F		Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-200D-B		Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-250D-F		Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-250D-B		Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-300D-F		Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUG50-300D-B		Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC40-5D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-5D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-10D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-10D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-15D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-15D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-20D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-20D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-25D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-25D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-30D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-30D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-35D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-35D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-40D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-40D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-45D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-45D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-50D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-50D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-75D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-75D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-100D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-100D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-125D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-125D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-150D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-150D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-175D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-175D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-200D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-200D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-250D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-250D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-300D-F		Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC40-300D-B		Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUC50-5D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-5D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-10D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-10D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-15D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-15D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-20D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-20D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-25D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-25D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-30D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-30D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-35D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-35D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-40D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-40D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-45D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-45D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-50D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-50D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-75D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-75D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-100D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-100D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-125D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-125D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-150D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-150D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-175D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-175D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-200D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-200D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-250D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-250D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-300D-F		Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUC50-300D-B		Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD40-5D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-5D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-10D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-10D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-15D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-15D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-20D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-20D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-25D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-25D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-30D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-30D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-35D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-35D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-40D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-40D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-45D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-45D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-50D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-50D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-75D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-75D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-100D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-100D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-125D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-125D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-150D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-150D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-175D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-175D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-200D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-200D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-250D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-250D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-300D-F		Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD40-300D-B		Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
MDLUD50-5D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-5D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-10D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-10D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-15D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-15D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-20D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-20D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-25D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-25D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-30D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-30D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-35D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-35D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-40D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-40D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-45D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-45D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-50D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-50D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-75D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-75D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-100D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-100D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-125D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-125D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-150D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-150D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-175D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-175D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-200D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-200D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-250D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-250D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-300D-F		Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
MDLUD50-300D-B		Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4

Compact CylindersSMC

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MLU Plate Cylinder with Lock (Size 40 and 50)

Brand SMC·Compact Cylinders

Available part numbers (864)

MLUB40-5D-F, MLUB40-5D-B, MLUB40-10D-F, MLUB40-10D-B, MLUB40-15D-F, MLUB40-15D-B, MLUB40-20D-F, MLUB40-20D-B, MLUB40-25D-F, MLUB40-25D-B + 854 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MLUB40-5D-F	Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-5D-B	Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-10D-F	Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-10D-B	Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-15D-F	Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-15D-B	Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-20D-F	Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-20D-B	Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-25D-F	Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-25D-B	Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-30D-F	Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-30D-B	Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-35D-F	Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-35D-B	Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-40D-F	Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-40D-B	Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-45D-F	Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-45D-B	Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-50D-F	Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-50D-B	Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-75D-F	Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-75D-B	Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-100D-F	Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-100D-B	Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-125D-F	Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-125D-B	Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-150D-F	Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-150D-B	Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-175D-F	Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-175D-B	Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-200D-F	Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-200D-B	Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-250D-F	Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-250D-B	Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-300D-F	Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB40-300D-B	Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUB50-5D-F	Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-5D-B	Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-10D-F	Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-10D-B	Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-15D-F	Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-15D-B	Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-20D-F	Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-20D-B	Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-25D-F	Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-25D-B	Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-30D-F	Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-30D-B	Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-35D-F	Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-35D-B	Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-40D-F	Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-40D-B	Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-45D-F	Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-45D-B	Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-50D-F	Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-50D-B	Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-75D-F	Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-75D-B	Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-100D-F	Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-100D-B	Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-125D-F	Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-125D-B	Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-150D-F	Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-150D-B	Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-175D-F	Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-175D-B	Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-200D-F	Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-200D-B	Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-250D-F	Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-250D-B	Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-300D-F	Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUB50-300D-B	Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL40-5D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-5D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-10D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-10D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-15D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-15D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-20D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-20D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-25D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-25D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-30D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-30D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-35D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-35D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-40D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-40D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-45D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-45D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-50D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-50D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-75D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-75D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-100D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-100D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-125D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-125D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-150D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-150D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-175D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-175D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-200D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-200D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-250D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-250D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-300D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL40-300D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUL50-5D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-5D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-10D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-10D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-15D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-15D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-20D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-20D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-25D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-25D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-30D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-30D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-35D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-35D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-40D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-40D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-45D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-45D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-50D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-50D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-75D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-75D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-100D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-100D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-125D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-125D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-150D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-150D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-175D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-175D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-200D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-200D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-250D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-250D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-300D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUL50-300D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF40-5D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-5D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-10D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-10D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-15D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-15D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-20D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-20D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-25D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-25D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-30D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-30D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-35D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-35D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-40D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-40D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-45D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-45D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-50D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-50D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-75D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-75D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-100D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-100D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-125D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-125D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-150D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-150D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-175D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-175D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-200D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-200D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-250D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-250D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-300D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF40-300D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUF50-5D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-5D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-10D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-10D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-15D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-15D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-20D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-20D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-25D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-25D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-30D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-30D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-35D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-35D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-40D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-40D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-45D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-45D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-50D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-50D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-75D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-75D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-100D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-100D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-125D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-125D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-150D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-150D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-175D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-175D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-200D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-200D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-250D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-250D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-300D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUF50-300D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG40-5D-F	Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-5D-B	Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-10D-F	Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-10D-B	Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-15D-F	Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-15D-B	Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-20D-F	Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-20D-B	Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-25D-F	Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-25D-B	Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-30D-F	Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-30D-B	Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-35D-F	Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-35D-B	Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-40D-F	Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-40D-B	Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-45D-F	Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-45D-B	Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-50D-F	Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-50D-B	Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-75D-F	Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-75D-B	Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-100D-F	Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-100D-B	Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-125D-F	Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-125D-B	Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-150D-F	Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-150D-B	Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-175D-F	Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-175D-B	Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-200D-F	Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-200D-B	Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-250D-F	Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-250D-B	Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-300D-F	Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG40-300D-B	Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUG50-5D-F	Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-5D-B	Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-10D-F	Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-10D-B	Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-15D-F	Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-15D-B	Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-20D-F	Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-20D-B	Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-25D-F	Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-25D-B	Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-30D-F	Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-30D-B	Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-35D-F	Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-35D-B	Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-40D-F	Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-40D-B	Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-45D-F	Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-45D-B	Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-50D-F	Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-50D-B	Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-75D-F	Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-75D-B	Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-100D-F	Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-100D-B	Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-125D-F	Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-125D-B	Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-150D-F	Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-150D-B	Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-175D-F	Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-175D-B	Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-200D-F	Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-200D-B	Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-250D-F	Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-250D-B	Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-300D-F	Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUG50-300D-B	Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC40-5D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-5D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-10D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-10D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-15D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-15D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-20D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-20D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-25D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-25D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-30D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-30D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-35D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-35D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-40D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-40D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-45D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-45D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-50D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-50D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-75D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-75D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-100D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-100D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-125D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-125D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-150D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-150D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-175D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-175D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-200D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-200D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-250D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-250D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-300D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC40-300D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUC50-5D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-5D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-10D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-10D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-15D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-15D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-20D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-20D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-25D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-25D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-30D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-30D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-35D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-35D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-40D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-40D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-45D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-45D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-50D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-50D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-75D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-75D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-100D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-100D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-125D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-125D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-150D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-150D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-175D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-175D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-200D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-200D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-250D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-250D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-300D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUC50-300D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD40-5D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-5D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-10D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-10D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-15D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-15D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-20D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-20D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-25D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-25D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-30D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-30D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-35D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-35D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-40D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-40D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-45D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-45D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-50D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-50D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-75D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-75D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-100D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-100D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-125D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-125D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-150D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-150D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-175D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-175D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-200D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-200D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-250D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-250D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-300D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD40-300D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/8
	MLUD50-5D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-5D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-10D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-10D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-15D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-15D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-20D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-20D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-25D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-25D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-30D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-30D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-35D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-35D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-40D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-40D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-45D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-45D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-50D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-50D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-75D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-75D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-100D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-100D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-125D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-125D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-150D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-150D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-175D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-175D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-200D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-200D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-250D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-250D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-300D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MLUD50-300D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: No \| Port: Rc1/4
	MDLUB40-5D-F	Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-5D-B	Mounting: Basic \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-10D-F	Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-10D-B	Mounting: Basic \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-15D-F	Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-15D-B	Mounting: Basic \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-20D-F	Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-20D-B	Mounting: Basic \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-25D-F	Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-25D-B	Mounting: Basic \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-30D-F	Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-30D-B	Mounting: Basic \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-35D-F	Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-35D-B	Mounting: Basic \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-40D-F	Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-40D-B	Mounting: Basic \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-45D-F	Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-45D-B	Mounting: Basic \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-50D-F	Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-50D-B	Mounting: Basic \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-75D-F	Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-75D-B	Mounting: Basic \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-100D-F	Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-100D-B	Mounting: Basic \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-125D-F	Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-125D-B	Mounting: Basic \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-150D-F	Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-150D-B	Mounting: Basic \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-175D-F	Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-175D-B	Mounting: Basic \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-200D-F	Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-200D-B	Mounting: Basic \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-250D-F	Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-250D-B	Mounting: Basic \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-300D-F	Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB40-300D-B	Mounting: Basic \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUB50-5D-F	Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-5D-B	Mounting: Basic \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-10D-F	Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-10D-B	Mounting: Basic \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-15D-F	Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-15D-B	Mounting: Basic \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-20D-F	Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-20D-B	Mounting: Basic \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-25D-F	Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-25D-B	Mounting: Basic \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-30D-F	Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-30D-B	Mounting: Basic \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-35D-F	Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-35D-B	Mounting: Basic \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-40D-F	Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-40D-B	Mounting: Basic \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-45D-F	Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-45D-B	Mounting: Basic \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-50D-F	Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-50D-B	Mounting: Basic \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-75D-F	Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-75D-B	Mounting: Basic \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-100D-F	Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-100D-B	Mounting: Basic \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-125D-F	Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-125D-B	Mounting: Basic \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-150D-F	Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-150D-B	Mounting: Basic \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-175D-F	Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-175D-B	Mounting: Basic \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-200D-F	Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-200D-B	Mounting: Basic \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-250D-F	Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-250D-B	Mounting: Basic \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-300D-F	Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUB50-300D-B	Mounting: Basic \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL40-5D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-5D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-10D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-10D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-15D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-15D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-20D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-20D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-25D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-25D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-30D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-30D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-35D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-35D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-40D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-40D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-45D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-45D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-50D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-50D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-75D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-75D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-100D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-100D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-125D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-125D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-150D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-150D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-175D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-175D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-200D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-200D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-250D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-250D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-300D-F	Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL40-300D-B	Mounting: Axial foot \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUL50-5D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-5D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-10D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-10D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-15D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-15D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-20D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-20D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-25D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-25D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-30D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-30D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-35D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-35D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-40D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-40D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-45D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-45D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-50D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-50D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-75D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-75D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-100D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-100D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-125D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-125D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-150D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-150D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-175D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-175D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-200D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-200D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-250D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-250D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-300D-F	Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUL50-300D-B	Mounting: Axial foot \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF40-5D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-5D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-10D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-10D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-15D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-15D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-20D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-20D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-25D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-25D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-30D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-30D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-35D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-35D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-40D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-40D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-45D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-45D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-50D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-50D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-75D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-75D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-100D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-100D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-125D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-125D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-150D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-150D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-175D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-175D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-200D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-200D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-250D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-250D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-300D-F	Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF40-300D-B	Mounting: Rod flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUF50-5D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-5D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-10D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-10D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-15D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-15D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-20D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-20D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-25D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-25D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-30D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-30D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-35D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-35D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-40D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-40D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-45D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-45D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-50D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-50D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-75D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-75D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-100D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-100D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-125D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-125D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-150D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-150D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-175D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-175D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-200D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-200D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-250D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-250D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-300D-F	Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUF50-300D-B	Mounting: Rod flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG40-5D-F	Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-5D-B	Mounting: Head flange \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-10D-F	Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-10D-B	Mounting: Head flange \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-15D-F	Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-15D-B	Mounting: Head flange \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-20D-F	Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-20D-B	Mounting: Head flange \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-25D-F	Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-25D-B	Mounting: Head flange \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-30D-F	Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-30D-B	Mounting: Head flange \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-35D-F	Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-35D-B	Mounting: Head flange \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-40D-F	Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-40D-B	Mounting: Head flange \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-45D-F	Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-45D-B	Mounting: Head flange \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-50D-F	Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-50D-B	Mounting: Head flange \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-75D-F	Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-75D-B	Mounting: Head flange \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-100D-F	Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-100D-B	Mounting: Head flange \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-125D-F	Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-125D-B	Mounting: Head flange \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-150D-F	Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-150D-B	Mounting: Head flange \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-175D-F	Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-175D-B	Mounting: Head flange \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-200D-F	Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-200D-B	Mounting: Head flange \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-250D-F	Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-250D-B	Mounting: Head flange \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-300D-F	Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG40-300D-B	Mounting: Head flange \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUG50-5D-F	Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-5D-B	Mounting: Head flange \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-10D-F	Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-10D-B	Mounting: Head flange \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-15D-F	Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-15D-B	Mounting: Head flange \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-20D-F	Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-20D-B	Mounting: Head flange \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-25D-F	Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-25D-B	Mounting: Head flange \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-30D-F	Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-30D-B	Mounting: Head flange \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-35D-F	Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-35D-B	Mounting: Head flange \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-40D-F	Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-40D-B	Mounting: Head flange \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-45D-F	Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-45D-B	Mounting: Head flange \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-50D-F	Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-50D-B	Mounting: Head flange \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-75D-F	Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-75D-B	Mounting: Head flange \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-100D-F	Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-100D-B	Mounting: Head flange \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-125D-F	Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-125D-B	Mounting: Head flange \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-150D-F	Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-150D-B	Mounting: Head flange \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-175D-F	Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-175D-B	Mounting: Head flange \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-200D-F	Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-200D-B	Mounting: Head flange \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-250D-F	Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-250D-B	Mounting: Head flange \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-300D-F	Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUG50-300D-B	Mounting: Head flange \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC40-5D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-5D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-10D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-10D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-15D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-15D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-20D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-20D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-25D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-25D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-30D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-30D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-35D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-35D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-40D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-40D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-45D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-45D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-50D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-50D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-75D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-75D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-100D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-100D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-125D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-125D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-150D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-150D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-175D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-175D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-200D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-200D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-250D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-250D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-300D-F	Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC40-300D-B	Mounting: Single clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUC50-5D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-5D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-10D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-10D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-15D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-15D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-20D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-20D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-25D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-25D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-30D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-30D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-35D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-35D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-40D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-40D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-45D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-45D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-50D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-50D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-75D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-75D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-100D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-100D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-125D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-125D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-150D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-150D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-175D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-175D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-200D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-200D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-250D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-250D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-300D-F	Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUC50-300D-B	Mounting: Single clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD40-5D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-5D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-10D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-10D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-15D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-15D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-20D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-20D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-25D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-25D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-30D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-30D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-35D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-35D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-40D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-40D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-45D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-45D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-50D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-50D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-75D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-75D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-100D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-100D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-125D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-125D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-150D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-150D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-175D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-175D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-200D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-200D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-250D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-250D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-300D-F	Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD40-300D-B	Mounting: Double clevis \| Size: 40 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/8
	MDLUD50-5D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-5D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 5 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-10D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-10D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 10 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-15D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-15D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 15 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-20D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-20D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 20 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-25D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-25D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 25 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-30D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-30D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 30 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-35D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-35D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 35 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-40D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-40D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 40 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-45D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-45D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 45 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-50D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-50D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 50 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-75D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-75D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 75 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-100D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-100D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 100 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-125D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-125D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 125 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-150D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-150D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 150 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-175D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-175D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 175 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-200D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-200D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 200 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-250D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-250D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 250 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-300D-F	Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Extension (forward) lock \| Auto switch magnet: Yes \| Port: Rc1/4
	MDLUD50-300D-B	Mounting: Double clevis \| Size: 50 \| Stroke: 300 mm \| Lock direction: Retraction (backward) lock \| Auto switch magnet: Yes \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MLU Plate Cylinder with Lock (Size 40 and 50)
