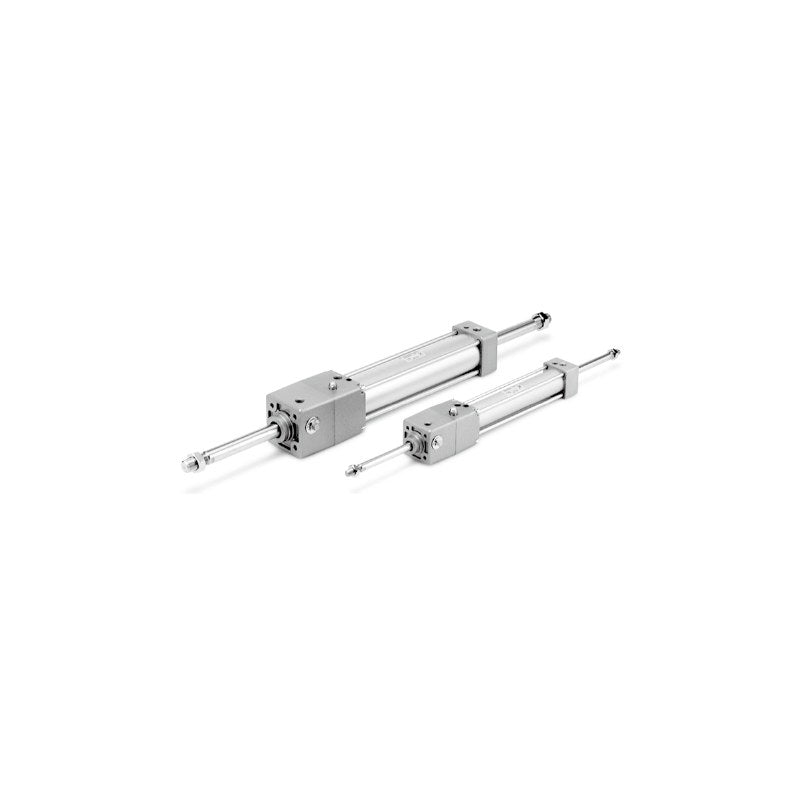

SMC MNBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)

SMC MNBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)

SMC MNBW series double-acting double-rod air cylinder with spring lock, ø32 to ø100 mm bore, with or without auto switch magnet (MDNBW).

Key features

  • Spring lock (exhaust lock) holds in both directions when lock-release air is exhausted; suitable for intermediate stops, emergency stops and drop prevention
  • Three mounting styles: basic, axial foot, rod flange
  • Air cushion on both ends as standard
  • Rc port standard, NPT (TN) and G (TF); bellows (J/K, fitted on both sides) as suffix
  • Built-in magnet version MDNBW for M9, A9, P3DWA and other auto switches

Specifications

Action Double acting, double rod, with lock
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.08 MPa
Piston speed 50 to 1000 mm/s
Ambient and fluid temperature -10 to 70°C (with auto switch -10 to 60°C), no freezing
Cushion Air cushion on both ends
Lock operation Spring lock (exhaust lock), both directions; release 0.25 MPa min., start 0.20 MPa max.
Holding force (max. static load) ø32 552, ø40 882, ø50 1370, ø63 2160, ø80 3430, ø100 5390 N
Stroke tolerance +1.0 mm (to 250), +1.4 mm (251 to 800)
Source SMC Korea catalog MNB (SMCKR_MNB.pdf), p. 902-903
MNBWB32-25-D Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB32-50-D Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB32-75-D Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB32-100-D Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB32-125-D Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB32-150-D Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB32-175-D Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB32-200-D Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB32-250-D Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB32-300-D Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB32-350-D Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB32-400-D Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB32-450-D Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB32-500-D Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB40-25-D Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB40-50-D Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB40-75-D Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB40-100-D Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB40-125-D Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB40-150-D Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB40-175-D Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB40-200-D Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB40-250-D Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB40-300-D Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB40-350-D Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB40-400-D Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB40-450-D Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB40-500-D Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB50-25-D Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB50-50-D Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB50-75-D Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB50-100-D Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB50-125-D Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB50-150-D Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB50-175-D Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB50-200-D Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB50-250-D Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB50-300-D Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB50-350-D Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB50-400-D Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB50-450-D Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB50-500-D Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB50-600-D Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB63-25-D Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB63-50-D Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB63-75-D Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB63-100-D Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB63-125-D Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB63-150-D Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB63-175-D Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB63-200-D Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB63-250-D Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB63-300-D Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB63-350-D Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB63-400-D Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB63-450-D Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB63-500-D Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB63-600-D Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB80-25-D Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB80-50-D Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB80-75-D Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB80-100-D Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB80-125-D Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB80-150-D Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB80-175-D Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB80-200-D Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB80-250-D Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB80-300-D Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB80-350-D Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB80-400-D Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB80-450-D Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB80-500-D Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB80-600-D Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB80-700-D Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWB80-800-D Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWB100-25-D Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB100-50-D Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB100-75-D Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB100-100-D Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB100-125-D Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB100-150-D Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB100-175-D Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB100-200-D Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB100-250-D Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB100-300-D Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB100-350-D Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB100-400-D Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB100-450-D Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB100-500-D Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB100-600-D Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB100-700-D Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWB100-800-D Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWL32-25-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL32-50-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL32-75-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL32-100-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL32-125-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL32-150-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL32-175-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL32-200-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL32-250-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL32-300-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL32-350-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL32-400-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL32-450-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL32-500-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL40-25-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL40-50-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL40-75-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL40-100-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL40-125-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL40-150-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL40-175-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL40-200-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL40-250-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL40-300-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL40-350-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL40-400-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL40-450-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL40-500-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL50-25-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL50-50-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL50-75-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL50-100-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL50-125-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL50-150-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL50-175-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL50-200-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL50-250-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL50-300-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL50-350-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL50-400-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL50-450-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL50-500-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL50-600-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL63-25-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL63-50-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL63-75-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL63-100-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL63-125-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL63-150-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL63-175-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL63-200-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL63-250-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL63-300-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL63-350-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL63-400-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL63-450-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL63-500-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL63-600-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL80-25-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL80-50-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL80-75-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL80-100-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL80-125-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL80-150-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL80-175-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL80-200-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL80-250-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL80-300-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL80-350-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL80-400-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL80-450-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL80-500-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL80-600-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL80-700-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWL80-800-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWL100-25-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL100-50-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL100-75-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL100-100-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL100-125-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL100-150-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL100-175-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL100-200-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL100-250-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL100-300-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL100-350-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL100-400-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL100-450-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL100-500-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL100-600-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL100-700-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWL100-800-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWF32-25-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF32-50-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF32-75-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF32-100-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF32-125-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF32-150-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF32-175-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF32-200-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF32-250-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF32-300-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF32-350-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF32-400-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF32-450-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF32-500-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF40-25-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF40-50-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF40-75-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF40-100-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF40-125-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF40-150-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF40-175-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF40-200-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF40-250-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF40-300-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF40-350-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF40-400-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF40-450-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF40-500-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF50-25-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF50-50-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF50-75-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF50-100-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF50-125-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF50-150-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF50-175-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF50-200-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF50-250-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF50-300-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF50-350-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF50-400-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF50-450-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF50-500-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF50-600-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF63-25-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF63-50-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF63-75-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF63-100-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF63-125-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF63-150-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF63-175-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF63-200-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF63-250-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF63-300-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF63-350-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF63-400-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF63-450-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF63-500-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF63-600-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF80-25-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF80-50-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF80-75-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF80-100-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF80-125-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF80-150-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF80-175-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF80-200-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF80-250-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF80-300-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF80-350-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF80-400-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF80-450-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF80-500-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF80-600-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF80-700-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWF80-800-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWF100-25-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF100-50-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF100-75-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF100-100-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF100-125-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF100-150-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF100-175-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF100-200-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF100-250-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF100-300-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF100-350-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF100-400-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF100-450-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF100-500-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF100-600-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF100-700-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWF100-800-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MDNBWB32-25-D Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB32-50-D Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB32-75-D Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB32-100-D Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB32-125-D Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB32-150-D Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB32-175-D Mounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB32-200-D Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB32-250-D Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB32-300-D Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB32-350-D Mounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB32-400-D Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB32-450-D Mounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB32-500-D Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB40-25-D Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB40-50-D Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB40-75-D Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB40-100-D Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB40-125-D Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB40-150-D Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB40-175-D Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB40-200-D Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB40-250-D Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB40-300-D Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB40-350-D Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB40-400-D Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB40-450-D Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB40-500-D Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB50-25-D Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB50-50-D Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB50-75-D Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB50-100-D Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB50-125-D Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB50-150-D Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB50-175-D Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB50-200-D Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB50-250-D Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB50-300-D Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB50-350-D Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB50-400-D Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB50-450-D Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB50-500-D Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB50-600-D Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB63-25-D Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB63-50-D Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB63-75-D Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB63-100-D Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB63-125-D Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB63-150-D Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB63-175-D Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB63-200-D Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB63-250-D Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB63-300-D Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB63-350-D Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB63-400-D Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB63-450-D Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB63-500-D Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB63-600-D Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB80-25-D Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB80-50-D Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB80-75-D Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB80-100-D Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB80-125-D Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB80-150-D Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB80-175-D Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB80-200-D Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB80-250-D Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB80-300-D Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB80-350-D Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB80-400-D Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB80-450-D Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB80-500-D Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB80-600-D Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB80-700-D Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWB80-800-D Mounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWB100-25-D Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB100-50-D Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB100-75-D Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB100-100-D Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB100-125-D Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB100-150-D Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB100-175-D Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB100-200-D Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB100-250-D Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB100-300-D Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB100-350-D Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB100-400-D Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB100-450-D Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB100-500-D Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB100-600-D Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB100-700-D Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWB100-800-D Mounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWL32-25-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL32-50-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL32-75-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL32-100-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL32-125-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL32-150-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL32-175-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL32-200-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL32-250-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL32-300-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL32-350-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL32-400-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL32-450-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL32-500-D Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL40-25-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL40-50-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL40-75-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL40-100-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL40-125-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL40-150-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL40-175-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL40-200-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL40-250-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL40-300-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL40-350-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL40-400-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL40-450-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL40-500-D Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL50-25-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL50-50-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL50-75-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL50-100-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL50-125-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL50-150-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL50-175-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL50-200-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL50-250-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL50-300-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL50-350-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL50-400-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL50-450-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL50-500-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL50-600-D Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL63-25-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL63-50-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL63-75-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL63-100-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL63-125-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL63-150-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL63-175-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL63-200-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL63-250-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL63-300-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL63-350-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL63-400-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL63-450-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL63-500-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL63-600-D Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL80-25-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL80-50-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL80-75-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL80-100-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL80-125-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL80-150-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL80-175-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL80-200-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL80-250-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL80-300-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL80-350-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL80-400-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL80-450-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL80-500-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL80-600-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL80-700-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWL80-800-D Mounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWL100-25-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL100-50-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL100-75-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL100-100-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL100-125-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL100-150-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL100-175-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL100-200-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL100-250-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL100-300-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL100-350-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL100-400-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL100-450-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL100-500-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL100-600-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL100-700-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWL100-800-D Mounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWF32-25-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF32-50-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF32-75-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF32-100-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF32-125-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF32-150-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF32-175-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF32-200-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF32-250-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF32-300-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF32-350-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF32-400-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF32-450-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF32-500-D Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF40-25-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF40-50-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF40-75-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF40-100-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF40-125-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF40-150-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF40-175-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF40-200-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF40-250-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF40-300-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF40-350-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF40-400-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF40-450-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF40-500-D Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF50-25-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF50-50-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF50-75-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF50-100-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF50-125-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF50-150-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF50-175-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF50-200-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF50-250-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF50-300-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF50-350-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF50-400-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF50-450-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF50-500-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF50-600-D Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF63-25-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF63-50-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF63-75-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF63-100-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF63-125-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF63-150-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF63-175-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF63-200-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF63-250-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF63-300-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF63-350-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF63-400-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF63-450-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF63-500-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF63-600-D Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF80-25-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF80-50-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF80-75-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF80-100-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF80-125-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF80-150-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF80-175-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF80-200-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF80-250-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF80-300-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF80-350-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF80-400-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF80-450-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF80-500-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF80-600-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF80-700-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWF80-800-D Mounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWF100-25-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF100-50-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF100-75-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF100-100-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF100-125-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF100-150-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF100-175-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF100-200-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF100-250-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF100-300-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF100-350-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF100-400-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF100-450-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF100-500-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF100-600-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF100-700-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWF100-800-D Mounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
Round Body CylindersSMC
552 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MNBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)

Brand SMC·Round Body Cylinders

Available part numbers (552)

MNBWB32-25-D, MNBWB32-50-D, MNBWB32-75-D, MNBWB32-100-D, MNBWB32-125-D, MNBWB32-150-D, MNBWB32-175-D, MNBWB32-200-D, MNBWB32-250-D, MNBWB32-300-D + 542 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MNBWB32-25-DMounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB32-50-DMounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB32-75-DMounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB32-100-DMounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB32-125-DMounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB32-150-DMounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB32-175-DMounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB32-200-DMounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB32-250-DMounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB32-300-DMounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB32-350-DMounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB32-400-DMounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB32-450-DMounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB32-500-DMounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB40-25-DMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB40-50-DMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB40-75-DMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB40-100-DMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB40-125-DMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB40-150-DMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB40-175-DMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB40-200-DMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB40-250-DMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB40-300-DMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB40-350-DMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB40-400-DMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB40-450-DMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB40-500-DMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB50-25-DMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB50-50-DMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB50-75-DMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB50-100-DMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB50-125-DMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB50-150-DMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB50-175-DMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB50-200-DMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB50-250-DMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB50-300-DMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB50-350-DMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB50-400-DMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB50-450-DMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB50-500-DMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB50-600-DMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB63-25-DMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB63-50-DMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB63-75-DMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB63-100-DMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB63-125-DMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB63-150-DMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB63-175-DMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB63-200-DMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB63-250-DMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB63-300-DMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB63-350-DMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB63-400-DMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB63-450-DMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB63-500-DMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB63-600-DMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB80-25-DMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB80-50-DMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB80-75-DMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB80-100-DMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB80-125-DMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB80-150-DMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB80-175-DMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB80-200-DMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB80-250-DMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB80-300-DMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB80-350-DMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB80-400-DMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB80-450-DMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB80-500-DMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB80-600-DMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB80-700-DMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWB80-800-DMounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWB100-25-DMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWB100-50-DMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWB100-75-DMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWB100-100-DMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWB100-125-DMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWB100-150-DMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWB100-175-DMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWB100-200-DMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWB100-250-DMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWB100-300-DMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWB100-350-DMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWB100-400-DMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWB100-450-DMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWB100-500-DMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWB100-600-DMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWB100-700-DMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWB100-800-DMounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWL32-25-DMounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL32-50-DMounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL32-75-DMounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL32-100-DMounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL32-125-DMounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL32-150-DMounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL32-175-DMounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL32-200-DMounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL32-250-DMounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL32-300-DMounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL32-350-DMounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL32-400-DMounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL32-450-DMounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL32-500-DMounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL40-25-DMounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL40-50-DMounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL40-75-DMounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL40-100-DMounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL40-125-DMounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL40-150-DMounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL40-175-DMounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL40-200-DMounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL40-250-DMounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL40-300-DMounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL40-350-DMounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL40-400-DMounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL40-450-DMounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL40-500-DMounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL50-25-DMounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL50-50-DMounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL50-75-DMounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL50-100-DMounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL50-125-DMounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL50-150-DMounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL50-175-DMounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL50-200-DMounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL50-250-DMounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL50-300-DMounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL50-350-DMounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL50-400-DMounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL50-450-DMounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL50-500-DMounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL50-600-DMounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL63-25-DMounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL63-50-DMounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL63-75-DMounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL63-100-DMounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL63-125-DMounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL63-150-DMounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL63-175-DMounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL63-200-DMounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL63-250-DMounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL63-300-DMounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL63-350-DMounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL63-400-DMounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL63-450-DMounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL63-500-DMounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL63-600-DMounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL80-25-DMounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL80-50-DMounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL80-75-DMounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL80-100-DMounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL80-125-DMounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL80-150-DMounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL80-175-DMounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL80-200-DMounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL80-250-DMounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL80-300-DMounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL80-350-DMounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL80-400-DMounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL80-450-DMounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL80-500-DMounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL80-600-DMounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL80-700-DMounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWL80-800-DMounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWL100-25-DMounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWL100-50-DMounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWL100-75-DMounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWL100-100-DMounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWL100-125-DMounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWL100-150-DMounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWL100-175-DMounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWL100-200-DMounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWL100-250-DMounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWL100-300-DMounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWL100-350-DMounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWL100-400-DMounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWL100-450-DMounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWL100-500-DMounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWL100-600-DMounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWL100-700-DMounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWL100-800-DMounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWF32-25-DMounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF32-50-DMounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF32-75-DMounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF32-100-DMounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF32-125-DMounting: Rod flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF32-150-DMounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF32-175-DMounting: Rod flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF32-200-DMounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF32-250-DMounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF32-300-DMounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF32-350-DMounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF32-400-DMounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF32-450-DMounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF32-500-DMounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF40-25-DMounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF40-50-DMounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF40-75-DMounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF40-100-DMounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF40-125-DMounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF40-150-DMounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF40-175-DMounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF40-200-DMounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF40-250-DMounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF40-300-DMounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF40-350-DMounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF40-400-DMounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF40-450-DMounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF40-500-DMounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF50-25-DMounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF50-50-DMounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF50-75-DMounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF50-100-DMounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF50-125-DMounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF50-150-DMounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF50-175-DMounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF50-200-DMounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF50-250-DMounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF50-300-DMounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF50-350-DMounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF50-400-DMounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF50-450-DMounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF50-500-DMounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF50-600-DMounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF63-25-DMounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF63-50-DMounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF63-75-DMounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF63-100-DMounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF63-125-DMounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF63-150-DMounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF63-175-DMounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF63-200-DMounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF63-250-DMounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF63-300-DMounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF63-350-DMounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF63-400-DMounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF63-450-DMounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF63-500-DMounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF63-600-DMounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF80-25-DMounting: Rod flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF80-50-DMounting: Rod flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF80-75-DMounting: Rod flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF80-100-DMounting: Rod flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF80-125-DMounting: Rod flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF80-150-DMounting: Rod flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF80-175-DMounting: Rod flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF80-200-DMounting: Rod flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF80-250-DMounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF80-300-DMounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF80-350-DMounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF80-400-DMounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF80-450-DMounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF80-500-DMounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF80-600-DMounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF80-700-DMounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWF80-800-DMounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: No
MNBWF100-25-DMounting: Rod flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
MNBWF100-50-DMounting: Rod flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
MNBWF100-75-DMounting: Rod flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
MNBWF100-100-DMounting: Rod flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
MNBWF100-125-DMounting: Rod flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
MNBWF100-150-DMounting: Rod flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
MNBWF100-175-DMounting: Rod flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
MNBWF100-200-DMounting: Rod flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
MNBWF100-250-DMounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
MNBWF100-300-DMounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
MNBWF100-350-DMounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
MNBWF100-400-DMounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
MNBWF100-450-DMounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
MNBWF100-500-DMounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
MNBWF100-600-DMounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
MNBWF100-700-DMounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
MNBWF100-800-DMounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: No
MDNBWB32-25-DMounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB32-50-DMounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB32-75-DMounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB32-100-DMounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB32-125-DMounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB32-150-DMounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB32-175-DMounting: Basic | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB32-200-DMounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB32-250-DMounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB32-300-DMounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB32-350-DMounting: Basic | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB32-400-DMounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB32-450-DMounting: Basic | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB32-500-DMounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB40-25-DMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB40-50-DMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB40-75-DMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB40-100-DMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB40-125-DMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB40-150-DMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB40-175-DMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB40-200-DMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB40-250-DMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB40-300-DMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB40-350-DMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB40-400-DMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB40-450-DMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB40-500-DMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB50-25-DMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB50-50-DMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB50-75-DMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB50-100-DMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB50-125-DMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB50-150-DMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB50-175-DMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB50-200-DMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB50-250-DMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB50-300-DMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB50-350-DMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB50-400-DMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB50-450-DMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB50-500-DMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB50-600-DMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB63-25-DMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB63-50-DMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB63-75-DMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB63-100-DMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB63-125-DMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB63-150-DMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB63-175-DMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB63-200-DMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB63-250-DMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB63-300-DMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB63-350-DMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB63-400-DMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB63-450-DMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB63-500-DMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB63-600-DMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB80-25-DMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB80-50-DMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB80-75-DMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB80-100-DMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB80-125-DMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB80-150-DMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB80-175-DMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB80-200-DMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB80-250-DMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB80-300-DMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB80-350-DMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB80-400-DMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB80-450-DMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB80-500-DMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB80-600-DMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB80-700-DMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWB80-800-DMounting: Basic | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWB100-25-DMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWB100-50-DMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWB100-75-DMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWB100-100-DMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWB100-125-DMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWB100-150-DMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWB100-175-DMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWB100-200-DMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWB100-250-DMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWB100-300-DMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWB100-350-DMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWB100-400-DMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWB100-450-DMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWB100-500-DMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWB100-600-DMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWB100-700-DMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWB100-800-DMounting: Basic | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWL32-25-DMounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL32-50-DMounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL32-75-DMounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL32-100-DMounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL32-125-DMounting: Axial foot | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL32-150-DMounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL32-175-DMounting: Axial foot | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL32-200-DMounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL32-250-DMounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL32-300-DMounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL32-350-DMounting: Axial foot | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL32-400-DMounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL32-450-DMounting: Axial foot | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL32-500-DMounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL40-25-DMounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL40-50-DMounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL40-75-DMounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL40-100-DMounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL40-125-DMounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL40-150-DMounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL40-175-DMounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL40-200-DMounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL40-250-DMounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL40-300-DMounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL40-350-DMounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL40-400-DMounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL40-450-DMounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL40-500-DMounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL50-25-DMounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL50-50-DMounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL50-75-DMounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL50-100-DMounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL50-125-DMounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL50-150-DMounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL50-175-DMounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL50-200-DMounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL50-250-DMounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL50-300-DMounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL50-350-DMounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL50-400-DMounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL50-450-DMounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL50-500-DMounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL50-600-DMounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL63-25-DMounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL63-50-DMounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL63-75-DMounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL63-100-DMounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL63-125-DMounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL63-150-DMounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL63-175-DMounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL63-200-DMounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL63-250-DMounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL63-300-DMounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL63-350-DMounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL63-400-DMounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL63-450-DMounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL63-500-DMounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL63-600-DMounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL80-25-DMounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL80-50-DMounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL80-75-DMounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL80-100-DMounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL80-125-DMounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL80-150-DMounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL80-175-DMounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL80-200-DMounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL80-250-DMounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL80-300-DMounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL80-350-DMounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL80-400-DMounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL80-450-DMounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL80-500-DMounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL80-600-DMounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL80-700-DMounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWL80-800-DMounting: Axial foot | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWL100-25-DMounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWL100-50-DMounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWL100-75-DMounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWL100-100-DMounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWL100-125-DMounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWL100-150-DMounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWL100-175-DMounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWL100-200-DMounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWL100-250-DMounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWL100-300-DMounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWL100-350-DMounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWL100-400-DMounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWL100-450-DMounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWL100-500-DMounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWL100-600-DMounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWL100-700-DMounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWL100-800-DMounting: Axial foot | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWF32-25-DMounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF32-50-DMounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF32-75-DMounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF32-100-DMounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF32-125-DMounting: Rod flange | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF32-150-DMounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF32-175-DMounting: Rod flange | Bore: ø32 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF32-200-DMounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF32-250-DMounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF32-300-DMounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF32-350-DMounting: Rod flange | Bore: ø32 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF32-400-DMounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF32-450-DMounting: Rod flange | Bore: ø32 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF32-500-DMounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF40-25-DMounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF40-50-DMounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF40-75-DMounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF40-100-DMounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF40-125-DMounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF40-150-DMounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF40-175-DMounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF40-200-DMounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF40-250-DMounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF40-300-DMounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF40-350-DMounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF40-400-DMounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF40-450-DMounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF40-500-DMounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF50-25-DMounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF50-50-DMounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF50-75-DMounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF50-100-DMounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF50-125-DMounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF50-150-DMounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF50-175-DMounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF50-200-DMounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF50-250-DMounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF50-300-DMounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF50-350-DMounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF50-400-DMounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF50-450-DMounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF50-500-DMounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF50-600-DMounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF63-25-DMounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF63-50-DMounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF63-75-DMounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF63-100-DMounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF63-125-DMounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF63-150-DMounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF63-175-DMounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF63-200-DMounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF63-250-DMounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF63-300-DMounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF63-350-DMounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF63-400-DMounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF63-450-DMounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF63-500-DMounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF63-600-DMounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF80-25-DMounting: Rod flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF80-50-DMounting: Rod flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF80-75-DMounting: Rod flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF80-100-DMounting: Rod flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF80-125-DMounting: Rod flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF80-150-DMounting: Rod flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF80-175-DMounting: Rod flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF80-200-DMounting: Rod flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF80-250-DMounting: Rod flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF80-300-DMounting: Rod flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF80-350-DMounting: Rod flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF80-400-DMounting: Rod flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF80-450-DMounting: Rod flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF80-500-DMounting: Rod flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF80-600-DMounting: Rod flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF80-700-DMounting: Rod flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWF80-800-DMounting: Rod flange | Bore: ø80 mm | Stroke: 800 mm | Auto switch magnet: Yes
MDNBWF100-25-DMounting: Rod flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
MDNBWF100-50-DMounting: Rod flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
MDNBWF100-75-DMounting: Rod flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
MDNBWF100-100-DMounting: Rod flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
MDNBWF100-125-DMounting: Rod flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
MDNBWF100-150-DMounting: Rod flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
MDNBWF100-175-DMounting: Rod flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
MDNBWF100-200-DMounting: Rod flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
MDNBWF100-250-DMounting: Rod flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
MDNBWF100-300-DMounting: Rod flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
MDNBWF100-350-DMounting: Rod flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
MDNBWF100-400-DMounting: Rod flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
MDNBWF100-450-DMounting: Rod flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
MDNBWF100-500-DMounting: Rod flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
MDNBWF100-600-DMounting: Rod flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
MDNBWF100-700-DMounting: Rod flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
MDNBWF100-800-DMounting: Rod flange | Bore: ø100 mm | Stroke: 800 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
