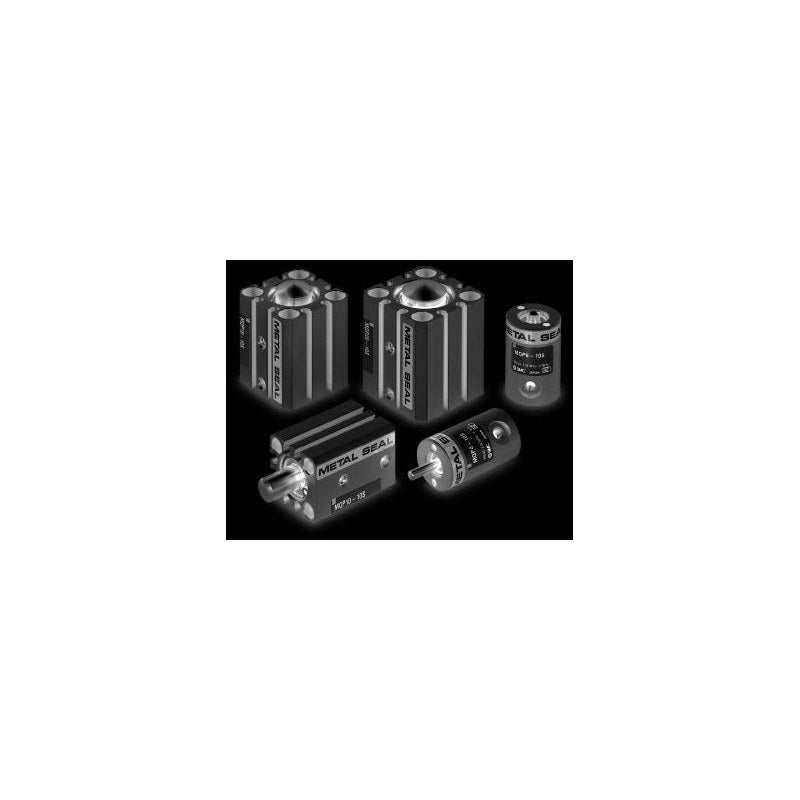

SMC MQM Low Friction Cylinder (Side Load Resistant, ø6 to ø25)

SMC MQM series side load resistant low friction round body cylinder with metal seal and built-in ball bushing, double acting, ø6 to ø25 mm bore, in standard and high speed/high frequency (H) versions.

Key features

Metal seal with low sliding resistance and ball bushing bearing for side load resistance
Standard type: 0.5 to 1000 mm/s; H type (no fixed orifice): 5 to 3000 mm/s for high speed, high frequency operation
Covers low pressure, low speed, constant speed to high pressure, high speed drive
Mounting: basic (B), foot (L), rod flange (F), head flange (G, not ø6), single clevis (C, ø20/ø25), double clevis (D)
NPT (TN) and G (TF) ports for ø20/ø25 ordered as suffixes; T-bracket and rod end parts available; no auto switch mounting
Intermediate strokes in 1 mm steps by spacer (e.g. MQMLB10-20D)

Specifications

Action	Double acting, single rod
Seal structure	Metal seal
Fluid	Air
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.005 MPa (ø6 0.02 MPa); H type 0.01 MPa
Ambient and fluid temperature	-10 to 80°C
Cushion	Rubber bumper (standard)
Lubrication	Not required (non-lube)
Stroke tolerance	+1.0/0 mm
Source	SMC Korea catalog MQ Series (SMCKR_MQQ_MQM_MQP.pdf), p. 317-341 (PDF p. 1-2, 15-25)

MQMLB6-15D		Mounting: Basic \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLB6-30D		Mounting: Basic \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLB6-45D		Mounting: Basic \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLB6-60D		Mounting: Basic \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLB10-15D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLB10-30D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLB10-45D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLB10-60D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLB10-75D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLB10-100D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLB10H-15D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB10H-30D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB10H-45D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB10H-60D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB10H-75D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB10H-100D		Mounting: Basic \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16-15D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLB16-30D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLB16-45D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLB16-60D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLB16-75D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLB16-100D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLB16H-15D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16H-30D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16H-45D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16H-60D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16H-75D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB16H-100D		Mounting: Basic \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLB20-15D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLB20-30D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLB20-45D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLB20-60D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLB20-75D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLB20-100D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLB20H-15D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB20H-30D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB20H-45D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB20H-60D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB20H-75D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB20H-100D		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25-15D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLB25-30D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLB25-45D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLB25-60D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLB25-75D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLB25-100D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLB25H-15D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25H-30D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25H-45D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25H-60D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25H-75D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLB25H-100D		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL6-15D		Mounting: Foot \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLL6-30D		Mounting: Foot \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLL6-45D		Mounting: Foot \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLL6-60D		Mounting: Foot \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLL10-15D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLL10-30D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLL10-45D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLL10-60D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLL10-75D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLL10-100D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLL10H-15D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL10H-30D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL10H-45D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL10H-60D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL10H-75D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL10H-100D		Mounting: Foot \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLL16-45D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLL16-60D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLL16-75D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLL16-100D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLL16H-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16H-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16H-45D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16H-60D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16H-75D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL16H-100D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLL20-60D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLL20-75D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLL20-100D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLL20H-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL20H-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL20H-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL20H-60D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL20H-75D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL20H-100D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLL25-60D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLL25-75D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLL25-100D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLL25H-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25H-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25H-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25H-60D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25H-75D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLL25H-100D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF6-15D		Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLF6-30D		Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLF6-45D		Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLF6-60D		Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLF10-15D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLF10-30D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLF10-45D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLF10-60D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLF10-75D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLF10-100D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLF10H-15D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF10H-30D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF10H-45D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF10H-60D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF10H-75D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF10H-100D		Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLF16-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLF16-45D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLF16-60D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLF16-75D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLF16-100D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLF16H-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16H-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16H-45D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16H-60D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16H-75D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF16H-100D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLF20-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLF20-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLF20-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLF20-60D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLF20-75D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLF20-100D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLF20H-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF20H-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF20H-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF20H-60D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF20H-75D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF20H-100D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLF25-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLF25-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLF25-60D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLF25-75D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLF25-100D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLF25H-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25H-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25H-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25H-60D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25H-75D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLF25H-100D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG10-15D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLG10-30D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLG10-45D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLG10-60D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLG10-75D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLG10-100D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLG10H-15D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG10H-30D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG10H-45D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG10H-60D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG10H-75D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG10H-100D		Mounting: Head flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLG16-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLG16-45D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLG16-60D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLG16-75D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLG16-100D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLG16H-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16H-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16H-45D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16H-60D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16H-75D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG16H-100D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLG20-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLG20-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLG20-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLG20-60D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLG20-75D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLG20-100D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLG20H-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG20H-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG20H-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG20H-60D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG20H-75D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG20H-100D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLG25-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLG25-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLG25-60D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLG25-75D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLG25-100D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLG25H-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25H-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25H-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25H-60D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25H-75D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLG25H-100D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20-15D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLC20-30D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLC20-45D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLC20-60D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLC20-75D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLC20-100D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLC20H-15D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20H-30D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20H-45D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20H-60D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20H-75D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC20H-100D		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25-15D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLC25-30D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLC25-45D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLC25-60D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLC25-75D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLC25-100D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLC25H-15D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25H-30D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25H-45D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25H-60D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25H-75D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLC25H-100D		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD6-15D		Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLD6-30D		Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLD6-45D		Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLD6-60D		Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLD10-15D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLD10-30D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLD10-45D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLD10-60D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLD10-75D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLD10-100D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLD10H-15D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD10H-30D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD10H-45D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD10H-60D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD10H-75D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD10H-100D		Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
MQMLD16-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
MQMLD16-45D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
MQMLD16-60D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
MQMLD16-75D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
MQMLD16-100D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
MQMLD16H-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16H-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16H-45D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16H-60D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16H-75D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD16H-100D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
MQMLD20-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLD20-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLD20-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLD20-60D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLD20-75D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLD20-100D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLD20H-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD20H-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD20H-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD20H-60D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD20H-75D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD20H-100D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
MQMLD25-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
MQMLD25-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
MQMLD25-60D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
MQMLD25-75D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
MQMLD25-100D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
MQMLD25H-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25H-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25H-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25H-60D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25H-75D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
MQMLD25H-100D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc

Round Body CylindersSMC

280 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MQM Low Friction Cylinder (Side Load Resistant, ø6 to ø25)

Brand SMC·Round Body Cylinders

Available part numbers (280)

MQMLB6-15D, MQMLB6-30D, MQMLB6-45D, MQMLB6-60D, MQMLB10-15D, MQMLB10-30D, MQMLB10-45D, MQMLB10-60D, MQMLB10-75D, MQMLB10-100D + 270 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MQMLB6-15D	Mounting: Basic \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLB6-30D	Mounting: Basic \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLB6-45D	Mounting: Basic \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLB6-60D	Mounting: Basic \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLB10-15D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLB10-30D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLB10-45D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLB10-60D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLB10-75D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLB10-100D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLB10H-15D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB10H-30D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB10H-45D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB10H-60D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB10H-75D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB10H-100D	Mounting: Basic \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16-15D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLB16-30D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLB16-45D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLB16-60D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLB16-75D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLB16-100D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLB16H-15D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16H-30D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16H-45D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16H-60D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16H-75D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB16H-100D	Mounting: Basic \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLB20-15D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLB20-30D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLB20-45D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLB20-60D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLB20-75D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLB20-100D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLB20H-15D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB20H-30D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB20H-45D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB20H-60D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB20H-75D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB20H-100D	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25-15D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLB25-30D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLB25-45D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLB25-60D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLB25-75D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLB25-100D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLB25H-15D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25H-30D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25H-45D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25H-60D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25H-75D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLB25H-100D	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL6-15D	Mounting: Foot \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLL6-30D	Mounting: Foot \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLL6-45D	Mounting: Foot \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLL6-60D	Mounting: Foot \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLL10-15D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLL10-30D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLL10-45D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLL10-60D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLL10-75D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLL10-100D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLL10H-15D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL10H-30D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL10H-45D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL10H-60D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL10H-75D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL10H-100D	Mounting: Foot \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLL16-45D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLL16-60D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLL16-75D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLL16-100D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLL16H-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16H-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16H-45D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16H-60D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16H-75D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL16H-100D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLL20-60D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLL20-75D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLL20-100D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLL20H-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL20H-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL20H-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL20H-60D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL20H-75D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL20H-100D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLL25-60D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLL25-75D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLL25-100D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLL25H-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25H-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25H-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25H-60D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25H-75D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLL25H-100D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF6-15D	Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLF6-30D	Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLF6-45D	Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLF6-60D	Mounting: Rod flange \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLF10-15D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLF10-30D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLF10-45D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLF10-60D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLF10-75D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLF10-100D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLF10H-15D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF10H-30D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF10H-45D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF10H-60D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF10H-75D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF10H-100D	Mounting: Rod flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLF16-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLF16-45D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLF16-60D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLF16-75D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLF16-100D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLF16H-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16H-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16H-45D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16H-60D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16H-75D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF16H-100D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLF20-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLF20-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLF20-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLF20-60D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLF20-75D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLF20-100D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLF20H-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF20H-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF20H-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF20H-60D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF20H-75D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF20H-100D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLF25-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLF25-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLF25-60D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLF25-75D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLF25-100D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLF25H-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25H-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25H-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25H-60D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25H-75D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLF25H-100D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG10-15D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLG10-30D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLG10-45D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLG10-60D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLG10-75D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLG10-100D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLG10H-15D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG10H-30D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG10H-45D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG10H-60D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG10H-75D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG10H-100D	Mounting: Head flange \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLG16-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLG16-45D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLG16-60D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLG16-75D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLG16-100D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLG16H-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16H-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16H-45D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16H-60D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16H-75D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG16H-100D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLG20-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLG20-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLG20-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLG20-60D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLG20-75D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLG20-100D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLG20H-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG20H-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG20H-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG20H-60D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG20H-75D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG20H-100D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLG25-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLG25-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLG25-60D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLG25-75D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLG25-100D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLG25H-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25H-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25H-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25H-60D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25H-75D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLG25H-100D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20-15D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLC20-30D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLC20-45D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLC20-60D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLC20-75D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLC20-100D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLC20H-15D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20H-30D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20H-45D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20H-60D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20H-75D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC20H-100D	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25-15D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLC25-30D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLC25-45D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLC25-60D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLC25-75D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLC25-100D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLC25H-15D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25H-30D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25H-45D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25H-60D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25H-75D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLC25H-100D	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD6-15D	Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLD6-30D	Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLD6-45D	Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLD6-60D	Mounting: Double clevis \| Bore: ø6 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLD10-15D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLD10-30D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLD10-45D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLD10-60D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLD10-75D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLD10-100D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLD10H-15D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD10H-30D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD10H-45D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD10H-60D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD10H-75D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD10H-100D	Mounting: Double clevis \| Bore: ø10 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Function: Standard \| Port: M thread
	MQMLD16-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Function: Standard \| Port: M thread
	MQMLD16-45D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Function: Standard \| Port: M thread
	MQMLD16-60D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 60 mm \| Function: Standard \| Port: M thread
	MQMLD16-75D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Function: Standard \| Port: M thread
	MQMLD16-100D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Function: Standard \| Port: M thread
	MQMLD16H-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16H-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16H-45D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16H-60D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16H-75D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD16H-100D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: M thread
	MQMLD20-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLD20-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLD20-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLD20-60D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLD20-75D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLD20-100D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLD20H-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD20H-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD20H-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD20H-60D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD20H-75D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD20H-100D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: Standard \| Port: Rc
	MQMLD25-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: Standard \| Port: Rc
	MQMLD25-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: Standard \| Port: Rc
	MQMLD25-60D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: Standard \| Port: Rc
	MQMLD25-75D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: Standard \| Port: Rc
	MQMLD25-100D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: Standard \| Port: Rc
	MQMLD25H-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25H-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25H-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25H-60D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 60 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25H-75D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Function: High speed/high frequency \| Port: Rc
	MQMLD25H-100D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Function: High speed/high frequency \| Port: Rc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MQM Low Friction Cylinder (Side Load Resistant, ø6 to ø25)
