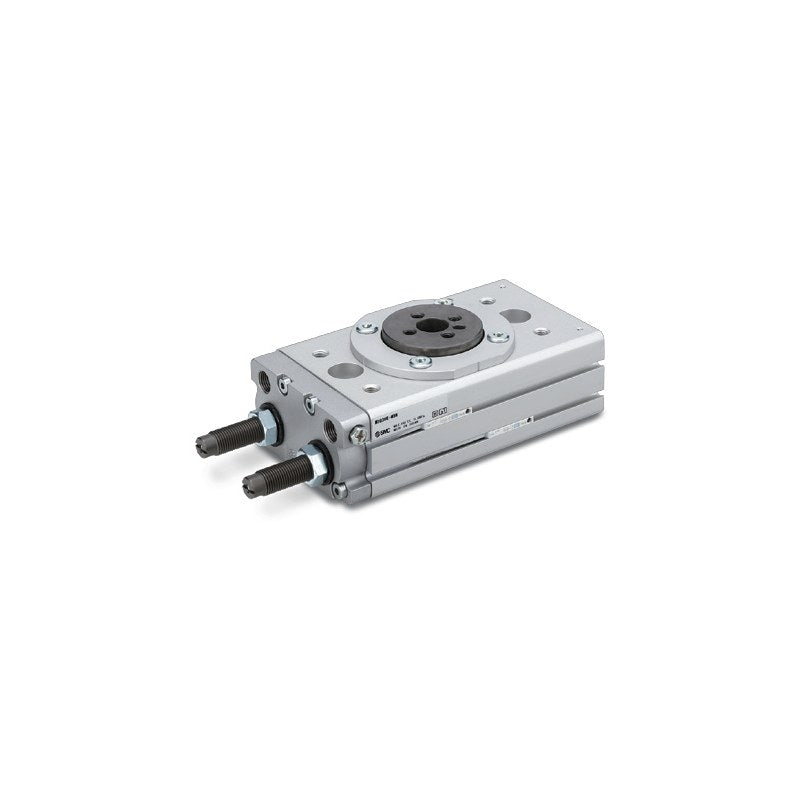

SMC MSQ/MSQG Rotary Table (Cushion Pad/Damper/Internal Absorber)

SMC MSQ/MSQG Rotary Table (Cushion Pad/Damper/Internal Absorber)

SMC MSQ series rack and pinion rotary table (new edition), basic MSQ or high-precision MSQG with cross roller bearing, with cushion pad, damper or internal shock absorber.

Key features

  • Up to 28% lower height and lighter than the previous MSQA/MSQB, with mounting compatibility
  • High-precision MSQG uses a cross roller bearing for higher accuracy and rigidity at basic-type dimensions
  • Three end-stop types: cushion pad (A), damper (D) or internal shock absorber (R); angle adjustment 0 to 190°
  • Optional table (T) compatible with existing workpiece mounting; larger centre hole for piping and wiring
  • Port thread G (-XF), NPT (-XN), NPTF (-XT) for sizes 30/50; mounting-compatible version (-A) on order
  • Auto switches (solid state D-M9N/M9P/M9B, M9NW/M9PW/M9BW, M9NA/M9PA/M9BA; reed D-A90/A93/A96, vertical "V" versions) are ordered as a suffix, e.g. -M9BW; lead wire 0.5 m (blank), 1 m (M), 3 m (L), 5 m (Z)

Specifications

Fluid Air (non-lube)
Max. operating pressure Cushion pad 1 MPa; damper / internal absorber 0.6 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Angle adjustment range 0 to 190°
Cylinder bore 10: 13, 20: 16, 30: 20, 50: 22 mm
Rotation time adjustment Cushion pad/damper 0.2 to 2.0 s/90°; internal absorber 0.2 to 0.7 s/90°
Allowable kinetic energy (internal absorber) 10: 0.039, 20: 0.116, 30: 0.116, 50: 0.294 J
Side port M5x0.8
Source SMC Korea catalog CAT.KS20-256D (SMCKR_MSQ-A.pdf), p. 1-6 (PDF p. 1-7)
MSQ10A Type: Basic | Size: 10 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQ10AT Type: Basic | Size: 10 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQ10D Type: Basic | Size: 10 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQ10DT Type: Basic | Size: 10 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQ10R Type: Basic | Size: 10 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQ10RT Type: Basic | Size: 10 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQ20A Type: Basic | Size: 20 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQ20AT Type: Basic | Size: 20 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQ20D Type: Basic | Size: 20 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQ20DT Type: Basic | Size: 20 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQ20R Type: Basic | Size: 20 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQ20RT Type: Basic | Size: 20 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQ30A Type: Basic | Size: 30 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQ30AT Type: Basic | Size: 30 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQ30D Type: Basic | Size: 30 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQ30DT Type: Basic | Size: 30 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQ30R Type: Basic | Size: 30 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQ30RT Type: Basic | Size: 30 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQ50A Type: Basic | Size: 50 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQ50AT Type: Basic | Size: 50 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQ50D Type: Basic | Size: 50 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQ50DT Type: Basic | Size: 50 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQ50R Type: Basic | Size: 50 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQ50RT Type: Basic | Size: 50 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQG10A Type: High precision | Size: 10 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQG10AT Type: High precision | Size: 10 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQG10D Type: High precision | Size: 10 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQG10DT Type: High precision | Size: 10 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQG10R Type: High precision | Size: 10 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQG10RT Type: High precision | Size: 10 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQG20A Type: High precision | Size: 20 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQG20AT Type: High precision | Size: 20 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQG20D Type: High precision | Size: 20 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQG20DT Type: High precision | Size: 20 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQG20R Type: High precision | Size: 20 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQG20RT Type: High precision | Size: 20 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQG30A Type: High precision | Size: 30 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQG30AT Type: High precision | Size: 30 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQG30D Type: High precision | Size: 30 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQG30DT Type: High precision | Size: 30 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQG30R Type: High precision | Size: 30 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQG30RT Type: High precision | Size: 30 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQG50A Type: High precision | Size: 50 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQG50AT Type: High precision | Size: 50 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQG50D Type: High precision | Size: 50 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQG50DT Type: High precision | Size: 50 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQG50R Type: High precision | Size: 50 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQG50RT Type: High precision | Size: 50 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
Rotary ActuatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MSQ/MSQG Rotary Table (Cushion Pad/Damper/Internal Absorber)

Brand SMC·Rotary Actuators

Available part numbers (48)

MSQ10A, MSQ10AT, MSQ10D, MSQ10DT, MSQ10R, MSQ10RT, MSQ20A, MSQ20AT, MSQ20D, MSQ20DT + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSQ10AType: Basic | Size: 10 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQ10ATType: Basic | Size: 10 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQ10DType: Basic | Size: 10 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQ10DTType: Basic | Size: 10 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQ10RType: Basic | Size: 10 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQ10RTType: Basic | Size: 10 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQ20AType: Basic | Size: 20 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQ20ATType: Basic | Size: 20 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQ20DType: Basic | Size: 20 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQ20DTType: Basic | Size: 20 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQ20RType: Basic | Size: 20 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQ20RTType: Basic | Size: 20 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQ30AType: Basic | Size: 30 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQ30ATType: Basic | Size: 30 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQ30DType: Basic | Size: 30 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQ30DTType: Basic | Size: 30 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQ30RType: Basic | Size: 30 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQ30RTType: Basic | Size: 30 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQ50AType: Basic | Size: 50 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQ50ATType: Basic | Size: 50 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQ50DType: Basic | Size: 50 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQ50DTType: Basic | Size: 50 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQ50RType: Basic | Size: 50 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQ50RTType: Basic | Size: 50 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQG10AType: High precision | Size: 10 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQG10ATType: High precision | Size: 10 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQG10DType: High precision | Size: 10 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQG10DTType: High precision | Size: 10 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQG10RType: High precision | Size: 10 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQG10RTType: High precision | Size: 10 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQG20AType: High precision | Size: 20 | Cushion: Cushion pad | Table: Without table | Port: M5x0.8
MSQG20ATType: High precision | Size: 20 | Cushion: Cushion pad | Table: With table | Port: M5x0.8
MSQG20DType: High precision | Size: 20 | Cushion: Damper | Table: Without table | Port: M5x0.8
MSQG20DTType: High precision | Size: 20 | Cushion: Damper | Table: With table | Port: M5x0.8
MSQG20RType: High precision | Size: 20 | Cushion: Internal shock absorber | Table: Without table | Port: M5x0.8
MSQG20RTType: High precision | Size: 20 | Cushion: Internal shock absorber | Table: With table | Port: M5x0.8
MSQG30AType: High precision | Size: 30 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQG30ATType: High precision | Size: 30 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQG30DType: High precision | Size: 30 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQG30DTType: High precision | Size: 30 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQG30RType: High precision | Size: 30 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQG30RTType: High precision | Size: 30 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
MSQG50AType: High precision | Size: 50 | Cushion: Cushion pad | Table: Without table | Port: Rc1/8
MSQG50ATType: High precision | Size: 50 | Cushion: Cushion pad | Table: With table | Port: Rc1/8
MSQG50DType: High precision | Size: 50 | Cushion: Damper | Table: Without table | Port: Rc1/8
MSQG50DTType: High precision | Size: 50 | Cushion: Damper | Table: With table | Port: Rc1/8
MSQG50RType: High precision | Size: 50 | Cushion: Internal shock absorber | Table: Without table | Port: Rc1/8
MSQG50RTType: High precision | Size: 50 | Cushion: Internal shock absorber | Table: With table | Port: Rc1/8
