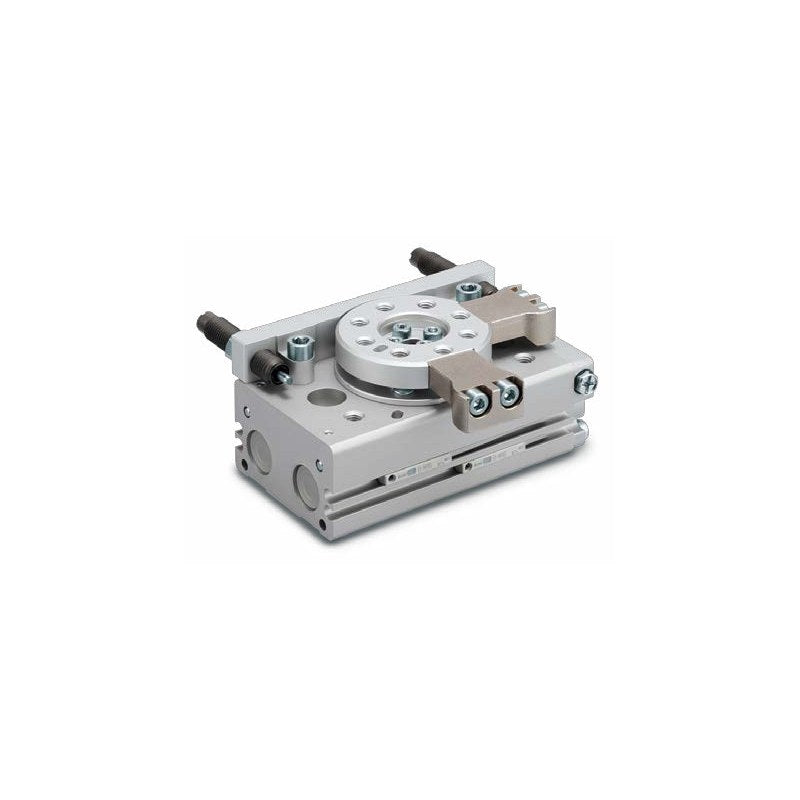

SMC MSQ/MSQG Rotary Table with External Shock Absorber

SMC MSQ/MSQG Rotary Table with External Shock Absorber

SMC MSQ series rack and pinion rotary table with external shock absorbers, basic MSQ or high-precision MSQG, for 4 to 10 times the allowable kinetic energy of the adjusting-bolt type.

Key features

  • External low-energy (L) or high-energy (H) shock absorbers for high inertia loads
  • Rotation angle 90° or 180°, standard or symmetric connection port layout
  • No protruding adjusting bolts, reducing installation space in the length direction
  • Angle adjustment ±3° at each rotation end
  • Port thread G (-XF), NPT (-XN), NPTF (-XT) for sizes 30/50; external stopper (-X232) and mounting-compatible (-A) versions on order
  • Auto switches (solid state D-M9N/M9P/M9B, M9NW/M9PW/M9BW, M9NA/M9PA/M9BA; reed D-A90/A93/A96, vertical "V" versions) are ordered as a suffix, e.g. -M9BW; lead wire 0.5 m (blank), 1 m (M), 3 m (L), 5 m (Z)

Specifications

Fluid Air (non-lube)
Max. operating pressure 1 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Shock absorber (low / high energy) 10: RB0805/RB0806, 20: RB1006/RB1007, 30-50: RB1411/RB1412
Angle adjustment ±3° at each rotation end
Allowable kinetic energy (L / H) 10: 0.161/0.231, 20: 0.574/1.06, 30: 0.805/1.21, 50: 1.31/1.82 J
Rotation time adjustment 0.2 to 2.0 s/90°
Cylinder bore 10: 13, 20: 16, 30: 20, 50: 22 mm
Side port M5x0.8
Source SMC Korea catalog CAT.KS20-256D (SMCKR_MSQ-A.pdf), p. 17-18 (PDF p. 18-19)
MSQ10L2 Type: Basic | Size: 10 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQ10L3 Type: Basic | Size: 10 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQ10L4 Type: Basic | Size: 10 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQ10L5 Type: Basic | Size: 10 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQ10H2 Type: Basic | Size: 10 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQ10H3 Type: Basic | Size: 10 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQ10H4 Type: Basic | Size: 10 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQ10H5 Type: Basic | Size: 10 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQ20L2 Type: Basic | Size: 20 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQ20L3 Type: Basic | Size: 20 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQ20L4 Type: Basic | Size: 20 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQ20L5 Type: Basic | Size: 20 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQ20H2 Type: Basic | Size: 20 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQ20H3 Type: Basic | Size: 20 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQ20H4 Type: Basic | Size: 20 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQ20H5 Type: Basic | Size: 20 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQ30L2 Type: Basic | Size: 30 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQ30L3 Type: Basic | Size: 30 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQ30L4 Type: Basic | Size: 30 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQ30L5 Type: Basic | Size: 30 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQ30H2 Type: Basic | Size: 30 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQ30H3 Type: Basic | Size: 30 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQ30H4 Type: Basic | Size: 30 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQ30H5 Type: Basic | Size: 30 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQ50L2 Type: Basic | Size: 50 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQ50L3 Type: Basic | Size: 50 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQ50L4 Type: Basic | Size: 50 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQ50L5 Type: Basic | Size: 50 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQ50H2 Type: Basic | Size: 50 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQ50H3 Type: Basic | Size: 50 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQ50H4 Type: Basic | Size: 50 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQ50H5 Type: Basic | Size: 50 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQG10L2 Type: High precision | Size: 10 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQG10L3 Type: High precision | Size: 10 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQG10L4 Type: High precision | Size: 10 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQG10L5 Type: High precision | Size: 10 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQG10H2 Type: High precision | Size: 10 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQG10H3 Type: High precision | Size: 10 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQG10H4 Type: High precision | Size: 10 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQG10H5 Type: High precision | Size: 10 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQG20L2 Type: High precision | Size: 20 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQG20L3 Type: High precision | Size: 20 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQG20L4 Type: High precision | Size: 20 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQG20L5 Type: High precision | Size: 20 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQG20H2 Type: High precision | Size: 20 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: M5x0.8
MSQG20H3 Type: High precision | Size: 20 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: M5x0.8
MSQG20H4 Type: High precision | Size: 20 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: M5x0.8
MSQG20H5 Type: High precision | Size: 20 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: M5x0.8
MSQG30L2 Type: High precision | Size: 30 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQG30L3 Type: High precision | Size: 30 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQG30L4 Type: High precision | Size: 30 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQG30L5 Type: High precision | Size: 30 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQG30H2 Type: High precision | Size: 30 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQG30H3 Type: High precision | Size: 30 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQG30H4 Type: High precision | Size: 30 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQG30H5 Type: High precision | Size: 30 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQG50L2 Type: High precision | Size: 50 | Shock absorber: Low energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQG50L3 Type: High precision | Size: 50 | Shock absorber: Low energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQG50L4 Type: High precision | Size: 50 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQG50L5 Type: High precision | Size: 50 | Shock absorber: Low energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
MSQG50H2 Type: High precision | Size: 50 | Shock absorber: High energy | Port layout: Standard | Rotation: 180° | Port: Rc1/8
MSQG50H3 Type: High precision | Size: 50 | Shock absorber: High energy | Port layout: Standard | Rotation: 90° | Port: Rc1/8
MSQG50H4 Type: High precision | Size: 50 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 180° | Port: Rc1/8
MSQG50H5 Type: High precision | Size: 50 | Shock absorber: High energy | Port layout: Symmetric | Rotation: 90° | Port: Rc1/8
