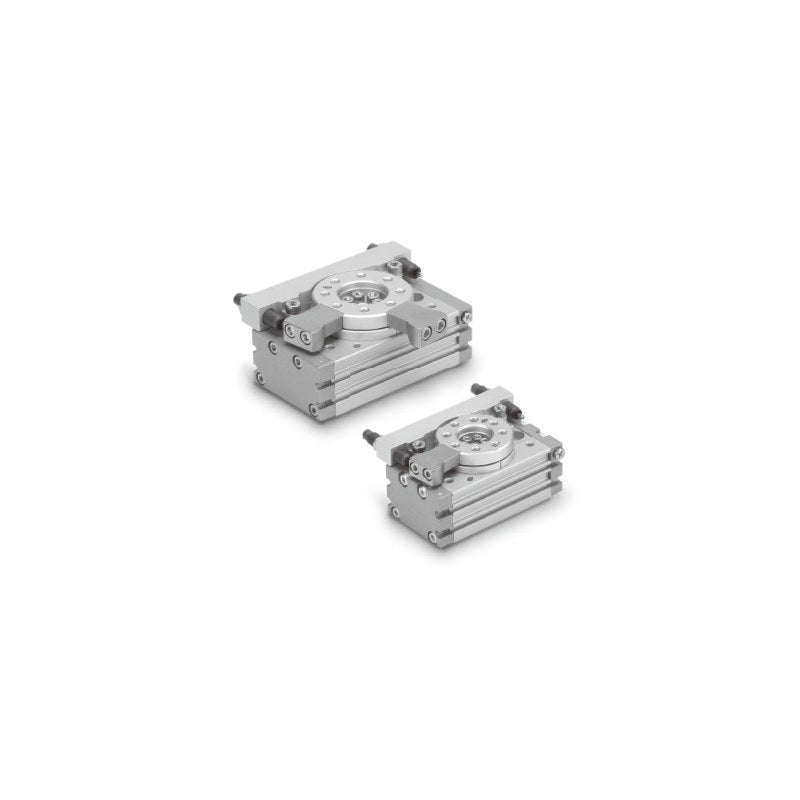

SMC MSQA/MSQB Rotary Table (Rack & Pinion, Sizes 1-7 and 70-200)

SMC MSQA/MSQB Rotary Table (Rack & Pinion, Sizes 1-7 and 70-200)

SMC MSQ series rack and pinion rotary table in the small sizes 1, 2, 3 and 7 (basic MSQB or high-precision MSQA) and the large sizes 70, 100 and 200 (basic MSQB).

Key features

  • Low-profile table with large rolling bearing; hollow shaft for wiring and piping through the table
  • Angle adjustment range 0 to 190° by adjusting bolts; sizes 70 to 200 also with internal shock absorber (R)
  • Small sizes 1 to 7: end port or front port (E) connection; high-precision MSQA with tighter table runout
  • Mounting from top or bottom with reference bore/boss and positioning pin holes
  • Clean room version (11-MSQ, sizes 1 to 7) and sizes 70-200 port threads G (-XF), NPT (-XN), NPTF (-XT) on order
  • Auto switches (solid state D-M9N/M9P/M9B, M9NW/M9PW/M9BW, M9NA/M9PA/M9BA; reed D-A90/A93/A96, vertical "V" versions) are ordered as a suffix, e.g. -M9BW; lead wire 0.5 m (blank), 1 m (M), 3 m (L), 5 m (Z)

Specifications

Fluid Air (non-lube)
Operating pressure Sizes 1-7: 0.1 to 0.7 MPa; sizes 70-200: 0.1 to 1 MPa (internal absorber max. 0.6 MPa)
Ambient and fluid temperature 0 to 60°C (no freezing)
Angle adjustment range 0 to 190°
Maximum rotation 190°
Rotation time adjustment Sizes 1-7: 0.2 to 0.7 / 1.0 s/90°; sizes 70-200: 0.2 to 1.5-2.5 s/90°
Cylinder bore 1: 6, 2: 8, 3: 10, 7: 12, 70: 28, 100: 32, 200: 40 mm
Allowable kinetic energy (adjusting bolt) 1: 0.001, 7: 0.006, 70: 0.24, 200: 0.56 J
Source SMC Korea catalog MSQ (SMCKR_MSQ.pdf), p. 337-348 (PDF p. 1-12)
MSQA1A Type: High precision | Size: 1 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA1AE Type: High precision | Size: 1 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA2A Type: High precision | Size: 2 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA2AE Type: High precision | Size: 2 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA3A Type: High precision | Size: 3 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA3AE Type: High precision | Size: 3 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA7A Type: High precision | Size: 7 | Stop: Adjusting bolt | Port position: End port | Port: M5x0.8
MSQA7AE Type: High precision | Size: 7 | Stop: Adjusting bolt | Port position: Front port | Port: M5x0.8
MSQB1A Type: Basic | Size: 1 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB1AE Type: Basic | Size: 1 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB2A Type: Basic | Size: 2 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB2AE Type: Basic | Size: 2 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB3A Type: Basic | Size: 3 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB3AE Type: Basic | Size: 3 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB7A Type: Basic | Size: 7 | Stop: Adjusting bolt | Port position: End port | Port: M5x0.8
MSQB7AE Type: Basic | Size: 7 | Stop: Adjusting bolt | Port position: Front port | Port: M5x0.8
MSQB70A Type: Basic | Size: 70 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB70R Type: Basic | Size: 70 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8
MSQB100A Type: Basic | Size: 100 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB100R Type: Basic | Size: 100 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8
MSQB200A Type: Basic | Size: 200 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB200R Type: Basic | Size: 200 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8
Rotary ActuatorsSMC
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MSQA/MSQB Rotary Table (Rack & Pinion, Sizes 1-7 and 70-200)

Brand SMC·Rotary Actuators

Available part numbers (22)

MSQA1A, MSQA1AE, MSQA2A, MSQA2AE, MSQA3A, MSQA3AE, MSQA7A, MSQA7AE, MSQB1A, MSQB1AE + 12 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSQA1AType: High precision | Size: 1 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA1AEType: High precision | Size: 1 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA2AType: High precision | Size: 2 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA2AEType: High precision | Size: 2 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA3AType: High precision | Size: 3 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQA3AEType: High precision | Size: 3 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQA7AType: High precision | Size: 7 | Stop: Adjusting bolt | Port position: End port | Port: M5x0.8
MSQA7AEType: High precision | Size: 7 | Stop: Adjusting bolt | Port position: Front port | Port: M5x0.8
MSQB1AType: Basic | Size: 1 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB1AEType: Basic | Size: 1 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB2AType: Basic | Size: 2 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB2AEType: Basic | Size: 2 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB3AType: Basic | Size: 3 | Stop: Adjusting bolt | Port position: End port | Port: M3x0.5
MSQB3AEType: Basic | Size: 3 | Stop: Adjusting bolt | Port position: Front port | Port: M3x0.5
MSQB7AType: Basic | Size: 7 | Stop: Adjusting bolt | Port position: End port | Port: M5x0.8
MSQB7AEType: Basic | Size: 7 | Stop: Adjusting bolt | Port position: Front port | Port: M5x0.8
MSQB70AType: Basic | Size: 70 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB70RType: Basic | Size: 70 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8
MSQB100AType: Basic | Size: 100 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB100RType: Basic | Size: 100 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8
MSQB200AType: Basic | Size: 200 | Stop: Adjusting bolt | Port position: End port | Port: Rc1/8
MSQB200RType: Basic | Size: 200 | Stop: Internal shock absorber | Port position: End port | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →
