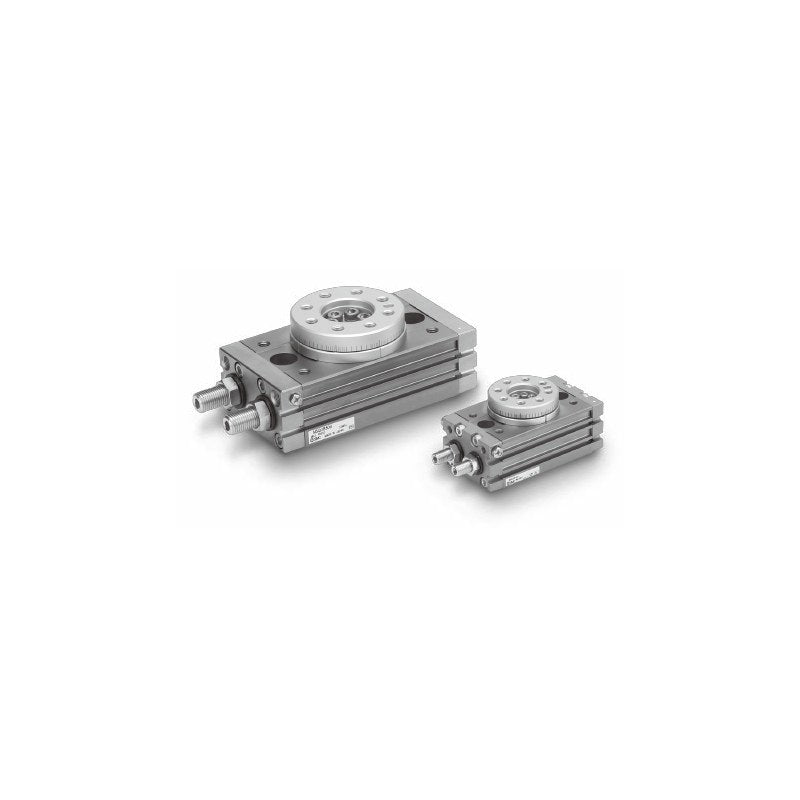

SMC MSQX Low-Speed Rotary Table (Rack & Pinion, Size 10 to 50)

SMC MSQX series low-speed rack and pinion rotary table for smooth transfer of workpieces at 1 to 5 s/90°, with the same dimensions as the MSQ basic type.

Key features

Stable low-speed rotation, adjustable 1 to 5 s/90°, without stick-slip
Same dimensions as the MSQB basic rotary table
Angle adjustment range 0 to 190° by adjusting bolts
External stopper (-X15) and other made-to-order options available
Auto switches D-M9 / D-A9 series ordered as a suffix, e.g. -M9BW

Specifications

Fluid	Air (non-lube)
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	0 to 60°C (no freezing)
Cushion	None
Angle adjustment range	0 to 190°
Rotation time adjustment	1 to 5 s/90°
Output torque at 0.5 MPa	10: 0.89, 20: 1.8, 30: 2.7, 50: 4.6 N·m
Side port	M5x0.8
Port thread options	Sizes 30/50: Rc1/8 standard; G (TF), NPT (TN), NPTF (TT) on order
Source	SMC Korea catalog CRQ2X/MSQX (SMCKR_CRQ2X-MSQX.pdf), p. 333-334 (PDF p. 33-34)

MSQXB10A		Size: 10 \| Port: M5x0.8
MSQXB20A		Size: 20 \| Port: M5x0.8
MSQXB30A		Size: 30 \| Port: Rc1/8
MSQXB50A		Size: 50 \| Port: Rc1/8

Rotary ActuatorsSMC

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MSQX Low-Speed Rotary Table (Rack & Pinion, Size 10 to 50)

Brand SMC·Rotary Actuators

Available part numbers (4)

MSQXB10A, MSQXB20A, MSQXB30A, MSQXB50A
