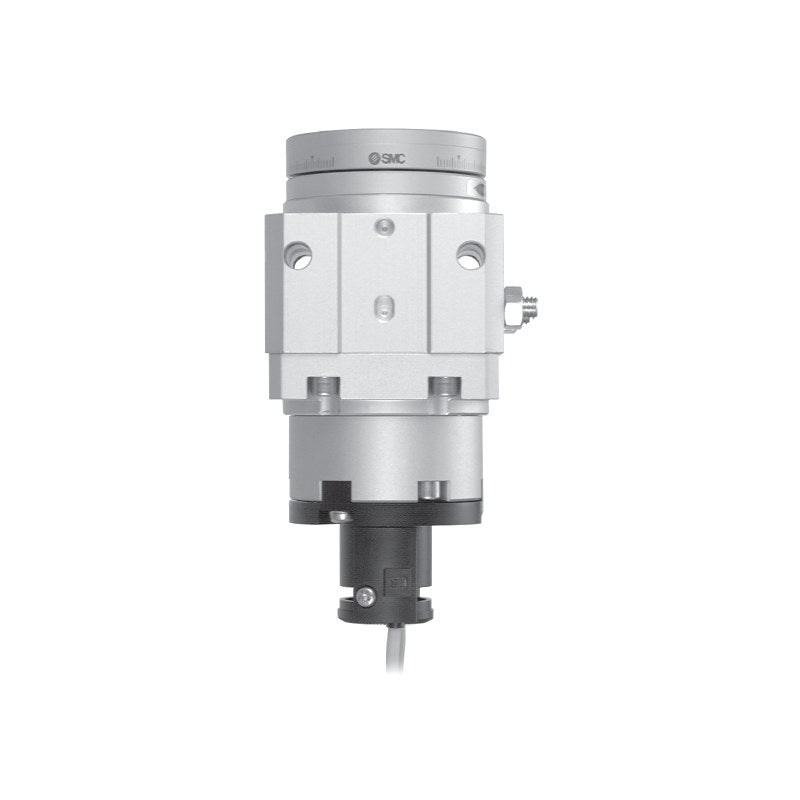

SMC MSU Vane Rotary Table (MSUA High Precision / MSUB Basic)

SMC MSU Vane Rotary Table (MSUA High Precision / MSUB Basic)

SMC MSU series vane-type rotary table in sizes 1, 3, 7 and 20, offered as MSUA high-precision type (special bearing) and MSUB basic type, with optional auto switch unit (MDSU).

Key features

  • Lightweight, compact rotary table suited to robot hands; table inner/outer diameter tolerance H9/h9 and 8 load-mounting threads
  • MSUA: special angular ball bearing, table top/periphery runout within 0.03 mm
  • Rotation angle adjustable: 90°±10° and 180°±10° (single vane), 90°±5° (MSUB double vane)
  • Separable drive unit for maintenance with the load still mounted
  • Auto switch unit (MDSU, built-in magnet) for D-S99/T99/90/97 (sizes 1, 3) or D-S7/T79/R73/R80 (sizes 7, 20); body-side ports only
  • Ports on the body side or axial (E)

Specifications

Fluid Air (non-lube)
Operating pressure 0.2-0.7 MPa (size 1), 0.15-0.7 MPa (3, 7), 0.15-1.0 MPa (20)
Proof pressure 1.05 MPa (size 1 to 7), 1.5 MPa (size 20)
Ambient and fluid temperature 5 to 60°C
Rotation time adjustment 0.07 to 0.3 s/90° (at 0.5 MPa)
Allowable radial load 20/40/50/60 N (size 1/3/7/20)
Allowable moment 0.3/0.7/0.9/2.9 N·m (size 1/3/7/20)
Port size M3x0.5 (size 1, 3), M5x0.8 (size 7, 20)
Table runout MSUA 0.03 mm; MSUB 0.1 to 0.2 mm
Source SMC Korea catalog MSU Series (SMCKR_MSU.pdf), p. 202-203, 214-215 (PDF p. 4-5, 16-17)
MSUA1-90S Type: MSUA high precision | Configuration: Standard | Size: 1 | Rotation: 90°, single vane | Port location: Body side
MSUA1-90SE Type: MSUA high precision | Configuration: Standard | Size: 1 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUA1-90S Type: MSUA high precision | Configuration: With auto switch unit | Size: 1 | Rotation: 90°, single vane | Port location: Body side
MSUA1-180S Type: MSUA high precision | Configuration: Standard | Size: 1 | Rotation: 180°, single vane | Port location: Body side
MSUA1-180SE Type: MSUA high precision | Configuration: Standard | Size: 1 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUA1-180S Type: MSUA high precision | Configuration: With auto switch unit | Size: 1 | Rotation: 180°, single vane | Port location: Body side
MSUA3-90S Type: MSUA high precision | Configuration: Standard | Size: 3 | Rotation: 90°, single vane | Port location: Body side
MSUA3-90SE Type: MSUA high precision | Configuration: Standard | Size: 3 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUA3-90S Type: MSUA high precision | Configuration: With auto switch unit | Size: 3 | Rotation: 90°, single vane | Port location: Body side
MSUA3-180S Type: MSUA high precision | Configuration: Standard | Size: 3 | Rotation: 180°, single vane | Port location: Body side
MSUA3-180SE Type: MSUA high precision | Configuration: Standard | Size: 3 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUA3-180S Type: MSUA high precision | Configuration: With auto switch unit | Size: 3 | Rotation: 180°, single vane | Port location: Body side
MSUA7-90S Type: MSUA high precision | Configuration: Standard | Size: 7 | Rotation: 90°, single vane | Port location: Body side
MSUA7-90SE Type: MSUA high precision | Configuration: Standard | Size: 7 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUA7-90S Type: MSUA high precision | Configuration: With auto switch unit | Size: 7 | Rotation: 90°, single vane | Port location: Body side
MSUA7-180S Type: MSUA high precision | Configuration: Standard | Size: 7 | Rotation: 180°, single vane | Port location: Body side
MSUA7-180SE Type: MSUA high precision | Configuration: Standard | Size: 7 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUA7-180S Type: MSUA high precision | Configuration: With auto switch unit | Size: 7 | Rotation: 180°, single vane | Port location: Body side
MSUA20-90S Type: MSUA high precision | Configuration: Standard | Size: 20 | Rotation: 90°, single vane | Port location: Body side
MSUA20-90SE Type: MSUA high precision | Configuration: Standard | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUA20-90S Type: MSUA high precision | Configuration: With auto switch unit | Size: 20 | Rotation: 90°, single vane | Port location: Body side
MSUA20-180S Type: MSUA high precision | Configuration: Standard | Size: 20 | Rotation: 180°, single vane | Port location: Body side
MSUA20-180SE Type: MSUA high precision | Configuration: Standard | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUA20-180S Type: MSUA high precision | Configuration: With auto switch unit | Size: 20 | Rotation: 180°, single vane | Port location: Body side
MSUB1-90S Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 90°, single vane | Port location: Body side
MSUB1-90SE Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUB1-90S Type: MSUB basic | Configuration: With auto switch unit | Size: 1 | Rotation: 90°, single vane | Port location: Body side
MSUB1-180S Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 180°, single vane | Port location: Body side
MSUB1-180SE Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUB1-180S Type: MSUB basic | Configuration: With auto switch unit | Size: 1 | Rotation: 180°, single vane | Port location: Body side
MSUB1-90D Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 90°, double vane | Port location: Body side
MSUB1-90DE Type: MSUB basic | Configuration: Standard | Size: 1 | Rotation: 90°, double vane | Port location: Axial (body end)
MDSUB1-90D Type: MSUB basic | Configuration: With auto switch unit | Size: 1 | Rotation: 90°, double vane | Port location: Body side
MSUB3-90S Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 90°, single vane | Port location: Body side
MSUB3-90SE Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUB3-90S Type: MSUB basic | Configuration: With auto switch unit | Size: 3 | Rotation: 90°, single vane | Port location: Body side
MSUB3-180S Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 180°, single vane | Port location: Body side
MSUB3-180SE Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUB3-180S Type: MSUB basic | Configuration: With auto switch unit | Size: 3 | Rotation: 180°, single vane | Port location: Body side
MSUB3-90D Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 90°, double vane | Port location: Body side
MSUB3-90DE Type: MSUB basic | Configuration: Standard | Size: 3 | Rotation: 90°, double vane | Port location: Axial (body end)
MDSUB3-90D Type: MSUB basic | Configuration: With auto switch unit | Size: 3 | Rotation: 90°, double vane | Port location: Body side
MSUB7-90S Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 90°, single vane | Port location: Body side
MSUB7-90SE Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUB7-90S Type: MSUB basic | Configuration: With auto switch unit | Size: 7 | Rotation: 90°, single vane | Port location: Body side
MSUB7-180S Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 180°, single vane | Port location: Body side
MSUB7-180SE Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUB7-180S Type: MSUB basic | Configuration: With auto switch unit | Size: 7 | Rotation: 180°, single vane | Port location: Body side
MSUB7-90D Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 90°, double vane | Port location: Body side
MSUB7-90DE Type: MSUB basic | Configuration: Standard | Size: 7 | Rotation: 90°, double vane | Port location: Axial (body end)
MDSUB7-90D Type: MSUB basic | Configuration: With auto switch unit | Size: 7 | Rotation: 90°, double vane | Port location: Body side
MSUB20-90S Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 90°, single vane | Port location: Body side
MSUB20-90SE Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
MDSUB20-90S Type: MSUB basic | Configuration: With auto switch unit | Size: 20 | Rotation: 90°, single vane | Port location: Body side
MSUB20-180S Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 180°, single vane | Port location: Body side
MSUB20-180SE Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
MDSUB20-180S Type: MSUB basic | Configuration: With auto switch unit | Size: 20 | Rotation: 180°, single vane | Port location: Body side
MSUB20-90D Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 90°, double vane | Port location: Body side
MSUB20-90DE Type: MSUB basic | Configuration: Standard | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
MDSUB20-90D Type: MSUB basic | Configuration: With auto switch unit | Size: 20 | Rotation: 90°, double vane | Port location: Body side
Rotary ActuatorsSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MSU Vane Rotary Table (MSUA High Precision / MSUB Basic)

Brand SMC·Rotary Actuators

Available part numbers (60)

MSUA1-90S, MSUA1-90SE, MDSUA1-90S, MSUA1-180S, MSUA1-180SE, MDSUA1-180S, MSUA3-90S, MSUA3-90SE, MDSUA3-90S, MSUA3-180S + 50 more — see full table ↓
