SMC MSZ 3-Position Rotary Table (Size 10 to 50)

SMC MSZ 3-Position Rotary Table (Size 10 to 50)

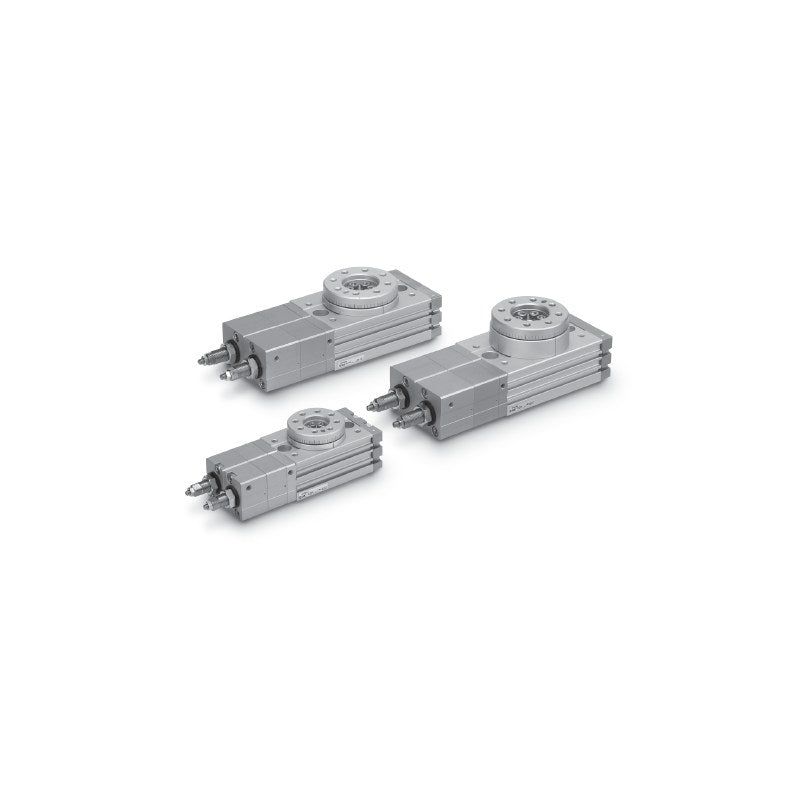

SMC MSZ series 3-position rotary table that stops at both ends and at an intermediate position, controllable by a single 3-position pressure center solenoid valve.

Key features

  • Three stop positions: both rotation ends plus an intermediate position
  • End positions adjustable 0 to 95° left and right of the intermediate position; intermediate position ±10°
  • Operated by one 3-position pressure center valve or two 3-port valves
  • Basic MSZB or high-precision MSZA table, adjusting bolt stops
  • Auto switches D-M9N/M9P/M9B, M9NW/M9PW/M9BW, A90/A93/A96 ordered as a suffix; blank = 2 pcs, n = n pcs

Specifications

Fluid Air (non-lube)
Max. operating pressure 1 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Cushion None
Total rotation adjustment range 0 to 190°
Intermediate position adjustment ±10°
Port size M5x0.8
Rotation time adjustment 0.2 to 1.0 s/90°
Allowable kinetic energy 10: 0.007, 20: 0.025, 30: 0.048, 50: 0.081 J
Source SMC Korea catalog MSZ (SMCKR_MSZ.pdf), p. 363-370 (PDF p. 1, 7-8)
MSZA10A Type: High precision | Size: 10
MSZA20A Type: High precision | Size: 20
MSZA30A Type: High precision | Size: 30
MSZA50A Type: High precision | Size: 50
MSZB10A Type: Basic | Size: 10
MSZB20A Type: Basic | Size: 20
MSZB30A Type: Basic | Size: 30
MSZB50A Type: Basic | Size: 50
