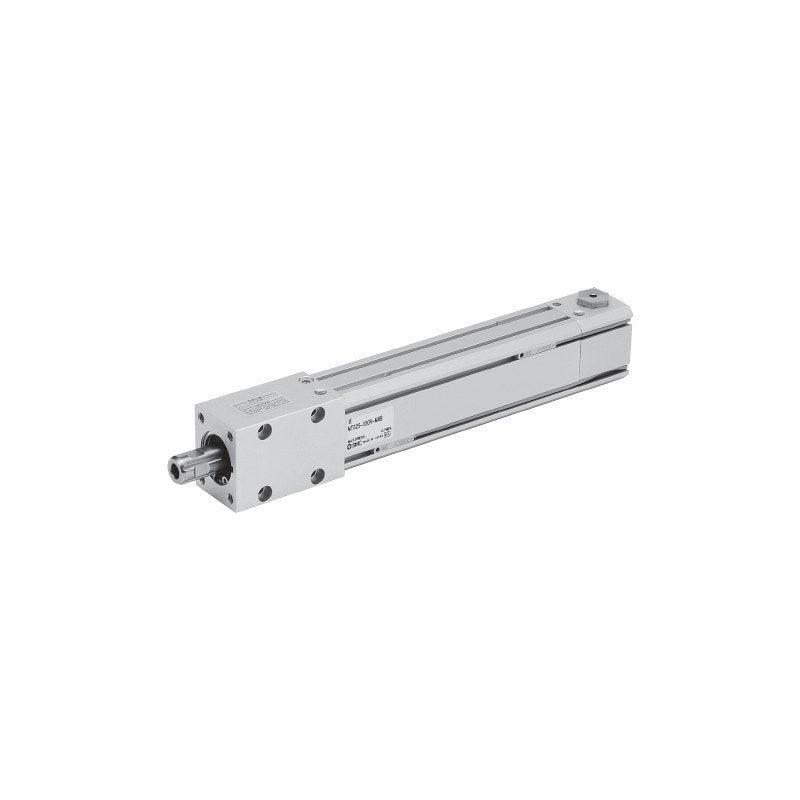

SMC MTS Precision Cylinder (Ball Spline Guide, ø8 to ø40)

SMC MTS Precision Cylinder (Ball Spline Guide, ø8 to ø40)

SMC MTS series precision cylinder with a built-in ball spline guide for non-rotating accuracy of 0.1°, ø8 to ø40 mm bore, double acting with built-in magnet.

Key features

  • Ball spline rod gives non-rotating accuracy 0.1° or less (ø8: 0.2°) and deflection 0.1 mm or less
  • Mounting faces with 0.1 mm parallelism/perpendicularity to the rod; tapped, through-hole and front mounting
  • Air cushion standard (ø12 to ø40; ø8 rubber cushion); head end lock (R) available ø12 to ø40
  • Rod end female thread standard or male thread (M); MTS8 offers axial piping (P)
  • Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
  • Port thread M5 (ø8 M3) or Rc (ø32, ø40); NPT (TN) and G (TF) for ø32/ø40; made to order adjustable stroke (-XC8) and vacuum through-rod (-XC38)

Specifications

Action Double acting
Fluid Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa (ø8), 0.12 MPa (ø12-25), 0.1 MPa (ø32, 40); end lock 0.17/0.15 MPa
Proof pressure 1.0 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Bearing Ball spline
Cushion Rubber (ø8), air cushion (ø12 to ø40)
Piston speed 50 to 500 mm/s (ø8), 50 to 800 mm/s (ø12 to ø40)
Lubrication Not required (non-lube)
Stroke length tolerance +1.0/0 mm
Source SMC Korea catalog MTS (SMCKR_MTS.pdf), p. 502-503 (PDF p. 10-11)
MTS8-5 Bore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-5P Bore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-5M Bore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-5MP Bore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-10 Bore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-10P Bore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-10M Bore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-10MP Bore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-15 Bore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-15P Bore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-15M Bore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-15MP Bore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-20 Bore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-20P Bore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-20M Bore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-20MP Bore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-25 Bore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-25P Bore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-25M Bore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-25MP Bore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-30 Bore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-30P Bore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-30M Bore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-30MP Bore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS12-25 Bore: ø12 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-25M Bore: ø12 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-25R Bore: ø12 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-25RM Bore: ø12 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-50 Bore: ø12 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-50M Bore: ø12 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-50R Bore: ø12 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-50RM Bore: ø12 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-75 Bore: ø12 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-75M Bore: ø12 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-75R Bore: ø12 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-75RM Bore: ø12 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-100 Bore: ø12 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-100M Bore: ø12 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-100R Bore: ø12 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-100RM Bore: ø12 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-25 Bore: ø16 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-25M Bore: ø16 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-25R Bore: ø16 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-25RM Bore: ø16 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-50 Bore: ø16 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-50M Bore: ø16 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-50R Bore: ø16 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-50RM Bore: ø16 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-75 Bore: ø16 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-75M Bore: ø16 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-75R Bore: ø16 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-75RM Bore: ø16 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-100 Bore: ø16 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-100M Bore: ø16 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-100R Bore: ø16 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-100RM Bore: ø16 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-25 Bore: ø20 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-25M Bore: ø20 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-25R Bore: ø20 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-25RM Bore: ø20 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-50 Bore: ø20 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-50M Bore: ø20 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-50R Bore: ø20 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-50RM Bore: ø20 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-75 Bore: ø20 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-75M Bore: ø20 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-75R Bore: ø20 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-75RM Bore: ø20 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-100 Bore: ø20 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-100M Bore: ø20 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-100R Bore: ø20 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-100RM Bore: ø20 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-125 Bore: ø20 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-125M Bore: ø20 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-125R Bore: ø20 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-125RM Bore: ø20 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-150 Bore: ø20 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-150M Bore: ø20 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-150R Bore: ø20 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-150RM Bore: ø20 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-175 Bore: ø20 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-175M Bore: ø20 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-175R Bore: ø20 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-175RM Bore: ø20 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-200 Bore: ø20 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-200M Bore: ø20 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-200R Bore: ø20 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-200RM Bore: ø20 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-25 Bore: ø25 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-25M Bore: ø25 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-25R Bore: ø25 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-25RM Bore: ø25 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-50 Bore: ø25 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-50M Bore: ø25 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-50R Bore: ø25 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-50RM Bore: ø25 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-75 Bore: ø25 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-75M Bore: ø25 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-75R Bore: ø25 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-75RM Bore: ø25 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-100 Bore: ø25 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-100M Bore: ø25 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-100R Bore: ø25 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-100RM Bore: ø25 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-125 Bore: ø25 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-125M Bore: ø25 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-125R Bore: ø25 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-125RM Bore: ø25 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-150 Bore: ø25 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-150M Bore: ø25 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-150R Bore: ø25 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-150RM Bore: ø25 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-175 Bore: ø25 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-175M Bore: ø25 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-175R Bore: ø25 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-175RM Bore: ø25 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-200 Bore: ø25 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-200M Bore: ø25 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-200R Bore: ø25 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-200RM Bore: ø25 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS32-25 Bore: ø32 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-25M Bore: ø32 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-25R Bore: ø32 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-25RM Bore: ø32 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-50 Bore: ø32 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-50M Bore: ø32 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-50R Bore: ø32 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-50RM Bore: ø32 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-75 Bore: ø32 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-75M Bore: ø32 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-75R Bore: ø32 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-75RM Bore: ø32 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-100 Bore: ø32 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-100M Bore: ø32 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-100R Bore: ø32 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-100RM Bore: ø32 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-125 Bore: ø32 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-125M Bore: ø32 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-125R Bore: ø32 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-125RM Bore: ø32 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-150 Bore: ø32 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-150M Bore: ø32 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-150R Bore: ø32 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-150RM Bore: ø32 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-175 Bore: ø32 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-175M Bore: ø32 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-175R Bore: ø32 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-175RM Bore: ø32 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-200 Bore: ø32 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-200M Bore: ø32 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-200R Bore: ø32 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-200RM Bore: ø32 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-25 Bore: ø40 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-25M Bore: ø40 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-25R Bore: ø40 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-25RM Bore: ø40 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-50 Bore: ø40 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-50M Bore: ø40 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-50R Bore: ø40 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-50RM Bore: ø40 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-75 Bore: ø40 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-75M Bore: ø40 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-75R Bore: ø40 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-75RM Bore: ø40 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-100 Bore: ø40 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-100M Bore: ø40 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-100R Bore: ø40 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-100RM Bore: ø40 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-125 Bore: ø40 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-125M Bore: ø40 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-125R Bore: ø40 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-125RM Bore: ø40 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-150 Bore: ø40 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-150M Bore: ø40 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-150R Bore: ø40 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-150RM Bore: ø40 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-175 Bore: ø40 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-175M Bore: ø40 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-175R Bore: ø40 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-175RM Bore: ø40 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-200 Bore: ø40 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-200M Bore: ø40 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-200R Bore: ø40 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-200RM Bore: ø40 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
Guided CylindersSMC
184 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MTS Precision Cylinder (Ball Spline Guide, ø8 to ø40)

Brand SMC·Guided Cylinders

Available part numbers (184)

MTS8-5, MTS8-5P, MTS8-5M, MTS8-5MP, MTS8-10, MTS8-10P, MTS8-10M, MTS8-10MP, MTS8-15, MTS8-15P + 174 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTS8-5Bore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-5PBore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-5MBore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-5MPBore: ø8 mm | Stroke: 5 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-10Bore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-10PBore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-10MBore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-10MPBore: ø8 mm | Stroke: 10 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-15Bore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-15PBore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-15MBore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-15MPBore: ø8 mm | Stroke: 15 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-20Bore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-20PBore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-20MBore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-20MPBore: ø8 mm | Stroke: 20 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-25Bore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-25PBore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-25MBore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-25MPBore: ø8 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS8-30Bore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M3x0.5
MTS8-30PBore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Female thread | Piping: Axial | Port: M3x0.5
MTS8-30MBore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M3x0.5
MTS8-30MPBore: ø8 mm | Stroke: 30 mm | End lock: None | Rod end: Male thread | Piping: Axial | Port: M3x0.5
MTS12-25Bore: ø12 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-25MBore: ø12 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-25RBore: ø12 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-25RMBore: ø12 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-50Bore: ø12 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-50MBore: ø12 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-50RBore: ø12 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-50RMBore: ø12 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-75Bore: ø12 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-75MBore: ø12 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-75RBore: ø12 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-75RMBore: ø12 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-100Bore: ø12 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-100MBore: ø12 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS12-100RBore: ø12 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS12-100RMBore: ø12 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-25Bore: ø16 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-25MBore: ø16 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-25RBore: ø16 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-25RMBore: ø16 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-50Bore: ø16 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-50MBore: ø16 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-50RBore: ø16 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-50RMBore: ø16 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-75Bore: ø16 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-75MBore: ø16 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-75RBore: ø16 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-75RMBore: ø16 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-100Bore: ø16 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-100MBore: ø16 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS16-100RBore: ø16 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS16-100RMBore: ø16 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-25Bore: ø20 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-25MBore: ø20 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-25RBore: ø20 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-25RMBore: ø20 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-50Bore: ø20 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-50MBore: ø20 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-50RBore: ø20 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-50RMBore: ø20 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-75Bore: ø20 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-75MBore: ø20 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-75RBore: ø20 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-75RMBore: ø20 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-100Bore: ø20 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-100MBore: ø20 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-100RBore: ø20 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-100RMBore: ø20 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-125Bore: ø20 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-125MBore: ø20 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-125RBore: ø20 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-125RMBore: ø20 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-150Bore: ø20 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-150MBore: ø20 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-150RBore: ø20 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-150RMBore: ø20 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-175Bore: ø20 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-175MBore: ø20 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-175RBore: ø20 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-175RMBore: ø20 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-200Bore: ø20 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-200MBore: ø20 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS20-200RBore: ø20 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS20-200RMBore: ø20 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-25Bore: ø25 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-25MBore: ø25 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-25RBore: ø25 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-25RMBore: ø25 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-50Bore: ø25 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-50MBore: ø25 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-50RBore: ø25 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-50RMBore: ø25 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-75Bore: ø25 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-75MBore: ø25 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-75RBore: ø25 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-75RMBore: ø25 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-100Bore: ø25 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-100MBore: ø25 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-100RBore: ø25 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-100RMBore: ø25 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-125Bore: ø25 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-125MBore: ø25 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-125RBore: ø25 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-125RMBore: ø25 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-150Bore: ø25 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-150MBore: ø25 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-150RBore: ø25 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-150RMBore: ø25 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-175Bore: ø25 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-175MBore: ø25 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-175RBore: ø25 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-175RMBore: ø25 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-200Bore: ø25 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-200MBore: ø25 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS25-200RBore: ø25 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: M5x0.8
MTS25-200RMBore: ø25 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: M5x0.8
MTS32-25Bore: ø32 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-25MBore: ø32 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-25RBore: ø32 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-25RMBore: ø32 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-50Bore: ø32 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-50MBore: ø32 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-50RBore: ø32 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-50RMBore: ø32 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-75Bore: ø32 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-75MBore: ø32 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-75RBore: ø32 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-75RMBore: ø32 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-100Bore: ø32 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-100MBore: ø32 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-100RBore: ø32 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-100RMBore: ø32 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-125Bore: ø32 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-125MBore: ø32 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-125RBore: ø32 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-125RMBore: ø32 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-150Bore: ø32 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-150MBore: ø32 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-150RBore: ø32 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-150RMBore: ø32 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-175Bore: ø32 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-175MBore: ø32 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-175RBore: ø32 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-175RMBore: ø32 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-200Bore: ø32 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-200MBore: ø32 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS32-200RBore: ø32 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS32-200RMBore: ø32 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-25Bore: ø40 mm | Stroke: 25 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-25MBore: ø40 mm | Stroke: 25 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-25RBore: ø40 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-25RMBore: ø40 mm | Stroke: 25 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-50Bore: ø40 mm | Stroke: 50 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-50MBore: ø40 mm | Stroke: 50 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-50RBore: ø40 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-50RMBore: ø40 mm | Stroke: 50 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-75Bore: ø40 mm | Stroke: 75 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-75MBore: ø40 mm | Stroke: 75 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-75RBore: ø40 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-75RMBore: ø40 mm | Stroke: 75 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-100Bore: ø40 mm | Stroke: 100 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-100MBore: ø40 mm | Stroke: 100 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-100RBore: ø40 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-100RMBore: ø40 mm | Stroke: 100 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-125Bore: ø40 mm | Stroke: 125 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-125MBore: ø40 mm | Stroke: 125 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-125RBore: ø40 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-125RMBore: ø40 mm | Stroke: 125 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-150Bore: ø40 mm | Stroke: 150 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-150MBore: ø40 mm | Stroke: 150 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-150RBore: ø40 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-150RMBore: ø40 mm | Stroke: 150 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-175Bore: ø40 mm | Stroke: 175 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-175MBore: ø40 mm | Stroke: 175 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-175RBore: ø40 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-175RMBore: ø40 mm | Stroke: 175 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-200Bore: ø40 mm | Stroke: 200 mm | End lock: None | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-200MBore: ø40 mm | Stroke: 200 mm | End lock: None | Rod end: Male thread | Piping: Standard | Port: Rc1/8
MTS40-200RBore: ø40 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Female thread | Piping: Standard | Port: Rc1/8
MTS40-200RMBore: ø40 mm | Stroke: 200 mm | End lock: Head end lock | Rod end: Male thread | Piping: Standard | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
