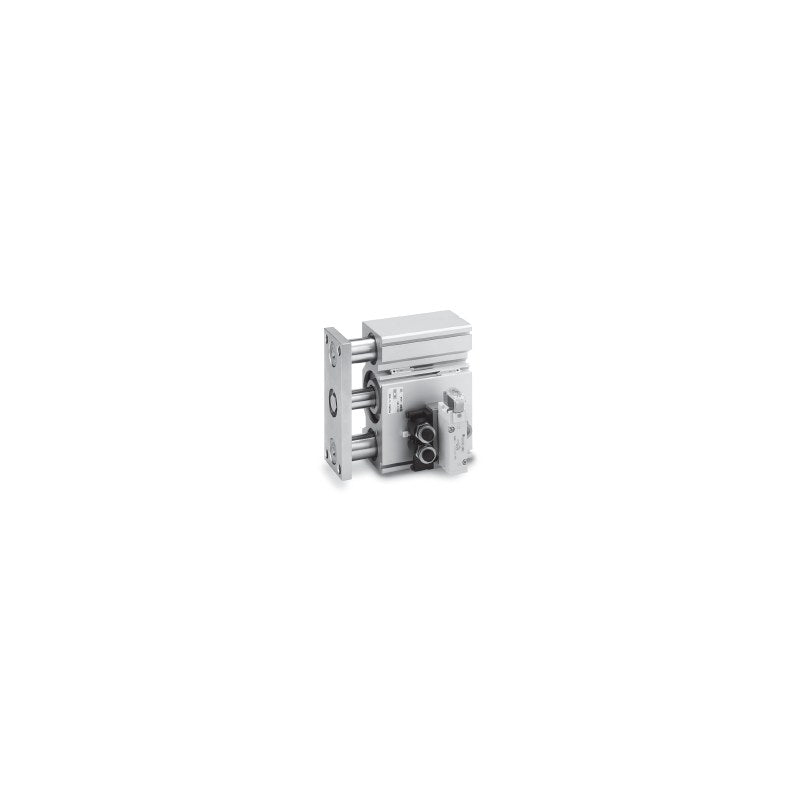

SMC MVGQ Valve Mounted Guide Cylinder (ø12 to ø100)

SMC MVGQ Valve Mounted Guide Cylinder (ø12 to ø100)

SMC MVGQ series compact guide cylinder (MGQ base) with integrated solenoid valve and speed controllers, slide or ball bushing bearing, ø12 to ø100 mm bore.

Key features

  • Cylinder, solenoid valve and speed controllers combined in one unit, reducing installation and piping work
  • Ordered as a pair: cylinder code (listed) plus valve code, e.g. MVGQM12-30-M9BWM-B with SYJ3130-5LZ-MA
  • Valve per bore: SYJ3000 (ø12 to ø20), SYJ5000 (ø25, ø32), SYJ7000 (ø40 to ø63), VF3000 (ø80, ø100)
  • Slide bearing (MVGQM) or ball bushing bearing (MVGQL); built-in magnet as standard for D-M9/D-A9 auto switches
  • Rod extends or retracts (-B) on energizing; speed controller meter-out (MA) standard, meter-in (MB) semi-standard
  • Intermediate strokes made with spacers; made-to-order -XA, -XC79

Specifications

Action Double acting
Fluid Air
Operating pressure 0.15 to 0.7 MPa single solenoid (ø80, ø100: 0.15 to 0.9 MPa)
Ambient and fluid temperature -10 to 50°C (no freezing)
Piston speed 50 to 500 mm/s (ø80, ø100: 50 to 350 mm/s)
Cushion Rubber cushion both ends
Lubrication Non-lube
Auto switch magnet Built-in (standard)
Valve Ordered separately as a paired code (see features)
Source SMC Korea catalog MVGQ (SMCKR_MVGQ.pdf), p. 1254, 1255, 1258, 1259, 1264, 1265 (PDF p. 2, 3, 6, 7, 12, 13)
MVGQM12-10 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-10-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-20 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-20-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-30 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-30-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-40 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-40-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-50 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-50-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-75 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-75-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-100 Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-100-B Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-10 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-10-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-20 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-20-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-30 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-30-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-40 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-40-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-50 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-50-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-75 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-75-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-100 Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-100-B Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-20 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-20-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-30 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-30-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-40 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-40-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-50 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-50-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-75 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-75-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-100 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-100-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-125 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-125-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-150 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-150-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-175 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-175-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-200 Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-200-B Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM25-20 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-20-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-30 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-30-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-40 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-40-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-50 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-50-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-75 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-75-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-100 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-100-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-125 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-125-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-150 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-150-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-175 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-175-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-200 Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-200-B Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-25 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-25-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-50 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-50-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-75 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-75-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-100 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-100-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-125 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-125-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-150 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-150-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-175 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-175-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-200 Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-200-B Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM40-25 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-25-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-50 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-50-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-75 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-75-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-100 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-100-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-125 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-125-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-150 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-150-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-175 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-175-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-200 Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-200-B Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-25 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-25-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-50 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-50-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-75 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-75-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-100 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-100-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-125 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-125-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-150 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-150-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-175 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-175-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-200 Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-200-B Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-25 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-25-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-50 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-50-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-75 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-75-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-100 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-100-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-125 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-125-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-150 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-150-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-175 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-175-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-200 Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-200-B Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM80-25 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-25-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-50 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-50-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-75 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-75-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-100 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-100-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-125 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-125-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-150 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-150-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-175 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-175-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-200 Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-200-B Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-25 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-25-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-50 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-50-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-75 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-75-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-100 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-100-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-125 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-125-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-150 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-150-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-175 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-175-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-200 Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-200-B Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL12-10 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-10-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-20 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-20-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-30 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-30-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-40 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-40-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-50 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-50-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-75 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-75-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-100 Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-100-B Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-10 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-10-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-20 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-20-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-30 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-30-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-40 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-40-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-50 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-50-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-75 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-75-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-100 Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-100-B Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-20 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-20-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-30 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-30-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-40 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-40-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-50 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-50-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-75 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-75-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-100 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-100-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-125 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-125-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-150 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-150-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-175 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-175-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-200 Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-200-B Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL25-20 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-20-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-30 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-30-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-40 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-40-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-50 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-50-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-75 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-75-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-100 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-100-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-125 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-125-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-150 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-150-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-175 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-175-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-200 Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-200-B Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-25 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-25-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-50 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-50-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-75 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-75-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-100 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-100-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-125 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-125-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-150 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-150-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-175 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-175-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-200 Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-200-B Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL40-25 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-25-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-50 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-50-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-75 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-75-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-100 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-100-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-125 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-125-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-150 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-150-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-175 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-175-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-200 Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-200-B Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-25 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-25-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-50 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-50-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-75 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-75-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-100 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-100-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-125 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-125-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-150 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-150-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-175 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-175-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-200 Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-200-B Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-25 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-25-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-50 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-50-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-75 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-75-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-100 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-100-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-125 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-125-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-150 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-150-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-175 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-175-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-200 Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-200-B Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL80-25 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-25-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-50 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-50-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-75 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-75-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-100 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-100-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-125 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-125-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-150 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-150-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-175 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-175-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-200 Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-200-B Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-25 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-25-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-50 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-50-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-75 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-75-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-100 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-100-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-125 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-125-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-150 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-150-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-175 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-175-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-200 Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-200-B Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
Guided CylindersSMC
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MVGQ Valve Mounted Guide Cylinder (ø12 to ø100)

Brand SMC·Guided Cylinders

Available part numbers (328)

MVGQM12-10, MVGQM12-10-B, MVGQM12-20, MVGQM12-20-B, MVGQM12-30, MVGQM12-30-B, MVGQM12-40, MVGQM12-40-B, MVGQM12-50, MVGQM12-50-B + 318 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MVGQM12-10Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-10-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-20Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-20-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-30Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-30-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-40Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-40-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-50Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-50-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-75Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-75-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM12-100Bearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM12-100-BBearing: Slide bearing (M) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-10Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-10-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-20Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-20-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-30Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-30-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-40Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-40-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-50Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-50-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-75Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-75-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM16-100Bearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM16-100-BBearing: Slide bearing (M) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-20Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-20-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-30Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-30-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-40Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-40-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-50Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-50-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-75Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-75-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-100Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-100-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-125Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-125-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-150Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-150-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-175Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-175-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM20-200Bearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQM20-200-BBearing: Slide bearing (M) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQM25-20Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-20-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-30Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-30-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-40Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-40-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-50Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-50-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-75Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-75-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-100Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-100-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-125Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-125-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-150Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-150-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-175Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-175-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM25-200Bearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM25-200-BBearing: Slide bearing (M) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-25Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-25-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-50Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-50-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-75Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-75-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-100Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-100-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-125Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-125-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-150Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-150-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-175Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-175-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM32-200Bearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQM32-200-BBearing: Slide bearing (M) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQM40-25Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-25-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-50Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-50-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-75Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-75-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-100Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-100-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-125Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-125-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-150Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-150-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-175Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-175-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM40-200Bearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM40-200-BBearing: Slide bearing (M) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-25Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-25-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-50Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-50-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-75Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-75-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-100Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-100-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-125Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-125-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-150Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-150-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-175Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-175-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM50-200Bearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM50-200-BBearing: Slide bearing (M) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-25Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-25-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-50Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-50-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-75Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-75-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-100Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-100-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-125Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-125-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-150Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-150-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-175Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-175-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM63-200Bearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQM63-200-BBearing: Slide bearing (M) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQM80-25Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-25-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-50Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-50-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-75Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-75-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-100Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-100-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-125Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-125-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-150Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-150-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-175Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-175-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM80-200Bearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQM80-200-BBearing: Slide bearing (M) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-25Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-25-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-50Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-50-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-75Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-75-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-100Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-100-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-125Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-125-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-150Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-150-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-175Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-175-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQM100-200Bearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQM100-200-BBearing: Slide bearing (M) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL12-10Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-10-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-20Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-20-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-30Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-30-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-40Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-40-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-50Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-50-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-75Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-75-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL12-100Bearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL12-100-BBearing: Ball bushing (L) | Bore: ø12 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-10Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-10-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 10 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-20Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-20-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-30Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-30-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-40Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-40-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-50Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-50-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-75Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-75-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL16-100Bearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL16-100-BBearing: Ball bushing (L) | Bore: ø16 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-20Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-20-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-30Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-30-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-40Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-40-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-50Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-50-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-75Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-75-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-100Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-100-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-125Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-125-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-150Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-150-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-175Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-175-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL20-200Bearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ3000
MVGQL20-200-BBearing: Ball bushing (L) | Bore: ø20 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ3000
MVGQL25-20Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-20-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 20 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-30Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-30-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 30 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-40Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-40-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 40 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-50Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-50-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-75Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-75-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-100Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-100-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-125Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-125-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-150Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-150-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-175Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-175-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL25-200Bearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL25-200-BBearing: Ball bushing (L) | Bore: ø25 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-25Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-25-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-50Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-50-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-75Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-75-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-100Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-100-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-125Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-125-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-150Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-150-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-175Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-175-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL32-200Bearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ5000
MVGQL32-200-BBearing: Ball bushing (L) | Bore: ø32 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ5000
MVGQL40-25Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-25-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-50Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-50-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-75Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-75-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-100Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-100-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-125Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-125-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-150Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-150-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-175Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-175-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL40-200Bearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL40-200-BBearing: Ball bushing (L) | Bore: ø40 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-25Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-25-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-50Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-50-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-75Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-75-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-100Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-100-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-125Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-125-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-150Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-150-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-175Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-175-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL50-200Bearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL50-200-BBearing: Ball bushing (L) | Bore: ø50 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-25Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-25-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-50Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-50-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-75Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-75-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-100Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-100-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-125Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-125-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-150Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-150-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-175Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-175-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL63-200Bearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: SYJ7000
MVGQL63-200-BBearing: Ball bushing (L) | Bore: ø63 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: SYJ7000
MVGQL80-25Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-25-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-50Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-50-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-75Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-75-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-100Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-100-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-125Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-125-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-150Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-150-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-175Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-175-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL80-200Bearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQL80-200-BBearing: Ball bushing (L) | Bore: ø80 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-25Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-25-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 25 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-50Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-50-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 50 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-75Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-75-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 75 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-100Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-100-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 100 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-125Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-125-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 125 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-150Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-150-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 150 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-175Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-175-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 175 mm | Energized: Rod retracts | Valve series: VF3000
MVGQL100-200Bearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod extends | Valve series: VF3000
MVGQL100-200-BBearing: Ball bushing (L) | Bore: ø100 mm | Stroke: 200 mm | Energized: Rod retracts | Valve series: VF3000

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
