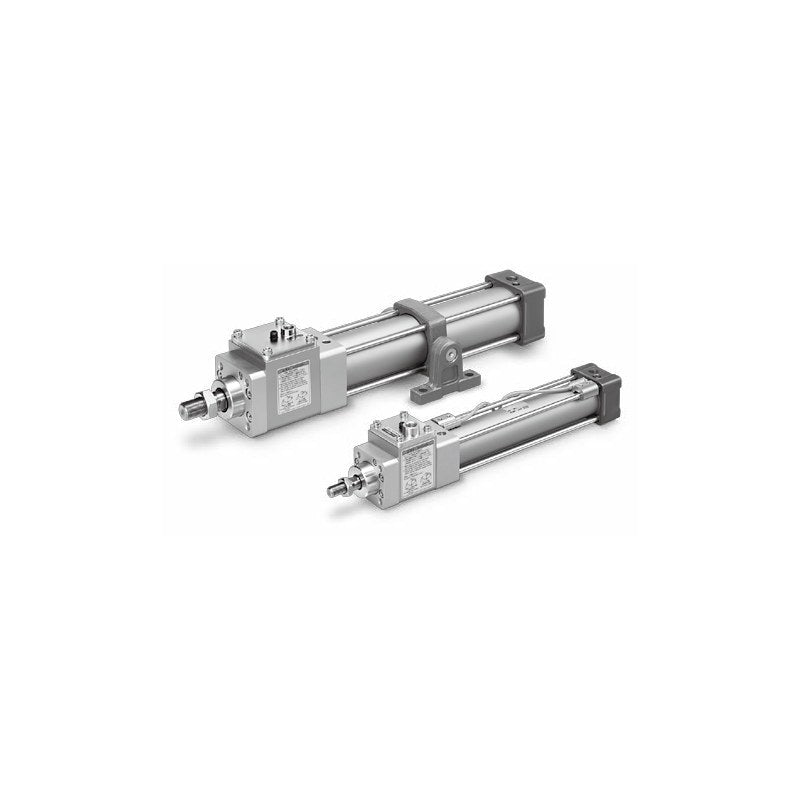

SMC MWB Cylinder with Lock (Double Acting, Single Rod, ø32-100)

SMC MWB series double-acting single-rod air cylinder with lock unit, ø32 to ø100 mm bore, for intermediate stopping, emergency stopping and drop prevention, with or without auto switch magnet (MDWB).

Key features

Exhaust lock holds the piston rod in both directions; stopping accuracy ±1.0 mm
Seven mounting styles: basic, axial foot, rod/head flange, single/double clevis and center trunnion
Air cushion standard; rubber cushion (N), bellows (J/K), pivot bracket (N for D/T), knuckle joints (V/W) and Rc/NPT/G port threads as suffixes
Built-in magnet version MDWB for M9, A9 and other auto switches (e.g. -M9BW)
Made-to-order: MNB-compatible dimensions (-X3000), lock release indicator (-X3030), ISO 13849-1 brake/lock unit (-X3075)

Specifications

Action	Double acting, single rod, with lock
Fluid	Air
Proof pressure	1.5 MPa
Operating pressure	0.08 to 1.0 MPa
Piston speed	50 to 1000 mm/s
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Cushion	Air cushion (rubber cushion with suffix N)
Port size (Rc)	ø32 1/8, ø40/50 1/4, ø63/80 3/8, ø100 1/2
Lock operation	Exhaust lock, both directions; lock release pressure 0.3 MPa min.
Holding force (max. static load)	ø32 630, ø40 980, ø50 1570, ø63 2450, ø80 3920, ø100 6080 N
Stopping accuracy	±1.0 mm (horizontal, 0.5 MPa, 300 mm/s)
Source	SMC Korea catalog CAT.KS20-246D (SMCKR_MWB.pdf), p. 7-8

MWBB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBL32-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL40-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL50-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBL63-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBL80-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBL100-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBF32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBF63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBF80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBF80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBF80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBF100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBF100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBF100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBF100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBF100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBF100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBF100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBF100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBF100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBF100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBF100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBF100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBF100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBF100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBF100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBF100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBF100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBG32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBG63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBG80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBG80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBG80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBG100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBG100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBG100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBG100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBG100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBG100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBG100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBG100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBG100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBG100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBG100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBG100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBG100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBG100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBG100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBG100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBG100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBC32-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC32-125		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC32-175		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC32-350		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC32-450		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC40-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC40-125		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC40-175		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC40-350		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC40-450		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC50-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC50-125		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC50-175		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC50-350		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC50-450		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC50-600		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBC63-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC63-125		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC63-175		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC63-350		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC63-450		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC63-600		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBC80-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC80-125		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC80-175		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC80-350		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC80-450		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC80-600		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBC80-700		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBC80-800		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBC100-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBC100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBC100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBC100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBC100-125		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBC100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBC100-175		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBC100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBC100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBC100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBC100-350		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBC100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBC100-450		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBC100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBC100-600		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBC100-700		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBC100-800		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBD32-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD32-125		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD32-175		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD32-350		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD32-450		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD40-125		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD40-175		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD40-350		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD40-450		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD50-125		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD50-175		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD50-350		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD50-450		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD50-600		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBD63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD63-125		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD63-175		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD63-350		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD63-450		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD63-600		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBD80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD80-125		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD80-175		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD80-350		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD80-450		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD80-600		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBD80-700		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBD80-800		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBD100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBD100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBD100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBD100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBD100-125		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBD100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBD100-175		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBD100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBD100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBD100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBD100-350		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBD100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBD100-450		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBD100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBD100-600		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBD100-700		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBD100-800		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBT32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT32-125		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT32-175		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT32-350		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT32-450		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT40-125		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT40-175		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT40-350		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT40-450		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT50-125		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT50-175		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT50-350		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT50-450		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT50-600		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBT63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT63-125		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT63-175		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT63-350		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT63-450		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT63-600		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBT80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT80-125		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT80-175		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT80-350		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT80-450		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT80-600		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBT80-700		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBT80-800		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBT100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBT100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBT100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBT100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBT100-125		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBT100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBT100-175		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBT100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBT100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBT100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBT100-350		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBT100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBT100-450		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBT100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBT100-600		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBT100-700		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBT100-800		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MDWBB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBL32-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL40-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL50-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBL63-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBL80-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBL100-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBF32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBF63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBF80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBF80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBF80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBF100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBF100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBF100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBF100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBF100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBF100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBF100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBF100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBF100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBF100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBF100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBF100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBF100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBF100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBF100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBF100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBF100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBG32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBG63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBG80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBG80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBG80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBG100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBG100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBG100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBG100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBG100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBG100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBG100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBG100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBG100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBG100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBG100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBG100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBG100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBG100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBG100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBG100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBG100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBC32-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC32-125		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC32-175		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC32-350		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC32-450		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC40-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC40-125		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC40-175		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC40-350		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC40-450		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC50-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC50-125		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC50-175		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC50-350		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC50-450		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC50-600		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBC63-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC63-125		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC63-175		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC63-350		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC63-450		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC63-600		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBC80-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC80-125		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC80-175		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC80-350		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC80-450		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC80-600		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBC80-700		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBC80-800		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBC100-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBC100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBC100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBC100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBC100-125		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBC100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBC100-175		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBC100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBC100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBC100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBC100-350		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBC100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBC100-450		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBC100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBC100-600		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBC100-700		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBC100-800		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBD32-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD32-125		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD32-175		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD32-350		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD32-450		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD40-125		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD40-175		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD40-350		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD40-450		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD50-125		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD50-175		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD50-350		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD50-450		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD50-600		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBD63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD63-125		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD63-175		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD63-350		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD63-450		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD63-600		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBD80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD80-125		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD80-175		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD80-350		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD80-450		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD80-600		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBD80-700		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBD80-800		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBD100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBD100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBD100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBD100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBD100-125		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBD100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBD100-175		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBD100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBD100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBD100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBD100-350		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBD100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBD100-450		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBD100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBD100-600		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBD100-700		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBD100-800		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBT32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT32-125		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT32-175		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT32-350		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT32-450		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT40-125		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT40-175		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT40-350		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT40-450		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT50-125		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT50-175		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT50-350		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT50-450		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT50-600		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBT63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT63-125		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT63-175		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT63-350		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT63-450		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT63-600		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBT80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT80-125		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT80-175		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT80-350		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT80-450		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT80-600		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBT80-700		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBT80-800		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBT100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBT100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBT100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBT100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBT100-125		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBT100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBT100-175		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBT100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBT100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBT100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBT100-350		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBT100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBT100-450		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBT100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBT100-600		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBT100-700		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBT100-800		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1288 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MWB Cylinder with Lock (Double Acting, Single Rod, ø32-100)

Brand SMC·Round Body Cylinders

Available part numbers (1288)

MWBB32-25, MWBB32-50, MWBB32-75, MWBB32-100, MWBB32-125, MWBB32-150, MWBB32-175, MWBB32-200, MWBB32-250, MWBB32-300 + 1278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MWBB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBL32-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL40-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL50-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBL63-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBL80-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBL100-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBF32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBF63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBF80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBF80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBF80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBF100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBF100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBF100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBF100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBF100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBF100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBF100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBF100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBF100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBF100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBF100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBF100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBF100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBF100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBF100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBF100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBF100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBG32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBG63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBG80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBG80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBG80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBG100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBG100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBG100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBG100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBG100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBG100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBG100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBG100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBG100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBG100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBG100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBG100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBG100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBG100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBG100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBG100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBG100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBC32-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC32-125	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC32-175	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC32-350	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC32-450	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC40-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC40-125	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC40-175	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC40-350	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC40-450	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC50-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC50-125	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC50-175	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC50-350	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC50-450	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC50-600	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBC63-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC63-125	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC63-175	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC63-350	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC63-450	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC63-600	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBC80-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC80-125	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC80-175	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC80-350	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC80-450	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC80-600	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBC80-700	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBC80-800	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBC100-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBC100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBC100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBC100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBC100-125	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBC100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBC100-175	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBC100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBC100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBC100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBC100-350	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBC100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBC100-450	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBC100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBC100-600	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBC100-700	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBC100-800	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBD32-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD32-125	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD32-175	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD32-350	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD32-450	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD40-125	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD40-175	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD40-350	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD40-450	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD50-125	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD50-175	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD50-350	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD50-450	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD50-600	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBD63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD63-125	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD63-175	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD63-350	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD63-450	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD63-600	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBD80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD80-125	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD80-175	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD80-350	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD80-450	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD80-600	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBD80-700	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBD80-800	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBD100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBD100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBD100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBD100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBD100-125	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBD100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBD100-175	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBD100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBD100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBD100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBD100-350	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBD100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBD100-450	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBD100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBD100-600	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBD100-700	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBD100-800	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBT32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT32-125	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT32-175	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT32-350	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT32-450	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT40-125	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT40-175	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT40-350	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT40-450	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT50-125	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT50-175	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT50-350	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT50-450	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT50-600	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBT63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT63-125	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT63-175	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT63-350	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT63-450	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT63-600	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBT80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT80-125	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT80-175	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT80-350	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT80-450	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT80-600	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBT80-700	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBT80-800	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBT100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBT100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBT100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBT100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBT100-125	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBT100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBT100-175	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBT100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBT100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBT100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBT100-350	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBT100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBT100-450	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBT100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBT100-600	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBT100-700	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBT100-800	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MDWBB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBL32-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL40-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL50-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBL63-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBL80-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBL100-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBF32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBF63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBF80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBF80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBF80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBF100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBF100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBF100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBF100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBF100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBF100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBF100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBF100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBF100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBF100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBF100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBF100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBF100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBF100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBF100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBF100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBF100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBG32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBG63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBG80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBG80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBG80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBG100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBG100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBG100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBG100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBG100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBG100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBG100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBG100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBG100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBG100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBG100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBG100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBG100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBG100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBG100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBG100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBG100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBC32-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC32-125	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC32-175	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC32-350	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC32-450	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC40-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC40-125	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC40-175	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC40-350	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC40-450	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC50-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC50-125	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC50-175	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC50-350	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC50-450	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC50-600	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBC63-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC63-125	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC63-175	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC63-350	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC63-450	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC63-600	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBC80-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC80-125	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC80-175	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC80-350	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC80-450	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC80-600	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBC80-700	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBC80-800	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBC100-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBC100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBC100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBC100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBC100-125	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBC100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBC100-175	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBC100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBC100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBC100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBC100-350	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBC100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBC100-450	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBC100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBC100-600	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBC100-700	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBC100-800	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBD32-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD32-125	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD32-175	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD32-350	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD32-450	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD40-125	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD40-175	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD40-350	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD40-450	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD50-125	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD50-175	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD50-350	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD50-450	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD50-600	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBD63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD63-125	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD63-175	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD63-350	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD63-450	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD63-600	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBD80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD80-125	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD80-175	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD80-350	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD80-450	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD80-600	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBD80-700	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBD80-800	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBD100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBD100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBD100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBD100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBD100-125	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBD100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBD100-175	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBD100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBD100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBD100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBD100-350	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBD100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBD100-450	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBD100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBD100-600	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBD100-700	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBD100-800	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBT32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT32-125	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT32-175	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT32-350	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT32-450	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT40-125	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT40-175	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT40-350	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT40-450	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT50-125	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT50-175	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT50-350	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT50-450	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT50-600	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBT63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT63-125	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT63-175	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT63-350	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT63-450	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT63-600	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBT80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT80-125	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT80-175	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT80-350	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT80-450	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT80-600	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBT80-700	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBT80-800	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBT100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBT100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBT100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBT100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBT100-125	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBT100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBT100-175	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBT100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBT100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBT100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBT100-350	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBT100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBT100-450	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBT100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBT100-600	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBT100-700	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBT100-800	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MWB Cylinder with Lock (Double Acting, Single Rod, ø32-100)
