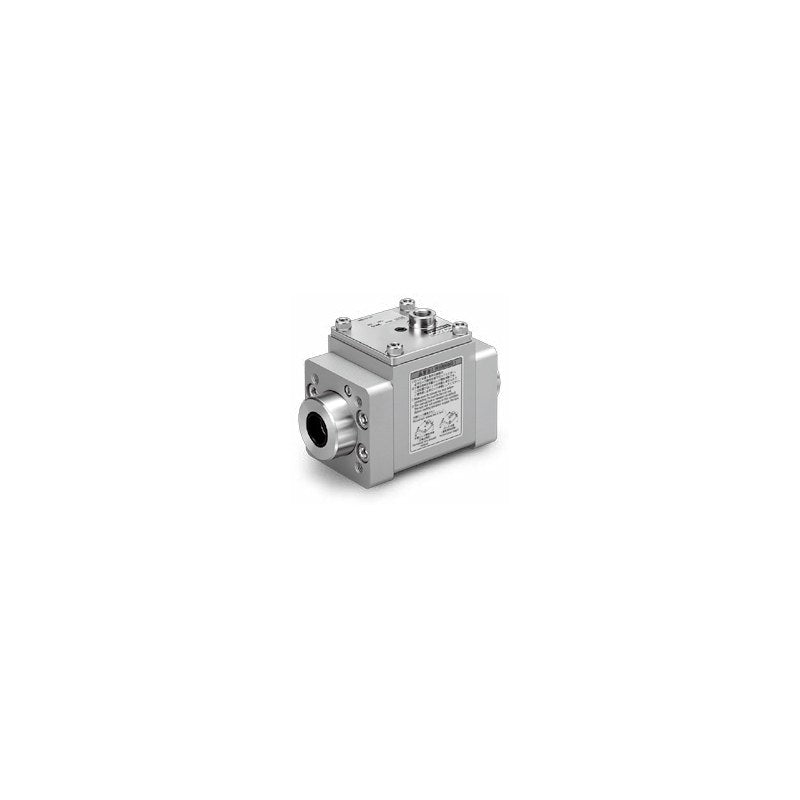

SMC MWB-UT Lock Unit (Sizes 32 to 100, without Rod)

SMC MWB-UT series standalone lock unit that clamps a ø12 to ø30 mm rod in both directions by exhaust lock, in basic, foot or flange mounting.

Key features

Same exhaust-lock mechanism as the MWB lock cylinder, holding in both directions
Model sizes 32 to 100 for rods ø12f8 to ø30f8
Listed codes are the lock unit without rod; with rod order MWB_xx-UT-<rod length> (250/300 to 2500 mm, 1 mm increments)
Mounting: basic (B), axial foot (L), flange (F); Rc port standard, NPT (TN) and G (TF) on order
Made-to-order: lock release indicator (X3030), ISO 13849-1 version (-X3075), rod end change (XA), coil scraper (XC35), stainless rod (XC68)

Specifications

Lock operation	Exhaust lock
Lock direction	Both directions
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.3 MPa
Stopping accuracy	±1.0 mm
Rod	Not included in listed codes
Source	SMC Korea catalog CAT.KS20-246D (SMCKR_MWB.pdf), p. 32

MWBB32-UT		Mounting: Basic \| Model size: 32 \| Applicable rod: ø12 mm \| Holding force: 630 N
MWBB40-UT		Mounting: Basic \| Model size: 40 \| Applicable rod: ø16 mm \| Holding force: 980 N
MWBB50-UT		Mounting: Basic \| Model size: 50 \| Applicable rod: ø20 mm \| Holding force: 1570 N
MWBB63-UT		Mounting: Basic \| Model size: 63 \| Applicable rod: ø20 mm \| Holding force: 2450 N
MWBB80-UT		Mounting: Basic \| Model size: 80 \| Applicable rod: ø25 mm \| Holding force: 3920 N
MWBB100-UT		Mounting: Basic \| Model size: 100 \| Applicable rod: ø30 mm \| Holding force: 6080 N
MWBL32-UT		Mounting: Axial foot \| Model size: 32 \| Applicable rod: ø12 mm \| Holding force: 630 N
MWBL40-UT		Mounting: Axial foot \| Model size: 40 \| Applicable rod: ø16 mm \| Holding force: 980 N
MWBL50-UT		Mounting: Axial foot \| Model size: 50 \| Applicable rod: ø20 mm \| Holding force: 1570 N
MWBL63-UT		Mounting: Axial foot \| Model size: 63 \| Applicable rod: ø20 mm \| Holding force: 2450 N
MWBL80-UT		Mounting: Axial foot \| Model size: 80 \| Applicable rod: ø25 mm \| Holding force: 3920 N
MWBL100-UT		Mounting: Axial foot \| Model size: 100 \| Applicable rod: ø30 mm \| Holding force: 6080 N
MWBF32-UT		Mounting: Flange \| Model size: 32 \| Applicable rod: ø12 mm \| Holding force: 630 N
MWBF40-UT		Mounting: Flange \| Model size: 40 \| Applicable rod: ø16 mm \| Holding force: 980 N
MWBF50-UT		Mounting: Flange \| Model size: 50 \| Applicable rod: ø20 mm \| Holding force: 1570 N
MWBF63-UT		Mounting: Flange \| Model size: 63 \| Applicable rod: ø20 mm \| Holding force: 2450 N
MWBF80-UT		Mounting: Flange \| Model size: 80 \| Applicable rod: ø25 mm \| Holding force: 3920 N
MWBF100-UT		Mounting: Flange \| Model size: 100 \| Applicable rod: ø30 mm \| Holding force: 6080 N
