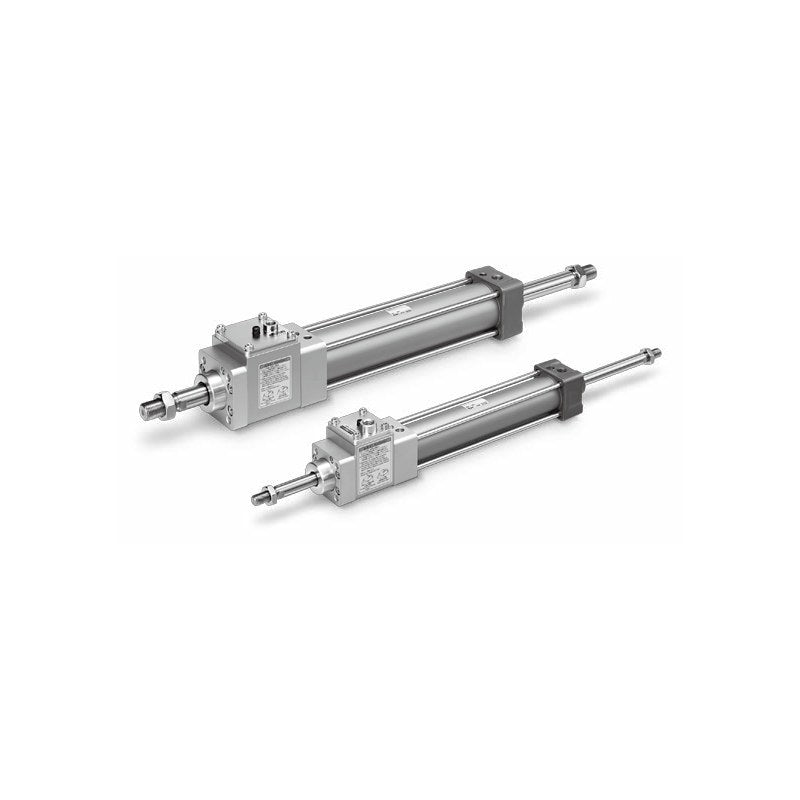

SMC MWBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)

SMC MWBW series double-acting double-rod air cylinder with lock unit, ø32 to ø100 mm bore, holding in both directions, with or without auto switch magnet (MDWBW).

Key features

Exhaust lock holds the piston rod in both directions; stopping accuracy ±1.0 mm
Five mounting styles: basic, axial foot, rod/head flange and center trunnion
Air cushion standard; rubber cushion (N), bellows on lock side or both sides (J/JJ, K/KK), pivot bracket and knuckle joints as suffixes
Built-in magnet version MDWBW for M9, A9 and other auto switches
Made-to-order: MNB-compatible dimensions (-X3000), lock release indicator (-X3030), trunnion position change (-XC14)

Specifications

Action	Double acting, double rod, with lock
Fluid	Air
Proof pressure	1.5 MPa
Operating pressure	0.08 to 1.0 MPa
Piston speed	50 to 1000 mm/s
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Cushion	Air cushion (rubber cushion with suffix N)
Port size (Rc)	ø32 1/8, ø40/50 1/4, ø63/80 3/8, ø100 1/2
Lock operation	Exhaust lock, both directions; lock release pressure 0.3 MPa min.
Holding force (max. static load)	ø32 630, ø40 980, ø50 1570, ø63 2450, ø80 3920, ø100 6080 N
Stopping accuracy	±1.0 mm (horizontal, 0.5 MPa, 300 mm/s)
Source	SMC Korea catalog CAT.KS20-246D (SMCKR_MWB.pdf), p. 17-18

MWBWB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWL32-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL40-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL50-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWL63-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWL80-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWL100-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWF32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWF63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWF80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWF80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWF80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWF100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWF100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWF100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWF100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWF100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWF100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWF100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWF100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWF100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWF100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWF100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWF100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWF100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWF100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWF100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWF100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWF100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWG32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWG63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWG80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWG80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWG80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWG100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWG100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWG100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWG100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWG100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWG100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWG100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWG100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWG100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWG100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWG100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWG100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWG100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWG100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWG100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWG100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWG100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWT32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT32-125		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT32-175		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT32-350		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT32-450		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT40-125		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT40-175		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT40-350		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT40-450		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT50-125		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT50-175		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT50-350		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT50-450		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT50-600		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWT63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT63-125		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT63-175		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT63-350		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT63-450		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT63-600		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWT80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT80-125		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT80-175		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT80-350		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT80-450		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT80-600		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWT80-700		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWT80-800		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
MWBWT100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
MWBWT100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
MWBWT100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
MWBWT100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
MWBWT100-125		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
MWBWT100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
MWBWT100-175		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
MWBWT100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
MWBWT100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
MWBWT100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
MWBWT100-350		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
MWBWT100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
MWBWT100-450		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
MWBWT100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
MWBWT100-600		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
MWBWT100-700		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
MWBWT100-800		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
MDWBWB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB32-175		Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB32-350		Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB32-450		Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB40-175		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB40-350		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB40-450		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB50-175		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB50-350		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB50-450		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB50-600		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB63-175		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB63-350		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB63-450		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB63-600		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB80-175		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB80-350		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB80-450		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB80-600		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWB80-700		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWB80-800		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWB100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWB100-175		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWB100-350		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWB100-450		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWB100-600		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWB100-700		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWB100-800		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWL32-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL32-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL32-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL32-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL32-125		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL32-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL32-175		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL32-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL32-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL32-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL32-350		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL32-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL32-450		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL32-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL40-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL40-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL40-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL40-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL40-125		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL40-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL40-175		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL40-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL40-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL40-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL40-350		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL40-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL40-450		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL40-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL50-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL50-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL50-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL50-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL50-125		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL50-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL50-175		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL50-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL50-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL50-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL50-350		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL50-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL50-450		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL50-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL50-600		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWL63-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL63-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL63-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL63-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL63-125		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL63-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL63-175		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL63-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL63-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL63-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL63-350		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL63-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL63-450		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL63-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL63-600		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWL80-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL80-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL80-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL80-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL80-125		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL80-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL80-175		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL80-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL80-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL80-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL80-350		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL80-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL80-450		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL80-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL80-600		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWL80-700		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWL80-800		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWL100-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWL100-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWL100-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWL100-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWL100-125		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWL100-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWL100-175		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWL100-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWL100-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWL100-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWL100-350		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWL100-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWL100-450		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWL100-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWL100-600		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWL100-700		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWL100-800		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWF32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF32-175		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF32-350		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF32-400		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF32-450		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF32-500		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF40-175		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF40-350		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF40-400		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF40-450		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF40-500		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF50-175		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF50-350		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF50-400		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF50-450		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF50-500		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF50-600		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWF63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF63-175		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF63-350		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF63-400		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF63-450		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF63-500		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF63-600		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWF80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF80-175		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF80-350		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF80-400		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF80-450		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF80-500		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF80-600		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWF80-700		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWF80-800		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWF100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWF100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWF100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWF100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWF100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWF100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWF100-175		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWF100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWF100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWF100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWF100-350		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWF100-400		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWF100-450		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWF100-500		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWF100-600		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWF100-700		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWF100-800		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWG32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG32-175		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG32-350		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG32-400		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG32-450		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG32-500		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG40-175		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG40-350		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG40-400		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG40-450		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG40-500		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG50-175		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG50-350		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG50-400		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG50-450		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG50-500		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG50-600		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWG63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG63-175		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG63-350		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG63-400		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG63-450		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG63-500		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG63-600		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWG80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG80-175		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG80-350		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG80-400		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG80-450		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG80-500		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG80-600		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWG80-700		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWG80-800		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWG100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWG100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWG100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWG100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWG100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWG100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWG100-175		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWG100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWG100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWG100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWG100-350		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWG100-400		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWG100-450		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWG100-500		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWG100-600		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWG100-700		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWG100-800		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWT32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT32-125		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT32-175		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT32-350		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT32-450		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT40-125		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT40-175		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT40-350		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT40-450		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT50-125		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT50-175		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT50-350		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT50-450		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT50-600		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWT63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT63-125		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT63-175		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT63-350		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT63-450		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT63-600		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWT80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT80-125		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT80-175		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT80-350		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT80-450		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT80-600		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWT80-700		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWT80-800		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
MDWBWT100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
MDWBWT100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
MDWBWT100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
MDWBWT100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
MDWBWT100-125		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
MDWBWT100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
MDWBWT100-175		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
MDWBWT100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
MDWBWT100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
MDWBWT100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
MDWBWT100-350		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
MDWBWT100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
MDWBWT100-450		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
MDWBWT100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
MDWBWT100-600		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
MDWBWT100-700		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
MDWBWT100-800		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

920 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MWBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)

Brand SMC·Round Body Cylinders

Available part numbers (920)

MWBWB32-25, MWBWB32-50, MWBWB32-75, MWBWB32-100, MWBWB32-125, MWBWB32-150, MWBWB32-175, MWBWB32-200, MWBWB32-250, MWBWB32-300 + 910 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MWBWB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWL32-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL40-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL50-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWL63-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWL80-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWL100-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWF32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWF63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWF80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWF80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWF80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWF100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWF100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWF100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWF100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWF100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWF100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWF100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWF100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWF100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWF100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWF100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWF100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWF100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWF100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWF100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWF100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWF100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWG32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWG63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWG80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWG80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWG80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWG100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWG100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWG100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWG100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWG100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWG100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWG100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWG100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWG100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWG100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWG100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWG100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWG100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWG100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWG100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWG100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWG100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWT32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT32-125	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT32-175	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT32-350	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT32-450	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT40-125	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT40-175	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT40-350	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT40-450	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT50-125	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT50-175	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT50-350	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT50-450	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT50-600	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWT63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT63-125	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT63-175	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT63-350	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT63-450	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT63-600	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWT80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT80-125	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT80-175	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT80-350	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT80-450	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT80-600	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWT80-700	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWT80-800	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MWBWT100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	MWBWT100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	MWBWT100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	MWBWT100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	MWBWT100-125	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	MWBWT100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	MWBWT100-175	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	MWBWT100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	MWBWT100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	MWBWT100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	MWBWT100-350	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	MWBWT100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	MWBWT100-450	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	MWBWT100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	MWBWT100-600	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	MWBWT100-700	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	MWBWT100-800	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No
	MDWBWB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB32-175	Mounting: Basic \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB32-350	Mounting: Basic \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB32-450	Mounting: Basic \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB40-175	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB40-350	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB40-450	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB50-175	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB50-350	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB50-450	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB50-600	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB63-175	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB63-350	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB63-450	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB63-600	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB80-175	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB80-350	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB80-450	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB80-600	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWB80-700	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWB80-800	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWB100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWB100-175	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWB100-350	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWB100-450	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWB100-600	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWB100-700	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWB100-800	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWL32-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL32-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL32-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL32-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL32-125	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL32-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL32-175	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL32-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL32-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL32-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL32-350	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL32-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL32-450	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL32-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL40-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL40-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL40-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL40-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL40-125	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL40-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL40-175	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL40-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL40-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL40-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL40-350	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL40-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL40-450	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL40-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL50-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL50-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL50-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL50-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL50-125	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL50-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL50-175	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL50-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL50-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL50-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL50-350	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL50-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL50-450	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL50-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL50-600	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWL63-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL63-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL63-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL63-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL63-125	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL63-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL63-175	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL63-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL63-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL63-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL63-350	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL63-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL63-450	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL63-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL63-600	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWL80-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL80-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL80-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL80-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL80-125	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL80-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL80-175	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL80-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL80-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL80-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL80-350	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL80-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL80-450	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL80-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL80-600	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWL80-700	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWL80-800	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWL100-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWL100-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWL100-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWL100-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWL100-125	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWL100-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWL100-175	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWL100-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWL100-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWL100-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWL100-350	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWL100-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWL100-450	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWL100-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWL100-600	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWL100-700	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWL100-800	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWF32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF32-175	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF32-350	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF32-400	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF32-450	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF32-500	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF40-175	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF40-350	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF40-400	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF40-450	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF40-500	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF50-175	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF50-350	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF50-400	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF50-450	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF50-500	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF50-600	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWF63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF63-175	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF63-350	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF63-400	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF63-450	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF63-500	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF63-600	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWF80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF80-175	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF80-350	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF80-400	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF80-450	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF80-500	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF80-600	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWF80-700	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWF80-800	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWF100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWF100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWF100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWF100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWF100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWF100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWF100-175	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWF100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWF100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWF100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWF100-350	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWF100-400	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWF100-450	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWF100-500	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWF100-600	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWF100-700	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWF100-800	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWG32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG32-175	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG32-350	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG32-400	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG32-450	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG32-500	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG40-175	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG40-350	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG40-400	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG40-450	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG40-500	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG50-175	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG50-350	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG50-400	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG50-450	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG50-500	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG50-600	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWG63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG63-175	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG63-350	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG63-400	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG63-450	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG63-500	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG63-600	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWG80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG80-175	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG80-350	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG80-400	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG80-450	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG80-500	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG80-600	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWG80-700	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWG80-800	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWG100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWG100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWG100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWG100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWG100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWG100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWG100-175	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWG100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWG100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWG100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWG100-350	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWG100-400	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWG100-450	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWG100-500	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWG100-600	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWG100-700	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWG100-800	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWT32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT32-125	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT32-175	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT32-350	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT32-450	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT40-125	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT40-175	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT40-350	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT40-450	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT50-125	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT50-175	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT50-350	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT50-450	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT50-600	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWT63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT63-125	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT63-175	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT63-350	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT63-450	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT63-600	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWT80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT80-125	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT80-175	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT80-350	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT80-450	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT80-600	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWT80-700	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWT80-800	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes
	MDWBWT100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	MDWBWT100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	MDWBWT100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	MDWBWT100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	MDWBWT100-125	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	MDWBWT100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	MDWBWT100-175	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	MDWBWT100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	MDWBWT100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	MDWBWT100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	MDWBWT100-350	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	MDWBWT100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	MDWBWT100-450	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	MDWBWT100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	MDWBWT100-600	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	MDWBWT100-700	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	MDWBWT100-800	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC MWBW Cylinder with Lock (Double Acting, Double Rod, ø32-100)
