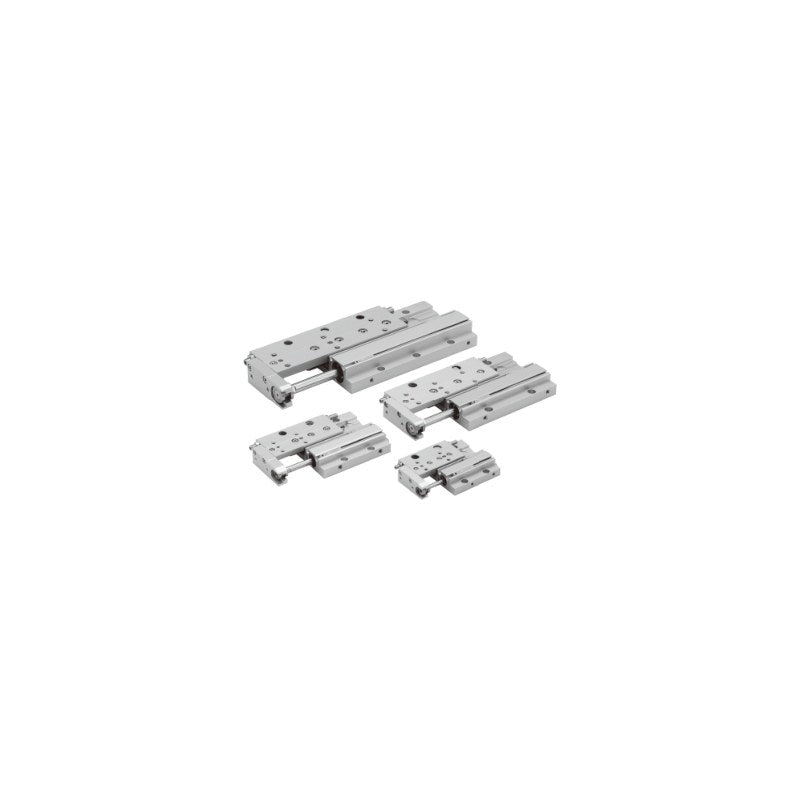

SMC MXF Low Profile Air Slide Table (ø8 to ø20)

SMC MXF series low profile air slide table with the cylinder and linear guide arranged side by side, ø8 to ø20 mm bore, double acting with a built-in magnet.

Key features

Thin, compact body with cylinder and cross-roller type guide arranged in parallel
Stroke adjustment of 5 mm at each end (extend and retract) as standard; 15 mm (-X11) and 25 mm (-X12, ø16/ø20 only) adjustment on order
Rubber cushions at both ends; built-in magnet for auto switches as standard
Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
Made to order: PTFE grease (-X7), food-grade grease (-X9), without magnet (-X33), FKM seals (-X39), rust-resistant guide (-X42)

Specifications

Action	Double acting
Fluid	Air
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50 to 500 mm/s
Cushion	Rubber cushion at both ends
Lubrication	Not required (non-lube)
Stroke length tolerance	+1/0 mm
Stroke adjustment range	5 mm at extend end, 5 mm at retract end
Magnet	Built-in magnet (auto switch ready)
Source	SMC Korea catalog MXF (SMCKR_MXF.pdf), p. 352-353 (PDF p. 4-5)

MXF8-10		Bore: ø8 mm \| Stroke: 10 mm \| Port: M3x0.5
MXF8-20		Bore: ø8 mm \| Stroke: 20 mm \| Port: M3x0.5
MXF8-30		Bore: ø8 mm \| Stroke: 30 mm \| Port: M3x0.5
MXF12-20		Bore: ø12 mm \| Stroke: 20 mm \| Port: M5x0.8
MXF12-30		Bore: ø12 mm \| Stroke: 30 mm \| Port: M5x0.8
MXF12-50		Bore: ø12 mm \| Stroke: 50 mm \| Port: M5x0.8
MXF16-30		Bore: ø16 mm \| Stroke: 30 mm \| Port: M5x0.8
MXF16-50		Bore: ø16 mm \| Stroke: 50 mm \| Port: M5x0.8
MXF16-75		Bore: ø16 mm \| Stroke: 75 mm \| Port: M5x0.8
MXF20-30		Bore: ø20 mm \| Stroke: 30 mm \| Port: M5x0.8
MXF20-50		Bore: ø20 mm \| Stroke: 50 mm \| Port: M5x0.8
MXF20-75		Bore: ø20 mm \| Stroke: 75 mm \| Port: M5x0.8
MXF20-100		Bore: ø20 mm \| Stroke: 100 mm \| Port: M5x0.8
