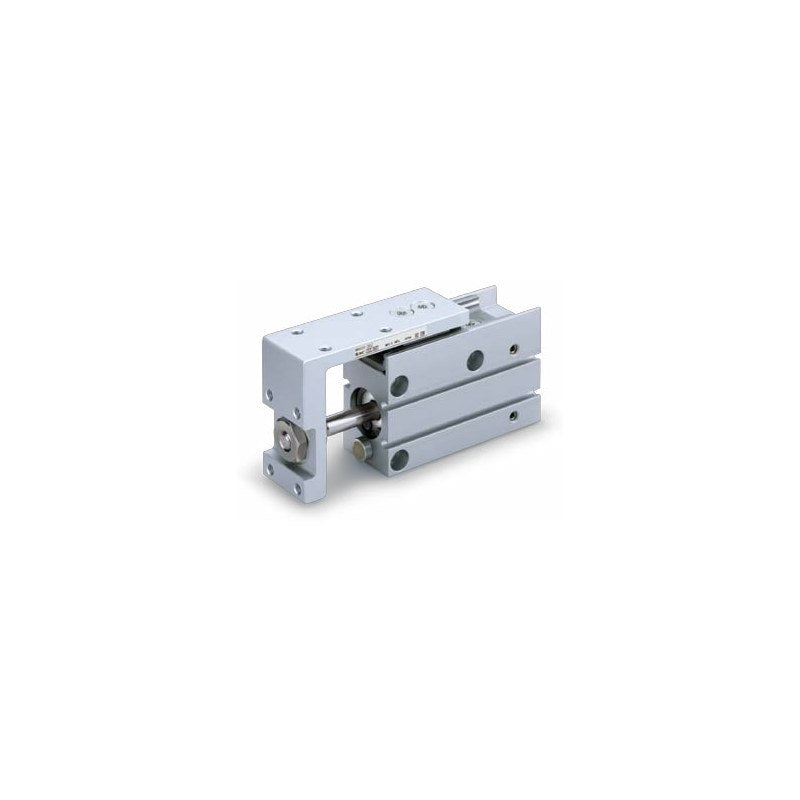

SMC MXH Compact Slide (Linear Guide, ø6-ø20)

SMC MXH Compact Slide (Linear Guide, ø6-ø20)

SMC MXH series compact slide combining an air cylinder with a recirculating linear guide, in bores ø6 to ø20 and strokes 5 to 60 mm.

Key features

  • New recirculating linear guide for high rigidity: allowable moments more than doubled versus previous MXH
  • Lighter body (approx. 19% mass reduction at ø20, 10 st)
  • Mounting from four directions: lateral through-holes, lateral or longitudinal body taps
  • Rubber cushions on both ends; magnet built in for D-M9 and D-A9 auto switches (ordered separately)
  • Made-to-order: -XC79 extra holes, -XB13 low speed, -XC3 port position, -XC19 intermediate stroke, -XC22 FKM seals

Specifications

Fluid Air
Action Double acting
Port size M5x0.8
Min. operating pressure ø6 0.15 MPa, ø10/ø16 0.06 MPa, ø20 0.05 MPa
Max. operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch
Piston speed 50 to 500 mm/s
Cushion Rubber cushion both ends
Lubrication Not required (non-lube)
Stroke tolerance +1.0/0 mm
Source SMC Korea catalog MXH (SMCKR_MXH-Z.pdf), p. 19-20 (PDF p. 5-6)
MXH6-5Z Bore: ø6 mm | Stroke: 5 mm | Output OUT at 0.5 MPa: 14 N
MXH6-10Z Bore: ø6 mm | Stroke: 10 mm | Output OUT at 0.5 MPa: 14 N
MXH6-15Z Bore: ø6 mm | Stroke: 15 mm | Output OUT at 0.5 MPa: 14 N
MXH6-20Z Bore: ø6 mm | Stroke: 20 mm | Output OUT at 0.5 MPa: 14 N
MXH6-25Z Bore: ø6 mm | Stroke: 25 mm | Output OUT at 0.5 MPa: 14 N
MXH6-30Z Bore: ø6 mm | Stroke: 30 mm | Output OUT at 0.5 MPa: 14 N
MXH6-40Z Bore: ø6 mm | Stroke: 40 mm | Output OUT at 0.5 MPa: 14 N
MXH6-50Z Bore: ø6 mm | Stroke: 50 mm | Output OUT at 0.5 MPa: 14 N
MXH6-60Z Bore: ø6 mm | Stroke: 60 mm | Output OUT at 0.5 MPa: 14 N
MXH10-5Z Bore: ø10 mm | Stroke: 5 mm | Output OUT at 0.5 MPa: 39 N
MXH10-10Z Bore: ø10 mm | Stroke: 10 mm | Output OUT at 0.5 MPa: 39 N
MXH10-15Z Bore: ø10 mm | Stroke: 15 mm | Output OUT at 0.5 MPa: 39 N
MXH10-20Z Bore: ø10 mm | Stroke: 20 mm | Output OUT at 0.5 MPa: 39 N
MXH10-25Z Bore: ø10 mm | Stroke: 25 mm | Output OUT at 0.5 MPa: 39 N
MXH10-30Z Bore: ø10 mm | Stroke: 30 mm | Output OUT at 0.5 MPa: 39 N
MXH10-40Z Bore: ø10 mm | Stroke: 40 mm | Output OUT at 0.5 MPa: 39 N
MXH10-50Z Bore: ø10 mm | Stroke: 50 mm | Output OUT at 0.5 MPa: 39 N
MXH10-60Z Bore: ø10 mm | Stroke: 60 mm | Output OUT at 0.5 MPa: 39 N
MXH16-5Z Bore: ø16 mm | Stroke: 5 mm | Output OUT at 0.5 MPa: 101 N
MXH16-10Z Bore: ø16 mm | Stroke: 10 mm | Output OUT at 0.5 MPa: 101 N
MXH16-15Z Bore: ø16 mm | Stroke: 15 mm | Output OUT at 0.5 MPa: 101 N
MXH16-20Z Bore: ø16 mm | Stroke: 20 mm | Output OUT at 0.5 MPa: 101 N
MXH16-25Z Bore: ø16 mm | Stroke: 25 mm | Output OUT at 0.5 MPa: 101 N
MXH16-30Z Bore: ø16 mm | Stroke: 30 mm | Output OUT at 0.5 MPa: 101 N
MXH16-40Z Bore: ø16 mm | Stroke: 40 mm | Output OUT at 0.5 MPa: 101 N
MXH16-50Z Bore: ø16 mm | Stroke: 50 mm | Output OUT at 0.5 MPa: 101 N
MXH16-60Z Bore: ø16 mm | Stroke: 60 mm | Output OUT at 0.5 MPa: 101 N
MXH20-5Z Bore: ø20 mm | Stroke: 5 mm | Output OUT at 0.5 MPa: 157 N
MXH20-10Z Bore: ø20 mm | Stroke: 10 mm | Output OUT at 0.5 MPa: 157 N
MXH20-15Z Bore: ø20 mm | Stroke: 15 mm | Output OUT at 0.5 MPa: 157 N
MXH20-20Z Bore: ø20 mm | Stroke: 20 mm | Output OUT at 0.5 MPa: 157 N
MXH20-25Z Bore: ø20 mm | Stroke: 25 mm | Output OUT at 0.5 MPa: 157 N
MXH20-30Z Bore: ø20 mm | Stroke: 30 mm | Output OUT at 0.5 MPa: 157 N
MXH20-40Z Bore: ø20 mm | Stroke: 40 mm | Output OUT at 0.5 MPa: 157 N
MXH20-50Z Bore: ø20 mm | Stroke: 50 mm | Output OUT at 0.5 MPa: 157 N
MXH20-60Z Bore: ø20 mm | Stroke: 60 mm | Output OUT at 0.5 MPa: 157 N
