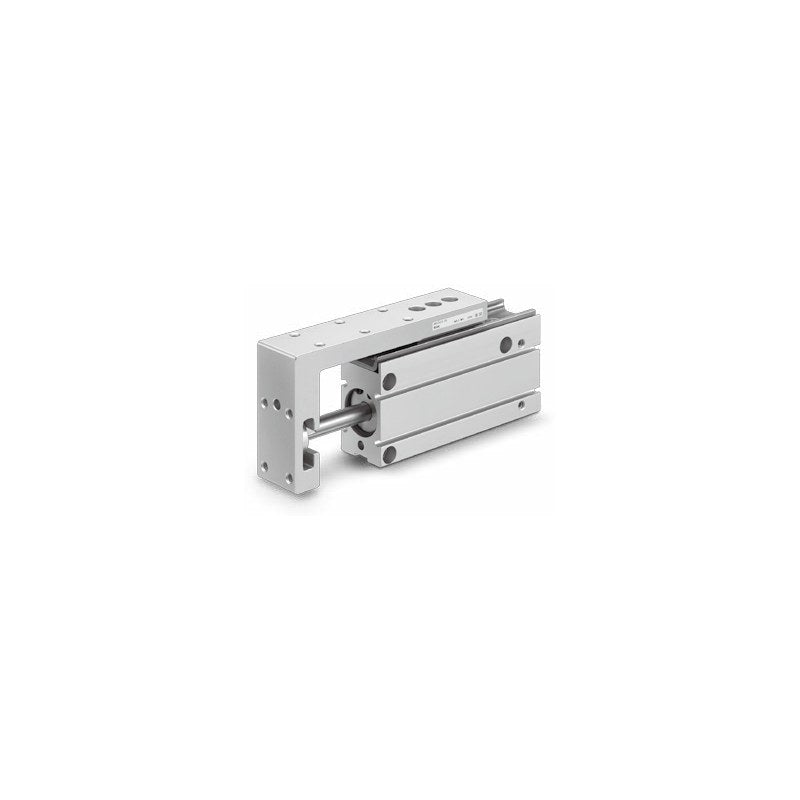

SMC MXH2 Compact Slide (ø6 to ø25)

SMC MXH2 Compact Slide (ø6 to ø25)

SMC MXH2 series compact slide with a reinforced linear guide, ø6 to ø25 mm bore and strokes up to 150 mm, mounting-compatible with the previous MXH series.

Key features

  • Longer linear guide: 3x durability and up to 48 % less table deflection than the MXH series
  • Installation and overall dimensions identical to MXH; up to 6 % lighter
  • New ø25 bore with same width as ø20 and up to 1.4x allowable moment; max. standard stroke 150 mm
  • Four body mounting styles, two workpiece mounting faces, piping from three directions
  • Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
  • Made to order: low speed (-XB13), special port location (-XC3), intermediate stroke (-XC19), FKM seals (-XC22), additional machining (-XC79)

Specifications

Action Double acting
Fluid Air
Port M5x0.8
Max. operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch (no freezing)
Piston speed 50 to 500 mm/s
Cushion Rubber cushion at both ends
Lubrication Cylinder non-lube; guide greasing recommended (GR-S-010)
Stroke length tolerance +1.0/0 mm
Magnet Built-in magnet (auto switch ready)
Source SMC Korea catalog CAT.KS20-276B MXH2 (SMCKR_MXH2-A.pdf), p. 9-10 (PDF p. 10-11)
MXH2B6-5 Bore: ø6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
MXH2B6-10 Bore: ø6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
MXH2B6-15 Bore: ø6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
MXH2B6-20 Bore: ø6 mm | Stroke: 20 mm | Min. pressure: 0.2 MPa
MXH2B6-25 Bore: ø6 mm | Stroke: 25 mm | Min. pressure: 0.2 MPa
MXH2B6-30 Bore: ø6 mm | Stroke: 30 mm | Min. pressure: 0.2 MPa
MXH2B6-40 Bore: ø6 mm | Stroke: 40 mm | Min. pressure: 0.2 MPa
MXH2B6-50 Bore: ø6 mm | Stroke: 50 mm | Min. pressure: 0.2 MPa
MXH2B6-60 Bore: ø6 mm | Stroke: 60 mm | Min. pressure: 0.2 MPa
MXH2B10-5 Bore: ø10 mm | Stroke: 5 mm | Min. pressure: 0.1 MPa
MXH2B10-10 Bore: ø10 mm | Stroke: 10 mm | Min. pressure: 0.1 MPa
MXH2B10-15 Bore: ø10 mm | Stroke: 15 mm | Min. pressure: 0.1 MPa
MXH2B10-20 Bore: ø10 mm | Stroke: 20 mm | Min. pressure: 0.1 MPa
MXH2B10-25 Bore: ø10 mm | Stroke: 25 mm | Min. pressure: 0.1 MPa
MXH2B10-30 Bore: ø10 mm | Stroke: 30 mm | Min. pressure: 0.1 MPa
MXH2B10-40 Bore: ø10 mm | Stroke: 40 mm | Min. pressure: 0.1 MPa
MXH2B10-50 Bore: ø10 mm | Stroke: 50 mm | Min. pressure: 0.1 MPa
MXH2B10-60 Bore: ø10 mm | Stroke: 60 mm | Min. pressure: 0.1 MPa
MXH2B10-75 Bore: ø10 mm | Stroke: 75 mm | Min. pressure: 0.1 MPa
MXH2B10-100 Bore: ø10 mm | Stroke: 100 mm | Min. pressure: 0.1 MPa
MXH2B16-5 Bore: ø16 mm | Stroke: 5 mm | Min. pressure: 0.1 MPa
MXH2B16-10 Bore: ø16 mm | Stroke: 10 mm | Min. pressure: 0.1 MPa
MXH2B16-15 Bore: ø16 mm | Stroke: 15 mm | Min. pressure: 0.1 MPa
MXH2B16-20 Bore: ø16 mm | Stroke: 20 mm | Min. pressure: 0.1 MPa
MXH2B16-25 Bore: ø16 mm | Stroke: 25 mm | Min. pressure: 0.1 MPa
MXH2B16-30 Bore: ø16 mm | Stroke: 30 mm | Min. pressure: 0.1 MPa
MXH2B16-40 Bore: ø16 mm | Stroke: 40 mm | Min. pressure: 0.1 MPa
MXH2B16-50 Bore: ø16 mm | Stroke: 50 mm | Min. pressure: 0.1 MPa
MXH2B16-60 Bore: ø16 mm | Stroke: 60 mm | Min. pressure: 0.1 MPa
MXH2B16-75 Bore: ø16 mm | Stroke: 75 mm | Min. pressure: 0.1 MPa
MXH2B16-100 Bore: ø16 mm | Stroke: 100 mm | Min. pressure: 0.1 MPa
MXH2B16-125 Bore: ø16 mm | Stroke: 125 mm | Min. pressure: 0.1 MPa
MXH2B20-5 Bore: ø20 mm | Stroke: 5 mm | Min. pressure: 0.08 MPa
MXH2B20-10 Bore: ø20 mm | Stroke: 10 mm | Min. pressure: 0.08 MPa
MXH2B20-15 Bore: ø20 mm | Stroke: 15 mm | Min. pressure: 0.08 MPa
MXH2B20-20 Bore: ø20 mm | Stroke: 20 mm | Min. pressure: 0.08 MPa
MXH2B20-25 Bore: ø20 mm | Stroke: 25 mm | Min. pressure: 0.08 MPa
MXH2B20-30 Bore: ø20 mm | Stroke: 30 mm | Min. pressure: 0.08 MPa
MXH2B20-40 Bore: ø20 mm | Stroke: 40 mm | Min. pressure: 0.08 MPa
MXH2B20-50 Bore: ø20 mm | Stroke: 50 mm | Min. pressure: 0.08 MPa
MXH2B20-60 Bore: ø20 mm | Stroke: 60 mm | Min. pressure: 0.08 MPa
MXH2B20-75 Bore: ø20 mm | Stroke: 75 mm | Min. pressure: 0.08 MPa
MXH2B20-100 Bore: ø20 mm | Stroke: 100 mm | Min. pressure: 0.08 MPa
MXH2B20-125 Bore: ø20 mm | Stroke: 125 mm | Min. pressure: 0.08 MPa
MXH2B20-150 Bore: ø20 mm | Stroke: 150 mm | Min. pressure: 0.08 MPa
MXH2B25-5 Bore: ø25 mm | Stroke: 5 mm | Min. pressure: 0.06 MPa
MXH2B25-10 Bore: ø25 mm | Stroke: 10 mm | Min. pressure: 0.06 MPa
MXH2B25-15 Bore: ø25 mm | Stroke: 15 mm | Min. pressure: 0.06 MPa
MXH2B25-20 Bore: ø25 mm | Stroke: 20 mm | Min. pressure: 0.06 MPa
MXH2B25-25 Bore: ø25 mm | Stroke: 25 mm | Min. pressure: 0.06 MPa
MXH2B25-30 Bore: ø25 mm | Stroke: 30 mm | Min. pressure: 0.06 MPa
MXH2B25-40 Bore: ø25 mm | Stroke: 40 mm | Min. pressure: 0.06 MPa
MXH2B25-50 Bore: ø25 mm | Stroke: 50 mm | Min. pressure: 0.06 MPa
MXH2B25-60 Bore: ø25 mm | Stroke: 60 mm | Min. pressure: 0.06 MPa
MXH2B25-75 Bore: ø25 mm | Stroke: 75 mm | Min. pressure: 0.06 MPa
MXH2B25-100 Bore: ø25 mm | Stroke: 100 mm | Min. pressure: 0.06 MPa
MXH2B25-125 Bore: ø25 mm | Stroke: 125 mm | Min. pressure: 0.06 MPa
MXH2B25-150 Bore: ø25 mm | Stroke: 150 mm | Min. pressure: 0.06 MPa
