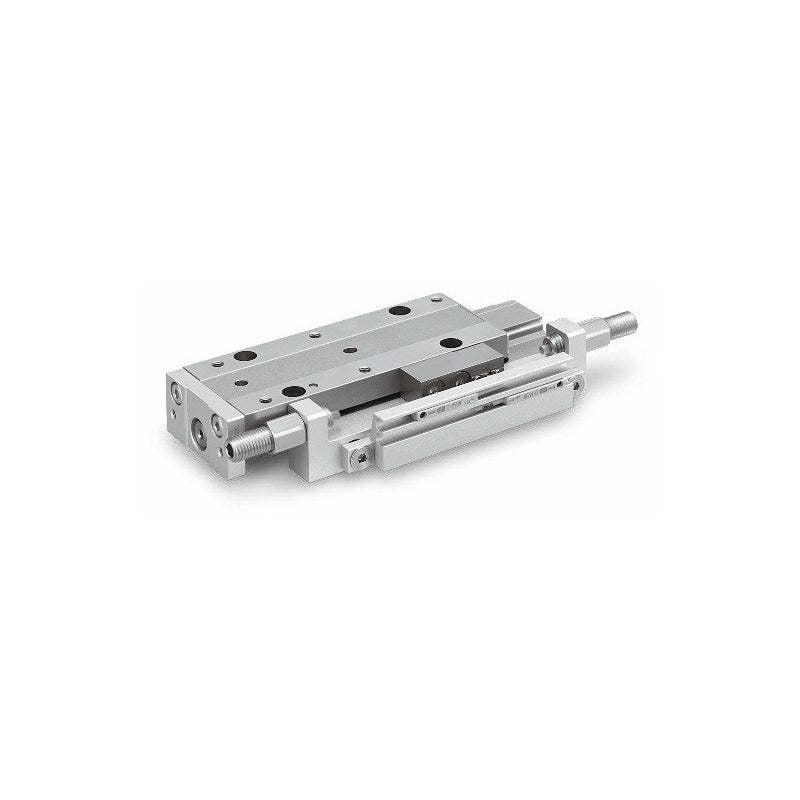

SMC MXJ Precision Air Slide Table (ø12, ø16, MXJ-Z)

SMC MXJ Precision Air Slide Table (ø12, ø16, MXJ-Z)

SMC MXJ series compact precision air slide table, MXJ12 and MXJ16 (Z model), with high-precision linear guide and a choice of 12 stroke adjustment unit configurations.

Key features

  • Height 18 mm, width 34 mm (MXJ12); travel parallelism 0.005 mm, mounting parallelism 0.03 mm
  • Standard or symmetric (L) type; auto switch and adjuster can be mounted on the same side
  • Adjustment units: damper metal stopper (repeatability ±0.05 mm), rubber stopper, shock absorber (RJ soft type) or metal stopper, at extend end, retract end or both
  • Mountable from three directions; positioning pin holes on four faces; with or without (N) switch rail and magnet
  • Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
  • Made to order: long adjust bolt (-X11, -X12), FKM (-X39) or EPDM (-X45) seals, rust-resistant guide (-X42), reed switch (-X53), heat resistant (-X2128), low speed (-X2410)

Specifications

Action Double acting
Fluid Air
Port M5x0.8
Operating pressure 0.1 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s (metal stopper 50 to 200, damper metal stopper 50 to 300)
Cushion Rubber cushion (without adjustment unit)
Lubrication Not required (non-lube)
Stroke length tolerance +2/0 mm (unpressurized)
Source SMC Korea catalog CAT.KS20-252A MXJ ø12/ø16 (SMCKR_MXJ-Z.pdf), p. 4-5 (PDF p. 5-6)
MXJ12-10Z Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-10ZN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-10ZA Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZAN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZB Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZBN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZC Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZCN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-10ZD Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZDN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZE Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZEN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZF Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZFN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-10ZG Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-10ZGN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-10ZH Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-10ZHN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-10ZJ Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-10ZJN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-10ZK Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZKN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZL Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZLN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZM Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZMN Bore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-20Z Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-20ZN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-20ZA Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZAN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZB Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZBN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZC Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZCN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-20ZD Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZDN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZE Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZEN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZF Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZFN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-20ZG Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-20ZGN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-20ZH Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-20ZHN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-20ZJ Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-20ZJN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-20ZK Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZKN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZL Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZLN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZM Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZMN Bore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-30Z Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-30ZN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-30ZA Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZAN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZB Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZBN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZC Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZCN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-30ZD Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZDN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZE Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZEN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZF Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZFN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-30ZG Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-30ZGN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-30ZH Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-30ZHN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-30ZJ Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-30ZJN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-30ZK Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZKN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZL Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZLN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZM Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZMN Bore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-50Z Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-50ZN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-50ZA Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZAN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZB Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZBN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZC Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZCN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-50ZD Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZDN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZE Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZEN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZF Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZFN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-50ZG Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-50ZGN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-50ZH Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-50ZHN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-50ZJ Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-50ZJN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-50ZK Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZKN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZL Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZLN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZM Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZMN Bore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10Z Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-10ZN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-10ZA Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZAN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZB Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZBN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZC Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZCN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10ZD Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZDN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZE Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZEN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZF Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZFN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10ZG Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-10ZGN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-10ZH Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZHN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-10ZJ Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZJN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-10ZK Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZKN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZL Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZLN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZM Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZMN Bore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20Z Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-20ZN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-20ZA Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZAN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZB Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZBN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZC Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZCN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20ZD Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZDN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZE Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZEN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZF Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZFN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20ZG Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-20ZGN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-20ZH Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZHN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-20ZJ Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZJN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-20ZK Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZKN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZL Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZLN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZM Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZMN Bore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30Z Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-30ZN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-30ZA Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZAN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZB Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZBN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZC Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZCN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30ZD Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZDN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZE Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZEN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZF Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZFN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30ZG Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-30ZGN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-30ZH Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZHN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-30ZJ Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZJN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-30ZK Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZKN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZL Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZLN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZM Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZMN Bore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50Z Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-50ZN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-50ZA Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZAN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZB Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZBN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZC Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZCN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50ZD Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZDN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZE Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZEN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZF Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZFN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50ZG Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-50ZGN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-50ZH Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZHN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-50ZJ Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZJN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-50ZK Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZKN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZL Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZLN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZM Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZMN Bore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-10Z Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-10ZN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-10ZA Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZAN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZB Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZBN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZC Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZCN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-10ZD Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZDN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZE Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZEN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZF Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZFN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-10ZG Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-10ZGN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-10ZH Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-10ZHN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-10ZJ Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-10ZJN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-10ZK Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZKN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZL Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZLN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZM Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZMN Bore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-20Z Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-20ZN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-20ZA Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZAN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZB Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZBN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZC Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZCN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-20ZD Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZDN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZE Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZEN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZF Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZFN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-20ZG Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-20ZGN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-20ZH Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-20ZHN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-20ZJ Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-20ZJN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-20ZK Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZKN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZL Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZLN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZM Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZMN Bore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-30Z Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-30ZN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-30ZA Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZAN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZB Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZBN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZC Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZCN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-30ZD Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZDN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZE Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZEN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZF Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZFN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-30ZG Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-30ZGN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-30ZH Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-30ZHN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-30ZJ Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-30ZJN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-30ZK Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZKN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZL Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZLN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZM Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZMN Bore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-50Z Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-50ZN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-50ZA Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZAN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZB Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZBN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZC Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZCN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-50ZD Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZDN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZE Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZEN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZF Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZFN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-50ZG Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-50ZGN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-50ZH Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-50ZHN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-50ZJ Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-50ZJN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-50ZK Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZKN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZL Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZLN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZM Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZMN Bore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10Z Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-10ZN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-10ZA Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZAN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZB Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZBN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZC Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZCN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10ZD Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZDN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZE Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZEN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZF Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZFN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10ZG Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-10ZGN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-10ZH Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZHN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-10ZJ Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZJN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-10ZK Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZKN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZL Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZLN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZM Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZMN Bore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20Z Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-20ZN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-20ZA Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZAN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZB Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZBN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZC Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZCN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20ZD Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZDN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZE Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZEN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZF Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZFN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20ZG Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-20ZGN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-20ZH Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZHN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-20ZJ Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZJN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-20ZK Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZKN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZL Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZLN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZM Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZMN Bore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30Z Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-30ZN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-30ZA Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZAN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZB Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZBN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZC Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZCN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30ZD Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZDN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZE Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZEN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZF Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZFN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30ZG Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-30ZGN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-30ZH Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZHN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-30ZJ Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZJN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-30ZK Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZKN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZL Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZLN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZM Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZMN Bore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50Z Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-50ZN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-50ZA Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZAN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZB Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZBN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZC Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZCN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50ZD Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZDN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZE Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZEN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZF Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZFN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50ZG Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-50ZGN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-50ZH Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZHN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-50ZJ Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZJN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-50ZK Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZKN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZL Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZLN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZM Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZMN Bore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
Slide TablesSMC
416 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXJ Precision Air Slide Table (ø12, ø16, MXJ-Z)

Brand SMC·Slide Tables

Available part numbers (416)

MXJ12-10Z, MXJ12-10ZN, MXJ12-10ZA, MXJ12-10ZAN, MXJ12-10ZB, MXJ12-10ZBN, MXJ12-10ZC, MXJ12-10ZCN, MXJ12-10ZD, MXJ12-10ZDN + 406 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXJ12-10ZBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-10ZNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-10ZABore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZANBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZBBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZBNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZCBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZCNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-10ZDBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZDNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZEBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZENBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZFBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZFNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-10ZGBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-10ZGNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-10ZHBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-10ZHNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-10ZJBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-10ZJNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-10ZKBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-10ZKNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-10ZLBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-10ZLNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-10ZMBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-10ZMNBore: ø12 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-20ZBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-20ZNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-20ZABore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZANBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZBBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZBNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZCBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZCNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-20ZDBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZDNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZEBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZENBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZFBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZFNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-20ZGBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-20ZGNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-20ZHBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-20ZHNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-20ZJBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-20ZJNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-20ZKBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-20ZKNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-20ZLBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-20ZLNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-20ZMBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-20ZMNBore: ø12 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-30ZBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-30ZNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-30ZABore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZANBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZBBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZBNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZCBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZCNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-30ZDBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZDNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZEBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZENBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZFBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZFNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-30ZGBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-30ZGNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-30ZHBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-30ZHNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-30ZJBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-30ZJNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-30ZKBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-30ZKNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-30ZLBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-30ZLNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-30ZMBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-30ZMNBore: ø12 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-50ZBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12-50ZNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12-50ZABore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZANBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZBBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZBNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZCBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZCNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12-50ZDBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZDNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZEBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZENBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZFBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZFNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12-50ZGBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12-50ZGNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12-50ZHBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12-50ZHNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12-50ZJBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12-50ZJNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12-50ZKBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12-50ZKNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12-50ZLBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12-50ZLNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12-50ZMBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12-50ZMNBore: ø12 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10ZBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-10ZNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-10ZABore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZANBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZBBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZBNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZCBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZCNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10ZDBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZDNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZEBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZENBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZFBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZFNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-10ZGBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-10ZGNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-10ZHBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZHNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-10ZJBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZJNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-10ZKBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-10ZKNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-10ZLBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-10ZLNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-10ZMBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-10ZMNBore: ø12 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20ZBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-20ZNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-20ZABore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZANBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZBBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZBNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZCBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZCNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20ZDBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZDNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZEBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZENBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZFBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZFNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-20ZGBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-20ZGNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-20ZHBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZHNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-20ZJBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZJNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-20ZKBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-20ZKNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-20ZLBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-20ZLNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-20ZMBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-20ZMNBore: ø12 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30ZBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-30ZNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-30ZABore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZANBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZBBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZBNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZCBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZCNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30ZDBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZDNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZEBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZENBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZFBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZFNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-30ZGBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-30ZGNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-30ZHBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZHNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-30ZJBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZJNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-30ZKBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-30ZKNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-30ZLBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-30ZLNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-30ZMBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-30ZMNBore: ø12 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50ZBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ12L-50ZNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ12L-50ZABore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZANBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZBBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZBNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZCBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZCNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50ZDBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZDNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZEBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZENBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZFBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZFNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ12L-50ZGBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ12L-50ZGNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ12L-50ZHBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZHNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ12L-50ZJBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZJNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ12L-50ZKBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ12L-50ZKNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ12L-50ZLBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ12L-50ZLNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ12L-50ZMBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ12L-50ZMNBore: ø12 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-10ZBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-10ZNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-10ZABore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZANBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZBBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZBNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZCBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZCNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-10ZDBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZDNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZEBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZENBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZFBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZFNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-10ZGBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-10ZGNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-10ZHBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-10ZHNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-10ZJBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-10ZJNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-10ZKBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-10ZKNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-10ZLBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-10ZLNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-10ZMBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-10ZMNBore: ø16 mm | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-20ZBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-20ZNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-20ZABore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZANBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZBBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZBNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZCBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZCNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-20ZDBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZDNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZEBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZENBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZFBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZFNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-20ZGBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-20ZGNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-20ZHBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-20ZHNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-20ZJBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-20ZJNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-20ZKBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-20ZKNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-20ZLBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-20ZLNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-20ZMBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-20ZMNBore: ø16 mm | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-30ZBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-30ZNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-30ZABore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZANBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZBBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZBNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZCBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZCNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-30ZDBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZDNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZEBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZENBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZFBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZFNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-30ZGBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-30ZGNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-30ZHBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-30ZHNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-30ZJBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-30ZJNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-30ZKBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-30ZKNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-30ZLBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-30ZLNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-30ZMBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-30ZMNBore: ø16 mm | Type: Standard | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-50ZBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16-50ZNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16-50ZABore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZANBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZBBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZBNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZCBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZCNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16-50ZDBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZDNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZEBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZENBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZFBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZFNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16-50ZGBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16-50ZGNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16-50ZHBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16-50ZHNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16-50ZJBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16-50ZJNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16-50ZKBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16-50ZKNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16-50ZLBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16-50ZLNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16-50ZMBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16-50ZMNBore: ø16 mm | Type: Standard | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10ZBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-10ZNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-10ZABore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZANBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZBBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZBNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZCBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZCNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10ZDBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZDNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZEBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZENBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZFBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZFNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-10ZGBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-10ZGNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-10ZHBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZHNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-10ZJBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZJNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-10ZKBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-10ZKNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-10ZLBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-10ZLNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-10ZMBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-10ZMNBore: ø16 mm | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20ZBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-20ZNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-20ZABore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZANBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZBBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZBNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZCBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZCNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20ZDBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZDNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZEBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZENBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZFBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZFNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-20ZGBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-20ZGNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-20ZHBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZHNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-20ZJBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZJNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-20ZKBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-20ZKNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-20ZLBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-20ZLNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-20ZMBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-20ZMNBore: ø16 mm | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30ZBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-30ZNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-30ZABore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZANBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZBBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZBNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZCBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZCNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30ZDBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZDNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZEBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZENBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZFBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZFNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-30ZGBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-30ZGNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-30ZHBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZHNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-30ZJBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZJNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-30ZKBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-30ZKNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-30ZLBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-30ZLNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-30ZMBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-30ZMNBore: ø16 mm | Type: Symmetric | Stroke: 30 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50ZBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: Magnet and switch rail
MXJ16L-50ZNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: None | Switch rail: No magnet, no rail
MXJ16L-50ZABore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZANBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZBBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZBNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZCBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZCNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Damper metal stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50ZDBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZDNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZEBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZENBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZFBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZFNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Rubber stopper, retract | Switch rail: No magnet, no rail
MXJ16L-50ZGBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: Magnet and switch rail
MXJ16L-50ZGNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, both | Switch rail: No magnet, no rail
MXJ16L-50ZHBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZHNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, extend | Switch rail: No magnet, no rail
MXJ16L-50ZJBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZJNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Shock absorber, retract | Switch rail: No magnet, no rail
MXJ16L-50ZKBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: Magnet and switch rail
MXJ16L-50ZKNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, both | Switch rail: No magnet, no rail
MXJ16L-50ZLBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: Magnet and switch rail
MXJ16L-50ZLNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, extend | Switch rail: No magnet, no rail
MXJ16L-50ZMBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: Magnet and switch rail
MXJ16L-50ZMNBore: ø16 mm | Type: Symmetric | Stroke: 50 mm | Adjuster: Metal stopper, retract | Switch rail: No magnet, no rail

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
