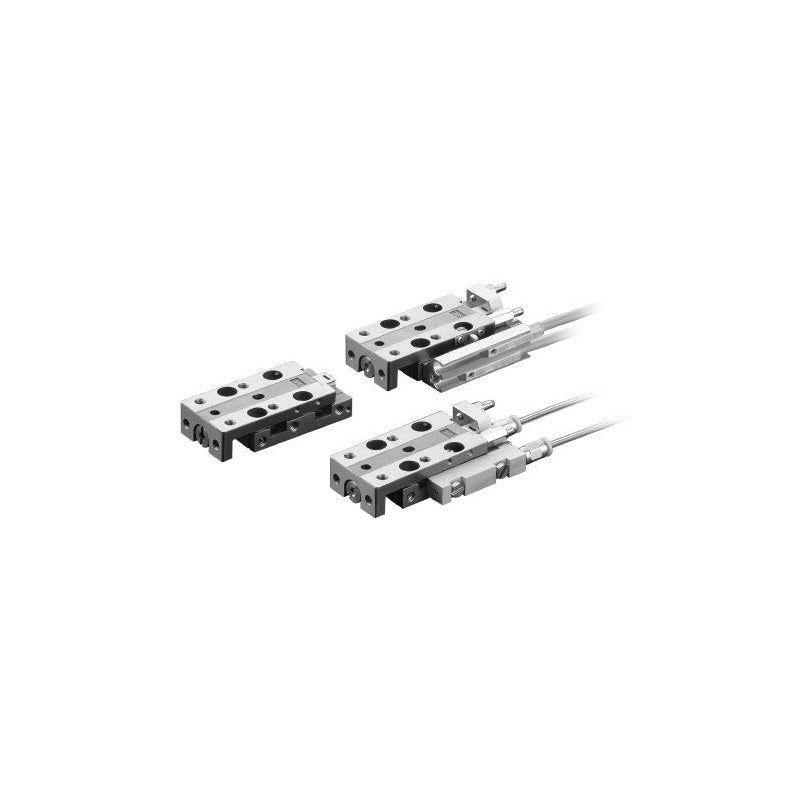

SMC MXJ Precision Air Slide Table (ø4.5, ø6, ø8)

SMC MXJ Precision Air Slide Table (ø4.5, ø6, ø8)

SMC MXJ series miniature precision air slide table, MXJ4/MXJ6/MXJ8 (ø4.5, ø6, ø8 mm bore), in standard or symmetric type with optional metal stopper adjusters.

Key features

  • High-precision linear guide: travel parallelism 0.005 mm; compact height from 10 mm
  • Standard or symmetric (L) type for mirror-image layouts
  • Metal stopper adjustment unit at extend end (CS), retract end (CT) or both ends (C), adjustable 0 to 5 mm per end
  • Side ported as standard or axial ported (P); with magnet and switch rail as standard or without (N)
  • Auto switches (D-M9N/M9P/M9B, 2-colour D-M9W, water-resistant D-M9A, reed D-A9), lead wire length (M/L/Z) and switch quantity (S/n) are ordered as a suffix, e.g. -M9BW
  • Clean series (11-MXJ) and made to order FKM seals (-X39) and rust-resistant guide (-X42) available

Specifications

Action Double acting
Fluid Air
Port M3x0.5
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s (metal stopper 50 to 200 mm/s)
Cushion Rubber cushion (none with metal stopper)
Lubrication Not required (non-lube)
Stroke length tolerance +1/0 mm
Source SMC Korea catalog MXJ ø4-ø8 (SMCKR_MXJ.pdf), p. 397-398 (PDF p. 5-6)
MXJ4-5 Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5N Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5P Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5PN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5CS Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CSN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CSP Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CSPN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5CT Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CTN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CTP Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CTPN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5C Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CP Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CPN Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10 Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10N Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10P Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10PN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10CS Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CSN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CSP Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CSPN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10CT Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CTN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CTP Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CTPN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10C Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CP Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CPN Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5 Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5N Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5P Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5PN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5CS Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CSN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CSP Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CSPN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5CT Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CTN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CTP Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CTPN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5C Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CP Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CPN Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10 Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10N Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10P Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10PN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10CS Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CSN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CSP Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CSPN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10CT Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CTN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CTP Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CTPN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10C Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CP Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CPN Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5 Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5N Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5P Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5PN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5CS Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CSN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CSP Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CSPN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5CT Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CTN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CTP Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CTPN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5C Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CP Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CPN Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10 Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10N Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10P Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10PN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10CS Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CSN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CSP Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CSPN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10CT Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CTN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CTP Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CTPN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10C Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CP Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CPN Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15 Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15N Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15P Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15PN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15CS Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CSN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CSP Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CSPN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15CT Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CTN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CTP Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CTPN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15C Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CP Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CPN Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5 Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5N Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5P Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5PN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5CS Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CSN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CSP Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CSPN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5CT Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CTN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CTP Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CTPN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5C Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CP Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CPN Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10 Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10N Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10P Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10PN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10CS Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CSN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CSP Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CSPN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10CT Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CTN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CTP Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CTPN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10C Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CP Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CPN Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15 Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15N Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15P Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15PN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15CS Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CSN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CSP Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CSPN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15CT Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CTN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CTP Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CTPN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15C Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CP Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CPN Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5 Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5N Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5P Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5PN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5CS Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CSN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CSP Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CSPN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5CT Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CTN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CTP Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CTPN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5C Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CP Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CPN Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10 Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10N Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10P Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10PN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10CS Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CSN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CSP Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CSPN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10CT Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CTN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CTP Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CTPN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10C Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CP Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CPN Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15 Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15N Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15P Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15PN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15CS Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CSN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CSP Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CSPN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15CT Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CTN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CTP Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CTPN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15C Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CP Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CPN Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20 Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20N Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20P Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20PN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20CS Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CSN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CSP Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CSPN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20CT Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CTN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CTP Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CTPN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20C Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CP Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CPN Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5 Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5N Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5P Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5PN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5CS Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CSN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CSP Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CSPN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5CT Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CTN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CTP Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CTPN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5C Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CP Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CPN Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10 Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10N Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10P Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10PN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10CS Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CSN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CSP Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CSPN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10CT Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CTN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CTP Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CTPN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10C Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CP Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CPN Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15 Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15N Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15P Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15PN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15CS Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CSN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CSP Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CSPN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15CT Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CTN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CTP Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CTPN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15C Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CP Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CPN Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20 Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20N Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20P Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20PN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20CS Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CSN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CSP Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CSPN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20CT Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CTN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CTP Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CTPN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20C Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CP Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CPN Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
Slide TablesSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC MXJ Precision Air Slide Table (ø4.5, ø6, ø8)

Brand SMC·Slide Tables

Available part numbers (288)

MXJ4-5, MXJ4-5N, MXJ4-5P, MXJ4-5PN, MXJ4-5CS, MXJ4-5CSN, MXJ4-5CSP, MXJ4-5CSPN, MXJ4-5CT, MXJ4-5CTN + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXJ4-5Size: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5NSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5PSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5PNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5CSSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CSNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CSPSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CSPNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5CTSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CTNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CTPSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CTPNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-5CSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-5CNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-5CPSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-5CPNSize: MXJ4 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10Size: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10NSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10PSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10PNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10CSSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CSNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CSPSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CSPNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10CTSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CTNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CTPSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CTPNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4-10CSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4-10CNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4-10CPSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4-10CPNSize: MXJ4 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5Size: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5NSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5PSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5PNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5CSSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CSNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CSPSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CSPNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5CTSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CTNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CTPSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CTPNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-5CSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-5CNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-5CPSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-5CPNSize: MXJ4 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10Size: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10NSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10PSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10PNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10CSSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CSNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CSPSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CSPNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10CTSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CTNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CTPSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CTPNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ4L-10CSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ4L-10CNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ4L-10CPSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ4L-10CPNSize: MXJ4 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5Size: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5NSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5PSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5PNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5CSSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CSNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CSPSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CSPNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5CTSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CTNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CTPSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CTPNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-5CSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-5CNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-5CPSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-5CPNSize: MXJ6 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10Size: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10NSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10PSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10PNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10CSSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CSNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CSPSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CSPNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10CTSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CTNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CTPSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CTPNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-10CSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-10CNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-10CPSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-10CPNSize: MXJ6 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15Size: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15NSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15PSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15PNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15CSSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CSNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CSPSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CSPNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15CTSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CTNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CTPSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CTPNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6-15CSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6-15CNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6-15CPSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6-15CPNSize: MXJ6 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5Size: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5NSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5PSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5PNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5CSSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CSNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CSPSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CSPNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5CTSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CTNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CTPSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CTPNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-5CSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-5CNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-5CPSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-5CPNSize: MXJ6 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10Size: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10NSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10PSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10PNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10CSSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CSNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CSPSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CSPNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10CTSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CTNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CTPSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CTPNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-10CSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-10CNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-10CPSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-10CPNSize: MXJ6 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15Size: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15NSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15PSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15PNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15CSSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CSNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CSPSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CSPNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15CTSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CTNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CTPSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CTPNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ6L-15CSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ6L-15CNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ6L-15CPSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ6L-15CPNSize: MXJ6 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5Size: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5NSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5PSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5PNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5CSSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CSNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CSPSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CSPNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5CTSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CTNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CTPSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CTPNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-5CSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-5CNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-5CPSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-5CPNSize: MXJ8 | Type: Standard | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10Size: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10NSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10PSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10PNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10CSSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CSNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CSPSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CSPNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10CTSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CTNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CTPSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CTPNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-10CSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-10CNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-10CPSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-10CPNSize: MXJ8 | Type: Standard | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15Size: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15NSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15PSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15PNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15CSSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CSNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CSPSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CSPNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15CTSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CTNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CTPSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CTPNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-15CSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-15CNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-15CPSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-15CPNSize: MXJ8 | Type: Standard | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20Size: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20NSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20PSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20PNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20CSSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CSNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CSPSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CSPNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20CTSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CTNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CTPSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CTPNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8-20CSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8-20CNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8-20CPSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8-20CPNSize: MXJ8 | Type: Standard | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5Size: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5NSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5PSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5PNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5CSSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CSNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CSPSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CSPNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5CTSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CTNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CTPSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CTPNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-5CSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-5CNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-5CPSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-5CPNSize: MXJ8 | Type: Symmetric | Stroke: 5 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10Size: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10NSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10PSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10PNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10CSSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CSNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CSPSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CSPNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10CTSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CTNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CTPSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CTPNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-10CSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-10CNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-10CPSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-10CPNSize: MXJ8 | Type: Symmetric | Stroke: 10 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15Size: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15NSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15PSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15PNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15CSSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CSNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CSPSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CSPNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15CTSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CTNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CTPSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CTPNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-15CSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-15CNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-15CPSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-15CPNSize: MXJ8 | Type: Symmetric | Stroke: 15 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20Size: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20NSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20PSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20PNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: None | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20CSSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CSNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CSPSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CSPNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, extend end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20CTSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CTNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CTPSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CTPNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, retract end | Piping: Axial ported | Switch rail: No magnet, no rail
MXJ8L-20CSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: Magnet and switch rail
MXJ8L-20CNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Side ported | Switch rail: No magnet, no rail
MXJ8L-20CPSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: Magnet and switch rail
MXJ8L-20CPNSize: MXJ8 | Type: Symmetric | Stroke: 20 mm | Adjuster: Metal stopper, both ends | Piping: Axial ported | Switch rail: No magnet, no rail

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
